Spektrum Firma 3530 2200KV 14P Outrunner BL Motors: 3.175MM

Firma 3530 2200KV 14P Outrunner BL Motors: 3.175MM Firma sensorless outruner motor developed for 1/10 scale crawlers and scalers

Product Details

In The Box
Firma 3530-2200Kv 12-Pole Outrunner Brushless Motor, 3.175mm: 1

Firma 3530 2200KV 14P Outrunner BL Motors: 3.175MM Overview

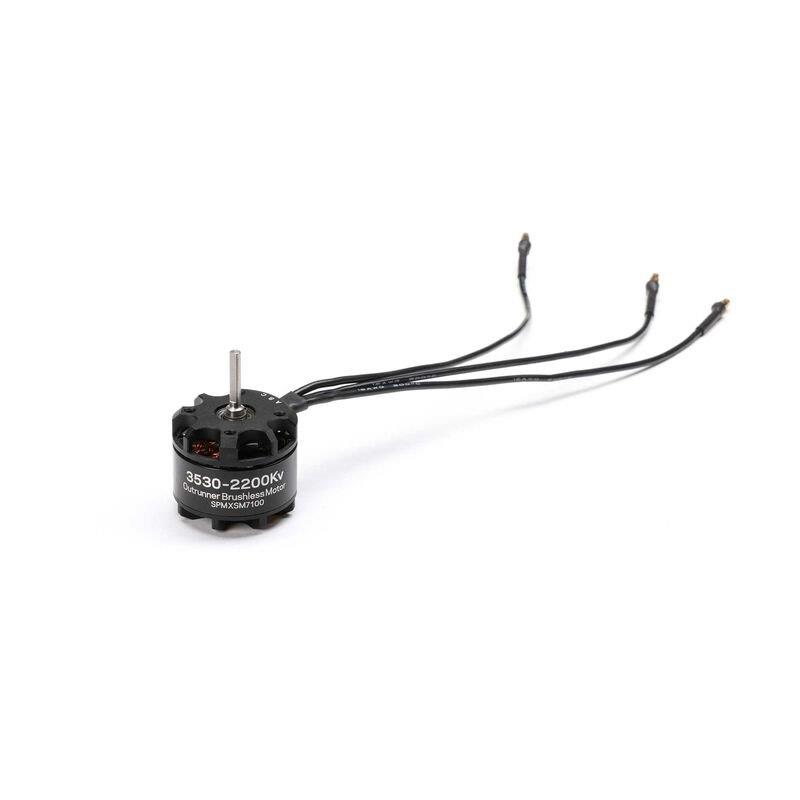

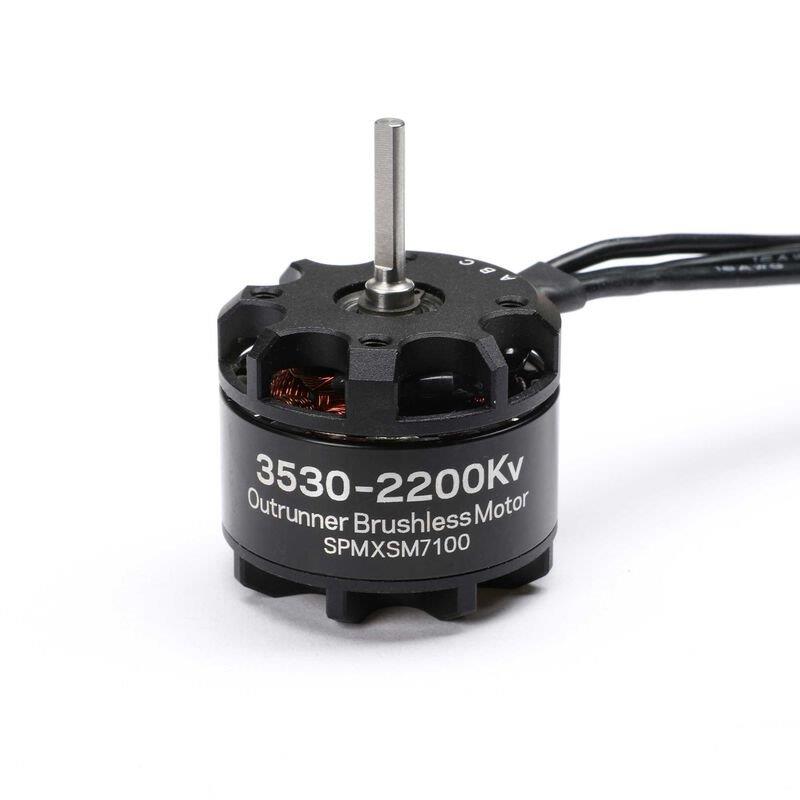

The Spektrum® Firma™ 3530 2200Kv Brushless Motor is a great choice for 1/10 rock crawler models running on 2-3S LiPo power. This motor features a 12-pole rotor design, CNC machined aluminum housing, insulated high purity copper windings, and high-quality alloy steel 3.175mm (1/8 in.) output shaft for durability and smooth rotation. The motor includes preinstalled 3.5mm gold-plated bullet connectors for easy installation.

• 2-3S LiPo Power Compatible
• 12-Pole Rotor Design
• 3.175mm Output Shaft
• Pre-installed 3.5mm Gold-plated Bullet Connectors

Firma 3530 2200KV 14P Outrunner BL Motors: 3.175MM Product Specs
Connector Type: 3.5mm Bullet
Connector Wire Length: 8.07" (205 mm)
LiPo Compatibility: 2S, 3S
Motor Type: Brushless
Number of Poles: 12
Outer Diameter: 1.37" (35 mm)
Product Length: 1.18" (30 mm)
Product Weight: 100g
RPM/Volt (Kv): 2200Kv
Shaft Diameter: 0.12" (3 mm)
Shaft Length: 0.7" (18 mm)
Voltage: 7.4v - 11.1v
