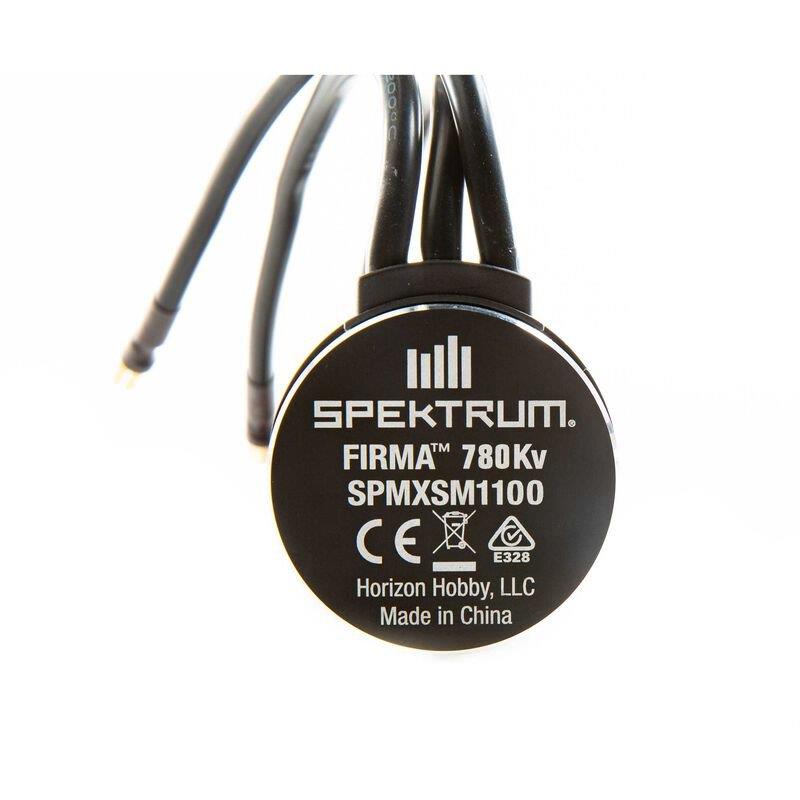

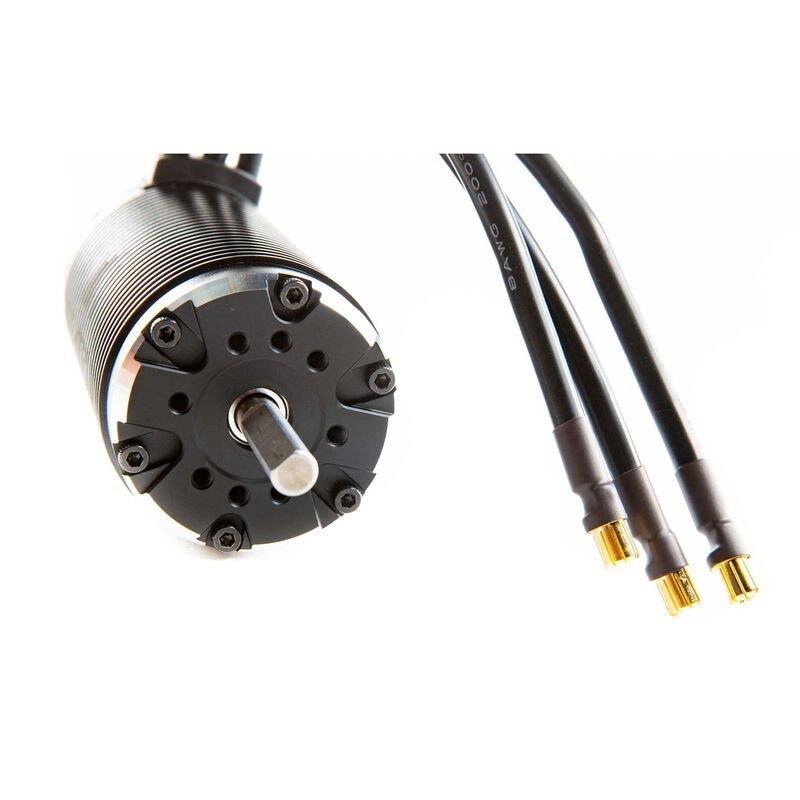

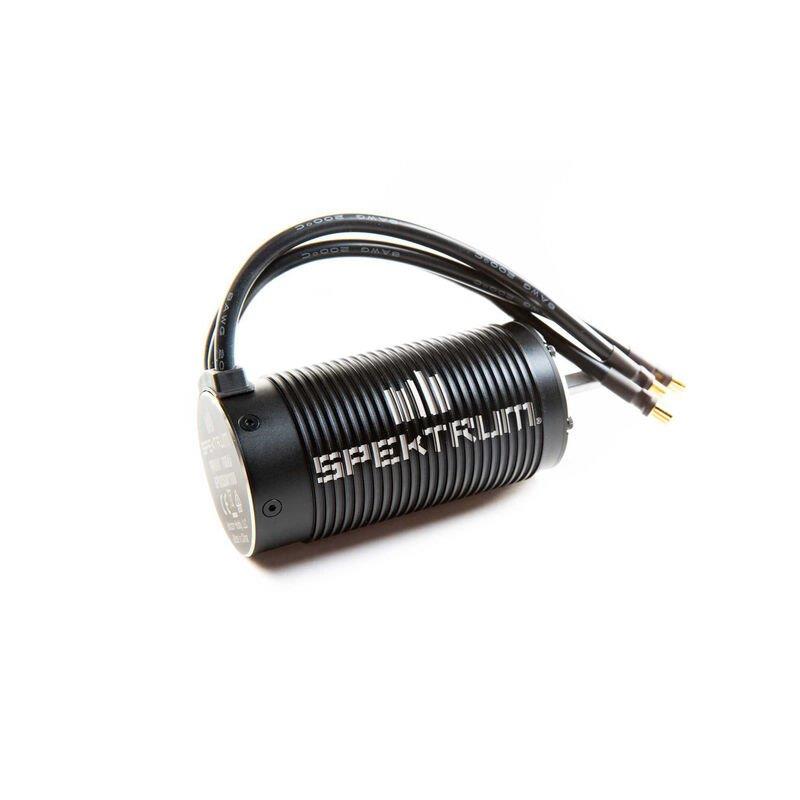

Spektrum Firma 780Kv Brushless Motor, 6.5mm Bullet

Product Details

Key Features
• Heat sinking designed CNC aluminum housing
• 8S LiPo power capable
• Hgh efficiency design
• High-quality 4-pole sintered rotors
• Includes 6.5mm gold plated bullet connectors
• Precision ball bearings and hardened steel 8mm shaft

Overview
Perfect option for 1/5th scale models looking to run a 8S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing with heat sinking fins, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors. Perfectly matched to the Firma 160 Smart ESC.

Needed to Complete
• Electronic Speed Control such as the Firma 160 Smart ESC

What's in the box?
• Spektrum Firma 5613-780Kv Sensorless 1/5 Brushless Motor with 6.5mm Gold Plated Bullet Connectors

Product Specifications:
Bushing Or Bearing: Bearing
Connector Type: 6.5mm Bullet
Efficiency: 90%
Input Voltage: 11.1 - 29.6V (3 - 8S LiPo)
Maximum Continuous Current: 200A
Motor Design: Inrunner
Motor Type: Brushless
Number of Poles: 4
Outer Diameter: 2.2 in (56mm)
Output: 6365W (6S LiPo)
Product Length: 4.45" (113 mm)
Product Weight: 43oz (1220g)
Product Width: 2.2" (56 mm)
Recommended Speed Control: Spektrum Firma 160 Smart ESC
RPM/Volt (Kv): 780Kv
Shaft Diameter: 5/16" (8mm)
Wire Gauge: 10 AWG
