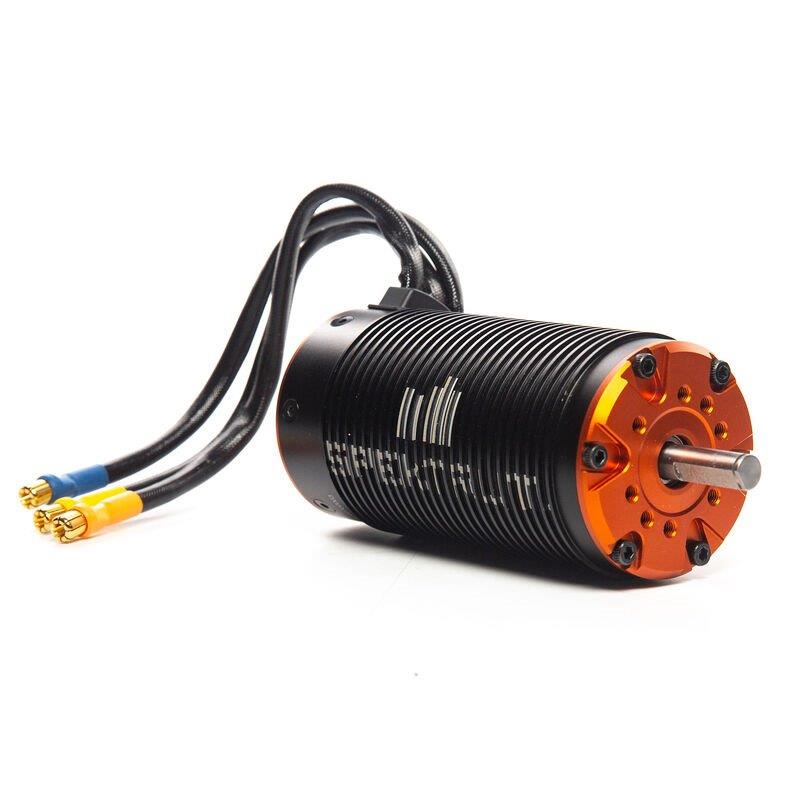

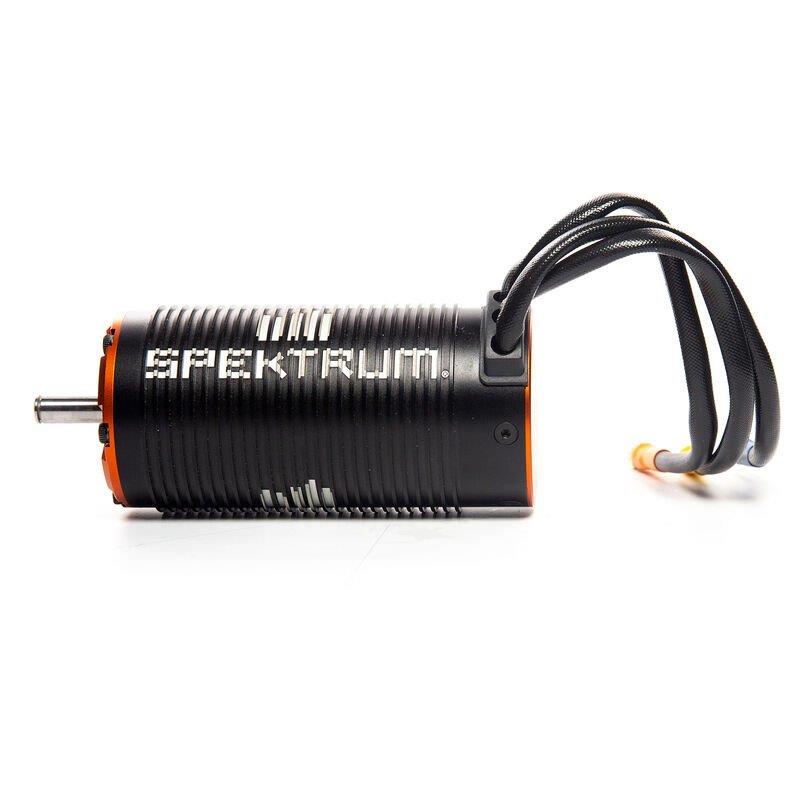

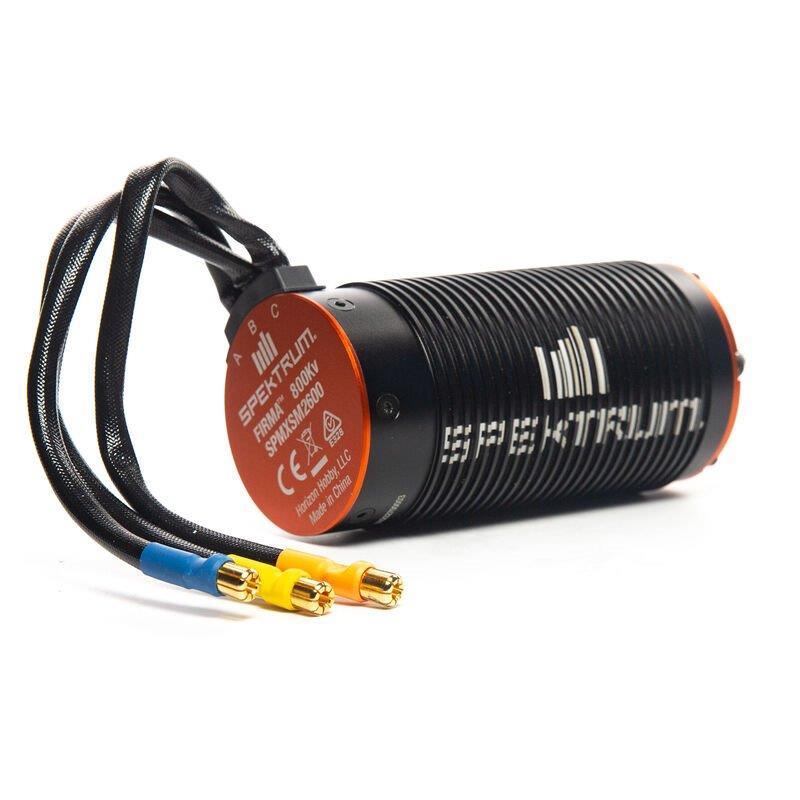

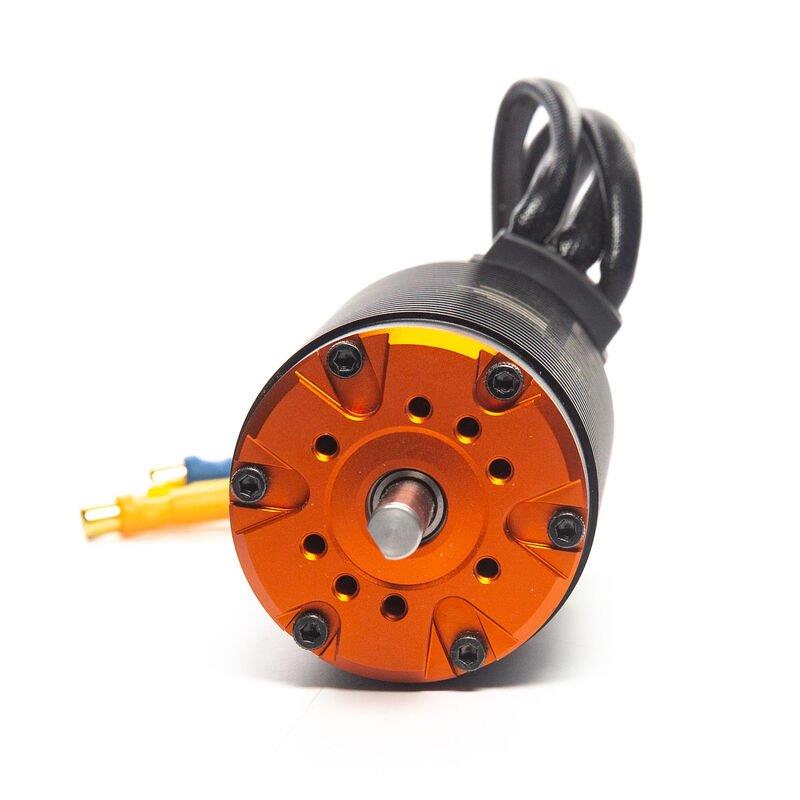

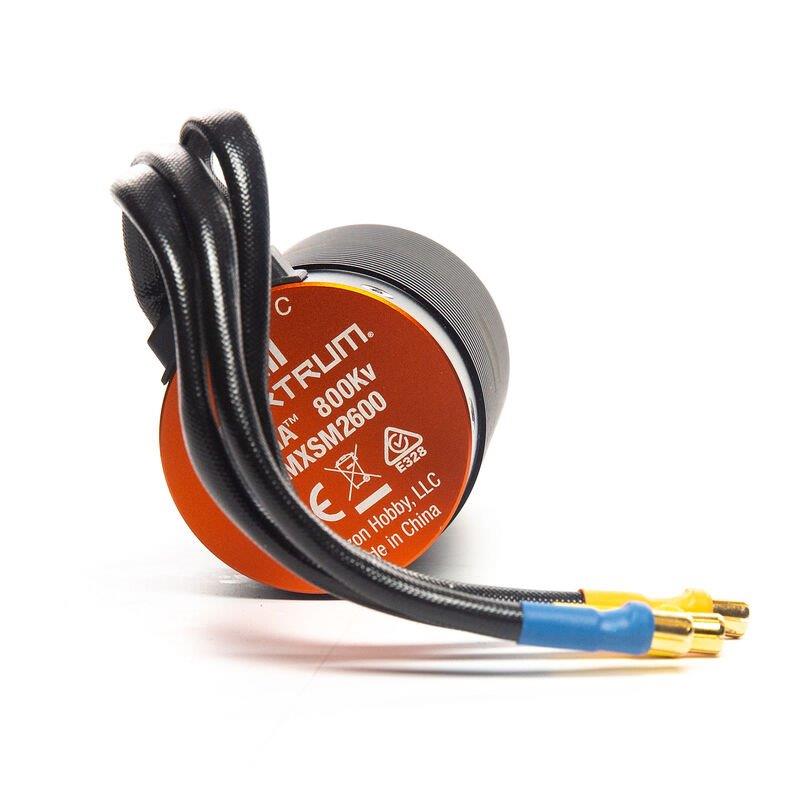

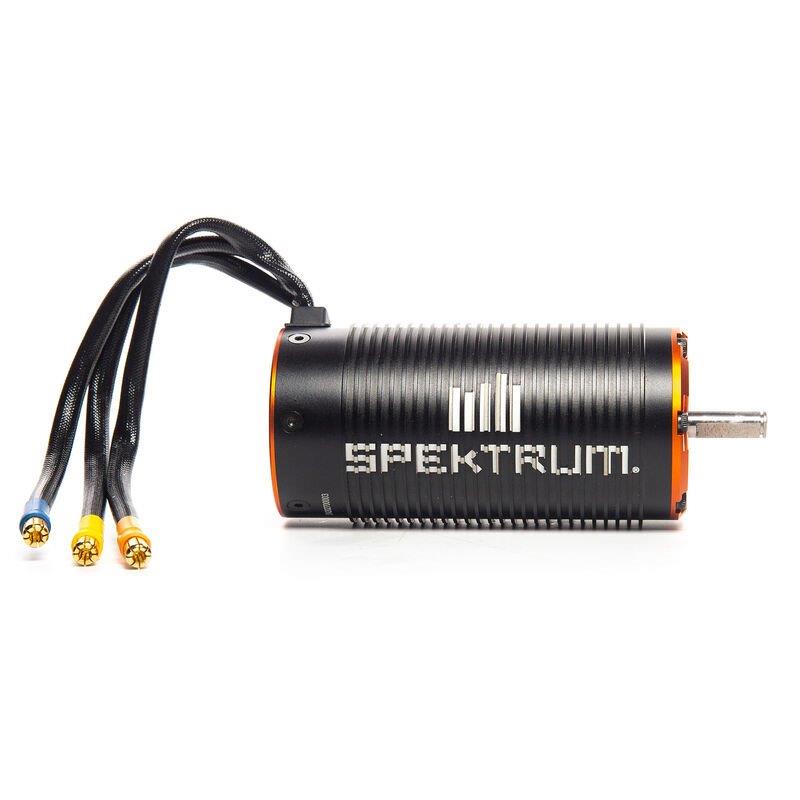

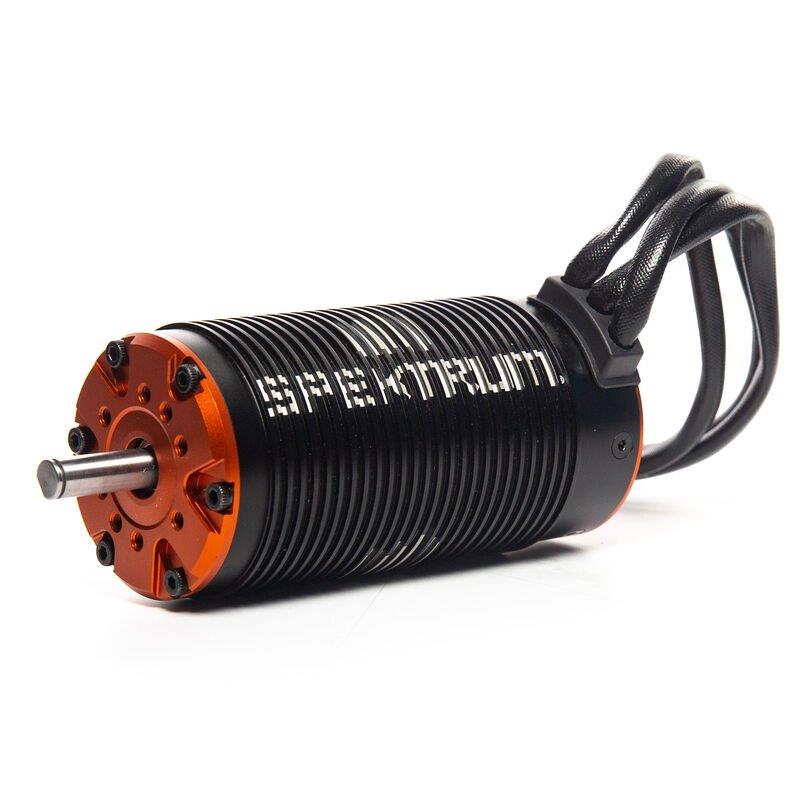

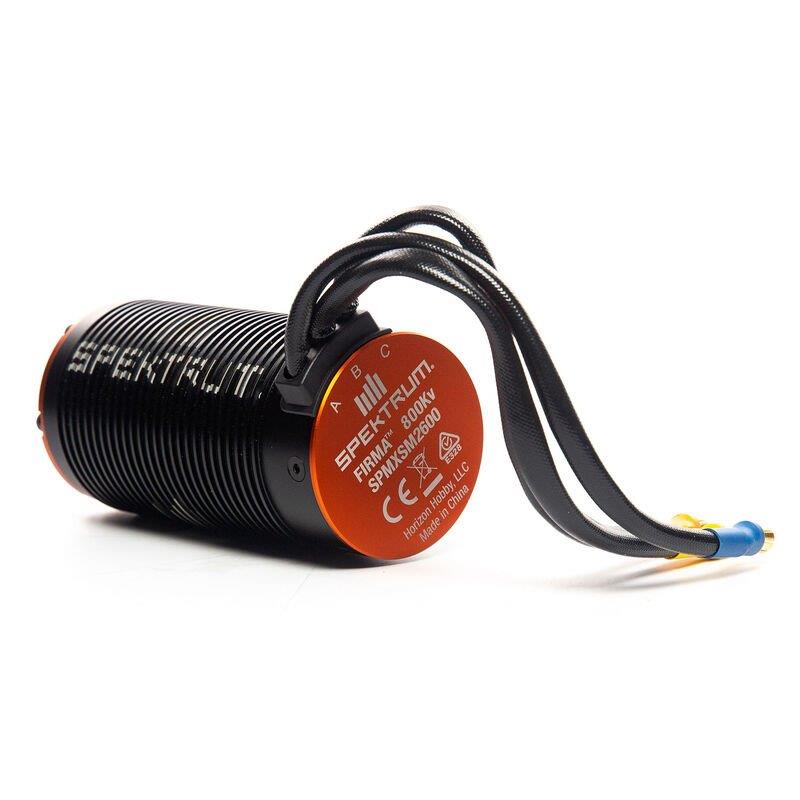

Spektrum Firma 800Kv 4-Pole Brushless Motor
2 869 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSM2600
Product Details
Key Features
Ideal for Arrma Roller Kits and 1/5 Scale Bashers and Monster Trucks Running 3-8S LiPo Batteries
Low Cog 4-Pole Motor Design
Alloy Steel 8mm Output Shaft
In The Box
Firma 800Kv 4-Pole Brushless Motor
Needed to Complete
160A ESC
Overview
The Firma 800Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.
Features
Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
High efficiency design
8S LiPo power capable
High-quality 4-pole sintered rotor
6.5mm gold plated bullet connectors
High-quality construction with precision ball bearings and hardened steel 8mm shaft
Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip
Product Specifications:
Adjustable Timing: No
Application: Arrma Roller Kits
Bushing Or Bearing: Bearing
Connector Type: 6.5mm Bullet
Connector Wire Length: 7.48" (190 mm)
Constant Wattage: 3000W or more
Efficiency: 87%
Input Voltage: 11.1 - 29.6V (3 - 8S)
Integrated ESC: No
Kv Rating: 750-999Kv
Main Motor Type: Brushless
Maximum Continuous Current: 110A
Motor Class: 1/5 Scale
Motor Design: Inrunner
Motor Output Lead: 6.5
Motor Size: 5611
Number of Poles: 4
Outer Diameter: 2.2" (56 mm)
Product Length: 4.4" (112 mm)
Product Weight: 39.86oz (1130g)
Recommended Speed Control: Spektrum Firma 160A Brushless Smart
Resistance: .0049 ohms
RPM/Volt (Kv): 12,475 / 15V
Sensor Type: Sensorless
Shaft Diameter: 0.3" (8 mm)
Shaft Length: 0.867" (22 mm)
