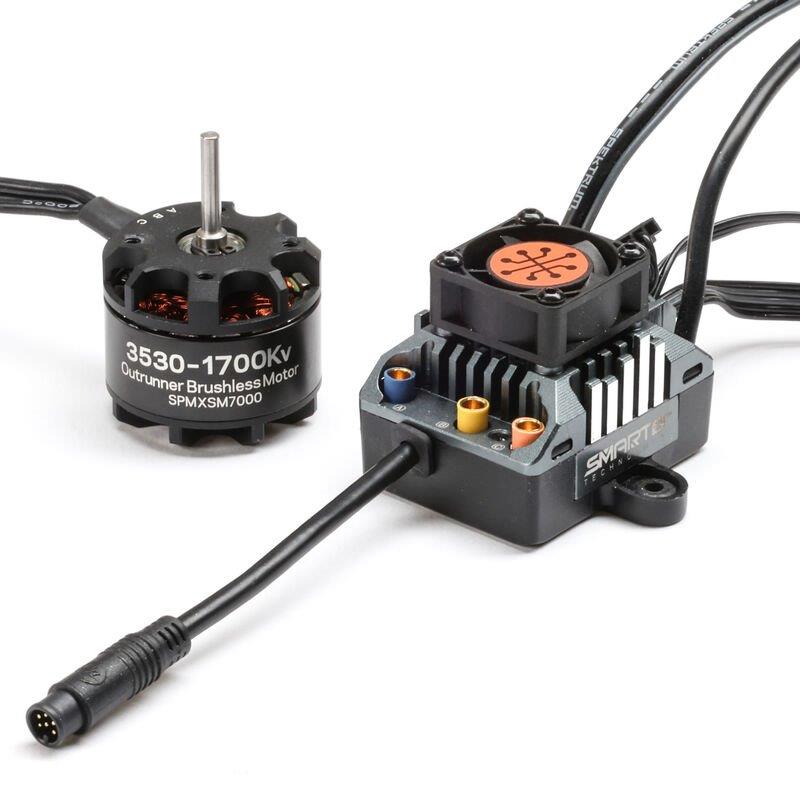

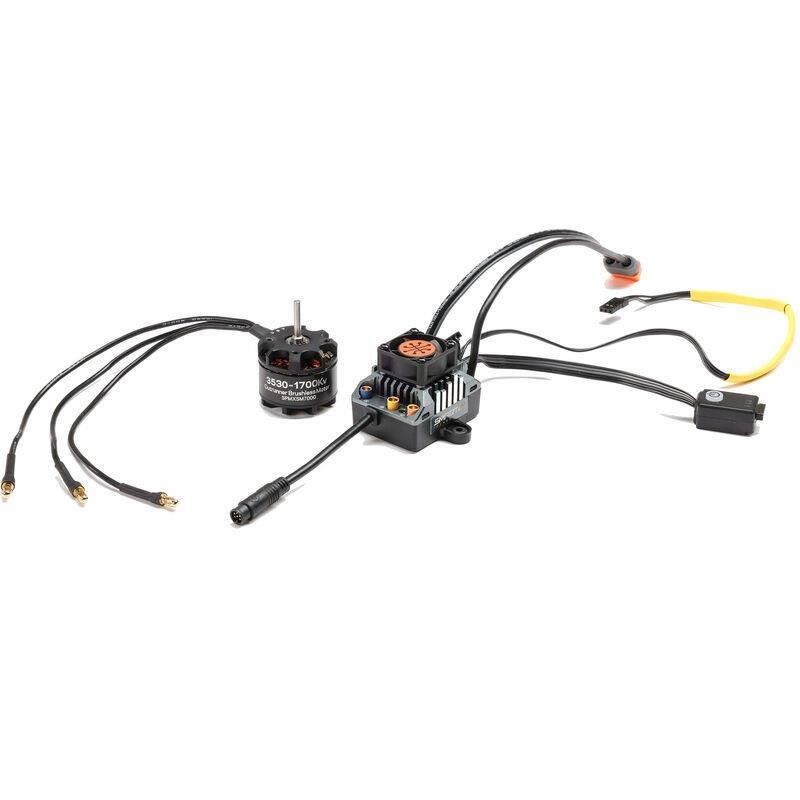

Spektrum Firma80A Sensored/Sensorless ESC 1700Kv Outrunner Brushless Motor Combo

Firma 80A Sensored/Sensorless ESC with Sensorless 1700Kv Outrunner Brushless Motor Combo Smart Sensorless outrunner upgrade system for 1/10th scale crawlers and scalers.

Product Details

In The Box
Firma 80A Brushless Sensored Smart ESC, Outrunner (SPMXSE2060S): 1
Firma 3530-1700Kv 12-Pole Outrunner Brushless Motor, 3.175mm (SPMXSM7000): 1

Firma 80A Sensored/Sensorless ESC with Sensorless 1700Kv Outrunner Brushless Motor Combo Overview

The Spektrum™ 1/10th Scale Smart Sensored-Sensorless ESC + Motor Combo is a great choice for 1/10th scale crawlers and models running on 2S – 4S LiPo power. This 1700Kv motor features a low cog 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed to provide ultra-smooth, low speed control, performance, and high reliability. The motor is preinstalled with 3.5mm gold-plated bullet connectors for easy installation, and perfectly matched for the included Firma 80A Smart ESC. This waterproof, 80A Sensored/sensorless ESC drives your 1/10th scale crawler or scaler through almost any conditions imaginable, with ultra-smooth control, performance, and reliability - while feeding real-time telemetry straight to your Spektrum™ transmitter! This ESC includes the ability to disable drag brake from compatible SPM transmitters.

Firma 80A Sensored/Sensorless ESC with Sensorless 1700Kv Outrunner Brushless Motor Combo Features
• Smart All-In-One Telemetry
• Enable/Disable Drag Brake From Compatible Spektrum Transmitters
• Fast, Powerful 32-Bit ARM M4 Processor
• Multiple Programming Options
• Multi-Point Protection
• Waterproof (See Instructions For Details)
• 2-4S LiPo Power Compatible
• 12-pole Outrunner
• 3.175mm Output Shaft
• Pre-installed 3.5mm Gold-plated Bullet Connectors

Firma 80A Sensored/Sensorless ESC with Sensorless 1700Kv Outrunner Brushless Motor Combo Product Specs
Amperage: 80A
Auto Cutoff: Yes
BEC Voltage: 6V/7.4V at 6A
Connector Type: 3.5mm Bullet, IC3
ESC Type: Sensored Brushless
Forward: Yes
Input Voltage: 2-4S LiPo
LiPo Compatibility: 2S, 4S, 3S
Low-Voltage Cutoff Programmable: Yes
Maximum Burst Current: 360A
Motor Limit: 4S less than 2000Kv, 3S up to 2500Kv
Number of Poles: 12
Overload Protection: Yes
Reverse: Yes
RPM/Volt (Kv): 1700Kv
Shaft Diameter: 3.175" (81 mm)
Shaft Length: 18.5" (470 mm)
Technology: Smart
