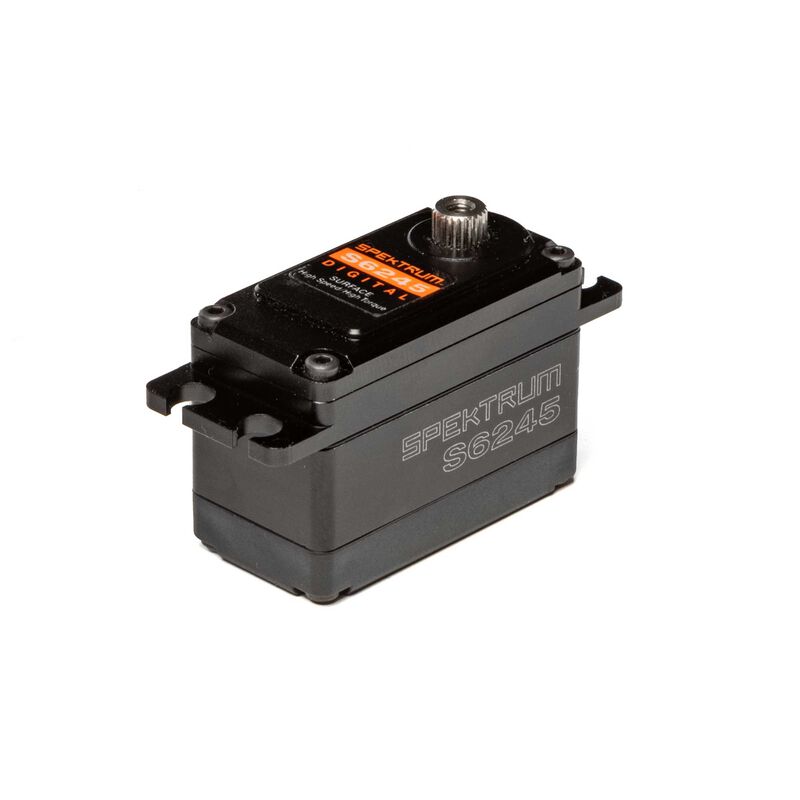

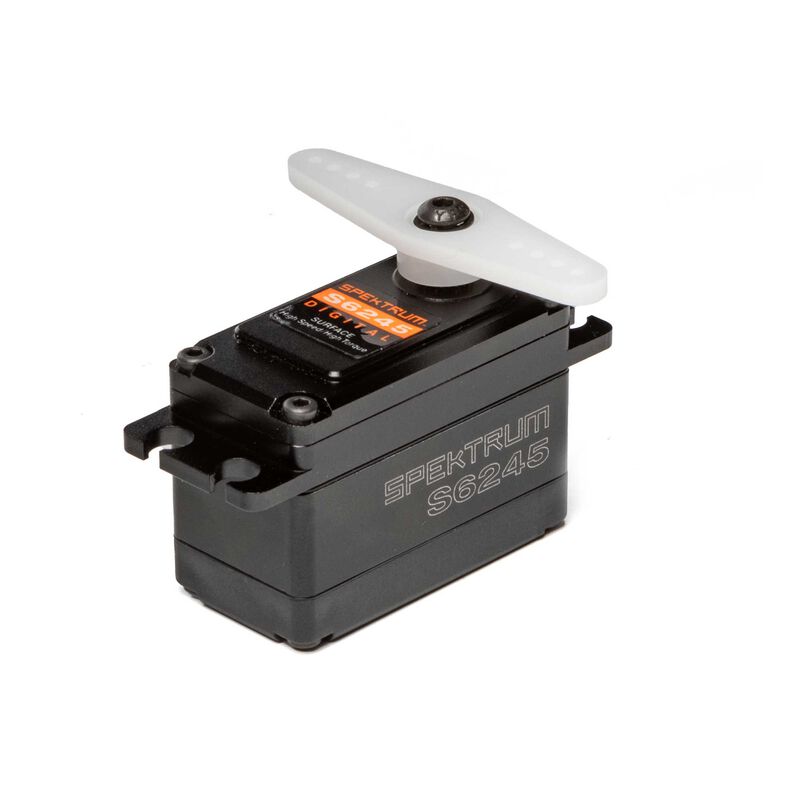

Spektrum S6245 Low Profile Digital High Speed High Torque Surface Servo

The S6245 servo features a black anodized aluminum case for durability and heat dissipation. The low-profile design allows for space saving installation, making it the perfect servo for 1/10 racing buggies and trucks, bashers looking to upgrade their RTR vehicle, or for crawlers that need that extra speed and torque to push through demanding terrain. The 7075 hard anodized aluminum 23-tooth output shaft and gear is matched with steel internal gears for the utmost in durability and precision. Removable wire harness is 2 inches and different lengths are available.

Product Details

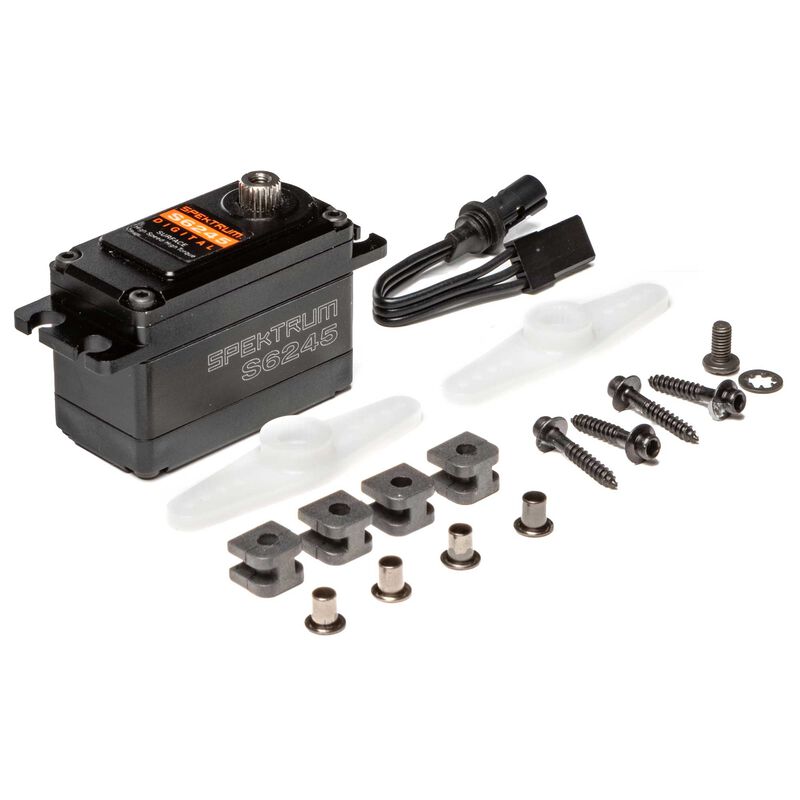

In The Box
Low Profile Digital High Speed High Torque Surface Servo: 1

S6245 Low Profile Digital High Speed High Torque Surface Servo Overview
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th scale vehicle application. The S6245 takes the race winning S6240 servo and upgrades it with a sleek, all aluminum, black anodized finish. The low profile design allows for space saving installation, making it the perfect servo for 1/10 racing buggies and trucks, bashers looking to upgrade their RTR vehicle, or for crawlers that need that extra speed and torque to push through demanding terrain.

S6245 Low Profile Digital High Speed High Torque Surface Servo Features
• Stylish stealth black and silver anodized aluminum case*
• Aluminum case provides great heat dissipation
• High Voltage HV compatible (7.4V/2S Max)*
• Improved torque and speed*
• Removable wire harness with different lengths available
• Improved gear design for added durability*
• 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
• Includes 2 inch extension for easy minimum wire installs
• Robust aluminum mounting tabs
• NMB dual main output shaft bearings
• 23T output shaft
• Waterproof
• 1-Year Limited Warranty

S6245 Low Profile Digital High Speed High Torque Surface Servo Product Specs
Application: Surface
Bearing: Dual
Bushing Or Bearing: Bearing
Connector Wire Length: 2.0 in (51mm)
Gear Type: Metal
Material: Metal
Maximum Servo Torque: 206 oz-in (14.8kg-cm) @ 6V, 266 oz-in (19.2 kg-cm) @ 7.4V
Part Type: Electronics
Product Application: Surface

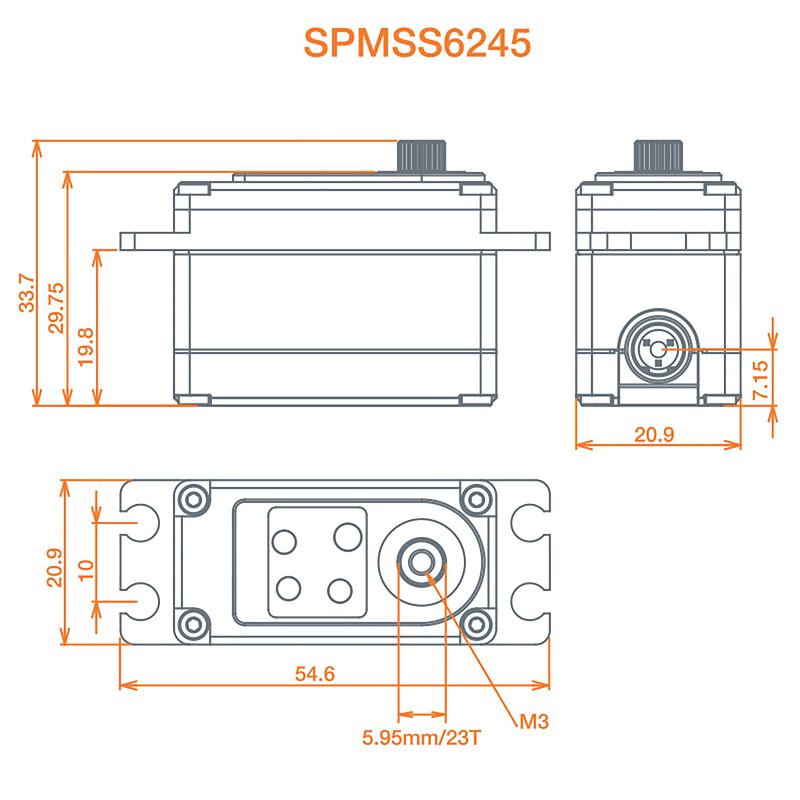

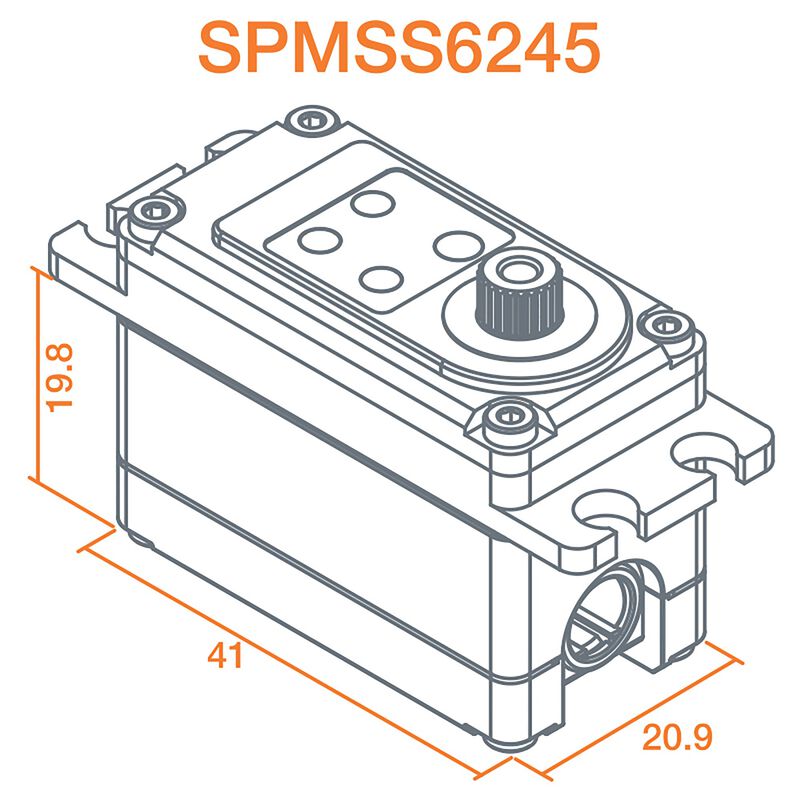

Product Height: 1.18 in (30mm)
Product Length: 1.61 in (41mm)
Product Weight: 2.2oz (62.37g)
Product Width: 0.82 in (20.8mm)
Programmable: No
Servo Operating Voltage: 6.0 - 7.4V (HV)
Servo Size Category: Low Profile
Servo Type: Digital
Type: 6245 1/10
