Beskrivning
Art.nr: JSP100

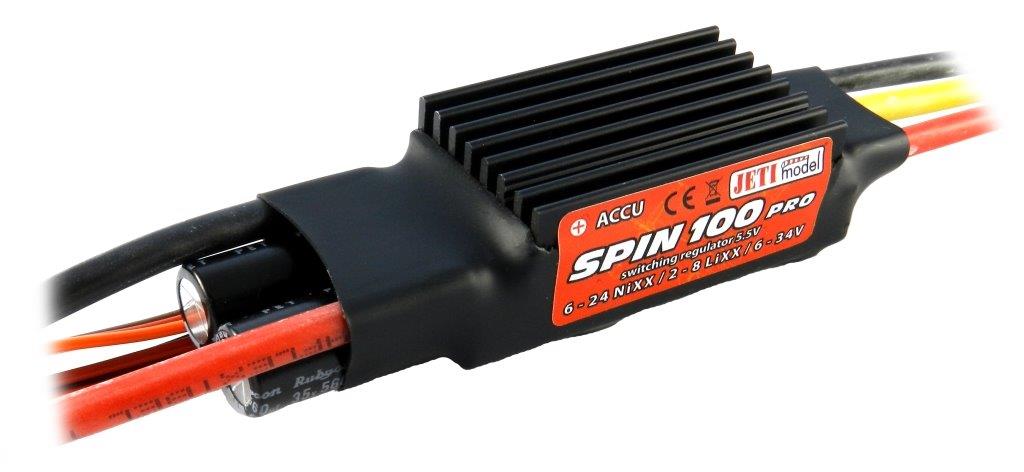

SPIN pro controller include a new type of voltage stabilizer for receiver and servos, the so called switching BEC with an output voltage of 5.5 V. The use of this feature opens the way to the use of BEC for models operating at higher voltages. A significant factor is that the BEC circuit maintains its full current capability right up to the maximum voltage.
Weight [g]: 87
Dimensions [mm]: 75 x 24 x 22
Sustained current [A]: 100
Supply Voltage [V]: 6 to 35
Batteries LiXX: 2 to 8
Max. Current BEC [A]: 5
OPTO (optically separated radio signal from the power management): No
Voltage BEC [V]: 5.5
Telemetry: Yes
Operational temperature [°C]: -10 to 85
Max. number of servos: 8
Batteries NiXX: 6 ... 24
