Art.nr: 5040

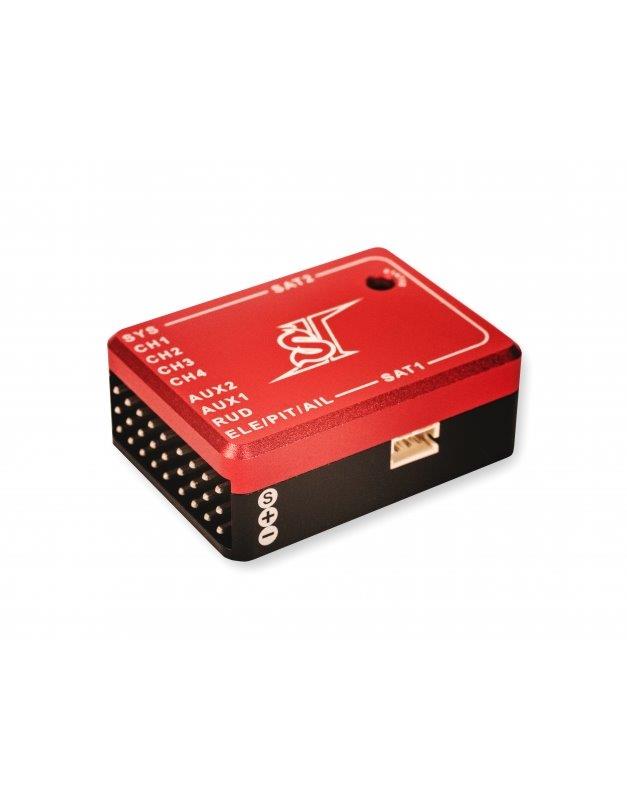

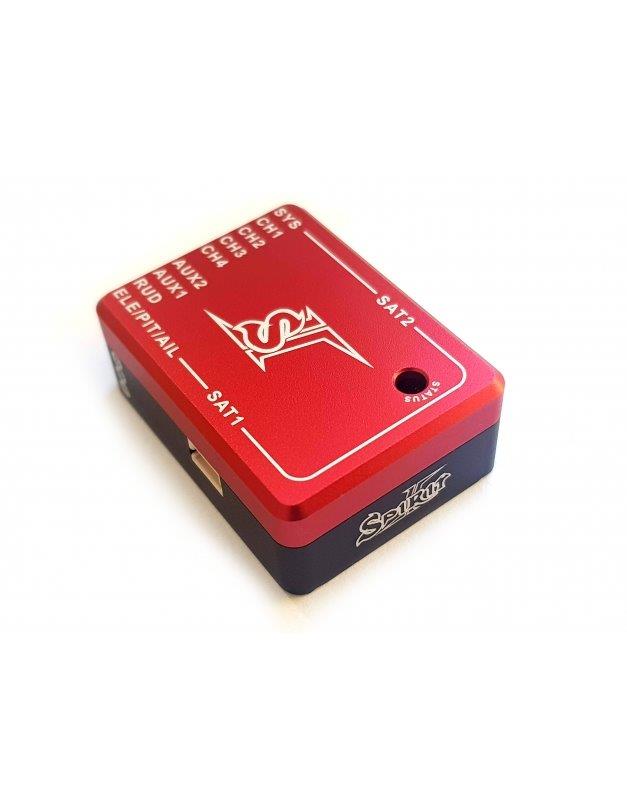

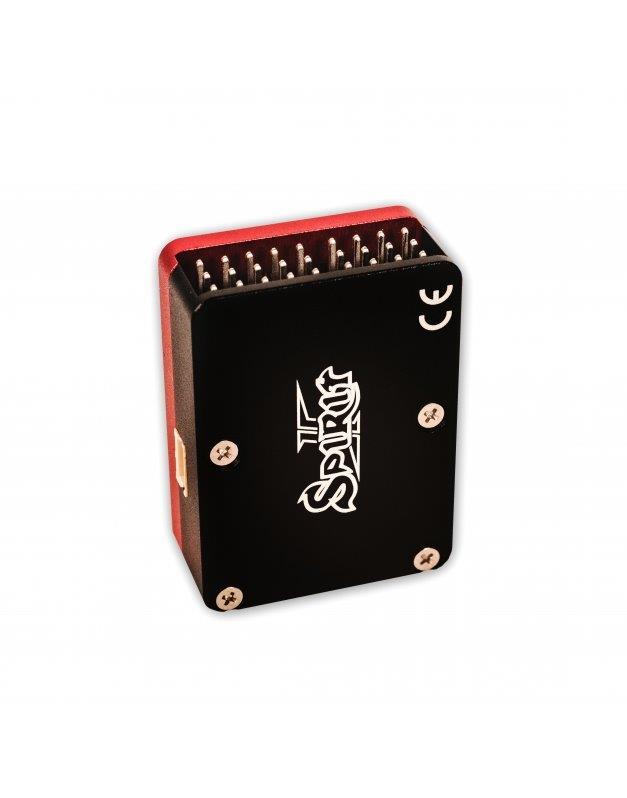

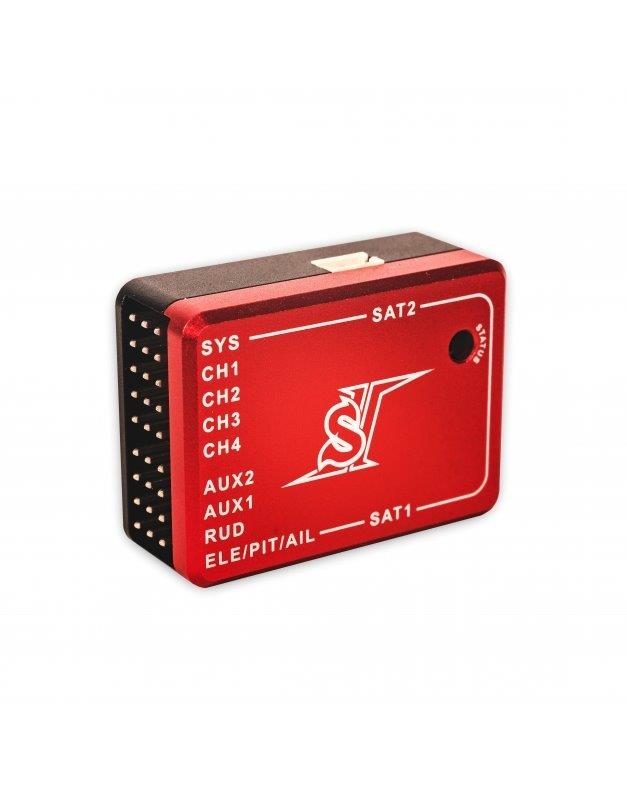

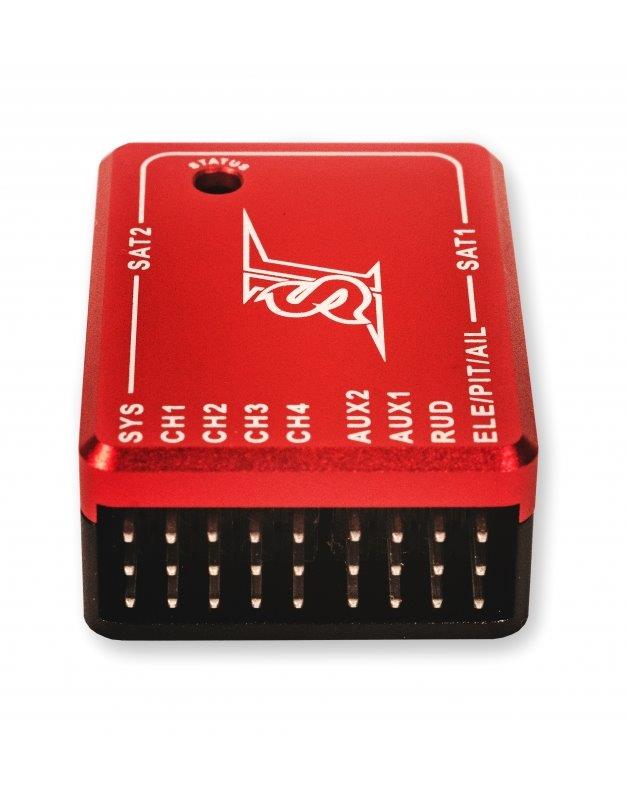

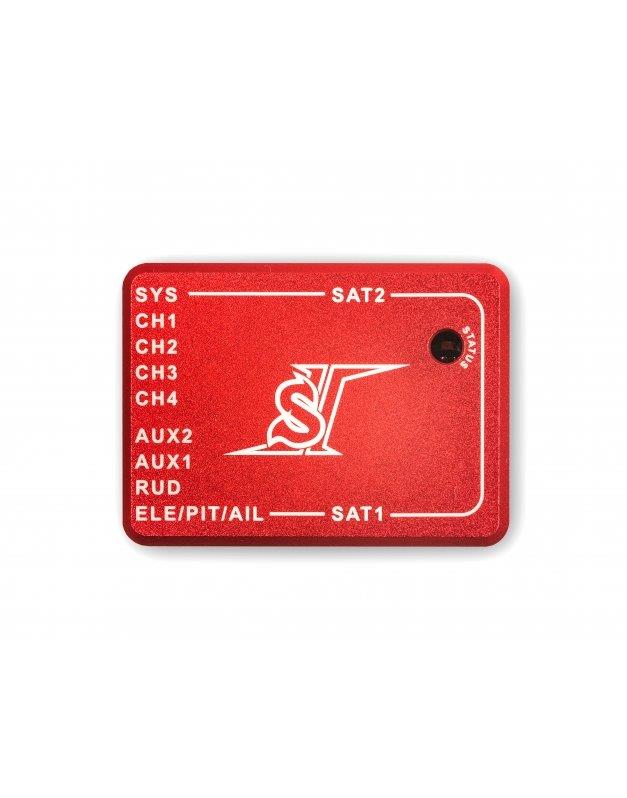

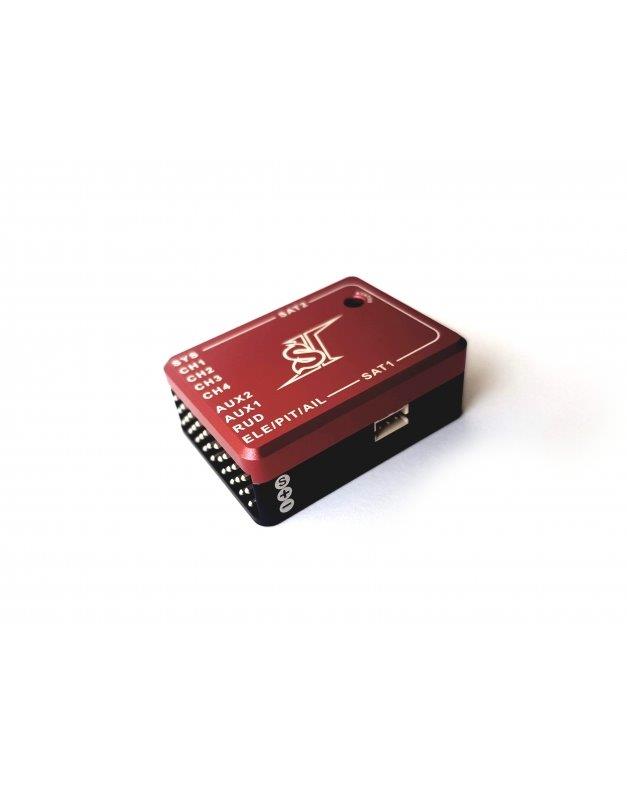

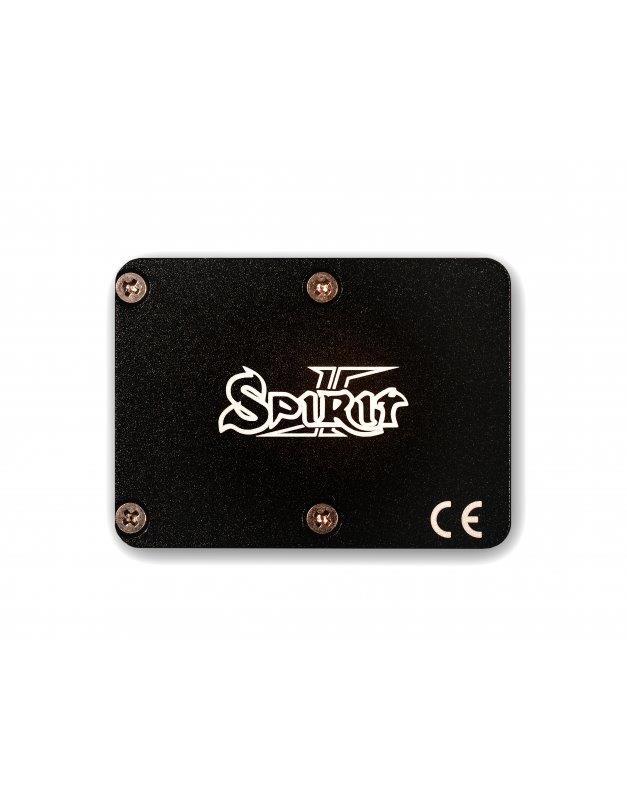

Spirit 2 - Evolution of Spirit. Universal flybarless and stabilisation unit for all models.
Hardware
Very rigid, CNC milled, anodized and sandblasted enclosure
Color: Red and Black, matt
Material: High quality AL6061-T6
Dimension: 36.8x27.15x13.9mm, weight: 19g
Power supply: 3 - 15V @ 25mA
Operating temperature: -10°C to 60°C
Latest generation, Ultra Fast
32bit ARM processor: 210 DMIPS
MEMS sensor with 12-Axis Sensor Fusion
(rotation to 2000°/s !)
Gold plated PCB with Pb-Free soldering
Laser Engraved labels for perfect visibility.
Integrated S-BUS Inverter

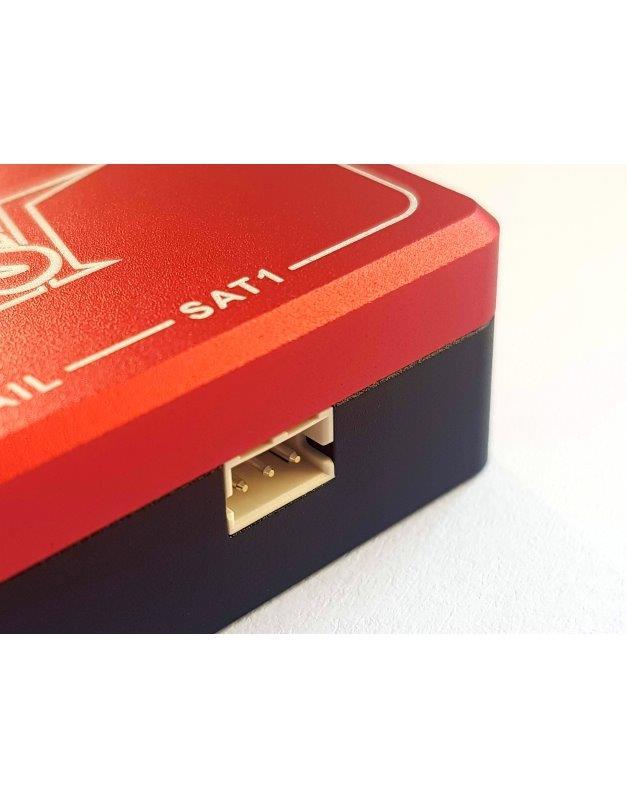

2x native Spektrum connectors
3x connector for power supply, 4x for servos
Revolutionary GeoLink support (GPS, vario, logger)
Spirit Aero support (from 1.4.0 Aero firmware)
All-pin protection
Redundant internal power chain for maximum safety
Excessive tolerance for brown-outs

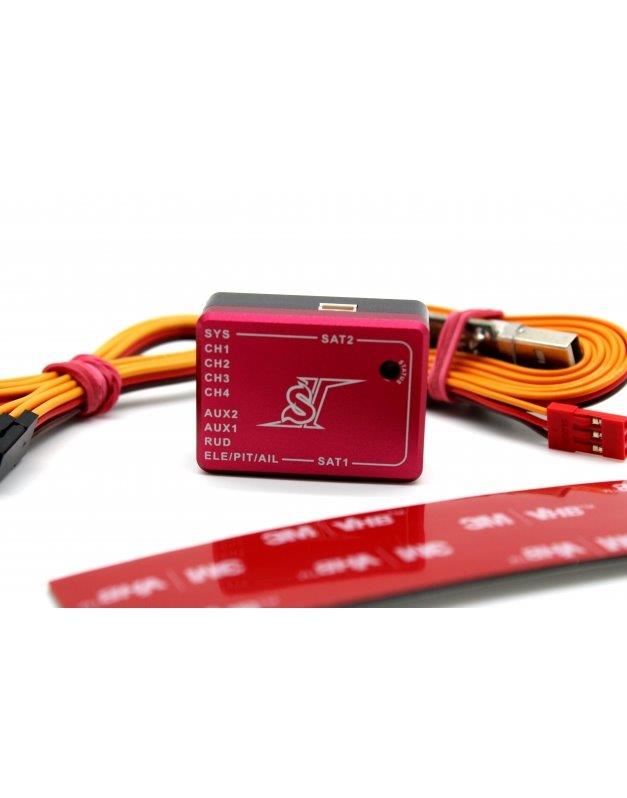

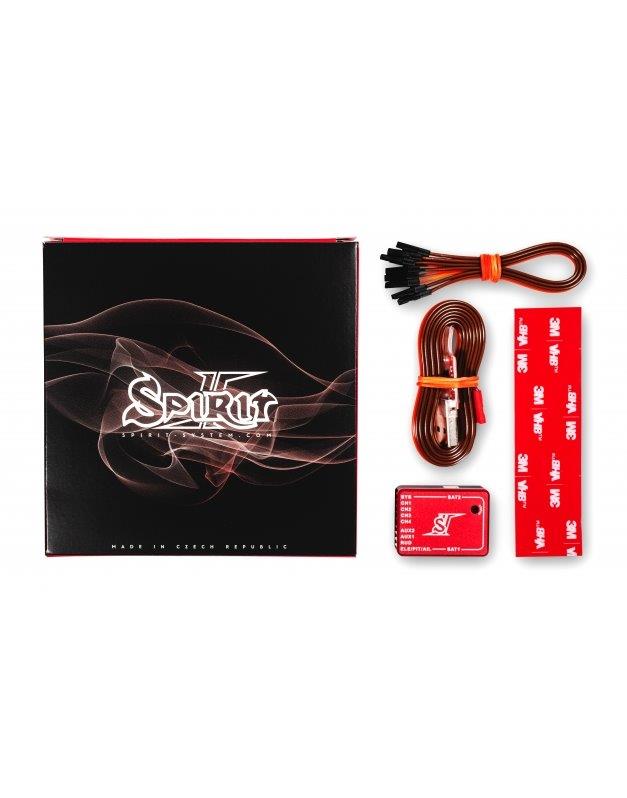

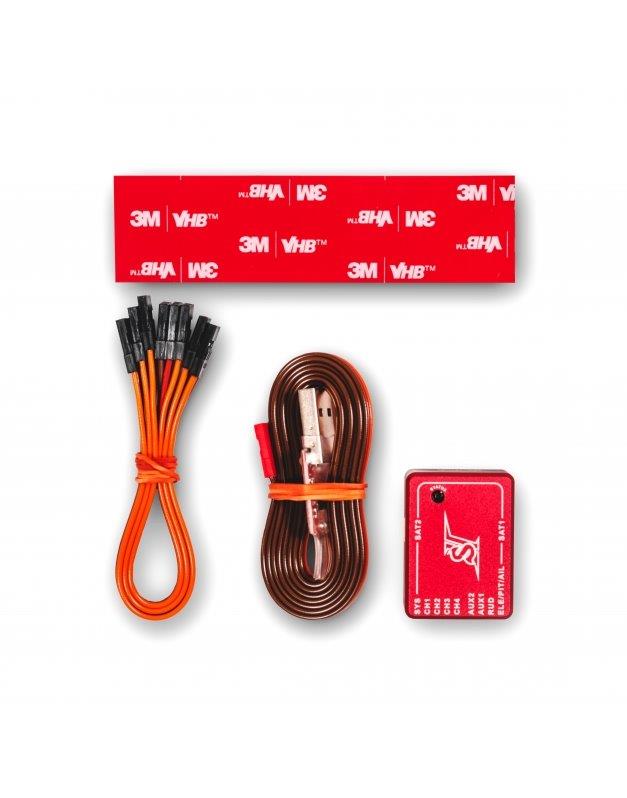

Package content
Spirit 2 unit
USB interface
15cm receiver cables
10cm 3M VHB doublesided adhesive tape
Warranty
2 year warranty for the original purchaser
50% discount for damage replacement of the unit Features
Super-smooth flight control
Paddle simulation with inexpressible feeling
Classic flybar mechanics support
Extreme vibration immunity for all helicopter types
Spectrum analysis for model diagnostics
Flight log with recorded events
Easy configuration with setup wizard
Smartphone or tablet support via Bluetooth and WiFi
(Modules are sold separately)
Spektrum, Jeti, OpenTX and HoTT radio integration
Available for Windows, OSX, Linux, Android, iOS,
WP, SailfishOS, FreeBSD, Raspberry Pi and more
Stabilisation for scale pilots and beginners
Reliable, full-featured rescue system
Integrated Bank Switching
Governor for Electric, Nitro and Gasser Helicopters
BEC tester with load verification
Support for PWM, Futaba S-BUS, PPM,
Spektrum DSM2/DSMX, JETI Duplex EX Bus,
SRXL/Graupner SUMD/JETI UDI/JR X-Bus receivers
Support for all servo types:
1520/960/760us @ 50 - 560Hz
Support for CCPM 90/120/135/140°
