Art.nr: 5043
Spirit GTR - Everything in the exceptional package. Flybarless and stabilisation unit with integrated DUPLEX receiver for pilots with the highest demand.

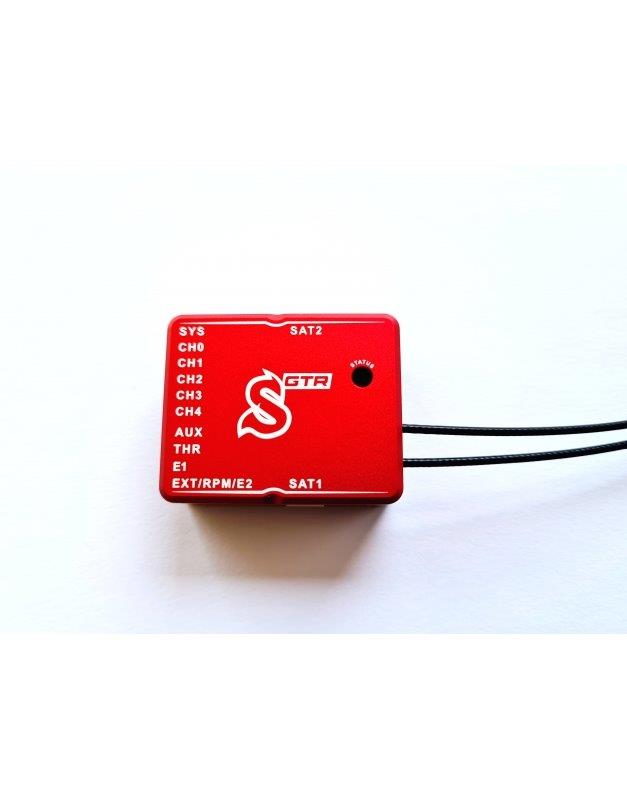

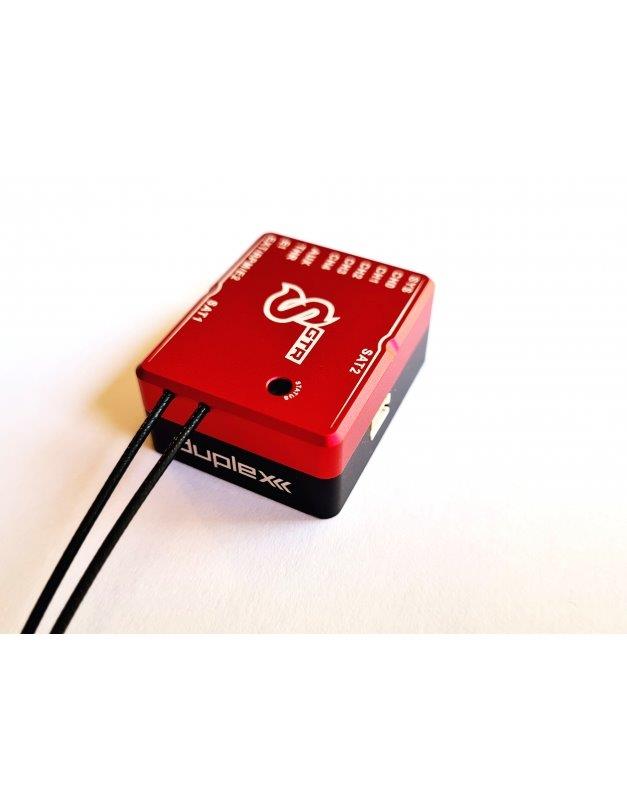

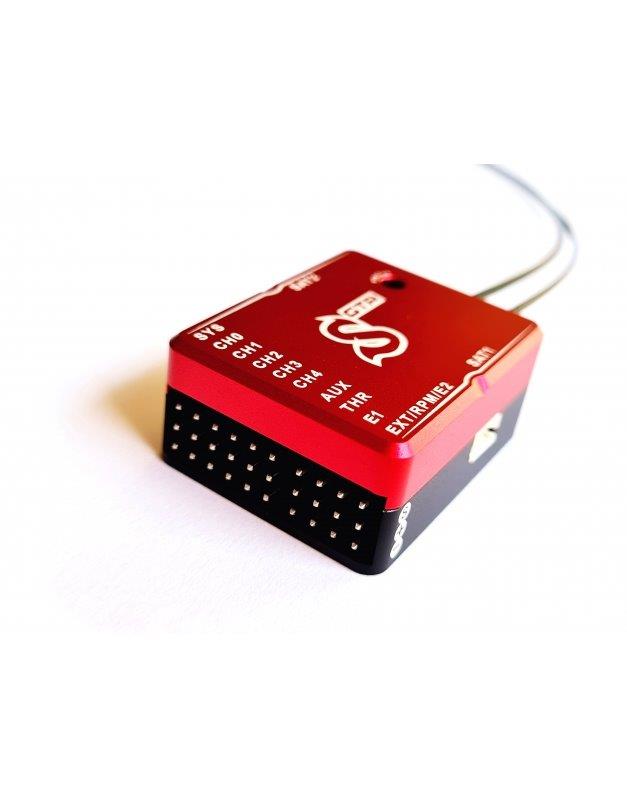

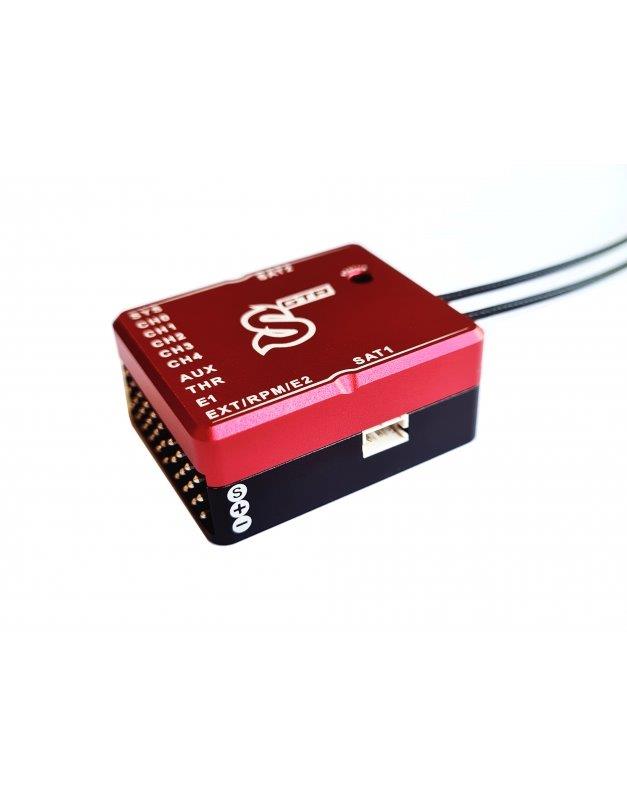

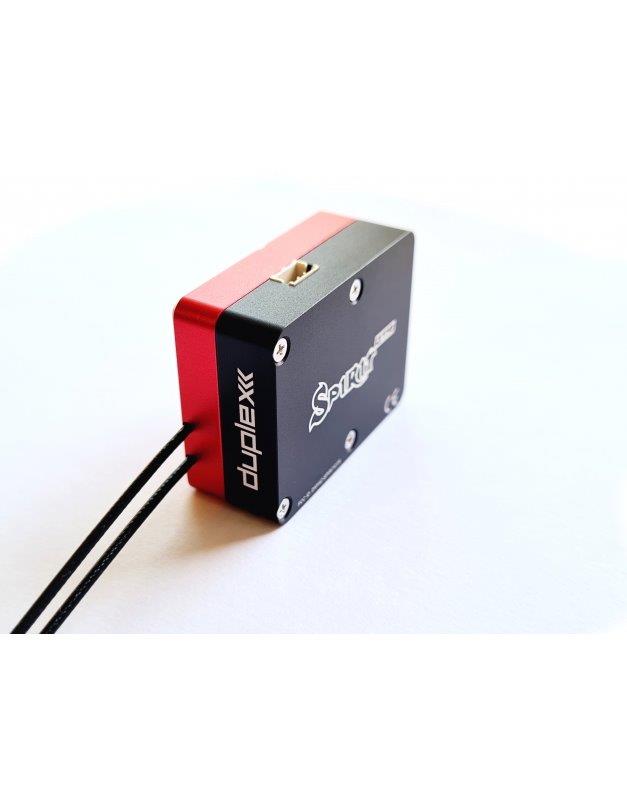

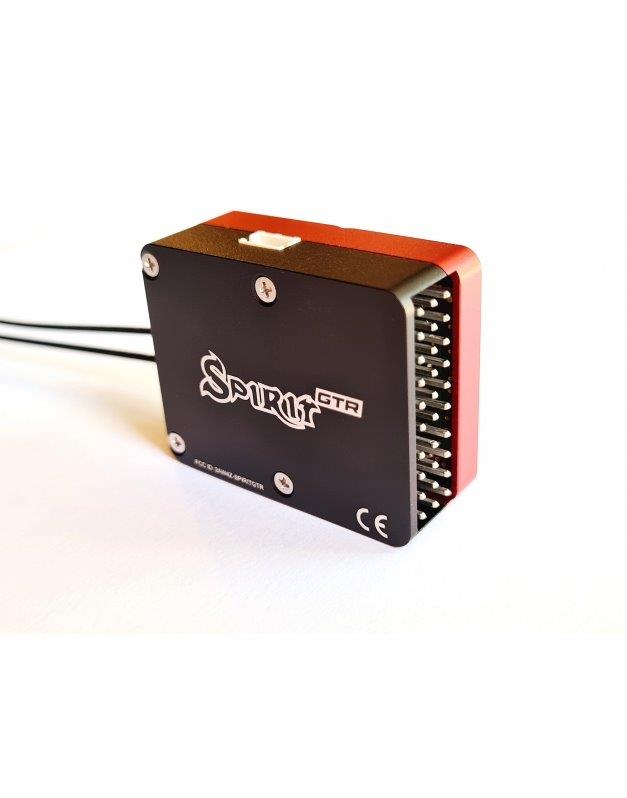

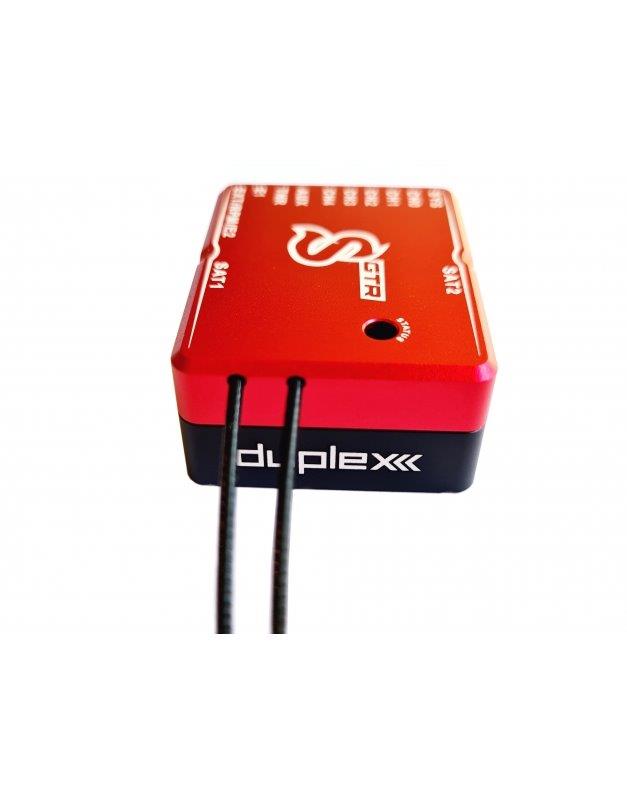

Spirit GTR is brand new stabilisation system for R/C aircrafts featuring control unit and receiver in one extraordinary packageǃ
It combines the best available technologies from both worlds to offer cutting edge experience. In other words, Spirit GTR consists from Spirit GT hardware and JETI Duplex receiver.
Manual available at the Wiki pages.
Outstanding ARM M7 processor
M7 performance-line processor is truly unbelievable! It is 3x faster than M4 and brings amazing features.
This adds free room for any possible math operation allowing to calculate anything imaginable the unit could ever need.
Real-Time Logging capability
Logging of everything - that is now possible for the first time! Until now, logging at 500Hz rate was barely possible. That is not an issue anymore. Thanks to durable Dedicated Memory Chip with long-life!
Version 3.3 will unlock all these capabilities. For the first time in the history, you will be able to see how your model was flying in the air! In 3D graphics.
Pressure Sensor
Yes, it is there and fully embedded. Unparalleled precision of 1 Pascal allow extremely precise altitude measurement . With the innovative algorithms and Sensor Fusion technology the precision goes further down. It can be utilized in a various of ways such as Altitude hold or even Automatic Rescue system.
Industry-leading Motion Sensor
Motion Sensor with 20 bit precision was unimaginable few months ago. Everybody can taste it yourself now.
Superb stability through temperature gradient and Vibration immunity few times better than in any other unit. Antialiasing feature and Spirit algorithms makes the Rescue function Top of the line.
Redundant PowerTrain
With Spirit 2 we have developed separated power supplies for the unit itself and peripherals. Now with Spirit GTR design was enhanced to minimize voltage drops even for a peripherals!
Extensions
Spirit GTR can be extended for basically unlimited servo outputs. If you will ever need to control 8 servos or more, with Spirit GTR it will be possible in very near future.
Servos with telemetry feature will be supported in the upcoming update too.
Hardware

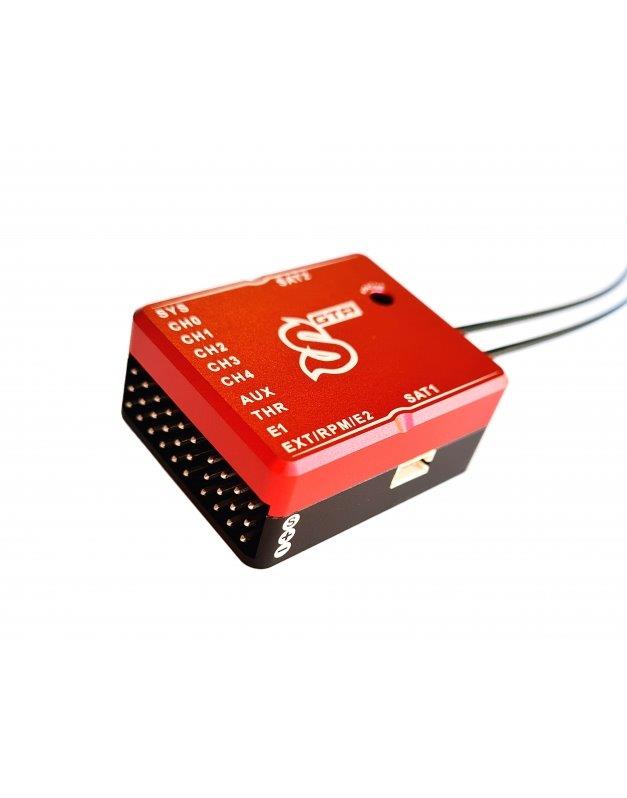

Very rigid, CNC milled, anodized and sandblasted enclosure
Color: Red and Black, matt
Material: High quality AL6061-T6
Dimension: 36.8x29.6x15.8mm, weight: 23g
Power supply: 3.2 - 10V @ 55mA
Operating temperature: -10°C to 60°C
Latest generation, Ultra Fast
32bit ARM processor: 468 DMIPS
MEMS sensor with 20bit IMU (rotation to 2000°/s !)
Gold plated PCB with Pb-Free soldering
Laser Engraved labels for perfect visibility.
2x independent telemetry ports for JETI DUPLEX sensors
3x connector for power supply, 5x for servos
All-pin protection
Redundant internal power chain for maximum safety
Excessive tolerance for brown-outs
Embedded JETI DUPLEX 2.4 Ghz Telemetry Receiver
Precise Pressure Sensor for Altitude Measurement
RealTime Logging Feature for detailed flight recording

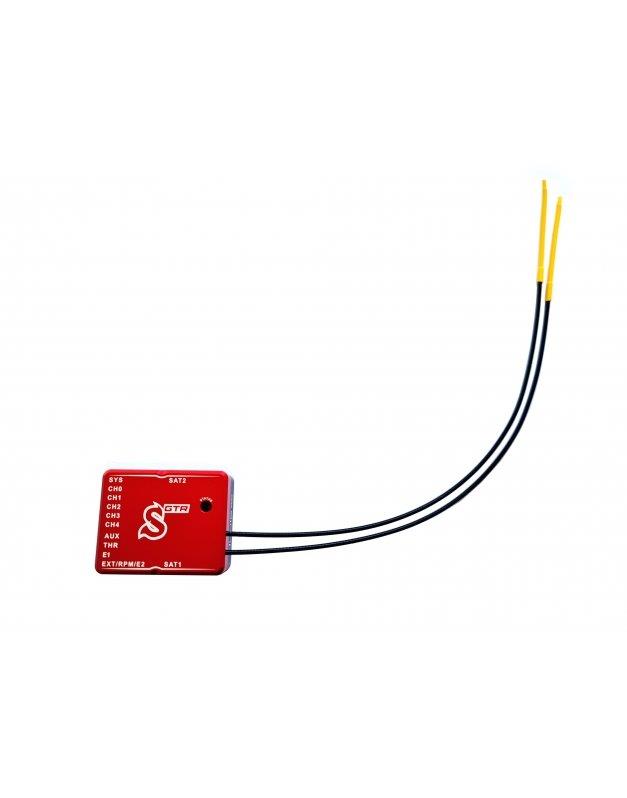

2x 20cm Full-range antennas
Max. output power: 15 dBm
Receiver sensitivity: -106 dBm

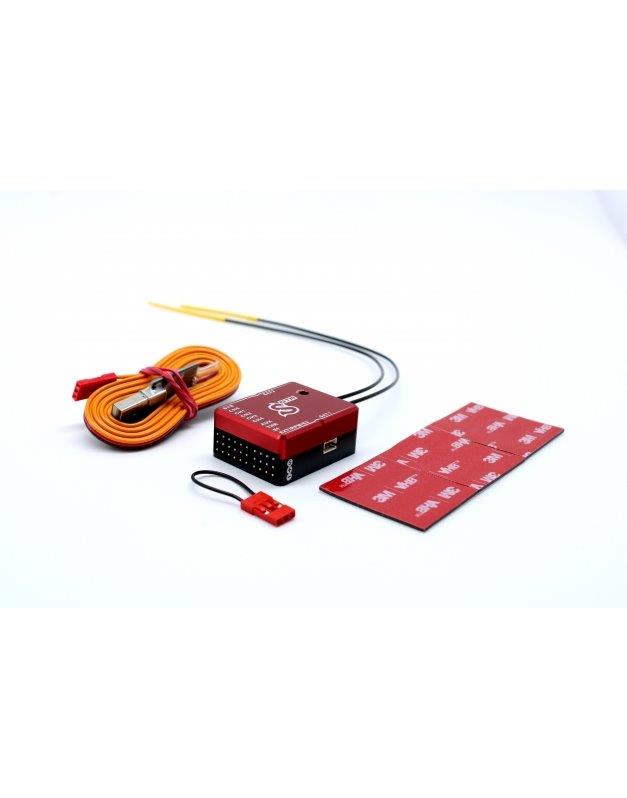

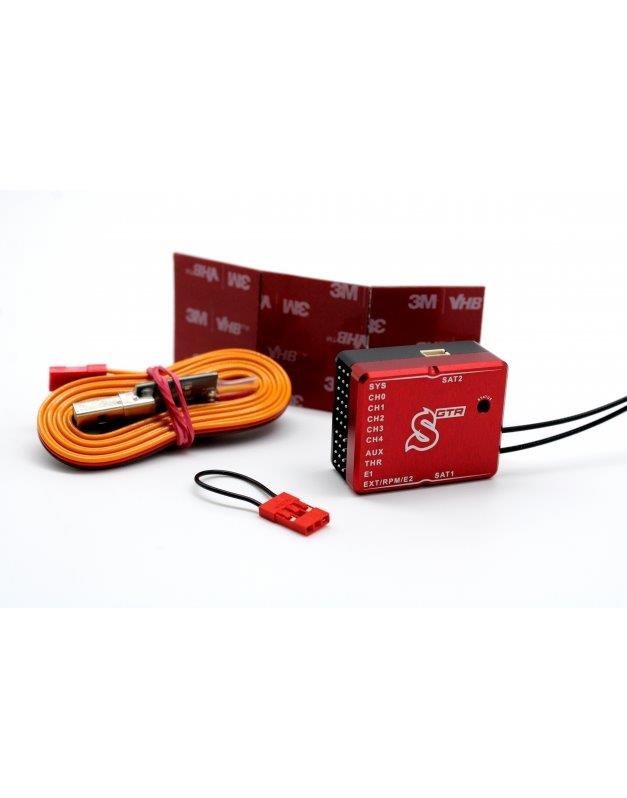

Package content
Spirit GTR unit
USB interface
Bind plug
3x 3M VHB doublesided adhesive tape
Warranty
2 year warranty for the original purchaser
50% discount for damage replacement of the unit Features
Super-smooth flight control
Paddle simulation with inexpressible feeling
Classic flybar mechanics support
Extreme vibration immunity for all helicopter types
Spectrum analysis for model diagnostics
Flight log with recorded events
Easy configuration with setup wizard
Smartphone or tablet support via Bluetooth and WiFi
(Modules are sold separately)
Full integration and telemetry with JETI DUPLEX
Supported by all JETI DUPLEX radios
Support for all JETI DUPLEX sensors
Support for backup DUPLEX receiver
Support for JETIBOX
Support for ESC Telemetry - HobbyWing, Kontronik,
Castle, YGE, Scorpion, OMP Hobby, Graupner
Revolutionary GeoLink support (GPS/GNSS, vario, logger)
Available for Windows, OSX, Linux, Android, iOS,
WP, SailfishOS, FreeBSD, Raspberry Pi and more
Stabilisation for scale pilots and beginners
Reliable, full-featured rescue system
Integrated Bank Switching
Governor for Electric, Nitro and Gasser Helicopters
BEC tester with load verification
Spirit Aero support (from 1.5.0 Aero firmware)
Support for all servo types:
1520/960/760us @ 50 - 700Hz
Support for CCPM 90/120/135/140°
Availability
Shipped within 1-3 days
FCC compliance
FCC ID: 2AW4Z-SPIRITGTR
