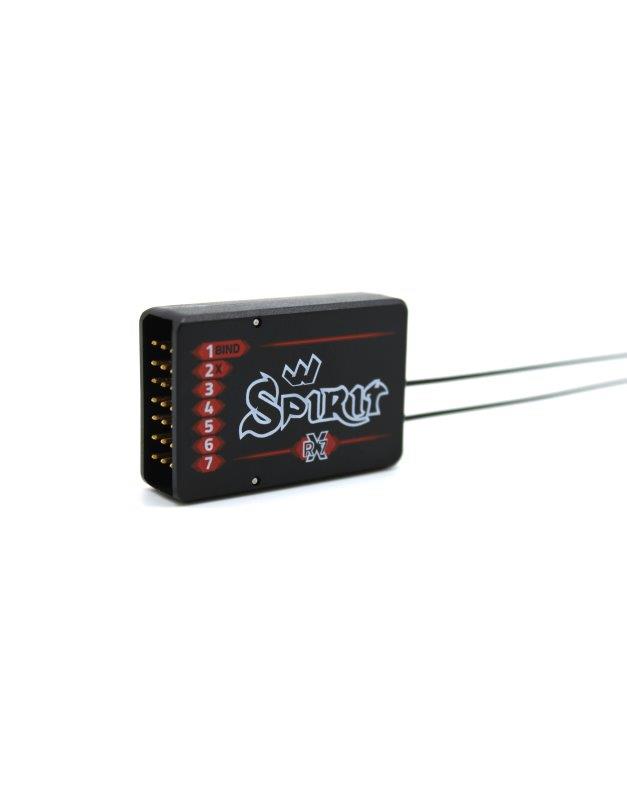

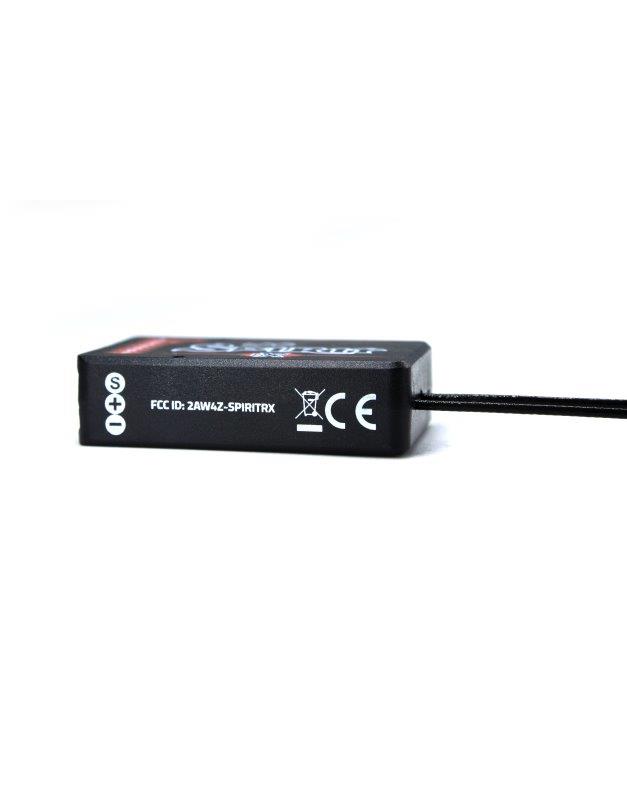

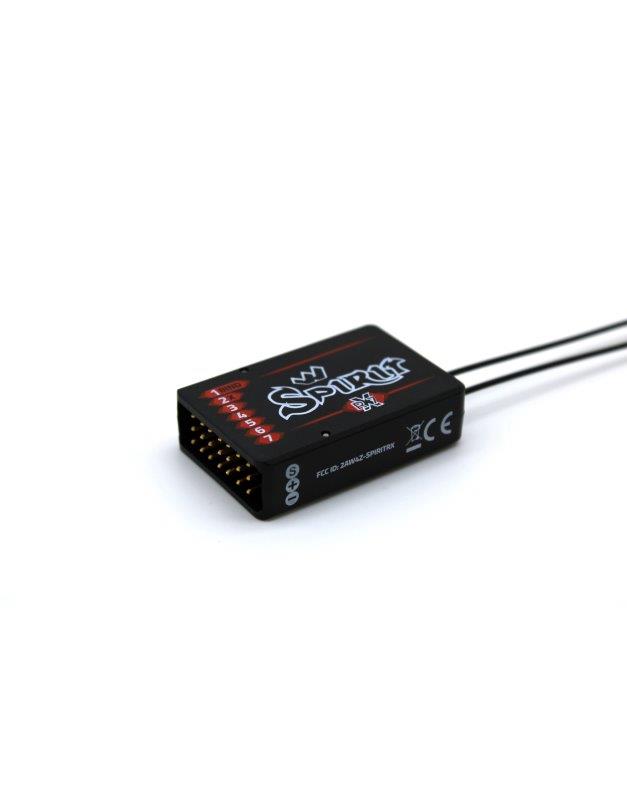

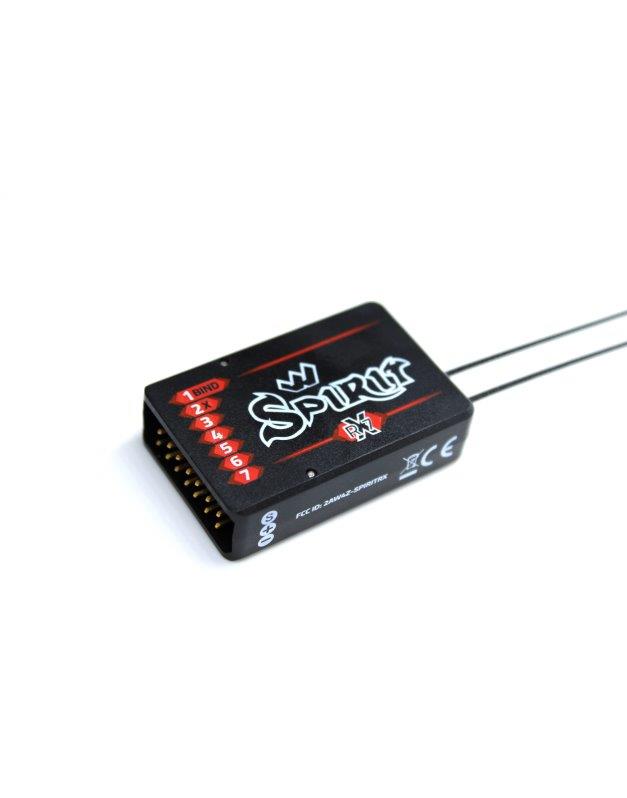

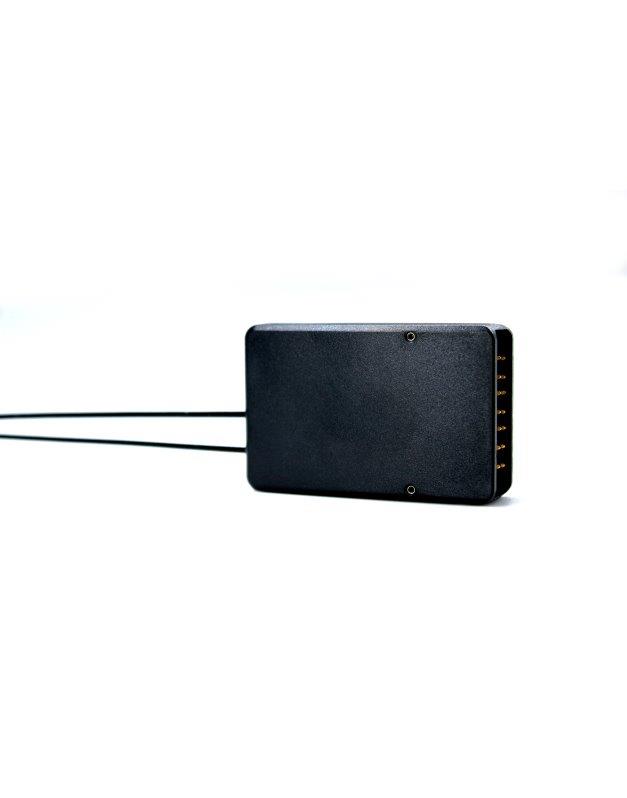

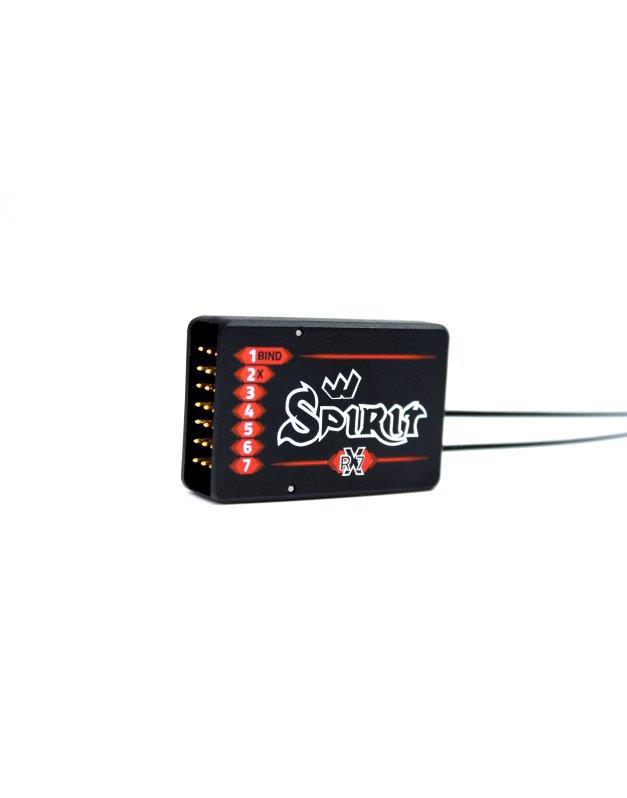

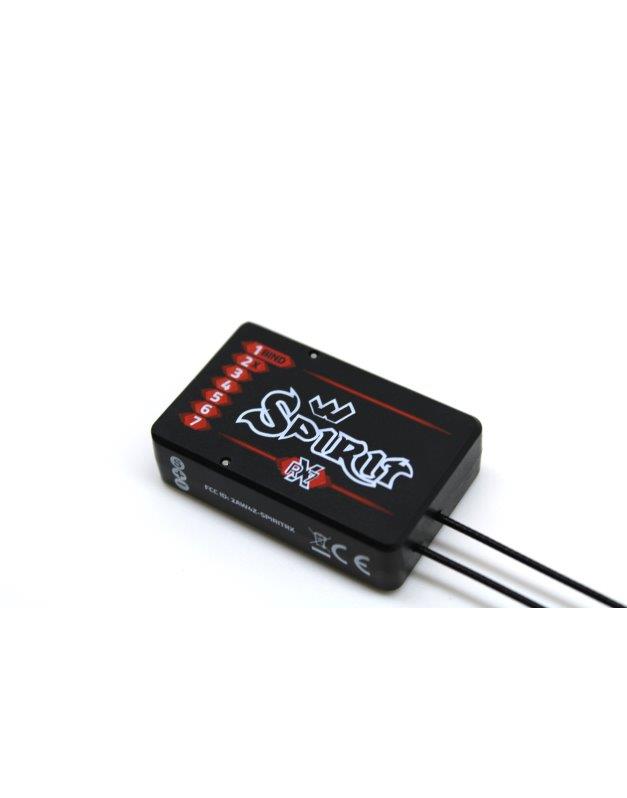

Spirit RX7

Spirit RX7 is brand new Receiver for R/C aircrafts featuring top-notch technology in one extraordinary packageǃ
It can be connected to any model, including all Spirit units offering full Integration with Wave Ecosystem.

Receiver
• Spirit Wave 2.4Ghz full-range telemetry receiver
• Full featured 30+ channels available
• Blazing fast 333 Hz transmission
• High interference immunity
• BEC Voltage measurement

Features
• Gold plated PCB with Pb-Free soldering
• Gold plated Pin Headers

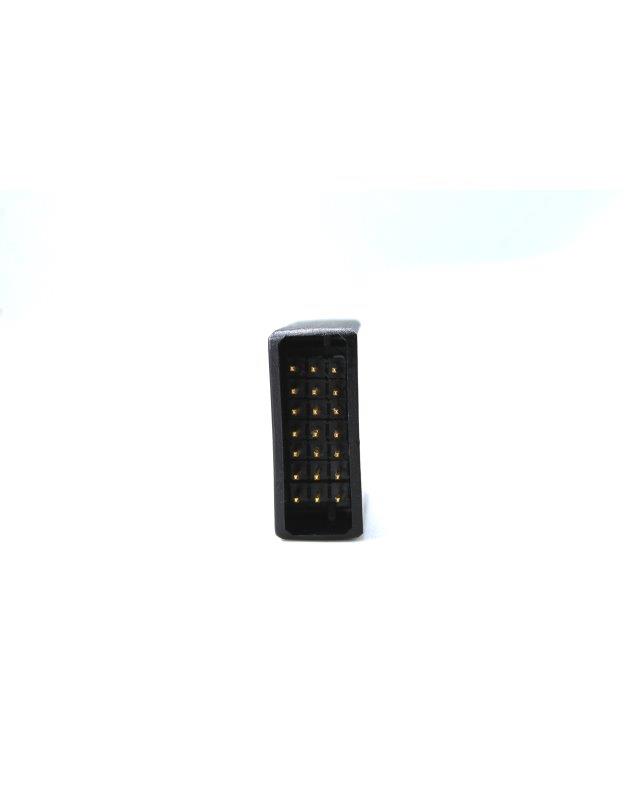

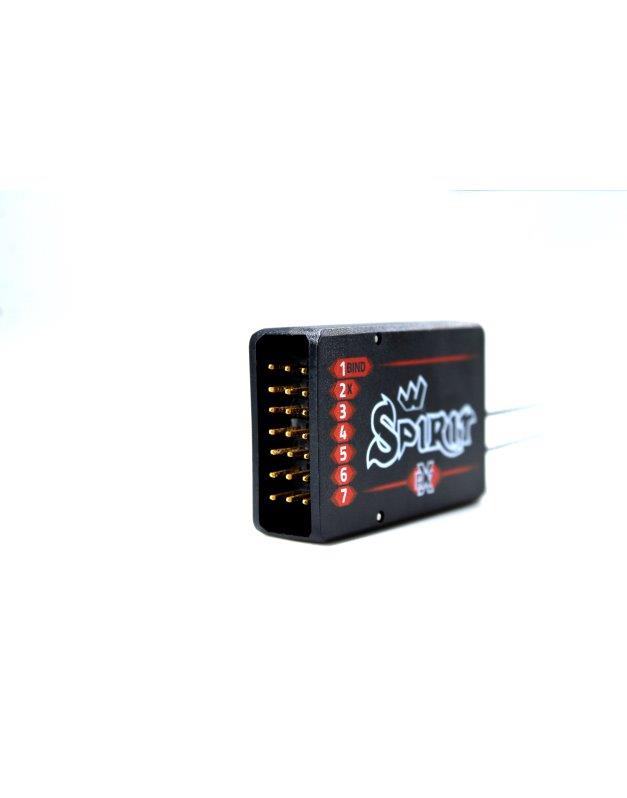

• 7x Servo Outputs
• Reverse Polarity Protection

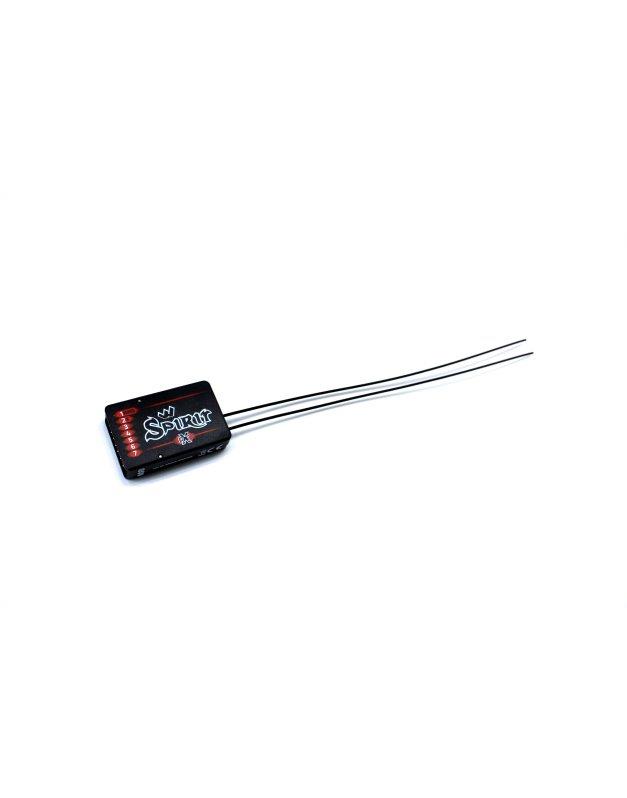

• 2x 20cm Full-range antennas
• Max. output power: 30 dBm
• Receiver sensitivity: -106 dBm
• Suitable for all Spirit units
• Full Integration with Spirit Wave + Spirit units
• Support for Spirit RX, PWM, S-BUS, SRXL protocols
• Easily Updateable

Specifications
• Material: ABS Chasis
• Dimension: 39.4x25.6x10.7mm, weight: 11g
• Power supply: 3 - 15V
• Operating temperature: -10°C to 50°C

Package Content
• Spirit RX7
• Bind Plug

Package Dimension
• Paper Box:120 x 120 x 30 mm

Compatibility
• Spirit 1
• Spirit Pro
• Spirit Aero
• Spirit 2
• Spirit RS
• Spirit GT
• Spirit GTR
• Spirit W1 (as Backup)
• Third-party FBL controllers
• Flybar Helicopters
• Planes
• Copters
• Boats
• Cars

Warranty
• 2 year warranty for the original purchaser
