Beskrivning
Art.nr: 5044

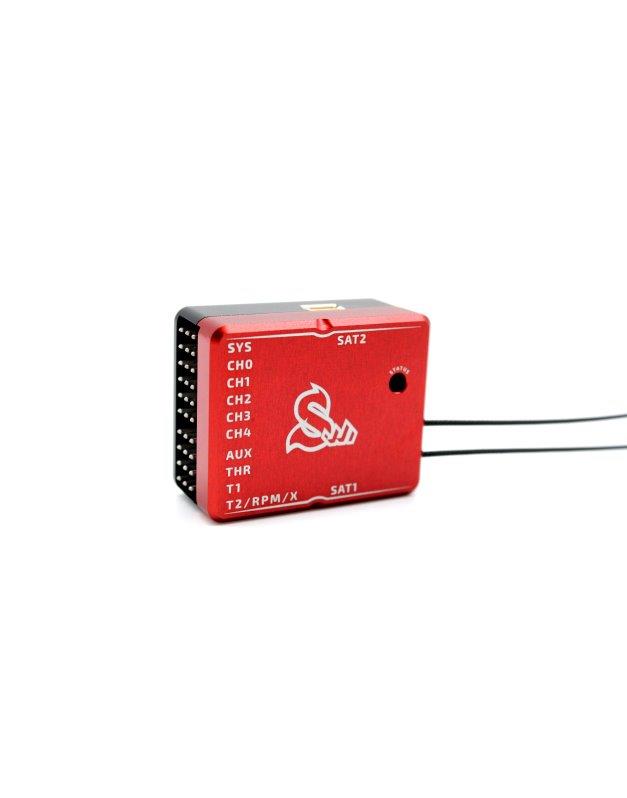

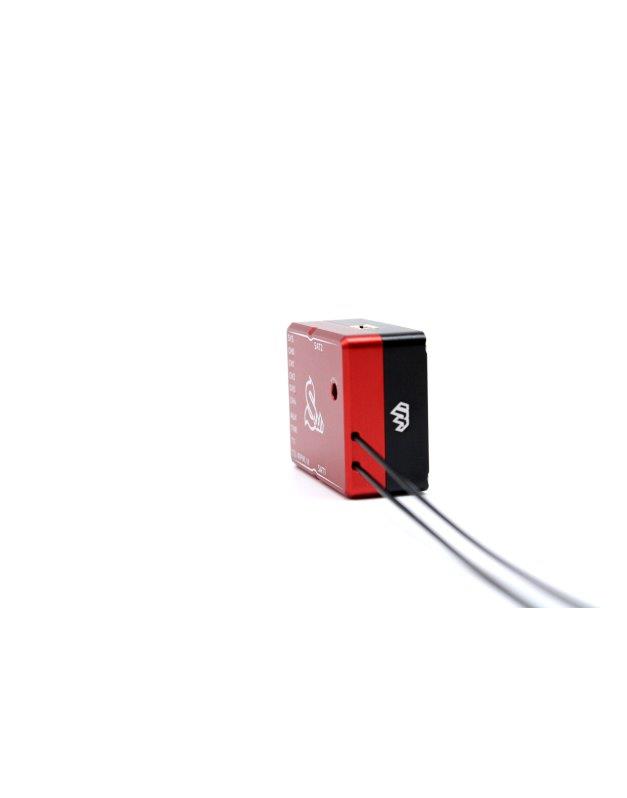

Spirit W1 - Everything in the exceptional package. Flybarless and stabilisation unit with integrated Spirit Wave receiver for pilots with the highest demand.
Spirit W1 is brand new stabilisation system for R/C aircrafts featuring control unit and receiver in one extraordinary packageǃ
It combines the best available technologies from both worlds to offer cutting edge experience. In other words, Spirit W1 consists from Spirit GT hardware and Spirit Wave receiver.
Manual available at the Wiki pages.
Outstanding ARM M7 processor
M7 performance-line processor is truly unbelievable! It is 3x faster than M4 and brings amazing features.
This adds free room for any possible math operation allowing to calculate anything imaginable the unit could ever need.
Real-Time Logging capability
Logging of everything - that is now possible for the first time! Until now, logging at 500Hz rate was barely possible. That is not an issue anymore. Thanks to durable Dedicated Memory Chip with long-life!
VFor the first time in the history, you will be able to see how your model was flying in the air!
Pressure Sensor
Yes, it is there and fully embedded. Unparalleled precision of 1 Pascal allow extremely precise altitude measurement . With the innovative algorithms and Sensor Fusion technology the precision goes further down. It can be utilized in a various of ways such as Altitude hold or even Automatic Rescue system.
Industry-leading Motion Sensor
Motion Sensor with 20 bit precision was unimaginable few months ago. Everybody can taste it yourself now.
Superb stability through temperature gradient and Vibration immunity few times better than in any other unit. Antialiasing feature and Spirit algorithms makes the Rescue function Top of the line.
Redundant PowerTrain
With Spirit 2 we have developed separated power supplies for the unit itself and peripherals. Now with Spirit W1 design was enhanced to minimize voltage drops even for a peripherals!
Extensions
Spirit W1 can be extended for basically unlimited servo outputs. If you will ever need to control 8 servos or more, with Spirit W1 it will be possible in very near future.
Servos with telemetry feature will be supported in the upcoming update too.
Highlights
Control part
For Helicopters and Planes
Spirit Governor
Top-notch 20-bit IMU Sensor
Performance-line ARM F7 processor
Precise pressure sensor for Altitude measurement
Dedicated Memory Chip for detailed logging
Receiver part
Spirit Wave 2.4Ghz full-range telemetry receiver
Full featured 30+ channels available
Blazing fast 333 Hz transmission
High interference immunity
BEC Voltage measurement
Hardware
Very rigid, CNC milled, anodized and sandblasted enclosure
Color: Red and Black, matt
Material: High quality AL6061-T6
Dimension: 36.8x29.6x15.8mm, weight: 23g
Power supply: 3 - 15V @ 55mA
Operating temperature: -10°C to 50°C
Latest generation, Ultra Fast
32bit ARM processor: 468 DMIPS
MEMS sensor with 20bit IMU (rotation to 2000°/s !)
Gold plated PCB with Pb-Free soldering
Laser Engraved labels for perfect visibility.
2x independent telemetry ports for Spirit Wave sensors
3x connector for power supply, 5x for servos
All-pin protection
Redundant internal power chain for maximum safety
Excessive tolerance for brown-outs
Embedded Spirit RX 2.4 Ghz Telemetry Receiver
Precise Pressure Sensor for Altitude Measurement
RealTime Logging Feature for detailed flight recording
2x 20cm Full-range antennas
Max. output power: 30 dBm
Receiver sensitivity: -106 dBm
Third-party receiver supported Wave receiver can be turned off
Replaceable and Detachable Antennas

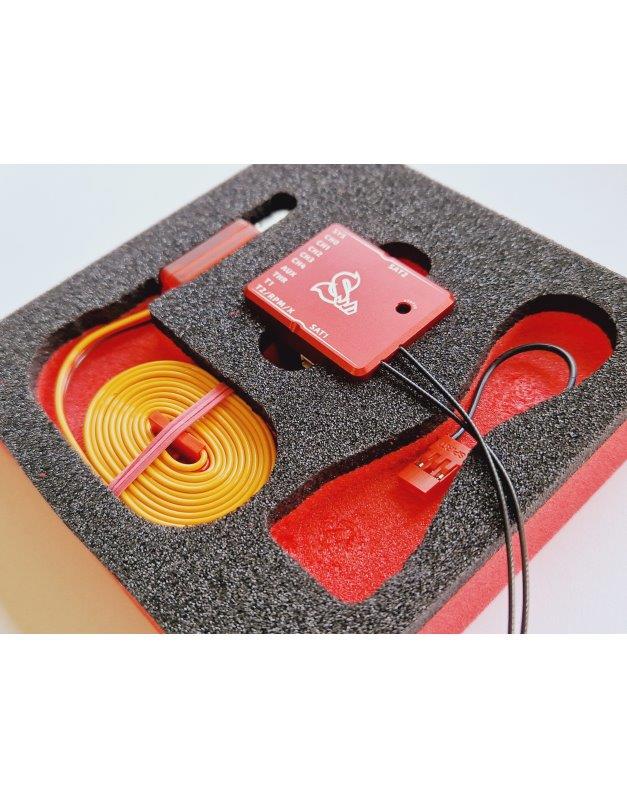

Package content
Spirit W1 unit
Bind plug
4x 3M VHB doublesided adhesive tape
Warranty
2 year warranty for the original purchaser
50% discount for damage replacement of the unit Features
Super-Smooth Flight control
Paddle Simulation with inexpressible feeling
Classic Flybar Mechanics support
Extreme vibration immunity for all helicopter types
Spectrum Analysis for model diagnostics
Flight Log with recorded events
Easy configuration with setup wizard
Smartphone or tablet support via Bluetooth and WiFi
(Modules are sold separately)
Spirit RX Telemetry
Support for ESC Telemetry - HobbyWing, Kontronik,
Castle, YGE, Scorpion, OMP Hobby, Graupner
ESC Setup (selected brands) with Spirit Wave
Revolutionary GeoLink support (GPS/GNSS, vario, logger)
Available for Windows, OSX, Linux, Android, iOS,
WP, SailfishOS, FreeBSD, Raspberry Pi and more
Stabilisation for scale pilots and beginners
Reliable, full-featured and highly proven Rescue system
Integrated Bank Switching
Automatic Rescue Mode
Governor for Electric, Nitro and Gasser Helicopters
BEC Tester with load verification
Spirit Aero support
Support for all servo types:
1520/960/760us @ 50 - 700Hz
CCPM 90/120/135/140°, Mechanical Mix and 45° Phasing
Availability
Shipped within 31 - 62 days from Order Date
Order can be cancelled anytime before shipment
FCC compliance
FCC ID: 2AW4Z-SPIRITW1
