Art.nr: 5038

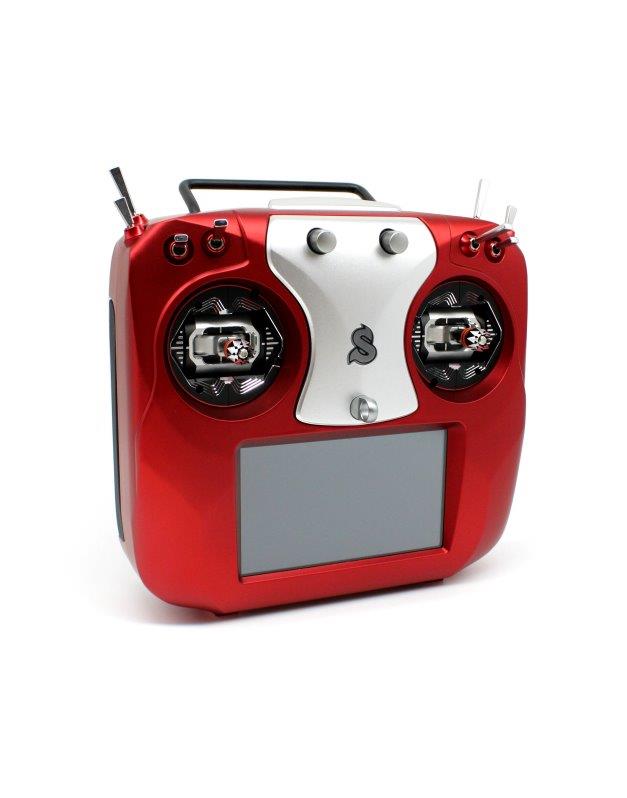

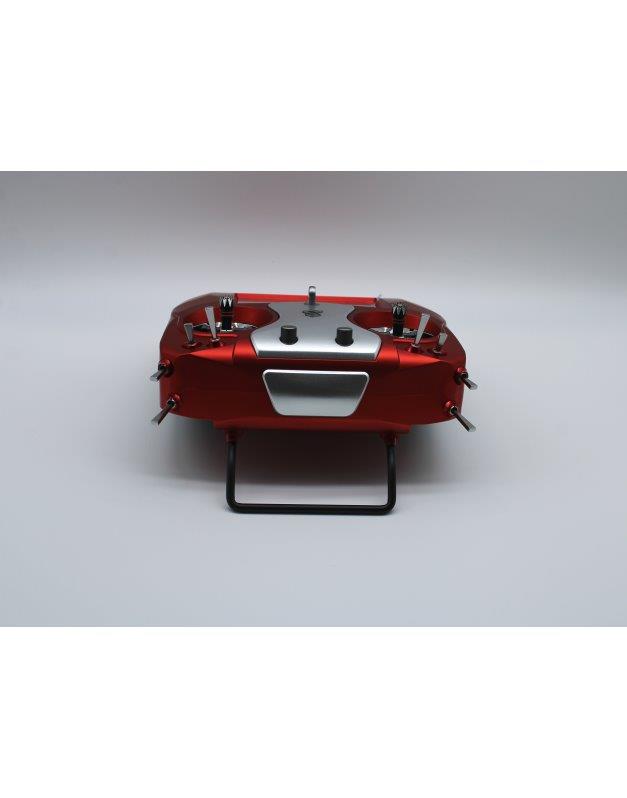

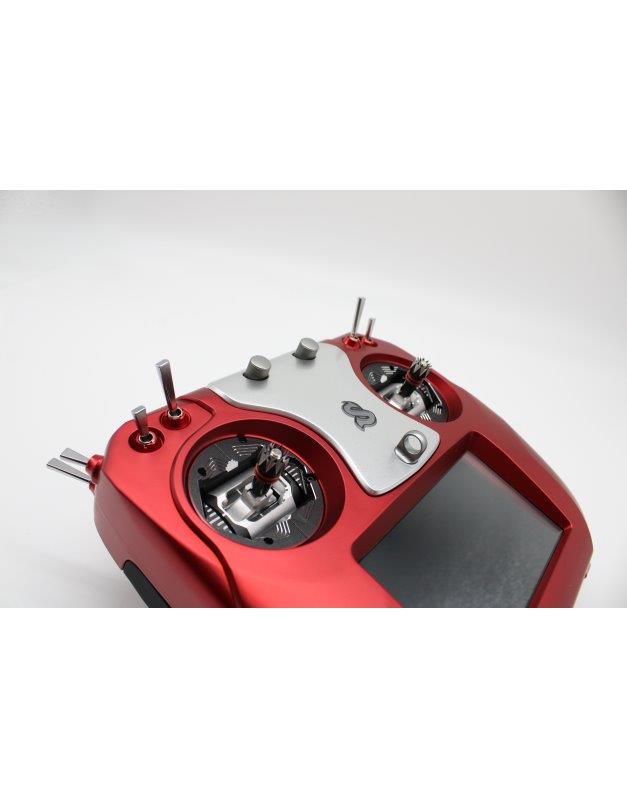

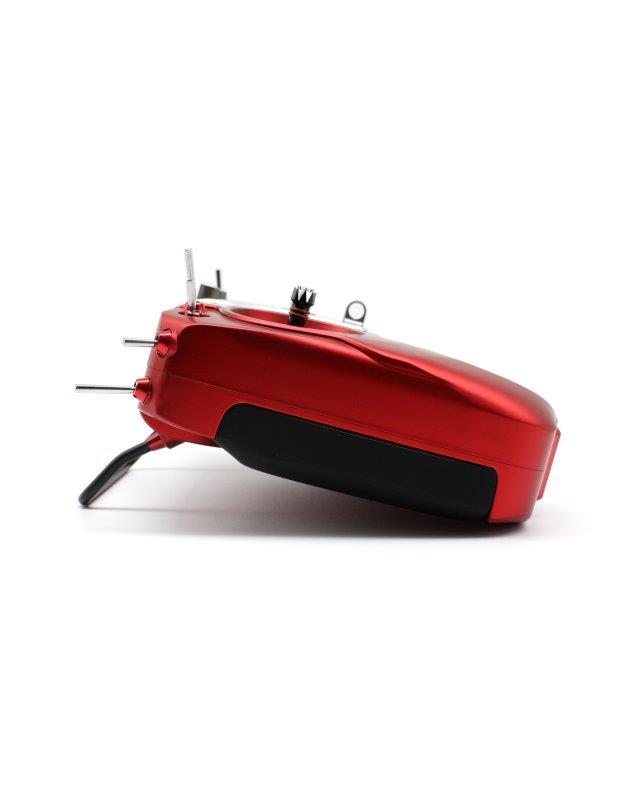

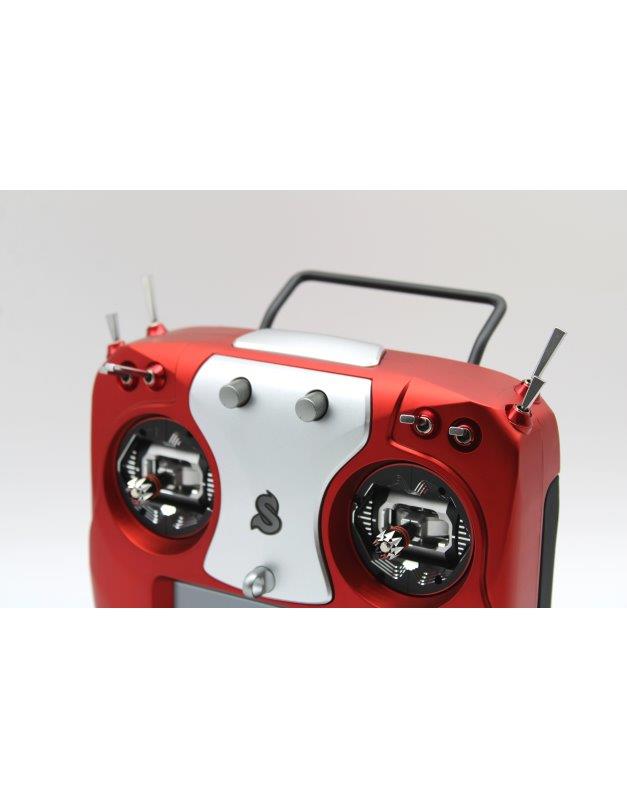

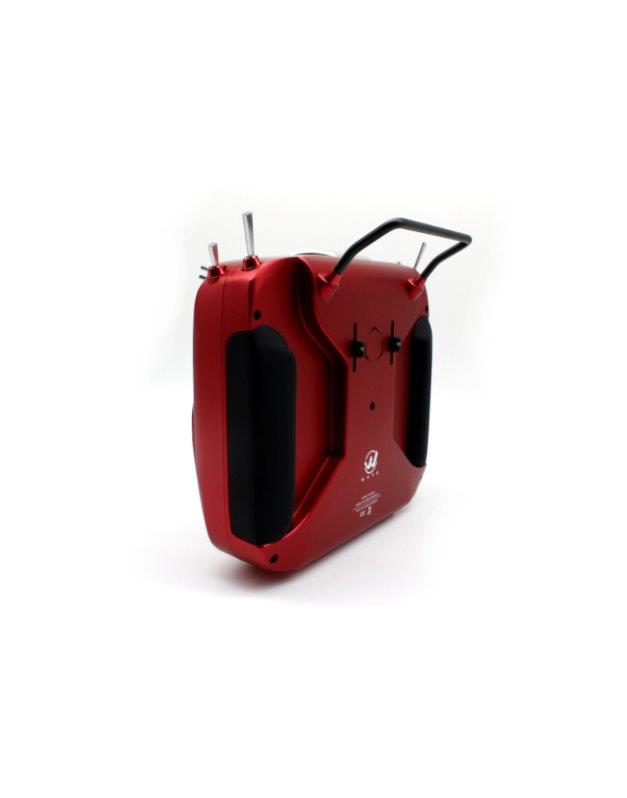

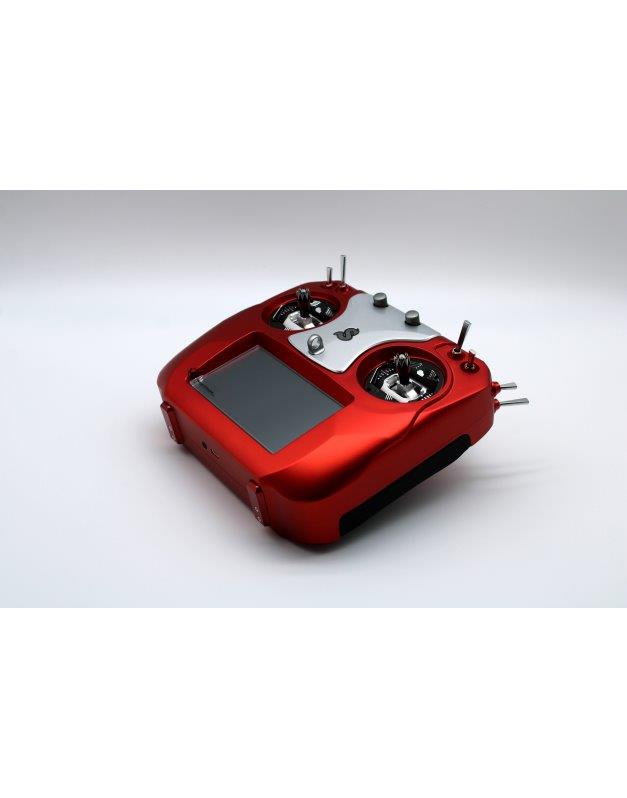

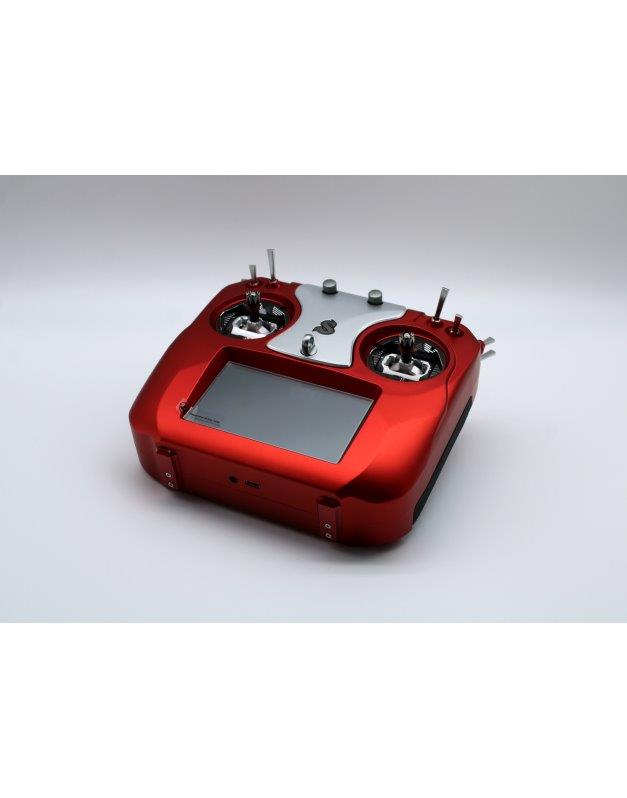

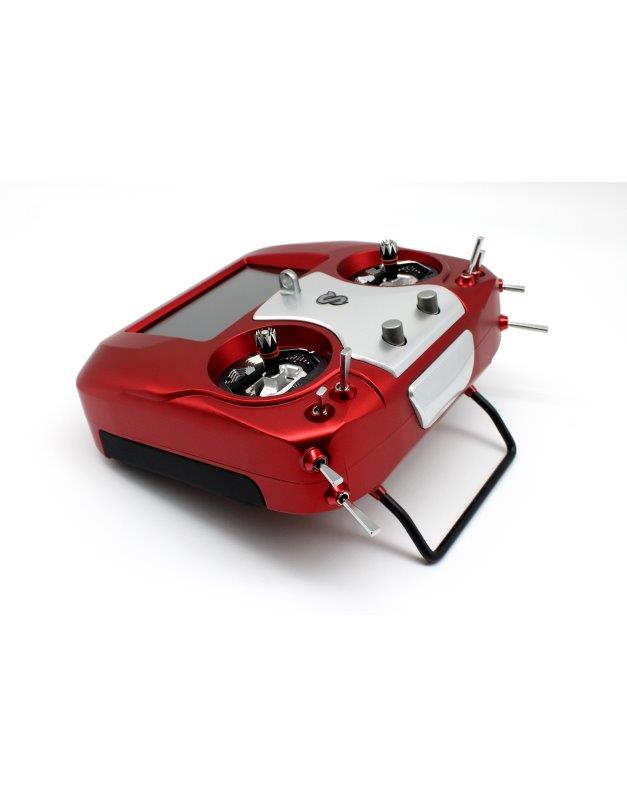

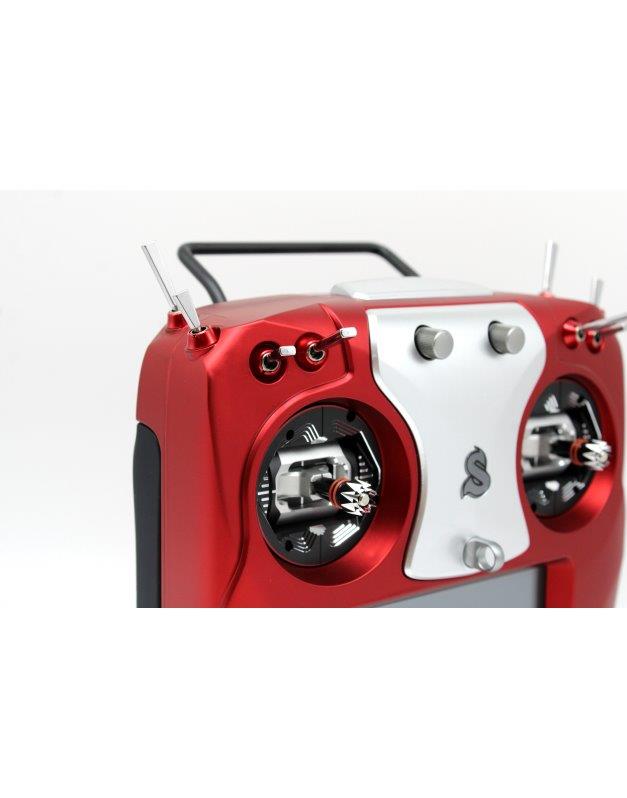

Spirit Wave is next generation Radio Control System utilizing the cutting edge technology. We aim to provide the best experience for R/C model enhusiast through seamless integration of all Spirit products.
It is designed for all R/C models and it's capabilities can be extended without a limitation. Easily by Updating to a new version, for free.
Spirit Wave can be easily bound with Spirit W1 controllers or with Spirit RX receivers. Spirit W1 is our greatest unit for R/C helicopters and R/C airplanes with integrated Wave receiver.
Any third party controller can be connected through Spirit RX receiver by a standard PWM, S-BUS or SRXL protocols.
RF module
Designed entirely by Spirit System for allowing the unprecedented integration.
Spirit Wave 2.4Ghz full-range telemetry.
Dual Path independent antennas for improved safety and Signal coverage.
Full featured 30+ channels available.
Blazing fast 300 Hz transmission.
High interference immunity.
Features
Reliable Spirit RF protocol
333Hz Frame Rate
Cutting Edge 3ms Link Latency
30 Channels (more can be added if needed)
Dual Path Transmission
Easy Receiver Binding
4.3 IPS Touchscreen Display
6900mAh Battery
Quad Core 64bit ARM CPU
Fully optimized Touch Interface
Pre-assembled with Tempered Glass Protector
High quality Hall AG01 gimbals
Very durable Switches, Sliders and Potentiometers
Interchangeable Switches
Full of Aluminium parts, yet light
2.4/5GHz Dual Band WiFi
Bluetooth/BT LE 4.0
Virtually unlimited Model Memory and Flight Modes
Voice Output with 3W Speaker
High Quality Programmable Text to Speech in all languages
Fast Telemetry with Full Range in both directions
Based on in-house developed Spirit OS
Multi Language localization
Log Viewer for all Telemetry records
Battery Manager included out of the box
Wireless Trainer Wireless Model Sharing
Unique Spirit Remote Interface
Media Player
Full Support for R/C simulators / USB-C or WiFi
Spirit App Store with apps designed just for Wave
QML Scripting support
Spirit Online Support directly in your radio
Motion Sensor for controlling any Function
Light Sensor for adjusting screen parameters
Quick and Easy Online Updating without a computer
Extremely tight Spirit Integration
Support for all common ESC telemetries
Modern ESC configuration directly from Radio with selected brands
Spirit parameters per each Flight Mode
Detailed Function List
Spirit Wave - Function List
Supported Models
Helicopter
Plane
Copter
Car
Boat
Other
Specifications
Weight: 865g
Main Body dimension: 180 x 170 x 65 mm
(excluding Radio Holder, Switches and Neck Strap Lock)
Operating Temeperature: 0 - 40°C / 32°F -104°F
Battery: 6900mAh 3.8V Premium Grade LiPo
Current Consumption: 850 mA max., 45 nA Standby
Package Content
Spirit Wave transmitter
Carry Bag
Neck Strap
2m USB-C Cable
Alan Key
Torx T6 Key
WARNING: USB Charger is not included, you can buy it optionally from us. Any USB (USB-A) charger will work, including USB port from a computer.
Package Dimension
Carton Product Box: 260 x 250 x 145 mm
Comparison
Spirit Wave Pro
Full Aluminium Chasis
Weight: 1110g +/- 40g
Free Switch Replacement Program (Up to 10 pcs)
Free AG01 Stick Replacement Program (Up to 1pc, not set)
All Switches, Gimbals shipped by Spirit System directly to customer as per request (eligible within Warranty Period)
30GB Spirit Cloud Service for Model, Log Data backup
Secondary WiFi Antenna
Spirit Wave
1GB Spirit Cloud Service for Model, Log Data backup
Weight: 865g +/- 10g
