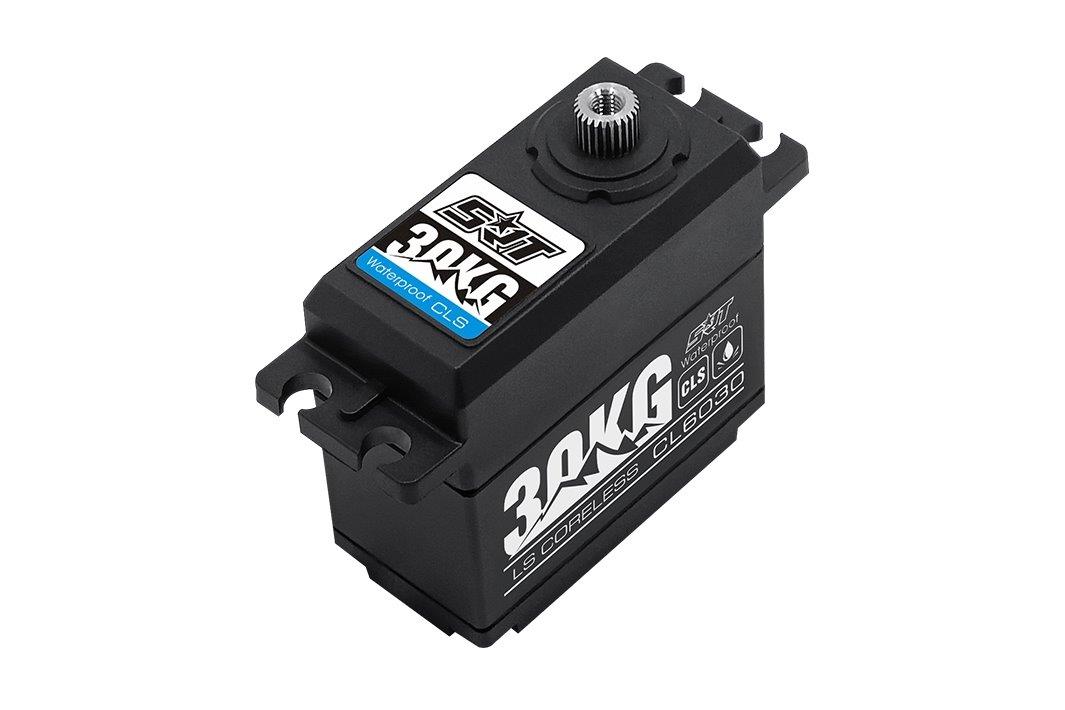

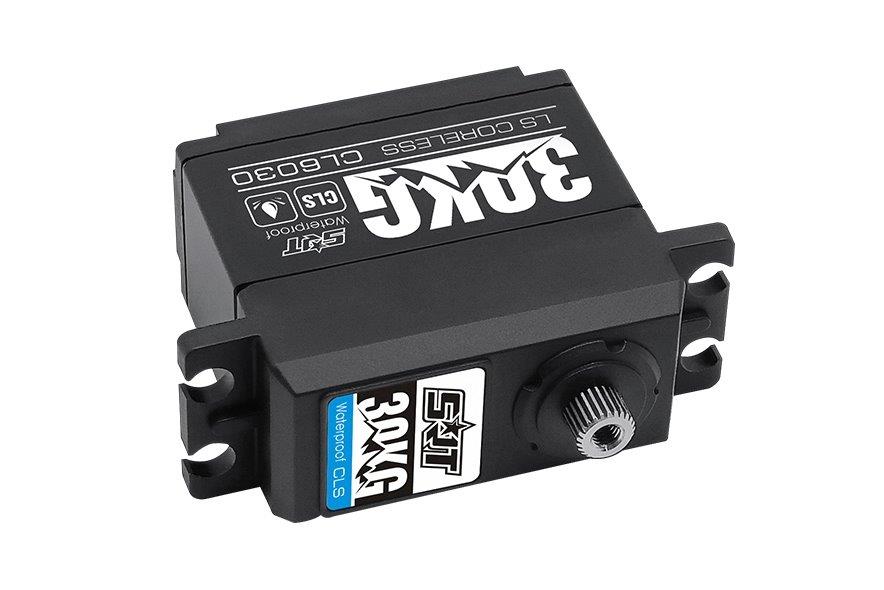

SRT CL6030 HiVOLT CORELESS WATERPROOF Digital servo 30kg-0,11s/60°
498,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SRT-CL6030
KEY FEATURES
Ideal for 1/10 on road and 1/8 off road scale applications
incredible efficiency and low power consumption
2 μsec Dead Band
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless

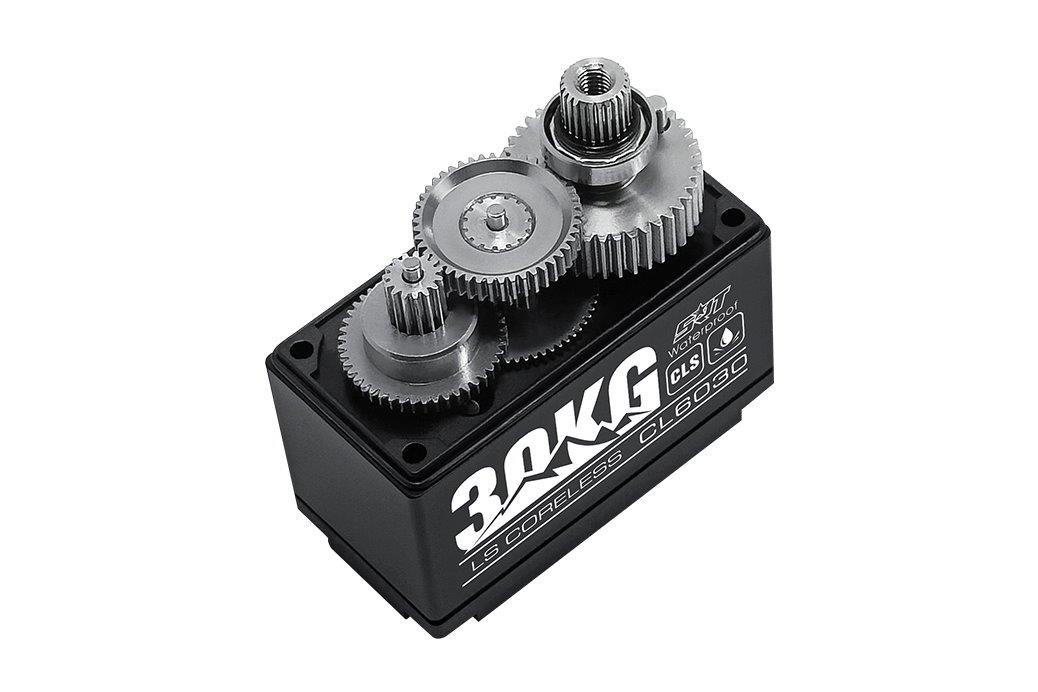

Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-7.4v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.13 sec/60 degrees at no load
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.11 sec/60 degrees at no load
stall torque (4.8v): 19.0kg.cm
stall torque (6.0v): 25.0kg.cm
stall torque (7.4v): 30.0kg.cm
potentiometer drive: direct drive

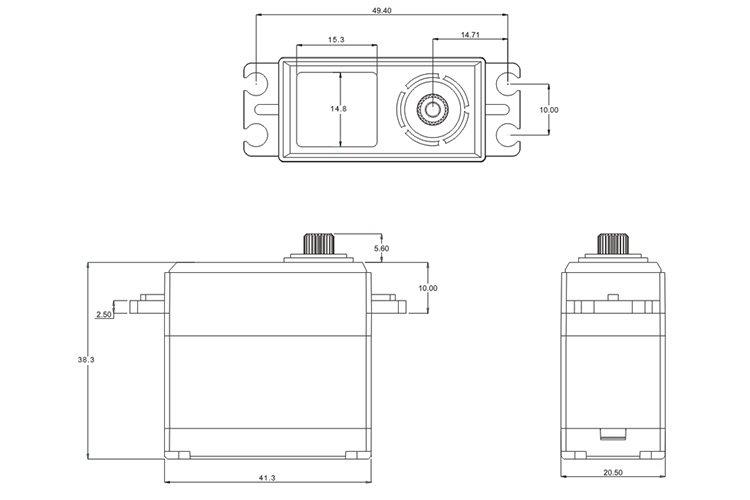

dimensions: 41.3x20.5x38.3mm
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm
