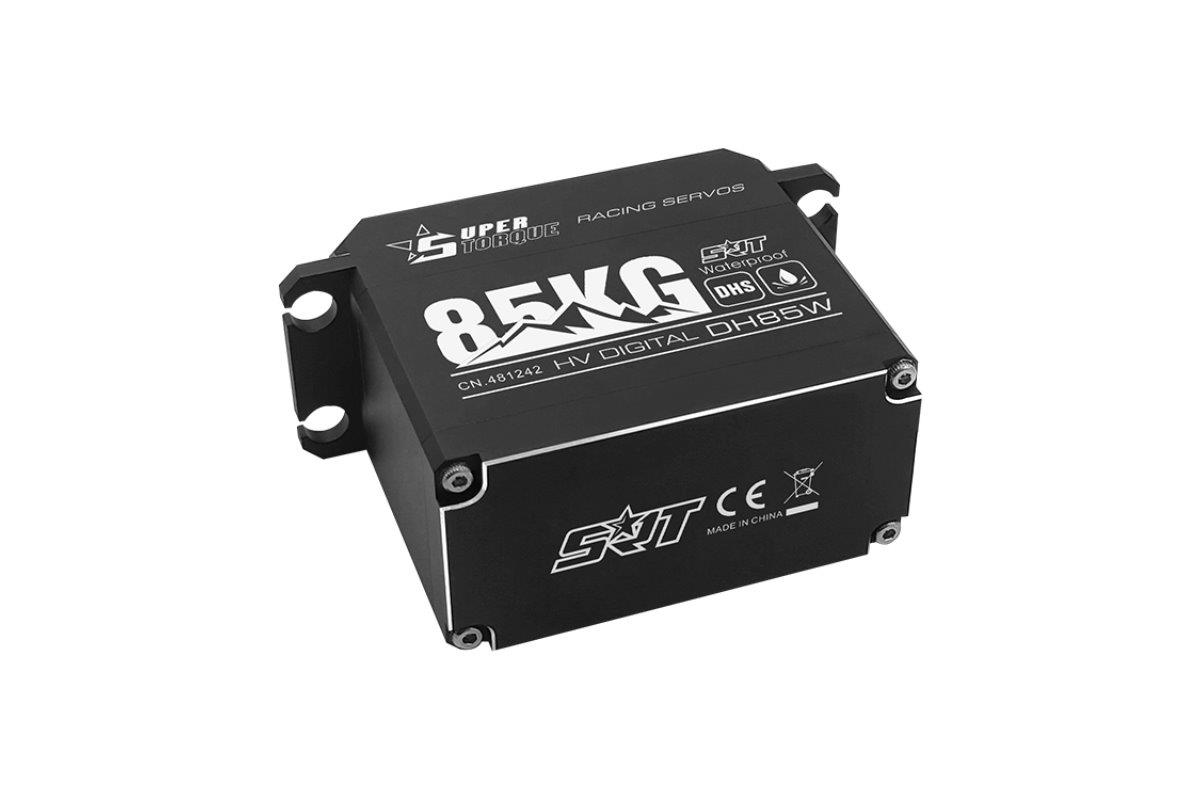

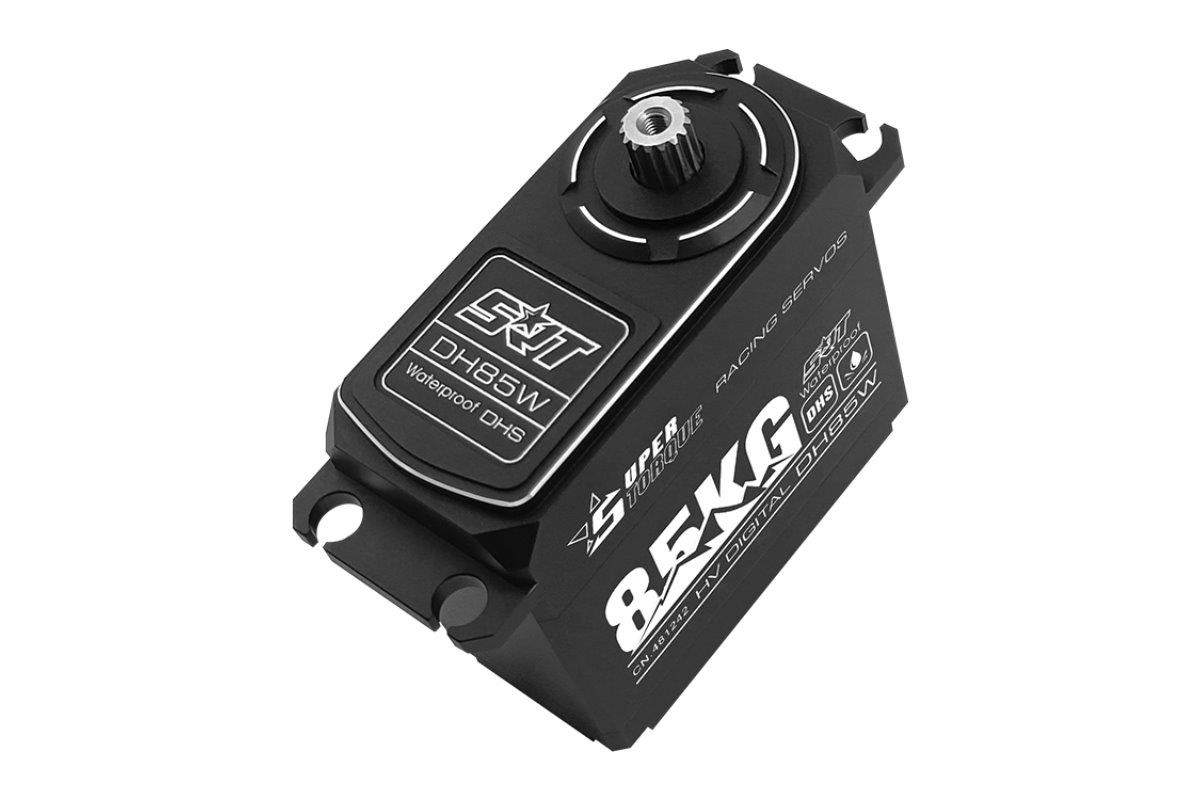

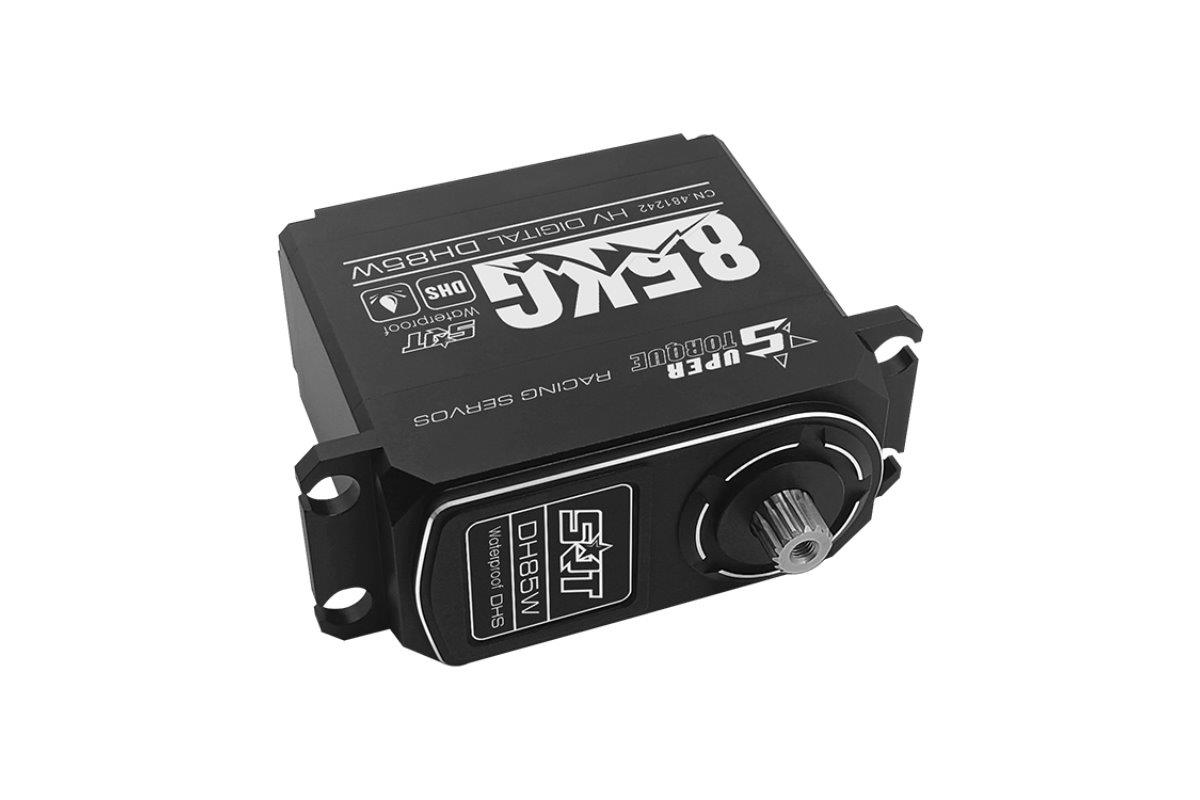

SRT DH85W All-metal High-torque Digital servo (85 kg-0,15s/60°)

SRT DH85W
The latest generation of SRT servos provides you with the performance you need for any scale CarAir PlaneBoatRobot application. Servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

KEY FEATURES
• Popular RHINO 4 size
• Ideal for 1/5 scale on-road and off-road scale applications
• Incredible efficiency and low power consumption
• NMB dual main bearings
• Waterproof case
• 15T output shaft

PRODUCT SPECIFICATIONS
• Type: Digital
• Bearing: Dual
• Motor Type: DC

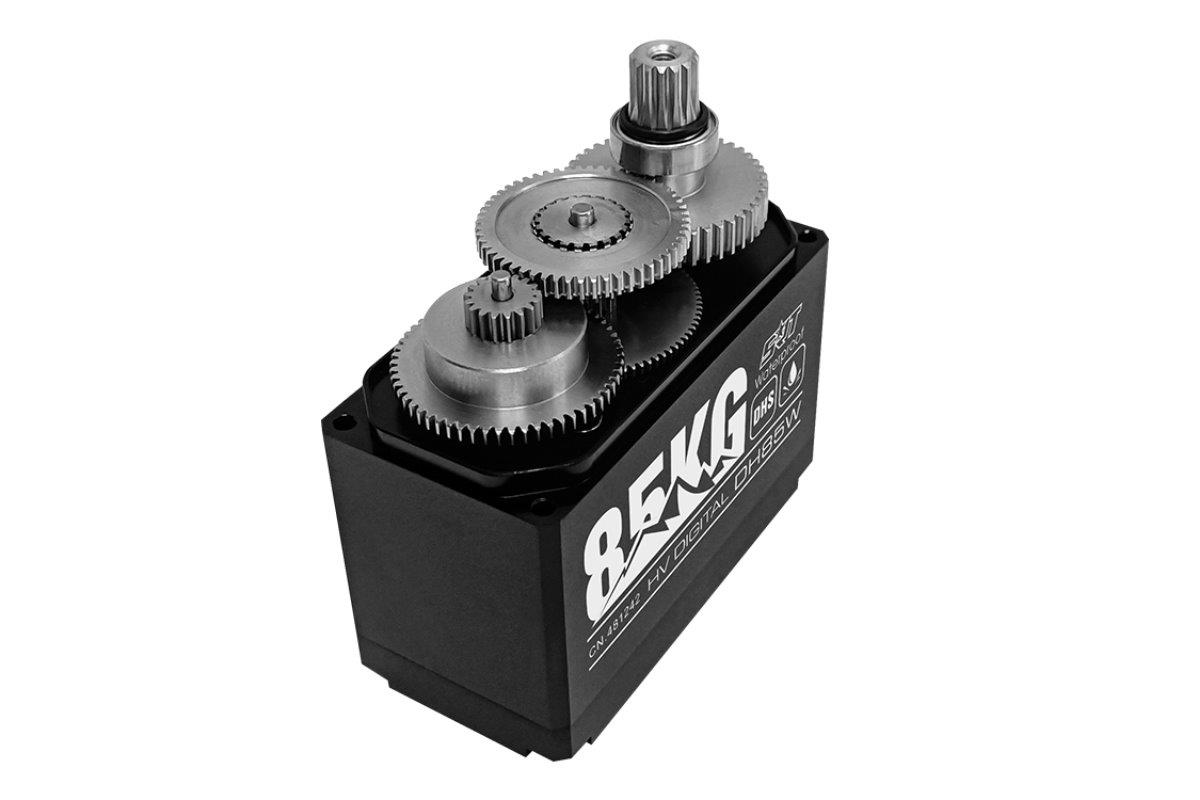

• Gear Type: Metal
• Gear Material: Steel
• Control system: pulse width control
• Working frequency: 1520μs / 330Hz
• Operating voltage: DC 7.4-8.4V
• Operating temperature range: -10 to + 60 deg
• Operating speed (7.4v): 0.17 sec/60 degrees at no load
• Operating speed (8.4v): 0.15 sec/60 degrees at no load
• Stall torque (7.4v): 78.0kg.cm
• Stall torque (8.4v): 85.0kg.cm
• Potentiometer drive: direct drive

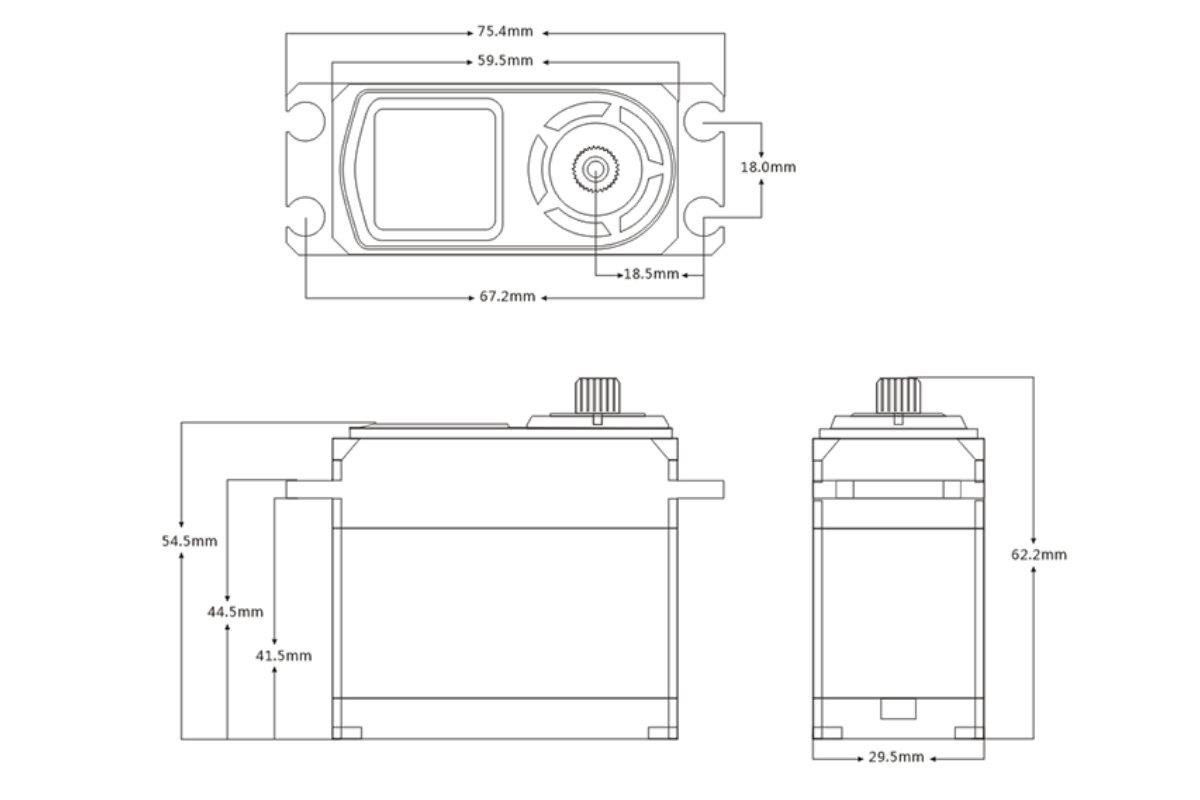

• Dimensions: 59.5x29.5x54.5 mm
• Weight: 200.0 g
• Connector wire length: JR 350 mm
