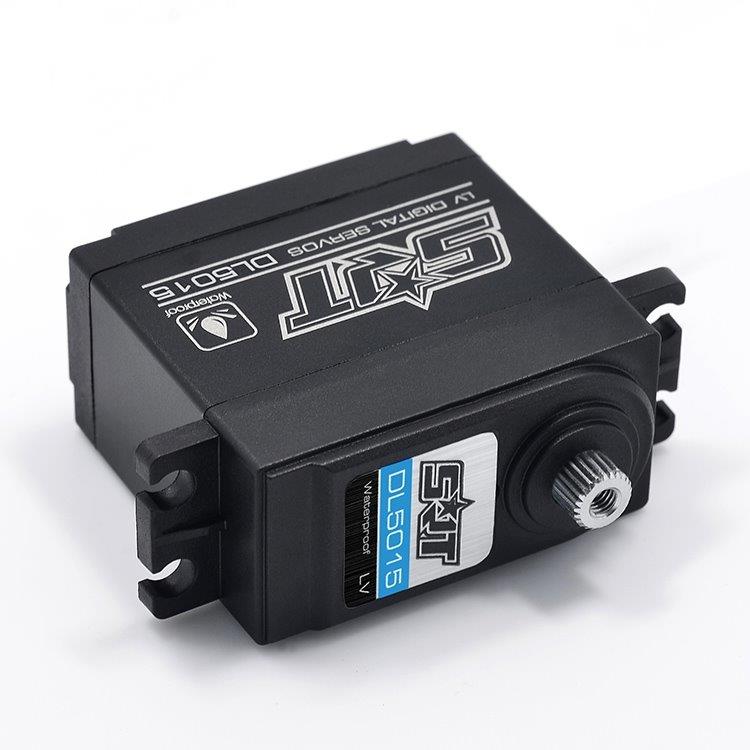

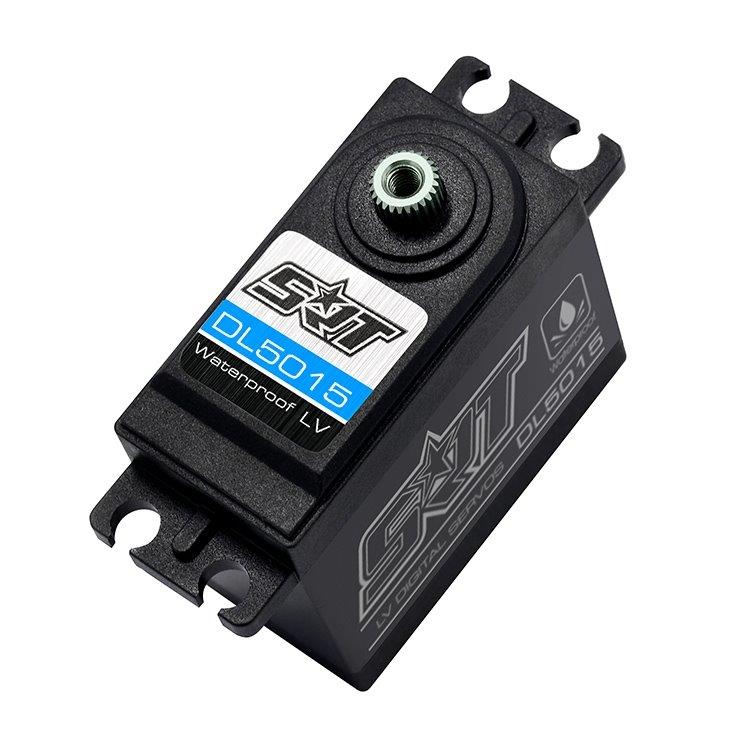

SRT DL5015 DC WATERPROOF DC Digital servo 15 kg-0,13s/60°
348,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SRT-DL5015
KEY FEATURES
Ideal for 1/10 on road and 1/8 off road scale applications
Intermediate aluminum case
NMB dual main bearings
Superior waterproof
25T output shaft
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal

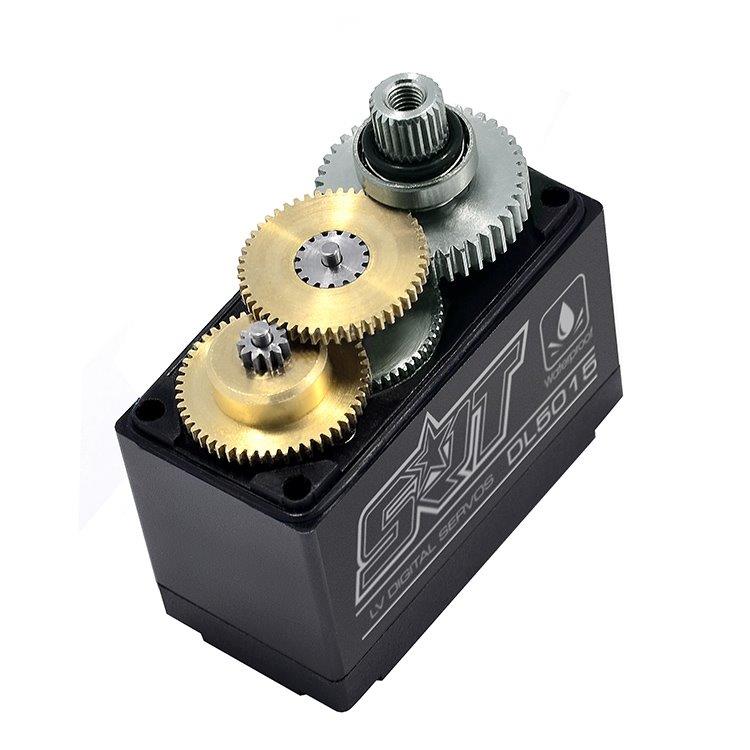

Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.15 sec/60 degrees at no load
operating speed (6.0v): 0.13 sec/60 degrees at no load
stall torque (4.8v): 12.0kg.cm (166.6 oz/in)
stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
weight: 65.0g (2.29 oz)
connector wire length: jr 250 mm
Ideal for 1/10 on road and 1/8 off road scale applications
Intermediate aluminum case
NMB dual main bearings
Superior waterproof
25T output shaft
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.15 sec/60 degrees at no load
operating speed (6.0v): 0.13 sec/60 degrees at no load
stall torque (4.8v): 12.0kg.cm (166.6 oz/in)
stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
weight: 65.0g (2.29 oz)
connector wire length: jr 250 mm
