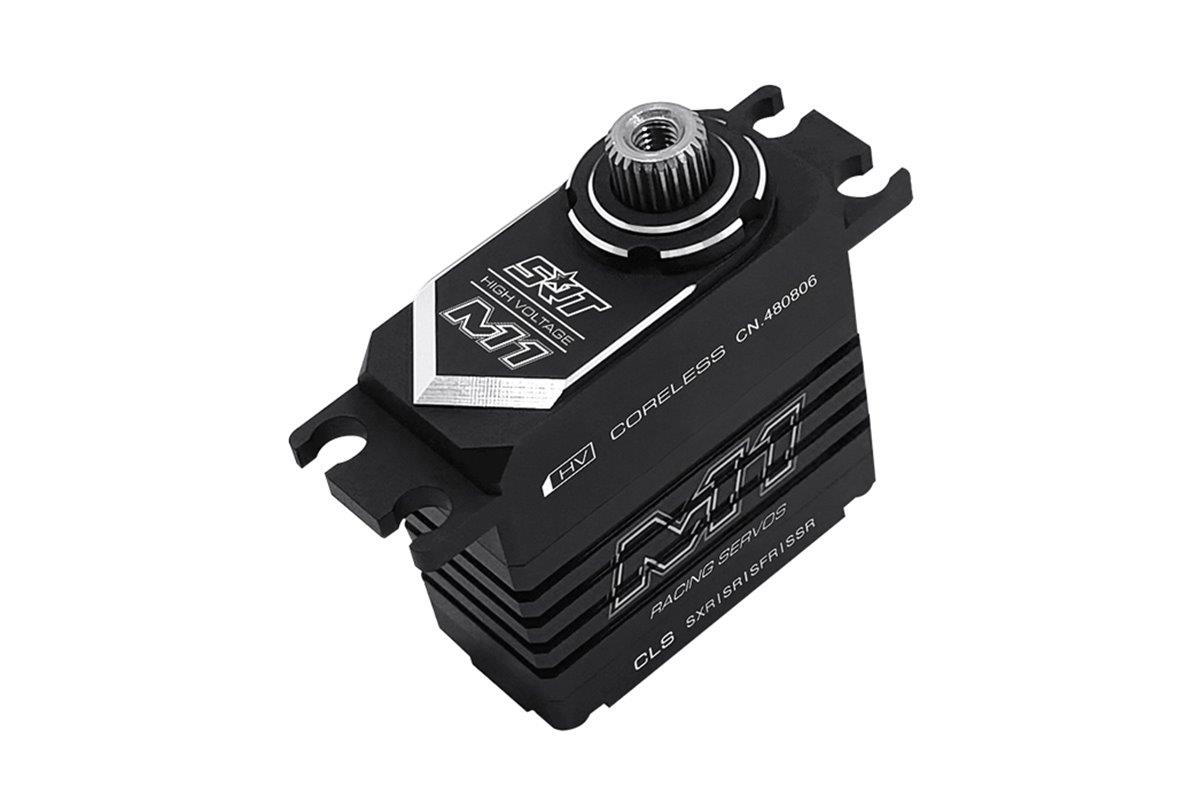

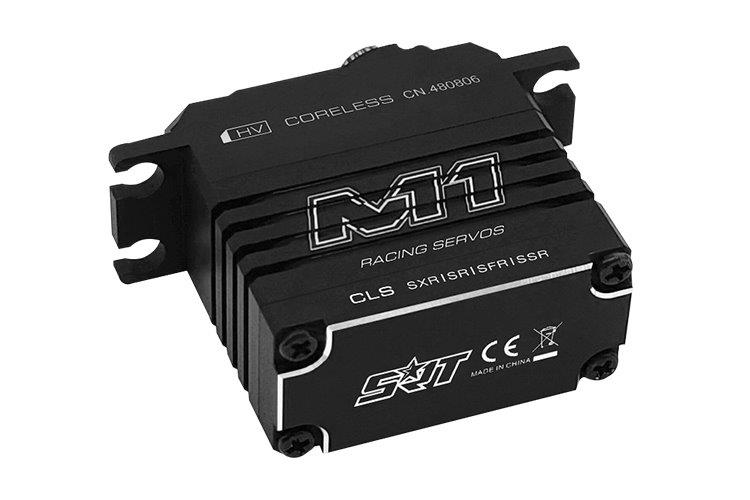

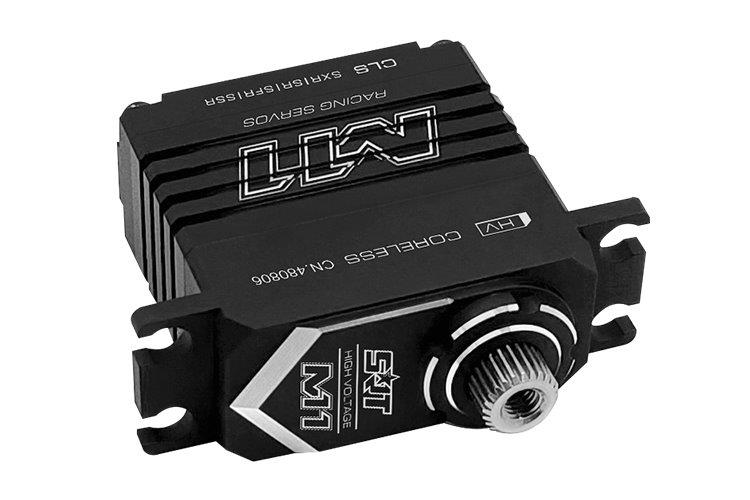

SRT M11 HiVOLT CORELESS Digital servo 9kg-0,055s/60°
792,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SRT-M11
KEY FEATURES (successor to M12)
Special 1/12 pancar servo
Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
Incredible efficiency and low power consumption
2 μsec Dead Band
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating speed (6.0v): 0.07 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.055 sec/60 degrees at no load
stall torque (6.0v): 7.0kg.cm (97.2 oz/in)
stall torque (7.4v): 8.0kg.cm (111.1 oz/in)
stall torque (8.4v): 9.0kg.cm (125.0 oz/in)
potentiometer drive: direct drive

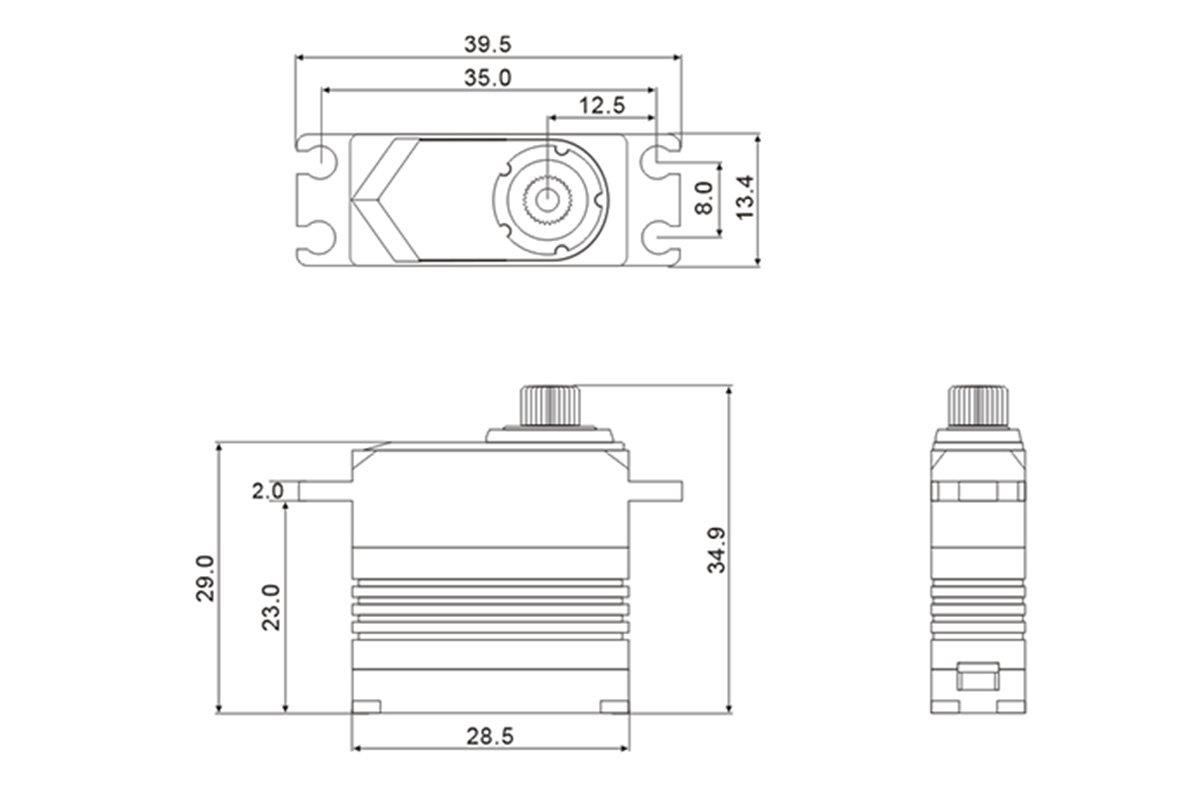

dimensions: 28.5x13.4x29.0 mm /1.12x0.53x1.14 in
weight: 28.0g (1.0 oz)
connector wire length: jr 170 mm
