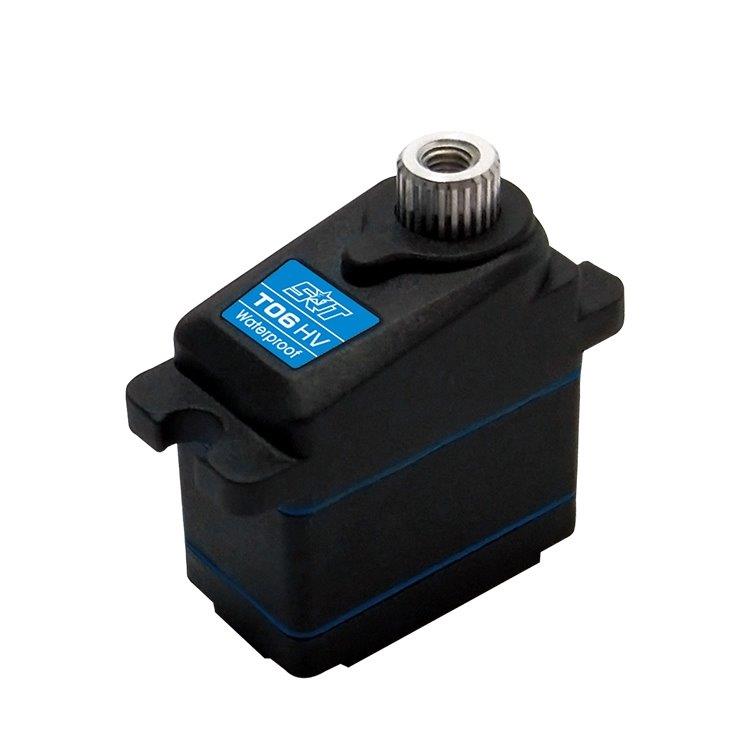

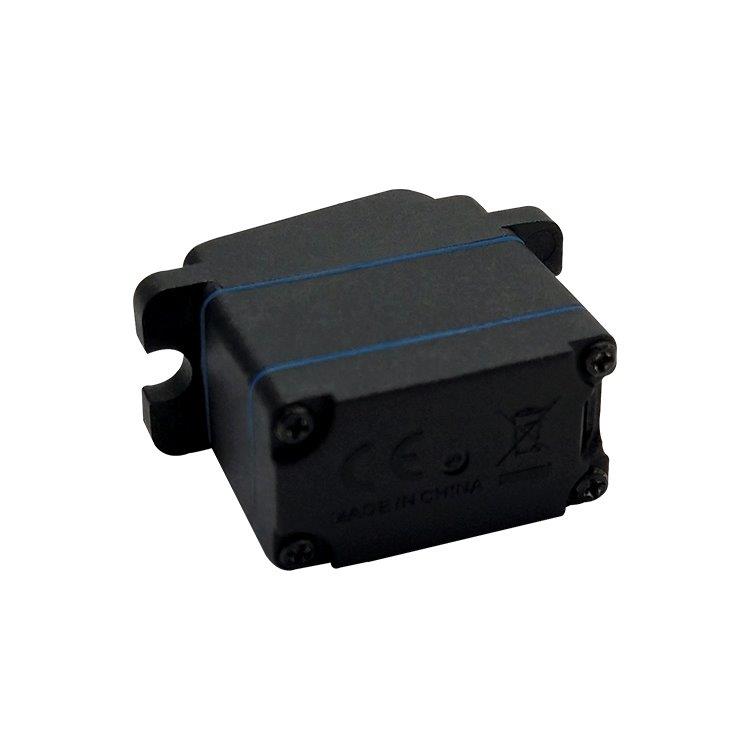

SRT T06 HiVOLT DC WATERPROOF DC Digital servo 2,8 kg-0,10s/60°
247,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SRT-T06HV
KEY FEATURES
Ideal for 1/16
incredible efficiency and low power consumption
Superior waterproof
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-7.4v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.16 sec/60 degrees at no load
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
stall torque (4.8v): 1.9kg.cm (26.4 oz/in)
stall torque (6.0v): 2.5kg.cm (34.7 oz/in)
stall torque (7.4v): 2.8kg.cm (38.9 oz/in)
potentiometer drive: direct drive
dimensions: 22.5x12.5x24.0 mm /0.89x0.49x0.94 in
weight: 16.0g (0.56 oz)
connector wire length: jr 350 mm
