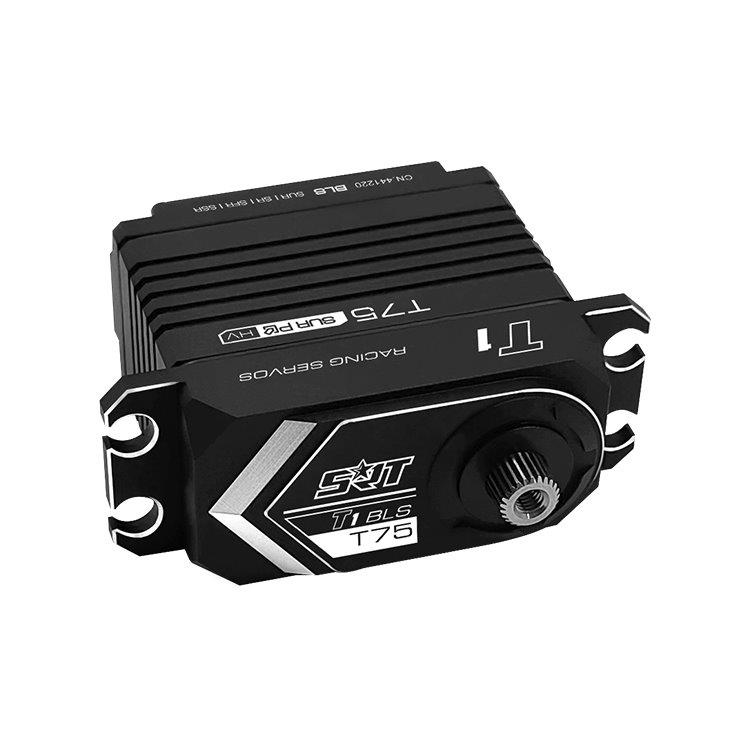

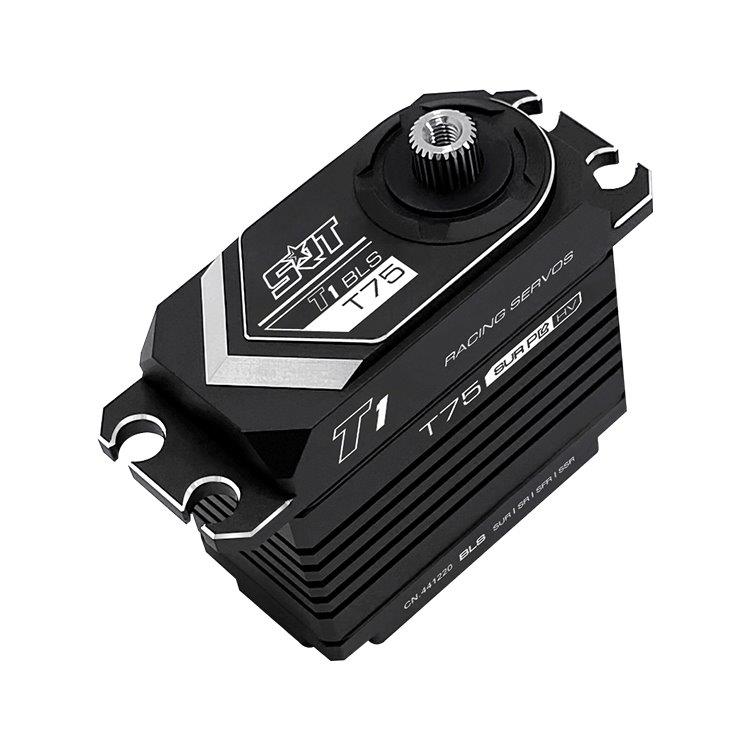

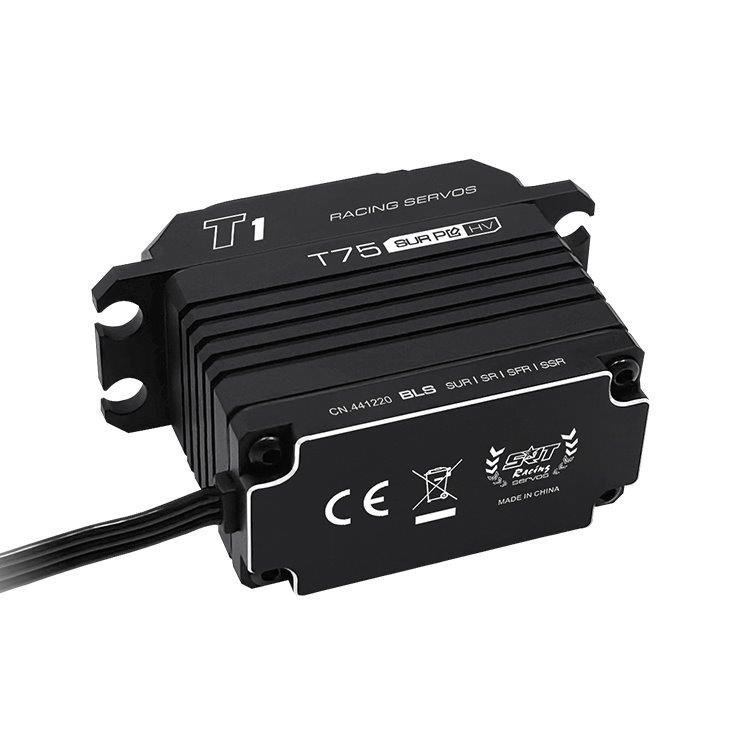

SRT T75 HiVOLT BRUSHLESS Digital servo 70 kg-0,12s/60°

KEY FEATURES
• Ideal for 1/8 on road and 1/5 off road scale applications
• Superior Holding Torque
• Incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• Programmable High torque Brushless servo
• Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
• 25T output shaft
• 2 μsec Dead Band


PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Steel
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.16 sec/60 degrees at no load
• operating speed (7.4v): 0.14 sec/60 degrees at no load
• operating speed (8.4v): 0.12 sec/60 degrees at no load
• stall torque (6.0v): 55.0kg.cm (763.8 oz/in)
• stall torque (7.4v): 60.0kg.cm (833.2 oz/in)
• stall torque (8.4v): 70.0kg.cm (972.1 oz/in)
• potentiometer drive: direct drive

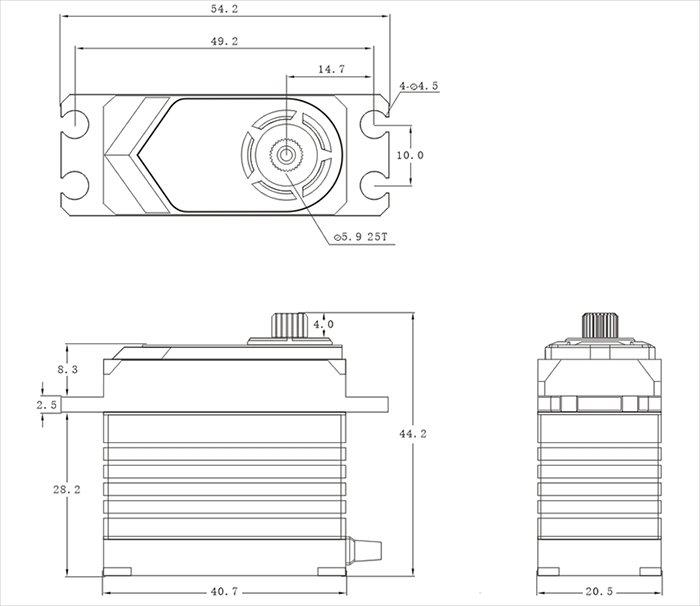

• dimensions: 40,7x20,5x39.0 mm /1.60x0.81x1.54 in
• weight: 83.0g (2.93 oz)
• connector wire length: jr 300 mm
