Product Details

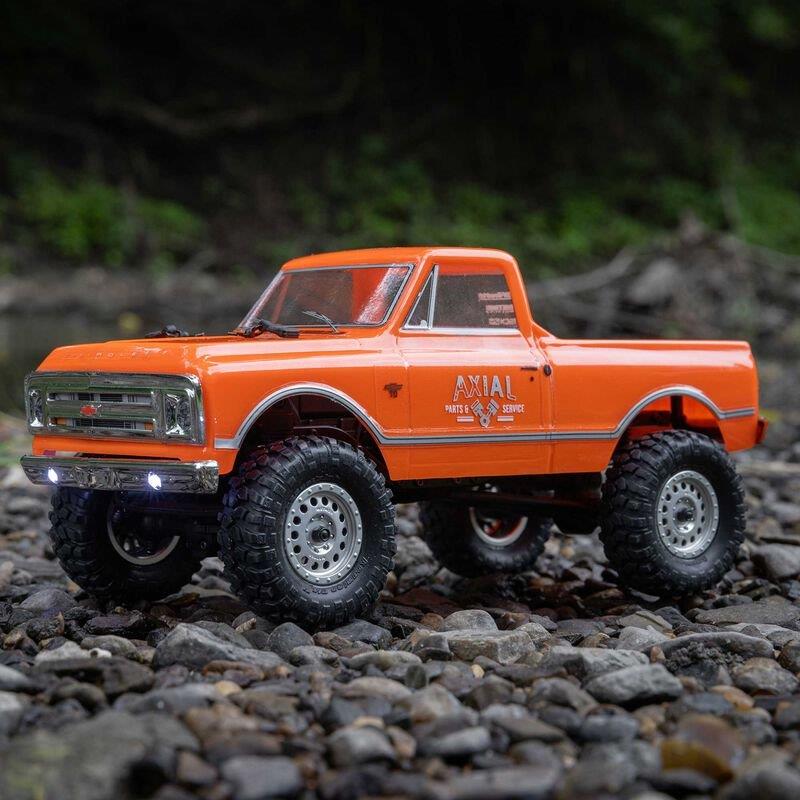

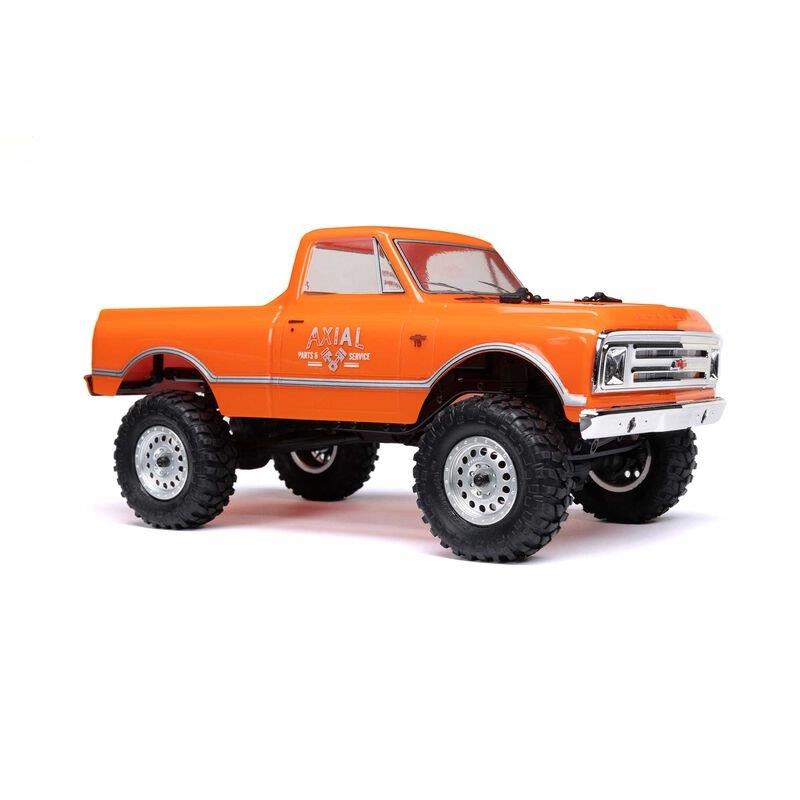

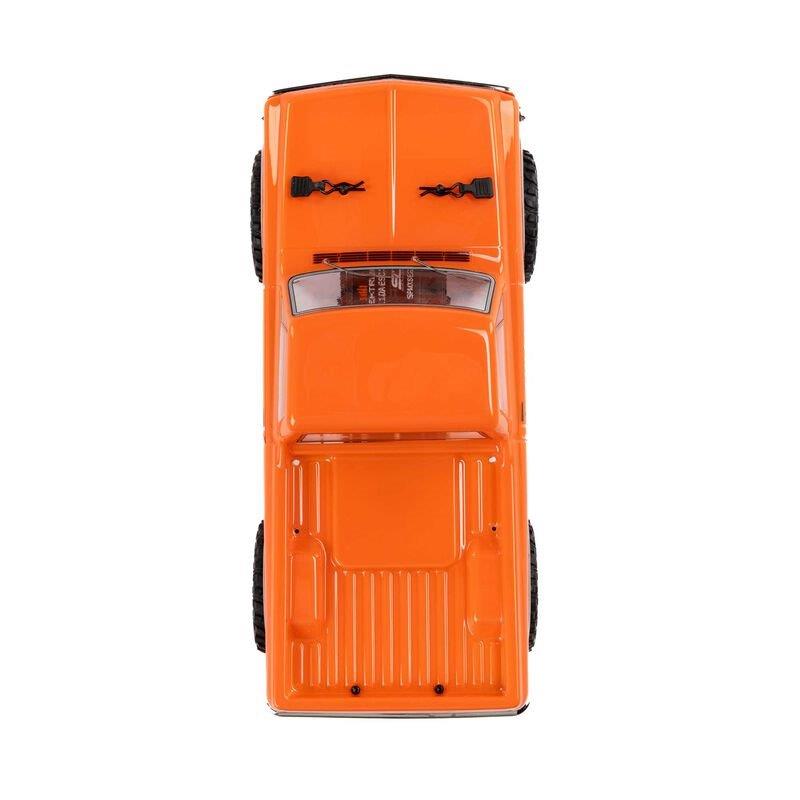

The performance and value of the SCX24 1967 Chevrolet C10 are better than ever before! Oil-filled shocks, Spektrum electronics, and new body colors have been added for a classic style RC rig thats completely ready-to-run and sized to run anywhere.
Key Features

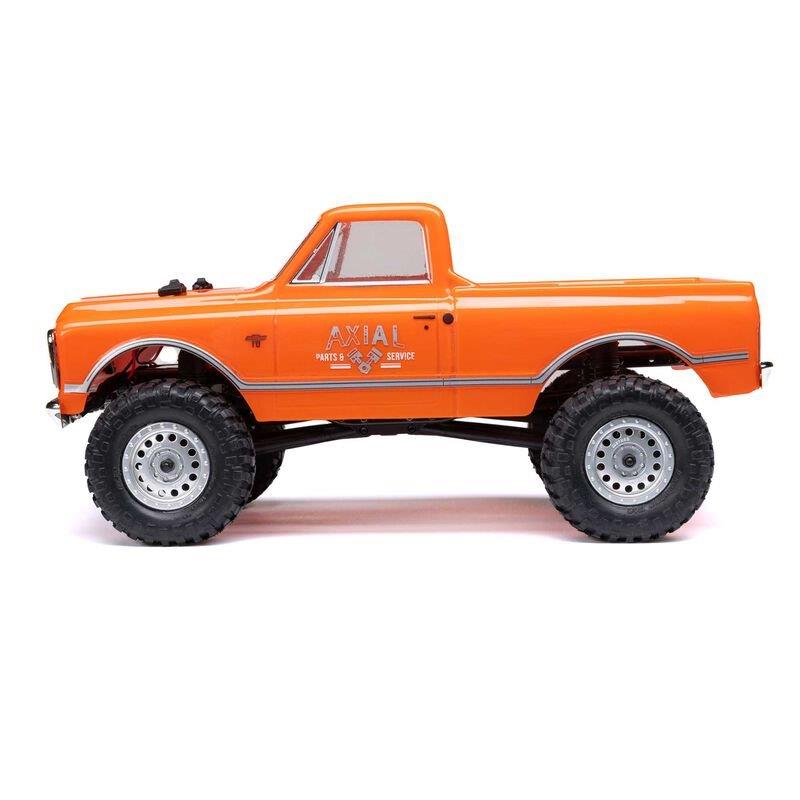

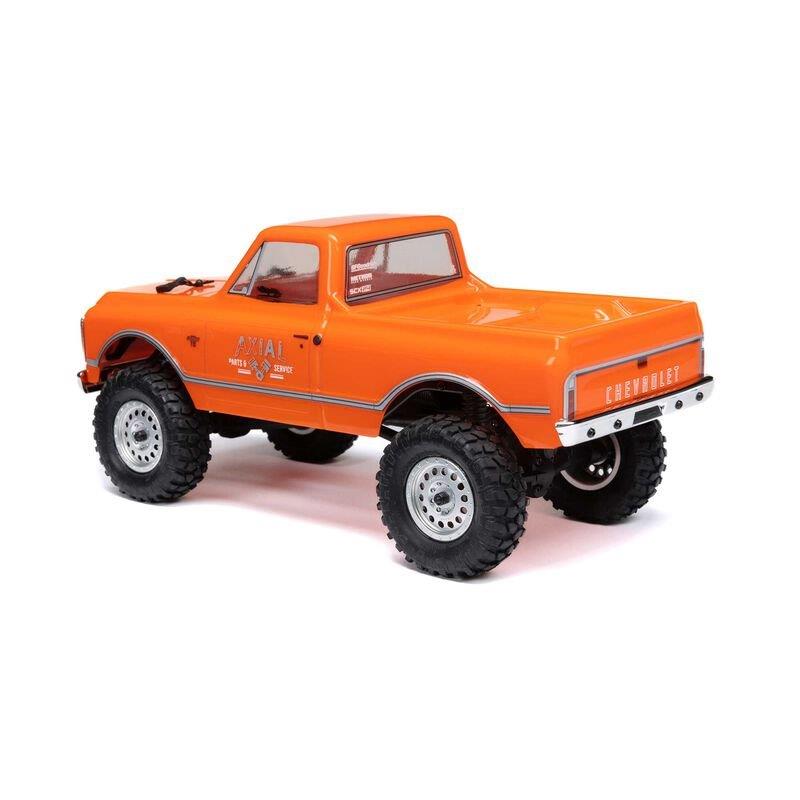

Detailed 1967 Chevrolet C10 polycarbonate body in two fresh color options
Plush oil-filled shocks
Realistic steel frame rails for added strength
Spektrum SLT2 2.4GHz radio system
Spektrum 350mAh LiPo battery and USB charger

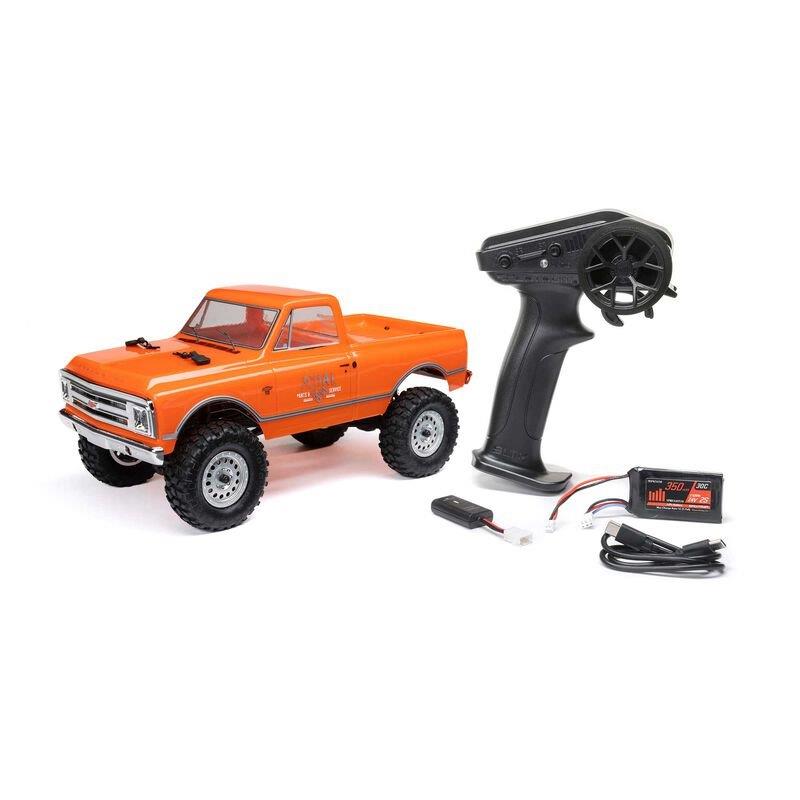

In The Box
(1) Axial SCX24 1967 Chevrolet C10 1/24 Scale 4WD RTR
(1) Assembled SCX24 chassis, drivetrain, and suspension
(1) Spektrum SLT2 2.4GHz radio system
(1) Spektrum 350mAh LiPo battery and USB charger
(4) AA transmitter batteries
(1) Product manual
Needed to Complete
Absolutely nothing!
Overview

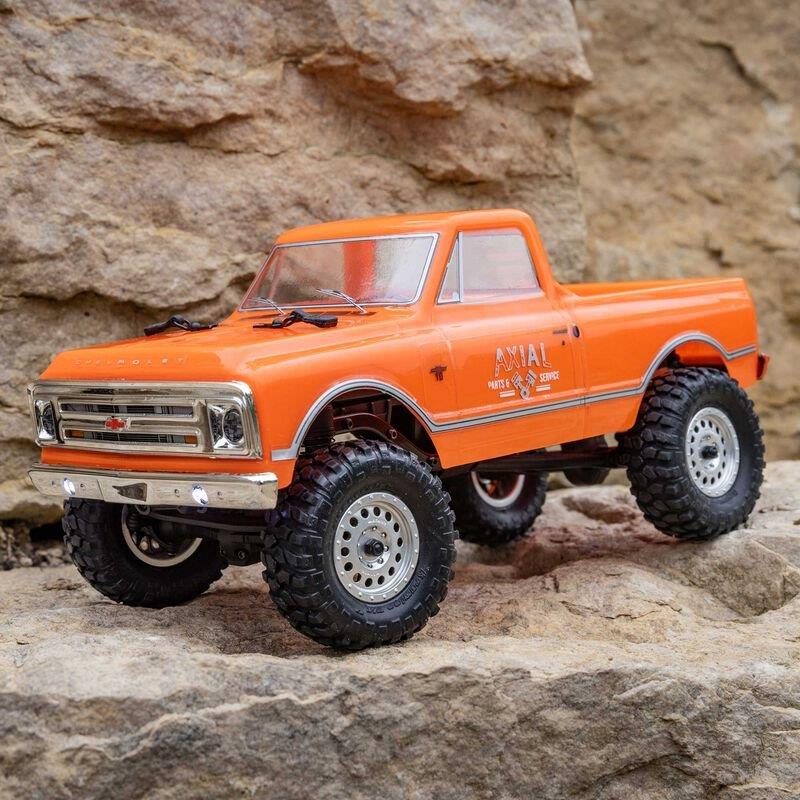

Introduced by GM in 1967 as a multi-purpose workhorse, the full-size Chevrolet C10 pickup holds its own on the trails even today. It refuses to show its age or diminish in popularity. As one of the best-selling Axial® micro rock crawlers of all time, the 1/24 scale SCX24 1967 Chevrolet C10 not only recreates the 1:1 originals classic styling but also delivers exceptional value in an RC rig value thats better than ever in this updated version.
Plush oil-filled shocks have been added for a suspension that soaks up bumps and provides a stable ride over rugged terrain. Reliable Spektrum electronics are now included, and there are two fresh body colors to choose from. Completely assembled, fully equipped, and improved with key upgrades, the SCX24 Chevy C10 is a perfect choice for hobby beginners as well as for experienced Axial RC crawling enthusiasts.
The SCX24 Chevy C10 makes any location the scene for rock crawling fun. Its versatile size opens up almost any setting to spur-of-the-moment RC crawling expeditions. Set up an indoor obstacle course in any room by placing objects on the floor, a table, or desk. Outdoors, collect some twigs and small rocks, dig a few holes, and create a challenging trail for adventuring in the open air.

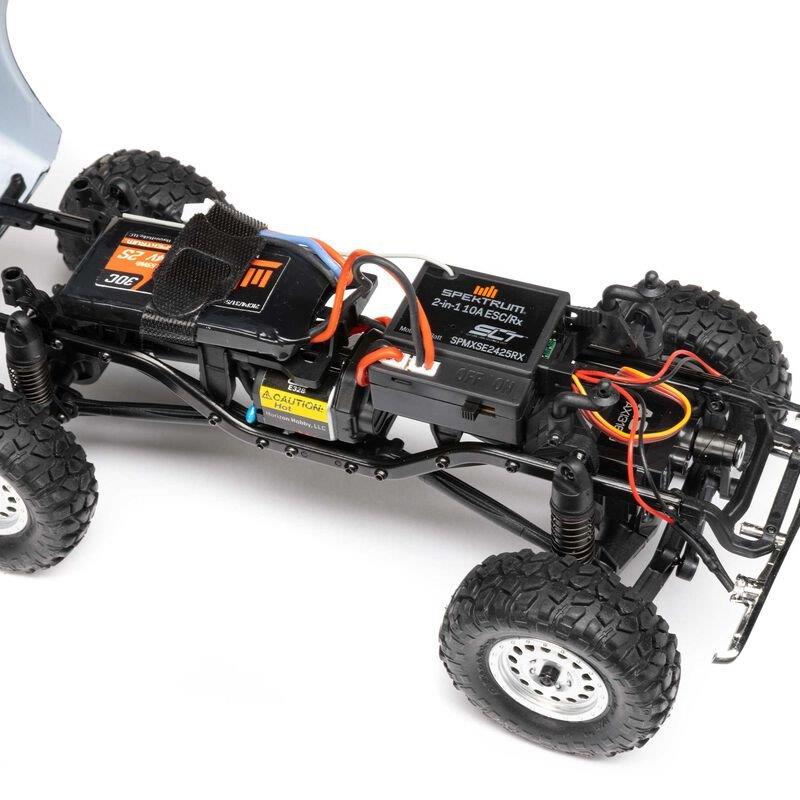

The SCX24 Chevy C10 has all the performance capabilities of the proven Axial SCX24 platform. Full-time 4WD and a 3-link front/4-link rear suspension let you muscle over big challenges. Worm gears on the axles increase the ground clearance. Realistic steel C-channel frame rails stand up to hard knocks. The detailed scale body rides on licensed 1:1 Method wheels and BF Goodrich tires that tackle on-road and off-road challenges with ease.
Inside the box, in addition to the assembled and finished rig, youll find a Spektrum SLT2 2.4GHz transmitter, 350mAh LiPo battery, and handy USB charger. Four AA batteries are also included for the transmitter. Unleash big crawling adventures with the updated Axial SCX24 1967 Chevrolet C10!
Features
Detailed 1967 Chevrolet C10 polycarbonate body in two fresh color options
Plush oil-filled shocks
Realistic steel frame rails for added strength
Spektrum SLT2 2.4GHz radio system
Spektrum 350mAh LiPo battery and USB charger

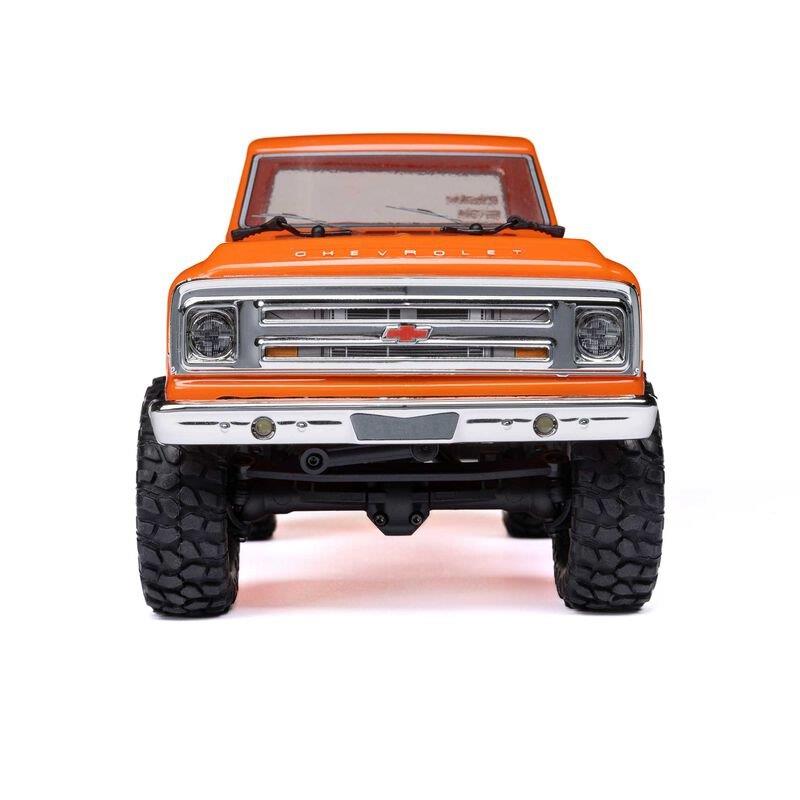

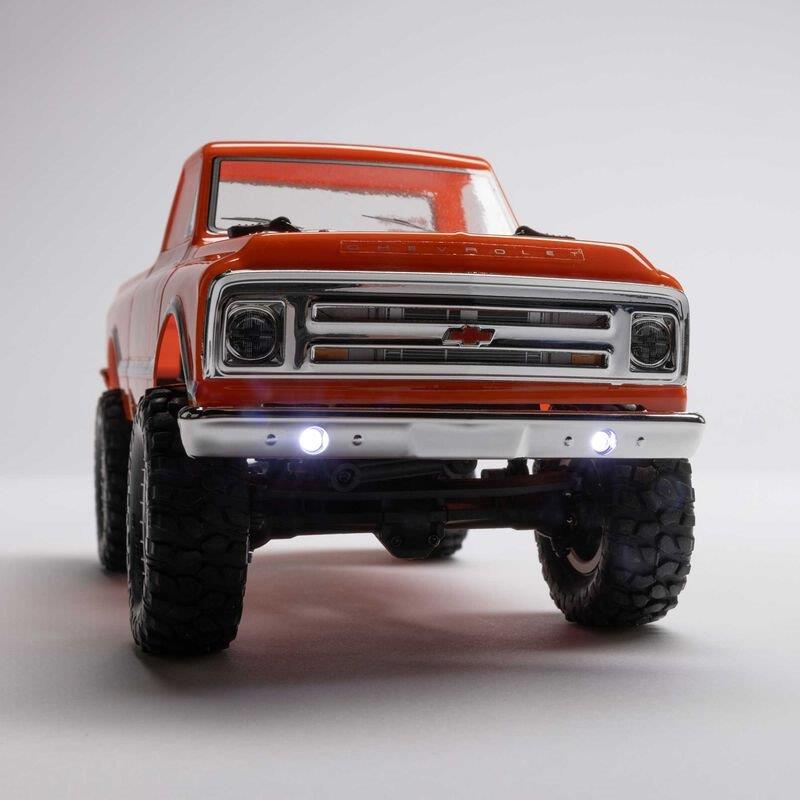

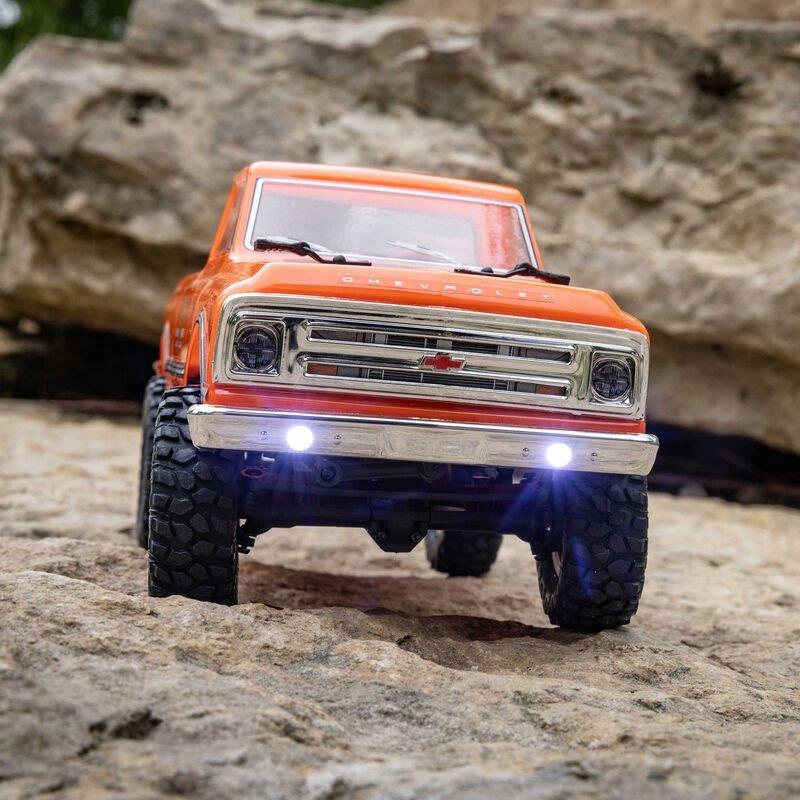

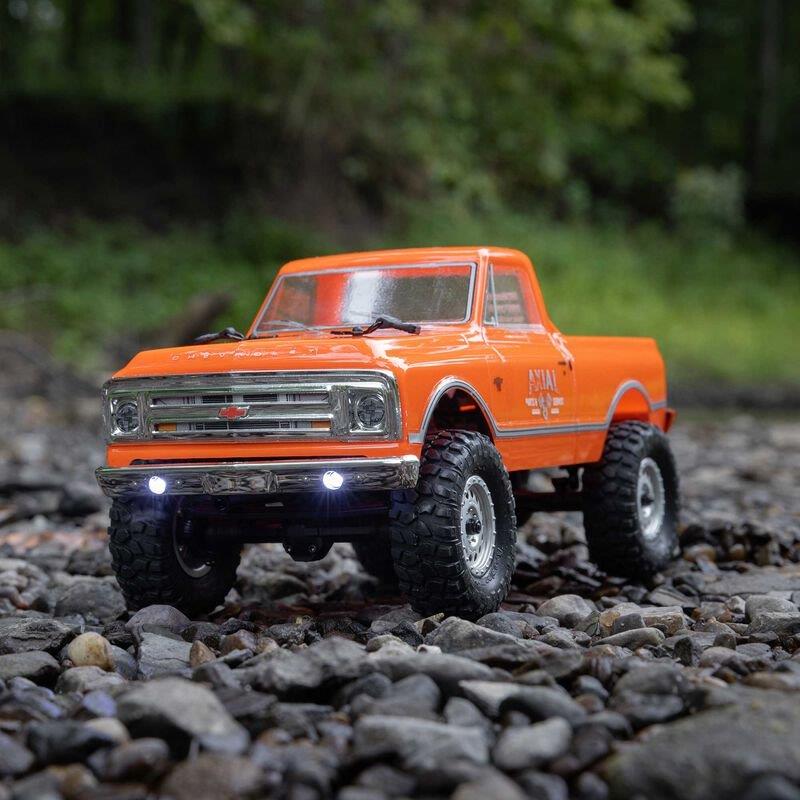

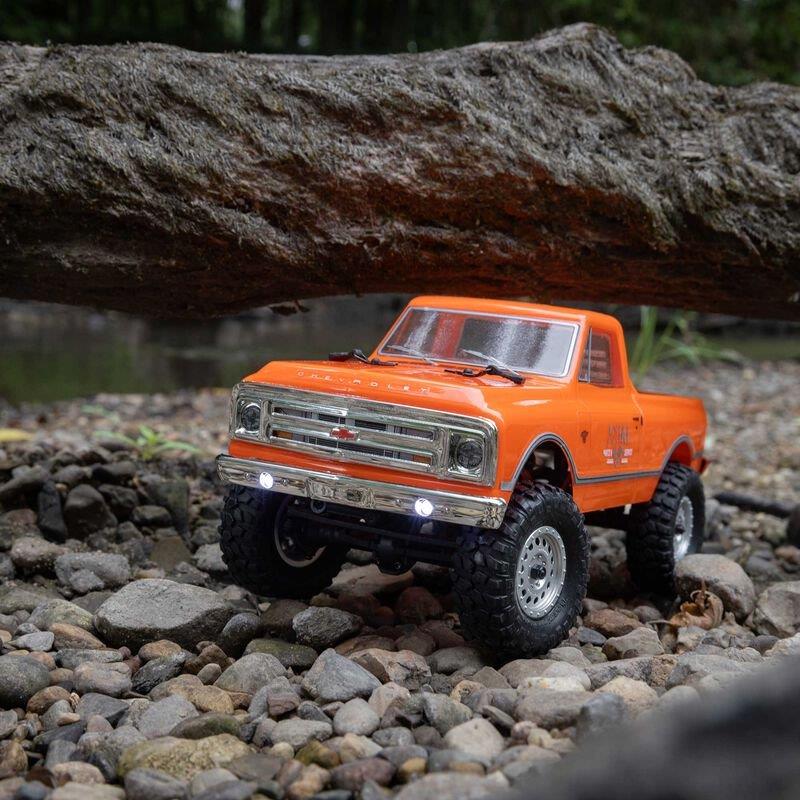

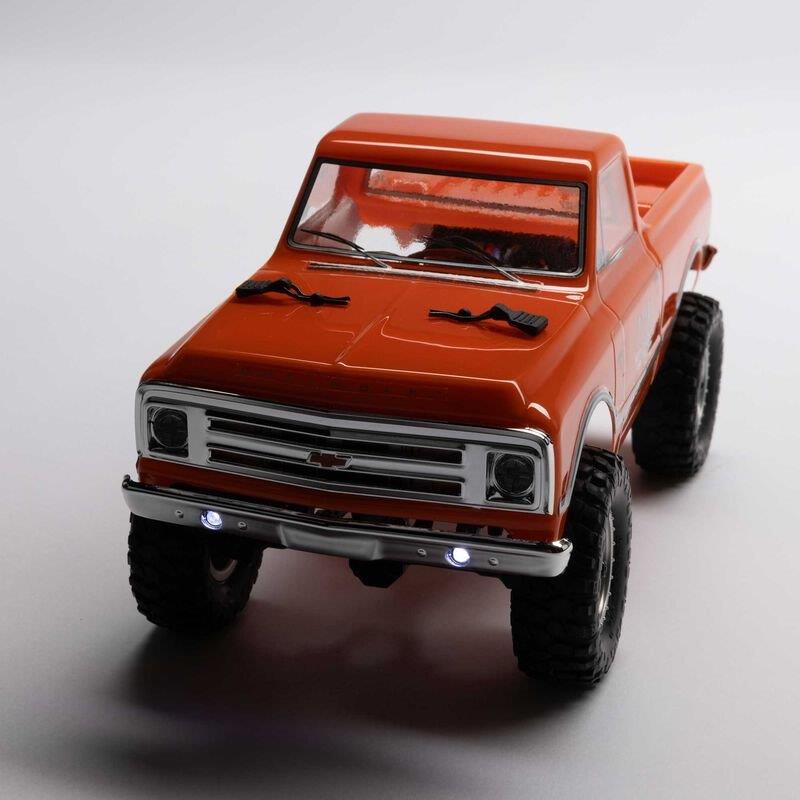

Two LED lights in the front bumper
080-size brushed motor
True, full-time 4-wheel drive
Metal worm drive gear on front and rear axles
3-Link front and 4-link rear suspension
Fully equipped and ready-to-run

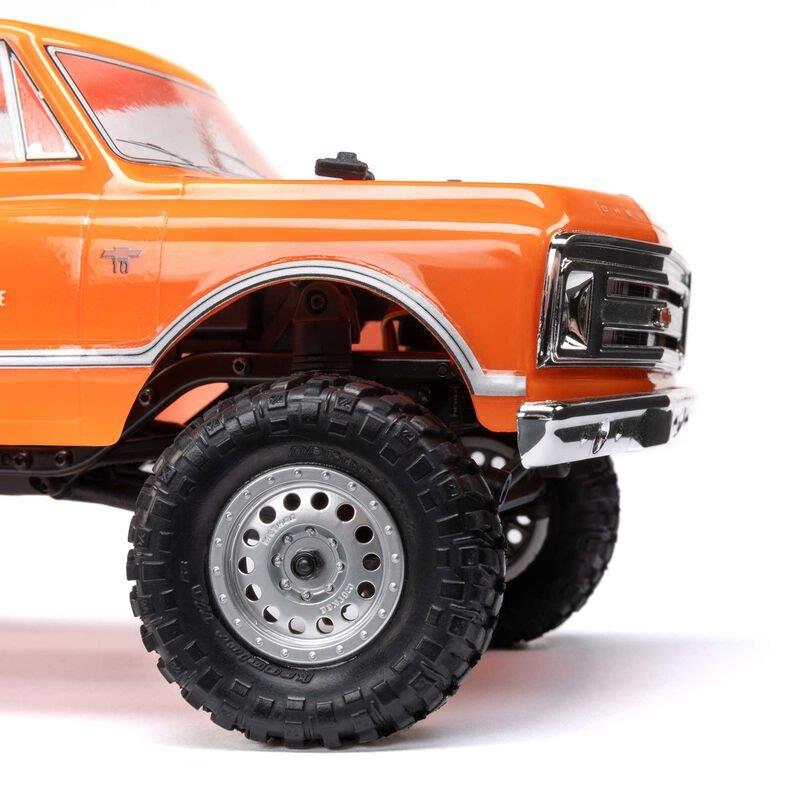

Licensed wheels modeled after 1:1 Method Wheels
Licensed tires modeled after 1:1 BFGoodrich Tires
Product Specifications:
Approximate Assembly Time: None
Body: Axial 1967 Chevrolet C10 Pickup
Brakes: Integrated with ESC
Pinion: 10T
Scale: 1/24
Power Type: Electric
Servos: Included
Charger: Included
Differential: Worm gear 16T/4T
Receiver: Included
Shock Type: Coil-over, Oil-filled, 0.9-1.3 in (24-33.4mm)
Front Track: 3.9 in (99.5mm)
Outer Diameter: 1.88" (48 mm)
Product Width: 3.9" (99 mm)
Radio: Included
Wheelbase: 5.2" (132 mm)
Product Weight: 8.0 oz (0.22kg)
Tire Tread: Nitto Trail Grappler
Vehicle Type: Rock Crawler
Water-Resistant: Yes
Battery: Included
Connector Type: PH 2.0 (High-Current Ultra Micro)
Ground Clearance: 1.06" (27mm)
Motor Size: 080 Brushed Electric Motor
Product Length: 8.6" (218 mm)
Spur Gear: 55T
Steering Type: 2WS
Suspension: Solid Axle, Front and Rear
Wheel Width: .48" (12.4mm)
Motor Type: Brushed
Rear Track: 3.9 in (99.5mm)
Speed Control: Included
Ball Bearings: Full set
Chassis: Stamped Steel Chassis Rails
Completion Level: Ready-To-Run
Drivetrain: 4WD
Drive Type: Forward/Reverse
Make: Chevy
Product Height: 3.6" (91 mm)
You can find the instruction manual here
