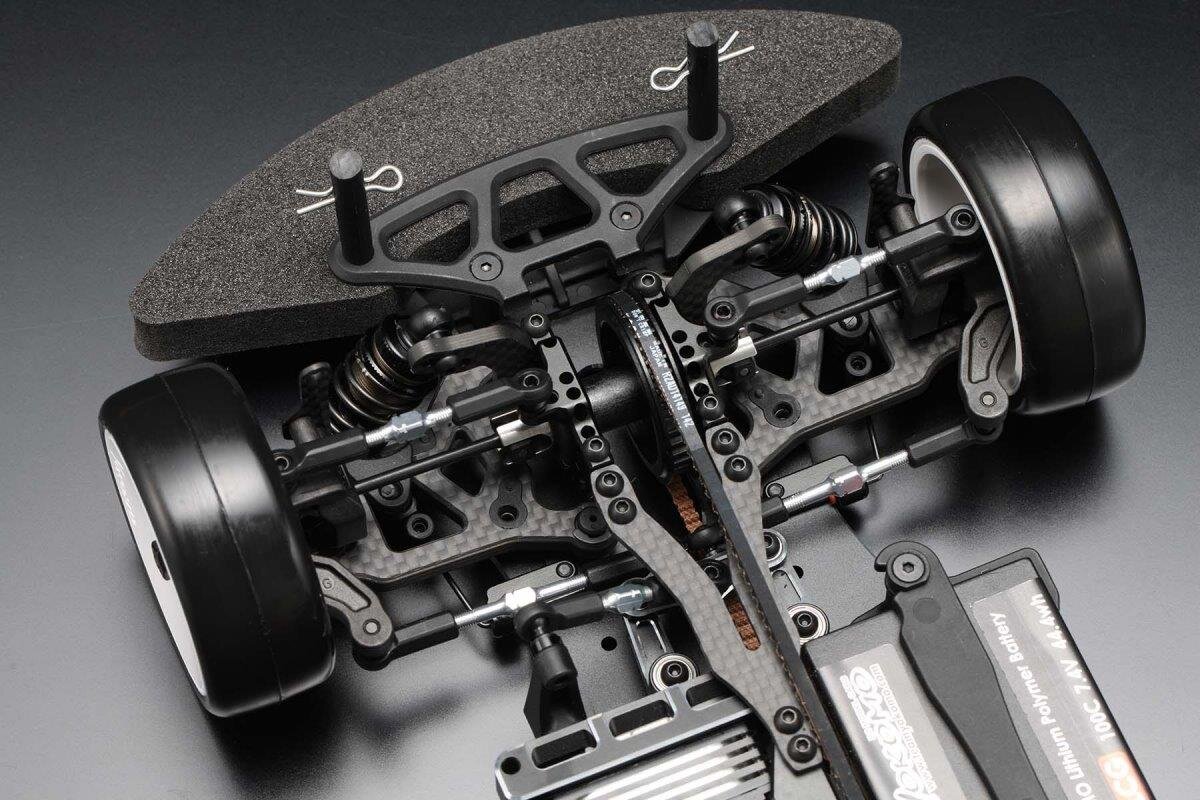

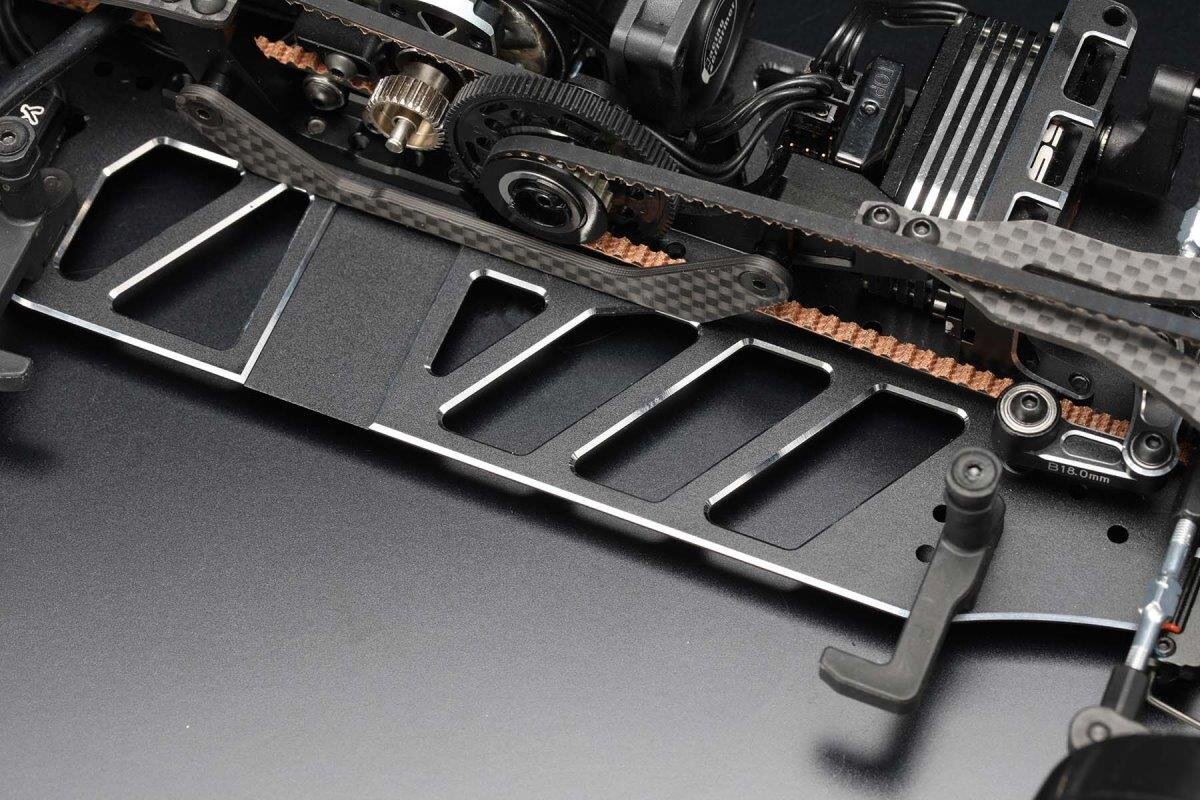

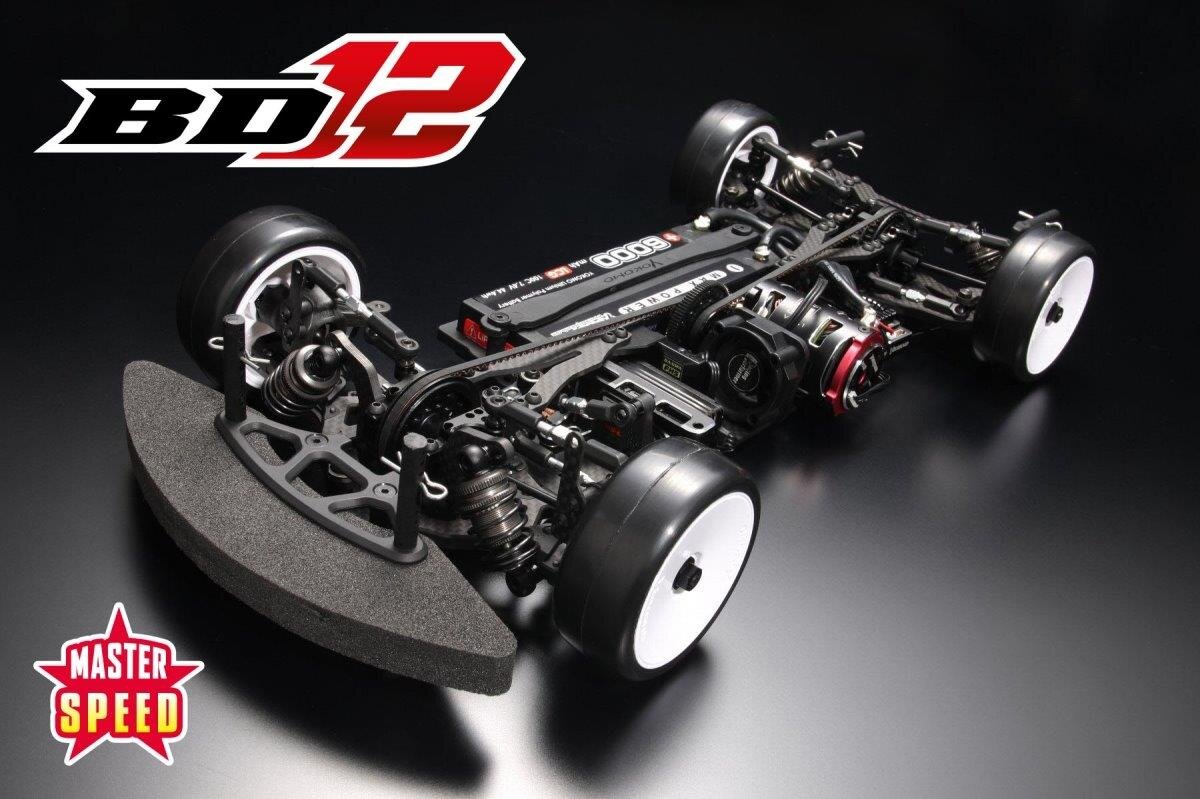

Yokomo Master Speed BD12 Carbon Chassis Competition Touring Car
8 995 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: MSR-BD12
Yokomo Master Speed BD11 Factory Team Edition Carbon Chassis Competition Touring Car
Code MSR-010FE
Retail 699.99
Price 482.88
Discount 17%
In stock 1
Order Formulärets överkant
Formulärets nederkant
Brand YOKOMO
Barcode / EAN 0639342202003
Add to Favourites

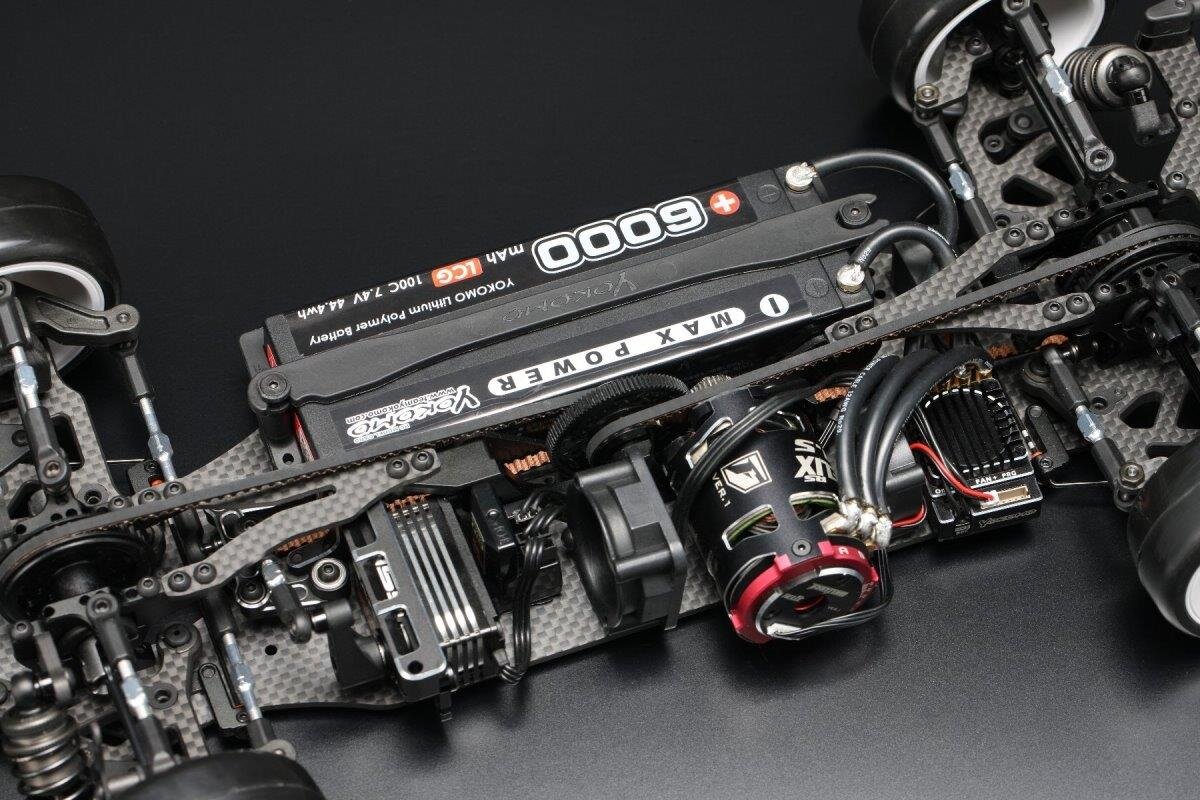

4WD touring car competition chassis kit with carbon plates in 1/10th scale.
Yokomo BD12
Yokomo's touring car, which brings innovation with its highly creative design, has evolved into the "BD12", a racing machine that tends to be uniformly designed. While maintaining the same balance between pitching and roll as before, the racing design has achieved an even lower center of gravity. The advanced design makes the obvious a thing of the past and will lead the racing scene in the 2023-24 series.
Based on a new motor mount that controls pitching rigidity, the chassis roll is controlled by the front and rear split upper decks, which together with the A.T.F active top deck flex, provide sharp cornering. The front and rear shocks are also shortened, and bearings are mounted in the spring holders to absorb spring torsion when the shocks are actuated, resulting in linear operation.
Features:
Split upper deck and connection to motor mount for improved pitching rigidity

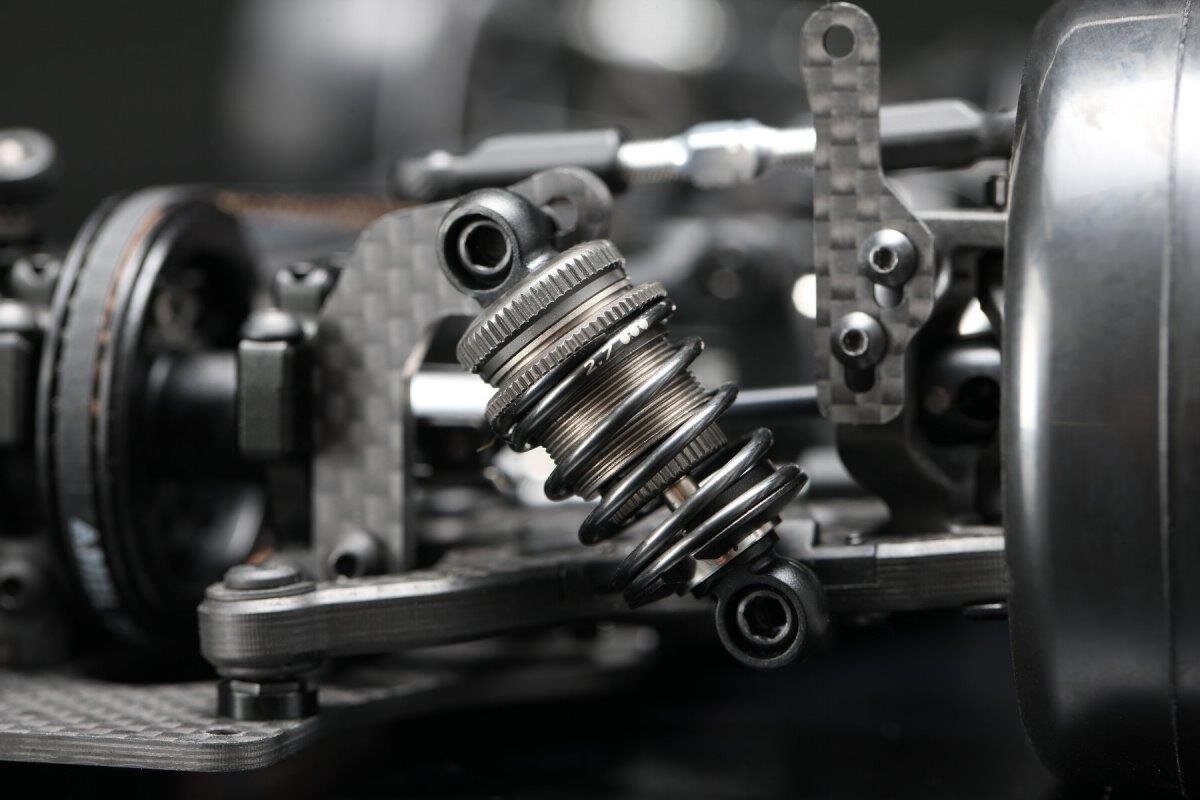

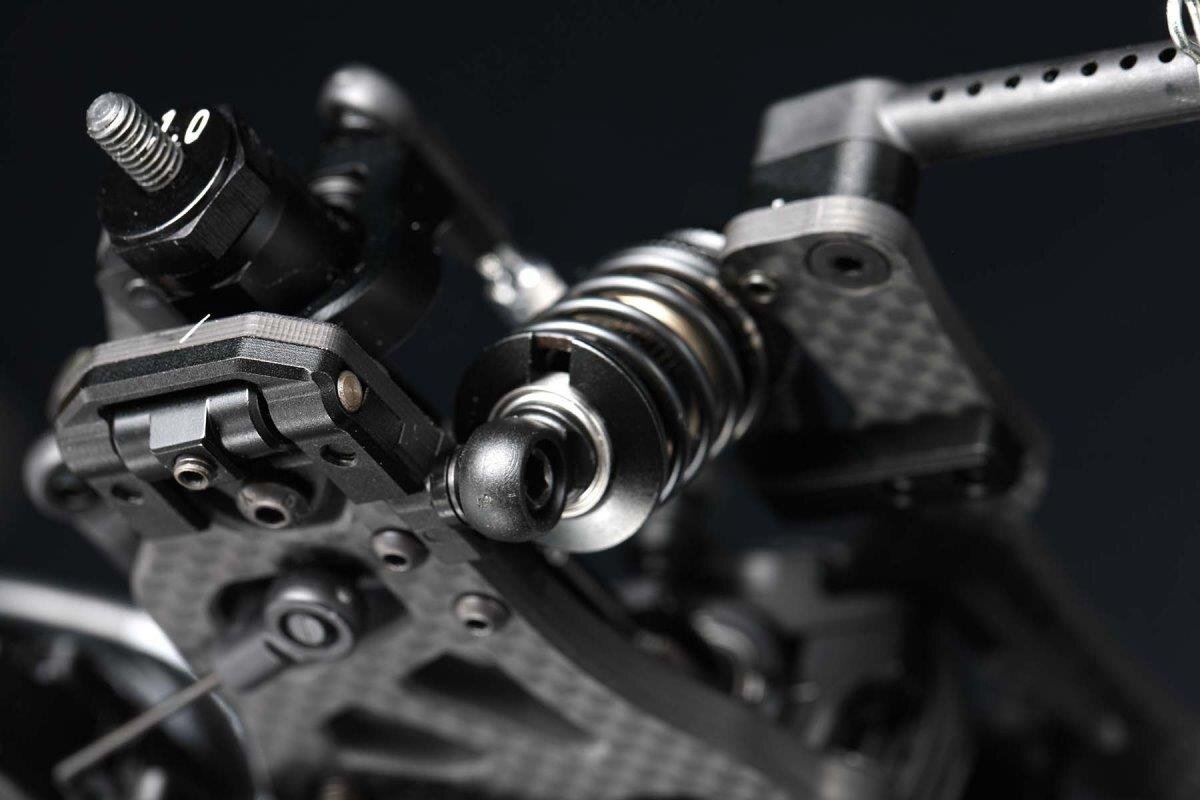

Shock length is further shortened and bearing-mounted spring holders eliminate twisting

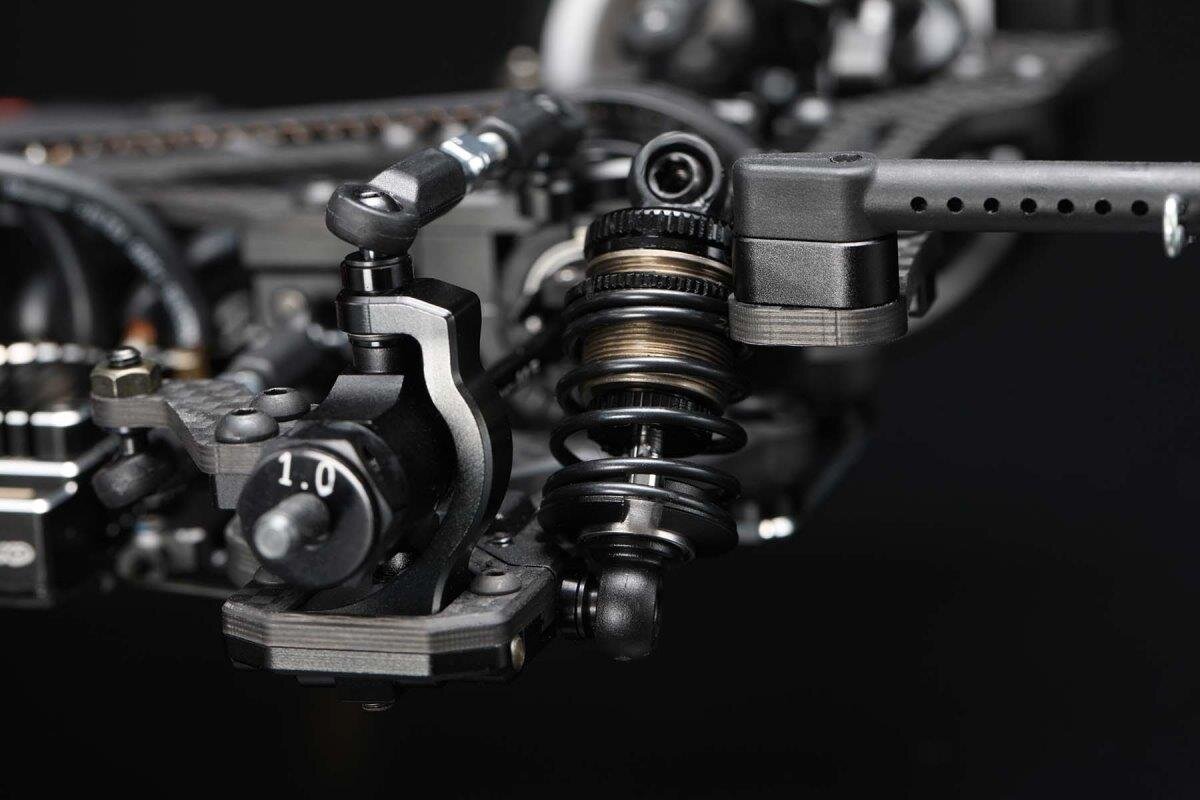

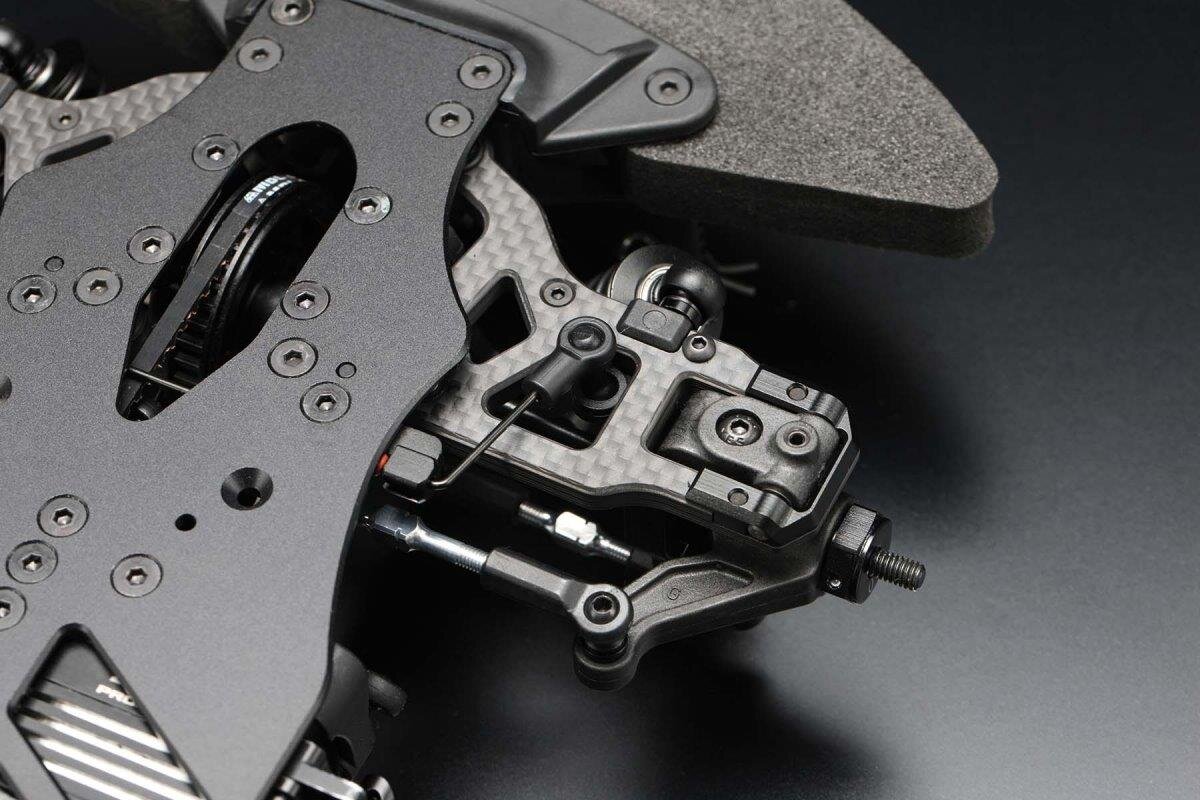

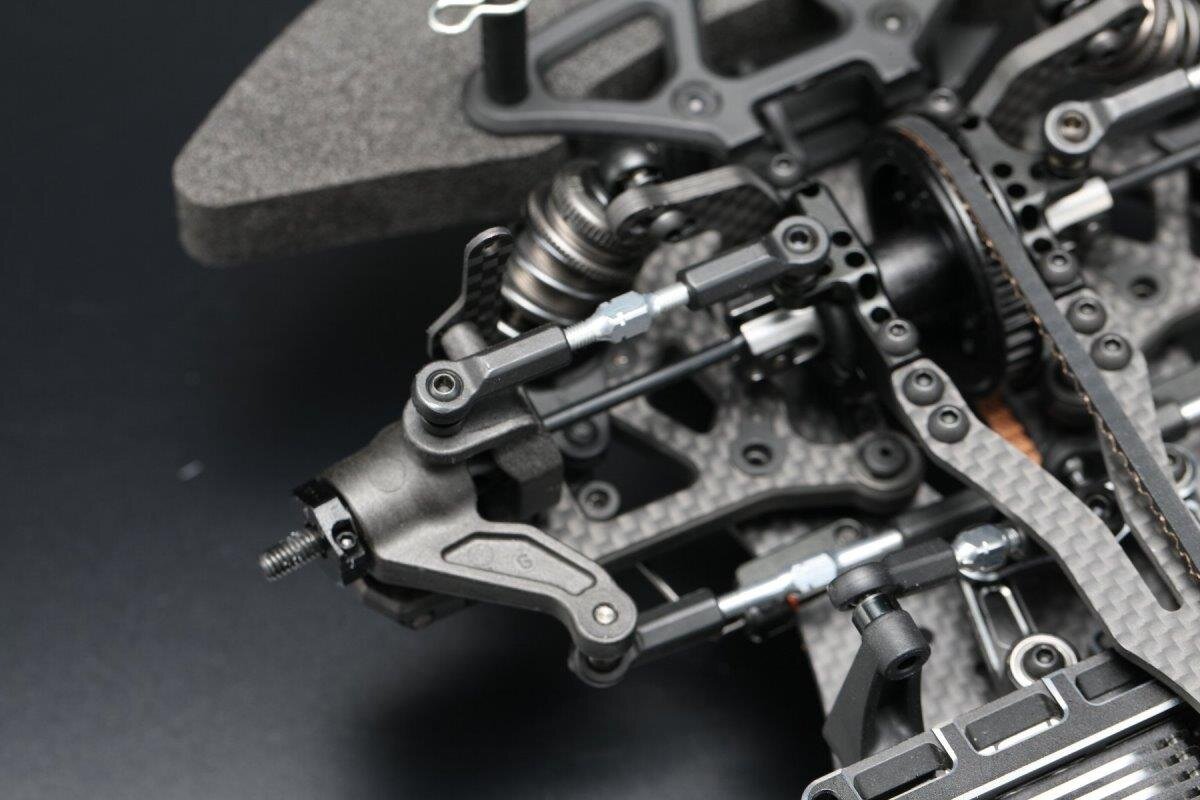

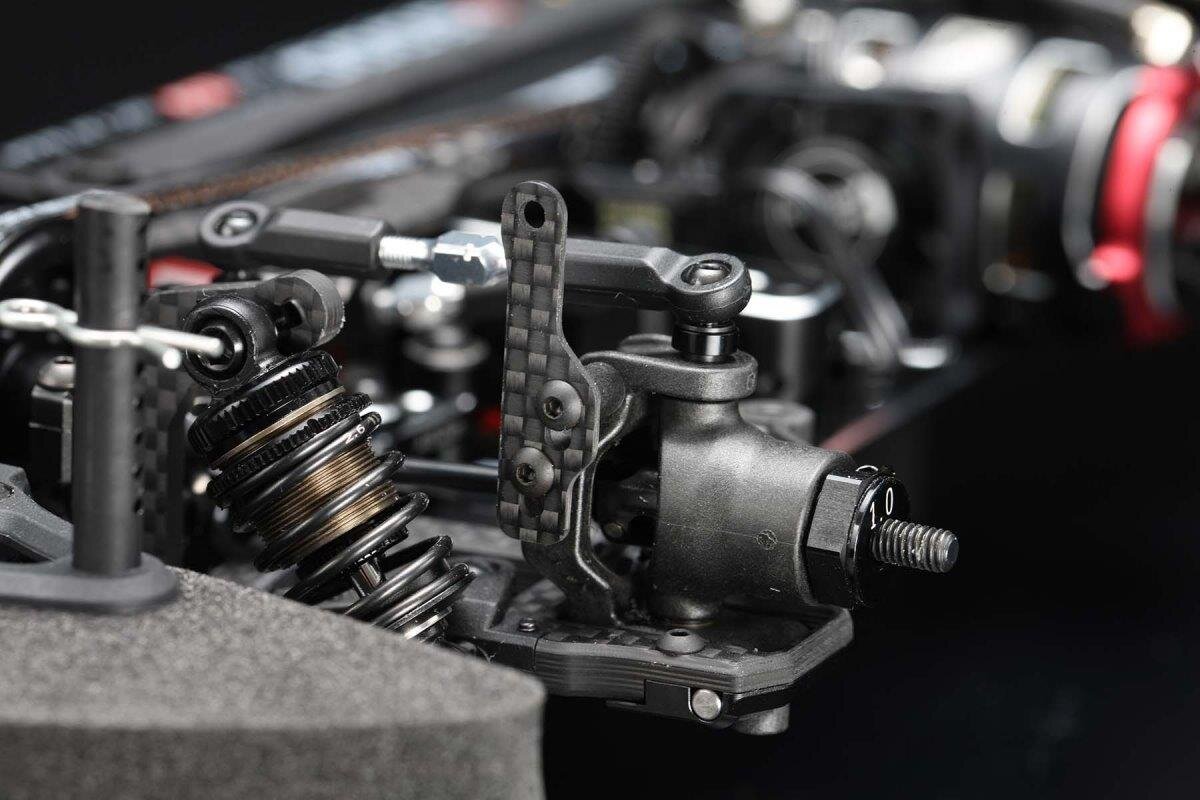

Body stiffener on front hub carrier prevents interference between body and tire for better traction

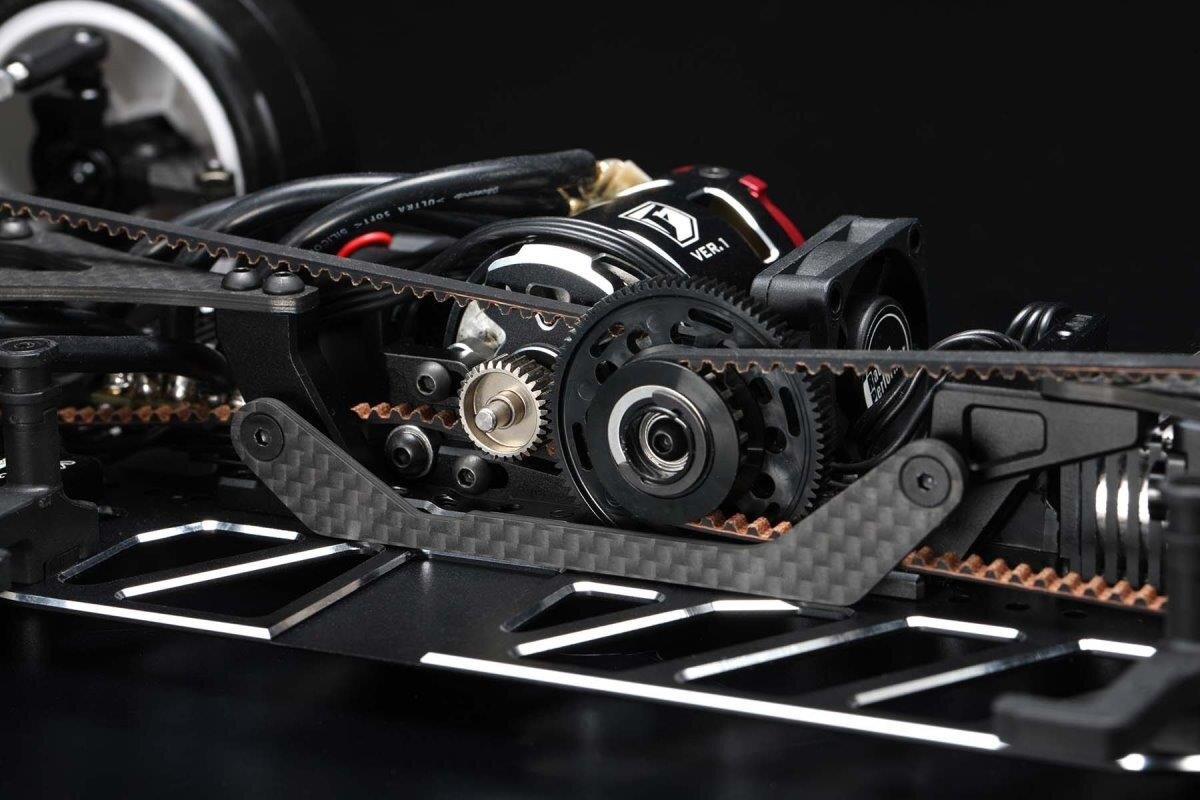

Carbon plate on motor mount for improved pitching rigidity

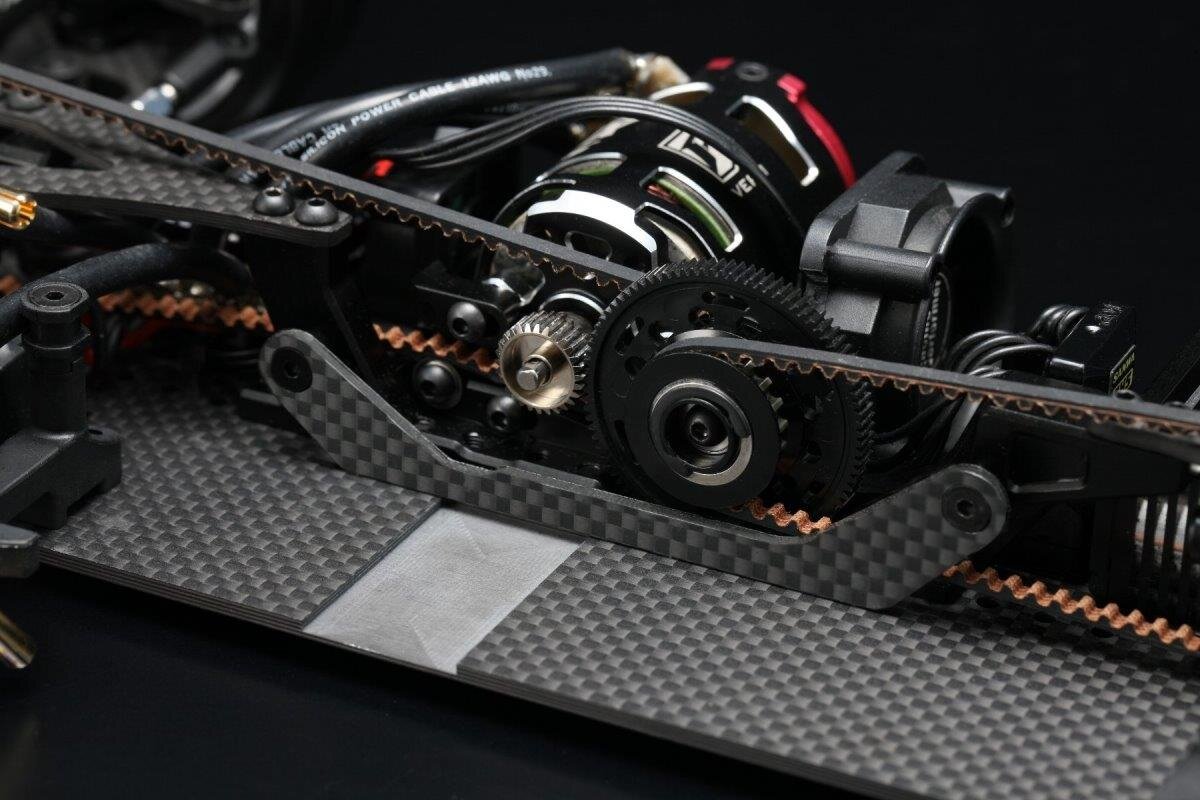

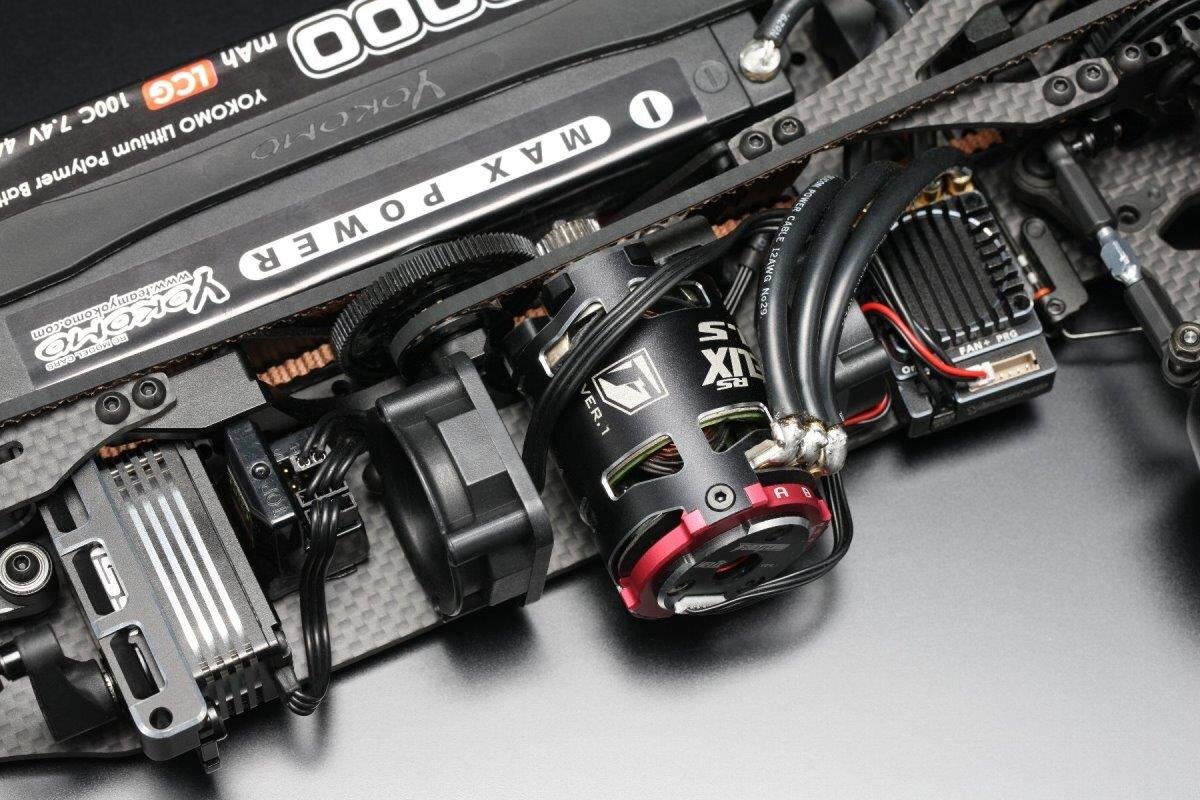

90T spur gears are used to lower the center of gravity of the drivetrain. The motor has also been moved closer to the front to centralize mass

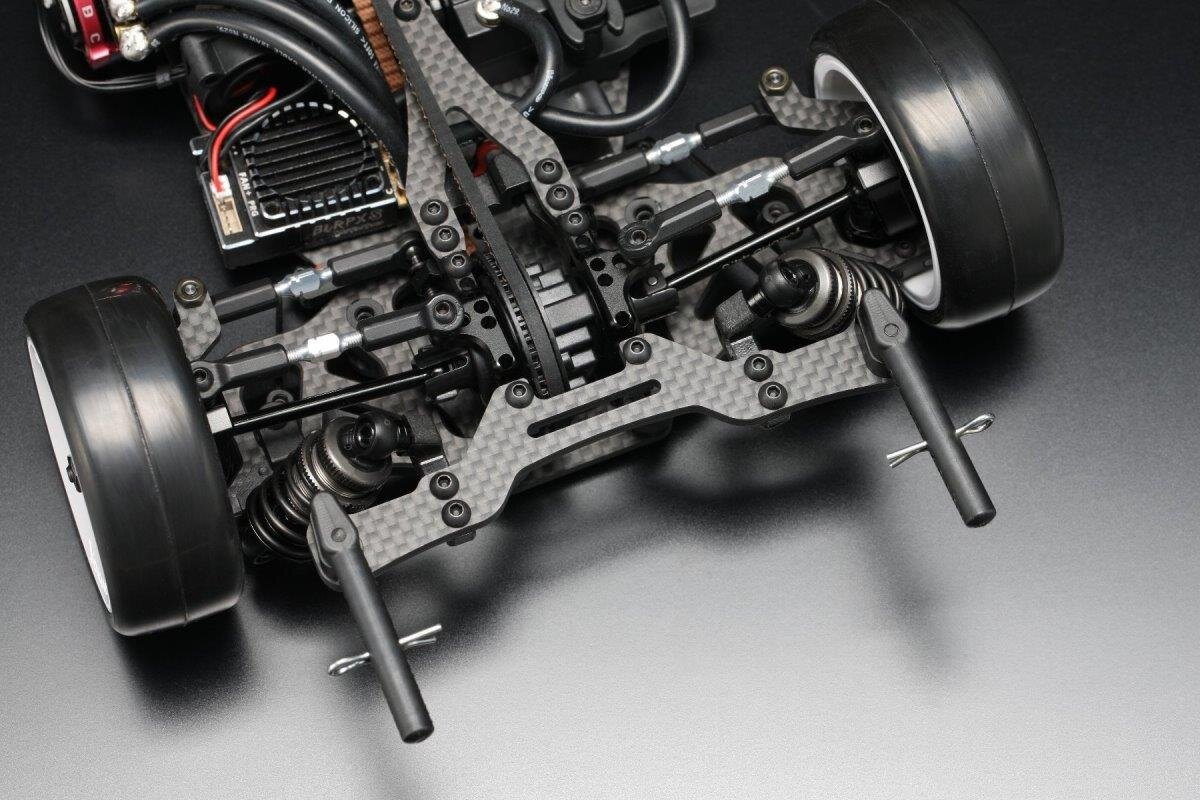

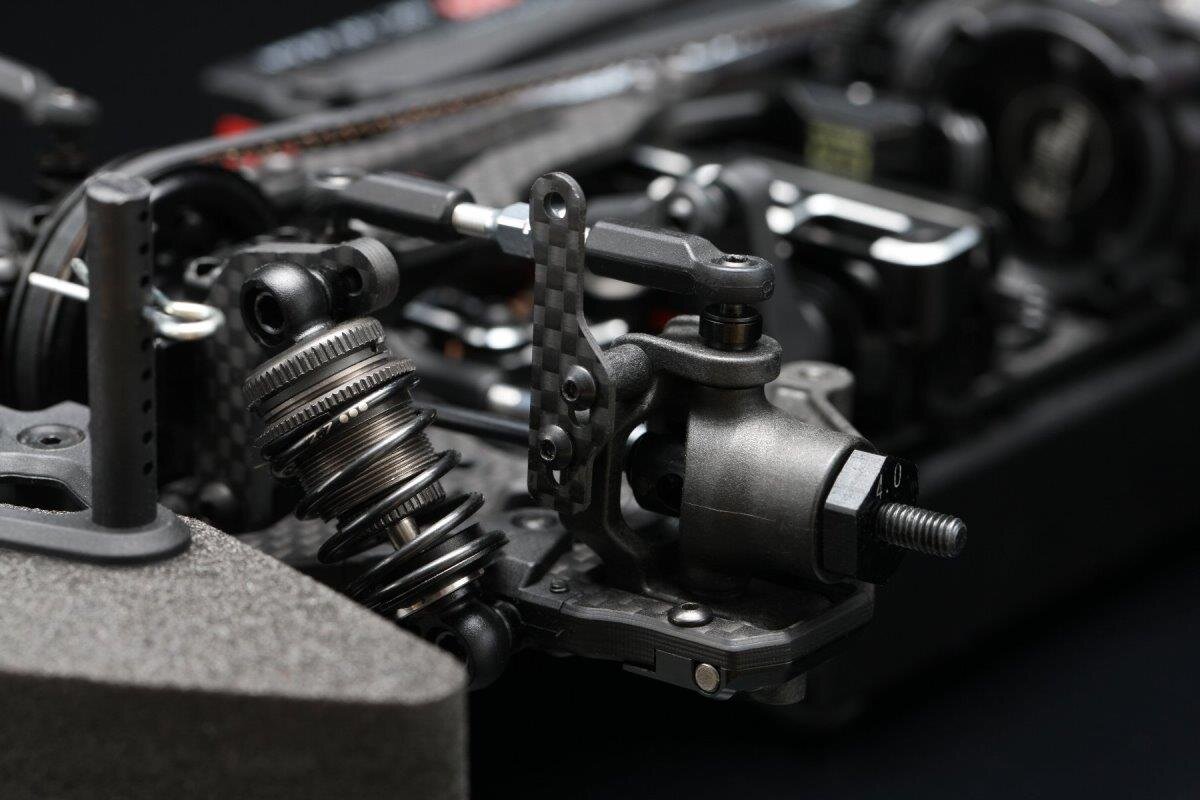

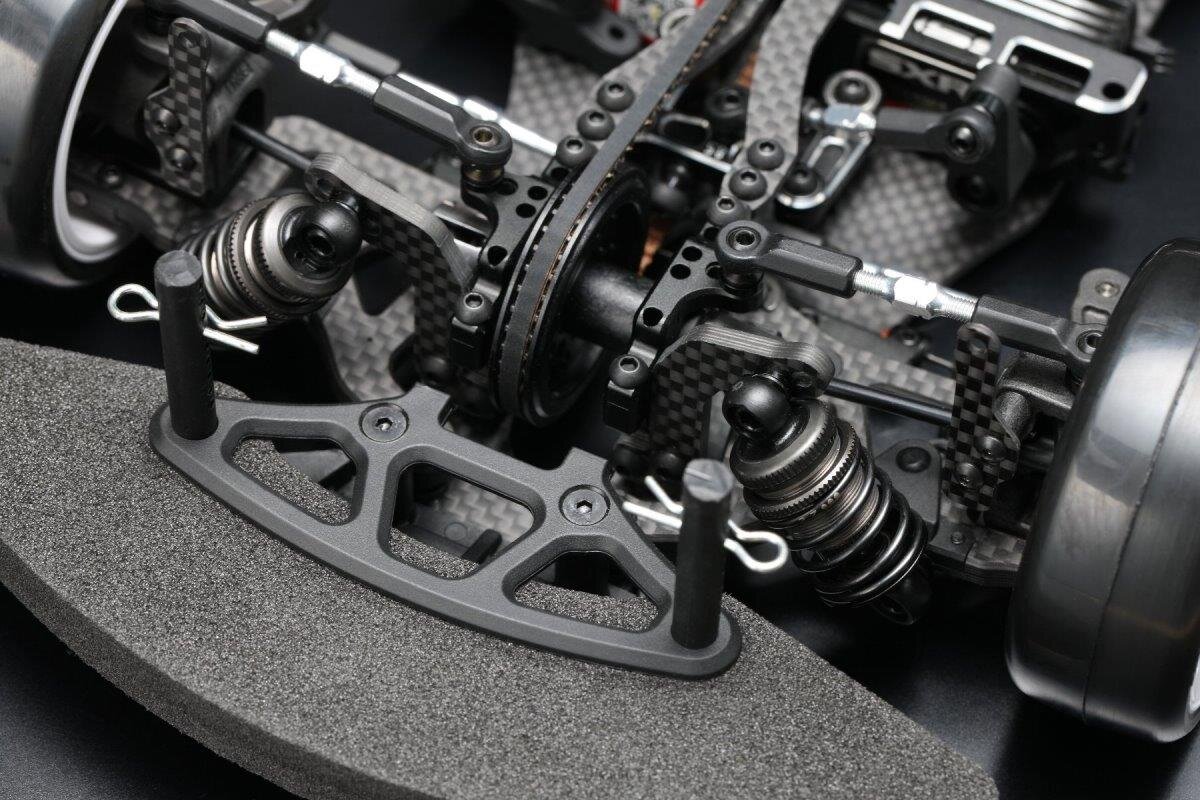

Newly designed front shock tower with additional upright shock mounting position

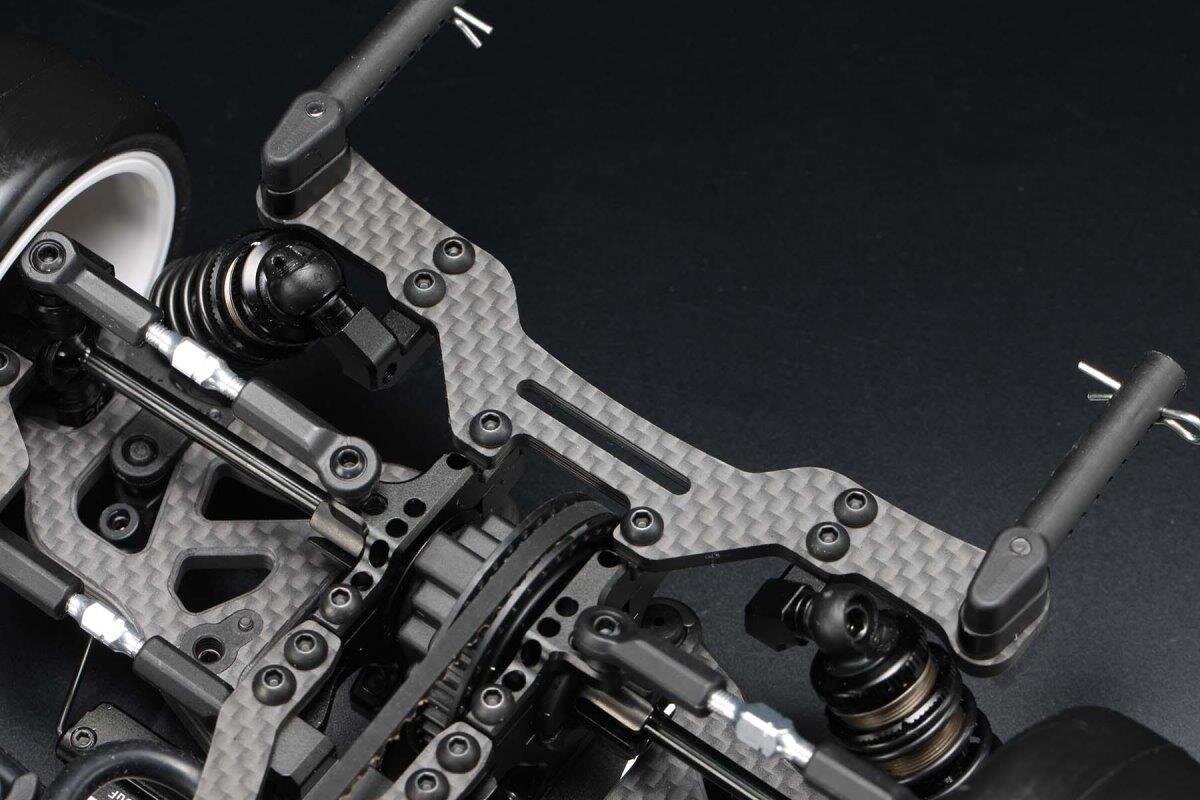

New rear shock tower with variable rear shock angle

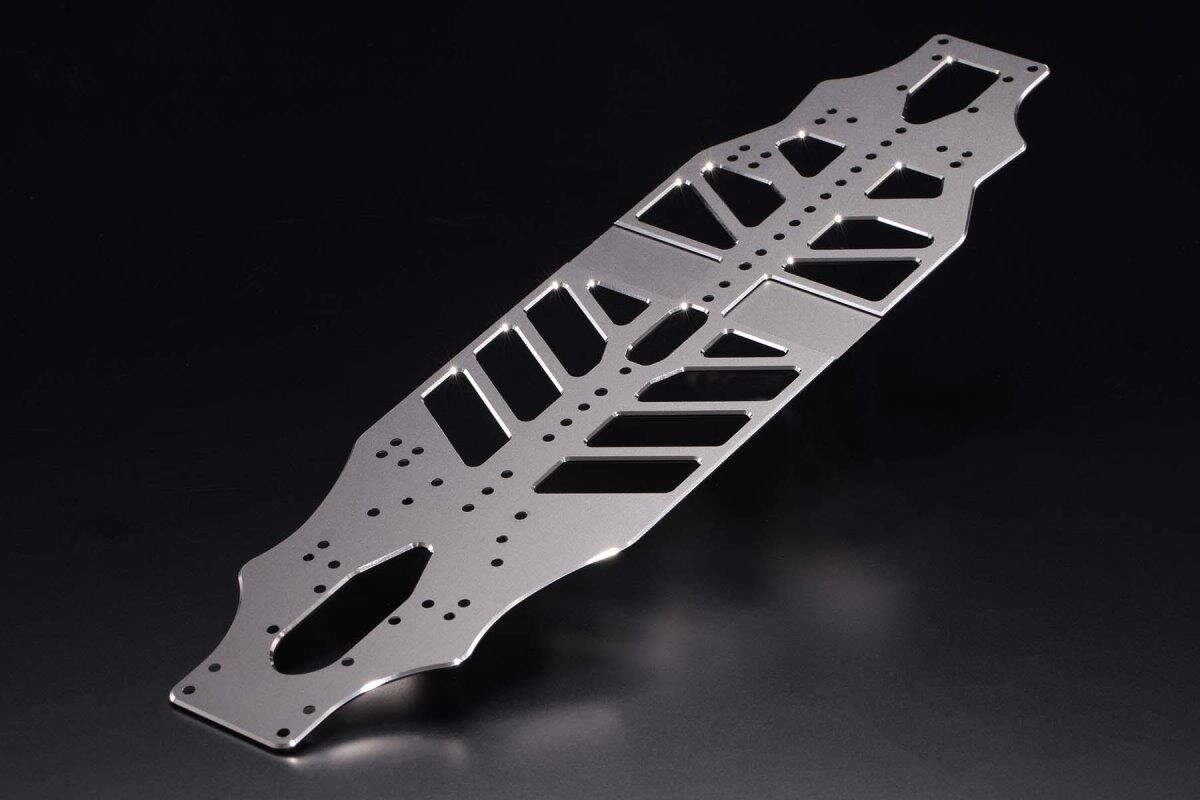

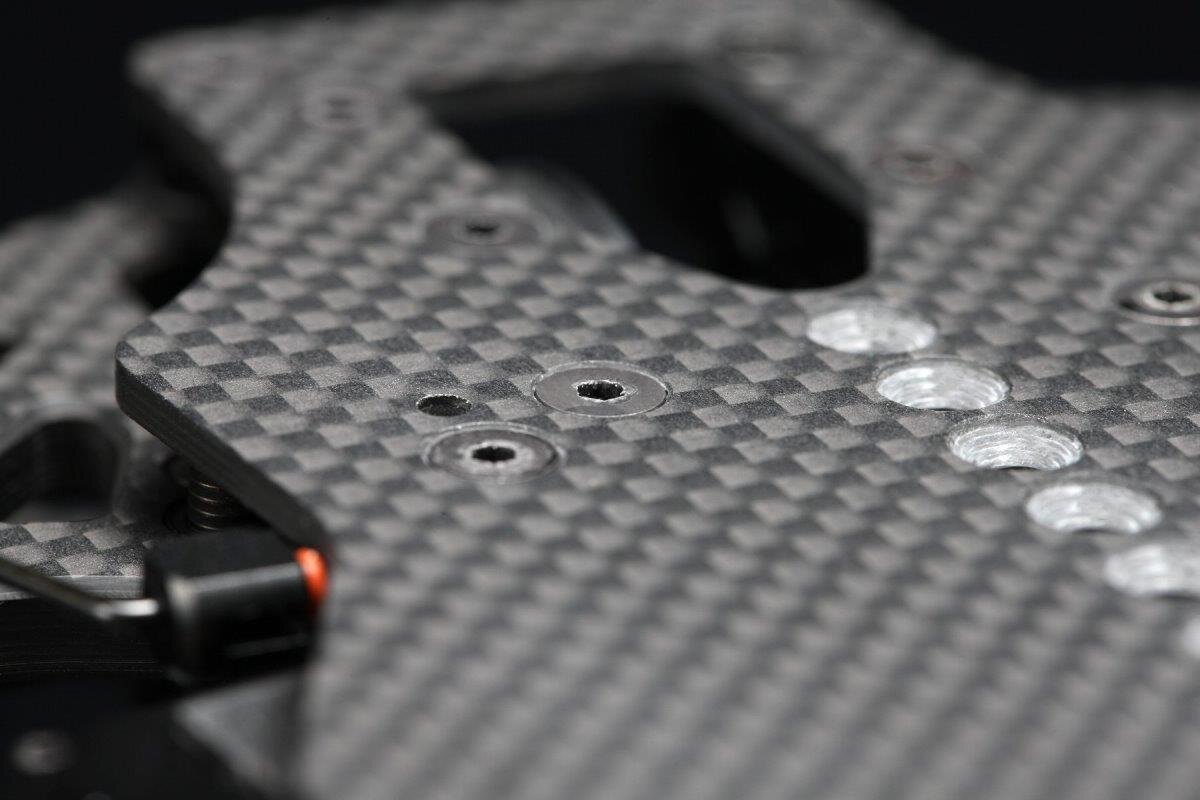

Shallow countersunk screw machining on the main chassis to prevent damage around the screws

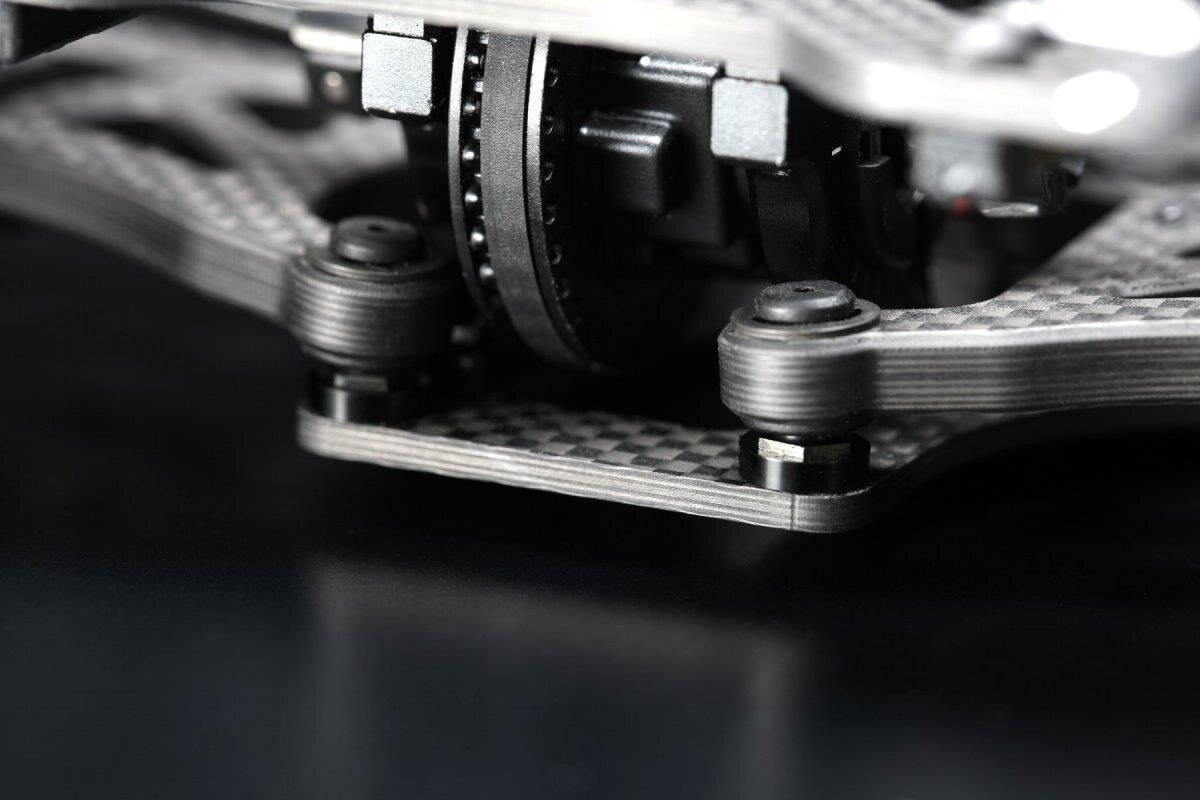

In a crash Large-diameter suspension spacers prevent damage to the main chassis in a crash
If you are going to race it, it's appropriate to fit your electronics choice according to the category.
Categories example:
Stock 21.5T - 21.5 turn motor and ESC with fixed timing, approved battery and tires
Stock 17.5T - 17.5 turn motor and ESC with fixed timing, approved battery and tires
Stock 13.5T - 13.5 turn motor and ESC with fixed timing, approved battery and tires
Modified - open motor (i.e. 4.5T) and ESC with timing, approved tires
*Specific category/class and their regulations can vary on different races/championships - it is often required to pick from a list of approved bodies, various minimum weight of the car etc. We recommend checking the regulations directly from where you are going to.
Scale 1/10
Wheelbase [mm] 256
Width [mm] 198
Chassis type On-road,Racing
Motor type AC,DC
Li-Po [čl.] 2
