Product Details

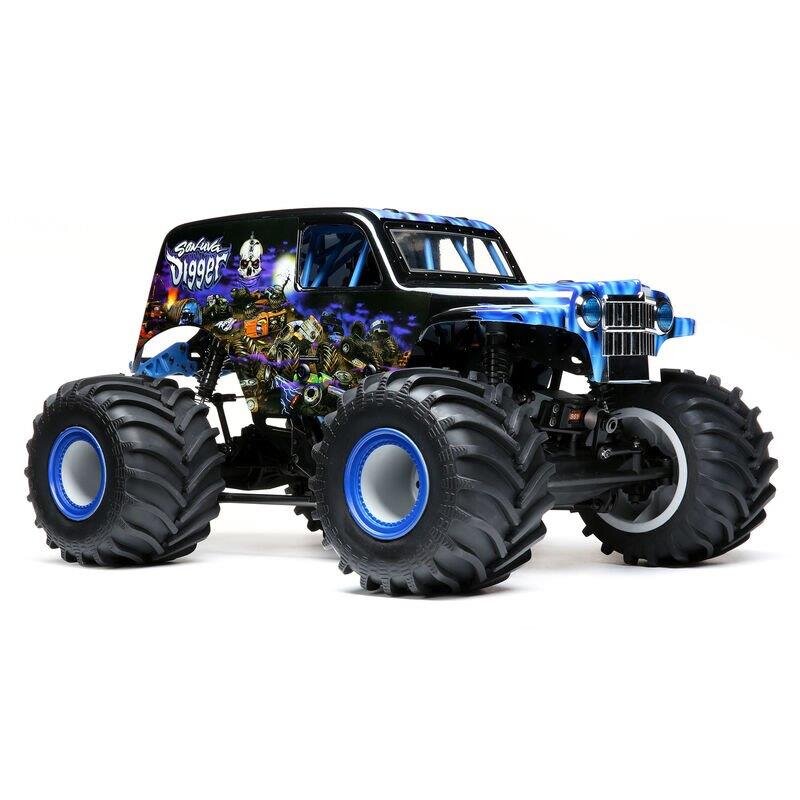

Completely designed from the ground up, the Losi® LMT 4WD Solid Axle Monster Truck is the first of its kind on the market combining all-out performance with incredible scale detail.
Key Features
Solid Axle Monster Truck
Monster Jam Licensed MT Bodies
Brushless Power System
1/8th Scale Diffs
Smart Technology Included
In The Box
(1) LMT 4WD Solid Axle Monster Truck RTR
(1) Product Manual
Needed to Complete
(1) 2S-3S LiPo Battery with EC5 or IC5 connector
(1) Compatible Battery Charger
(4) AA batteries for Transmitter
Overview

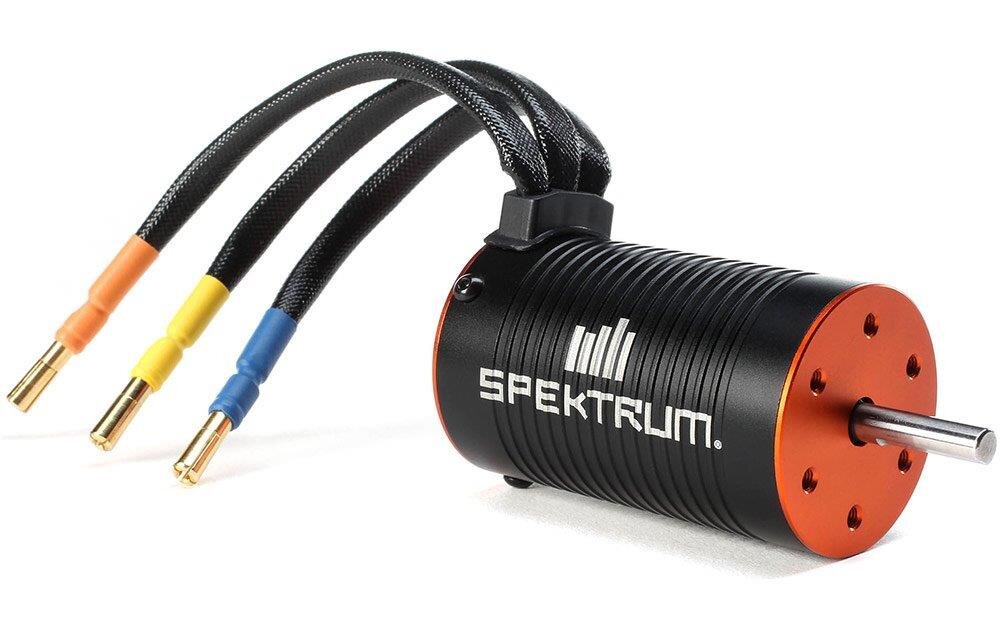

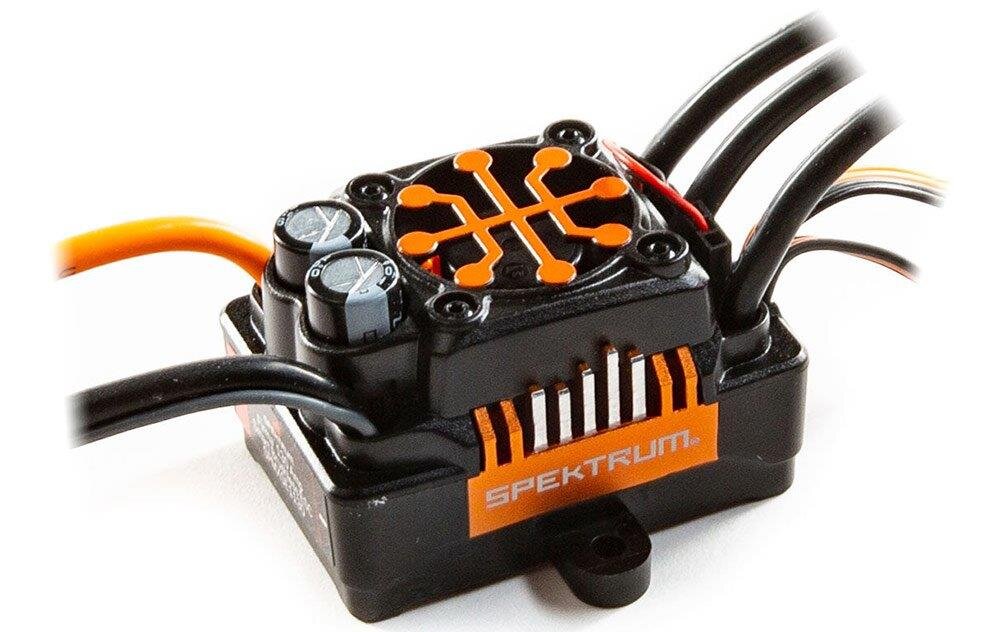

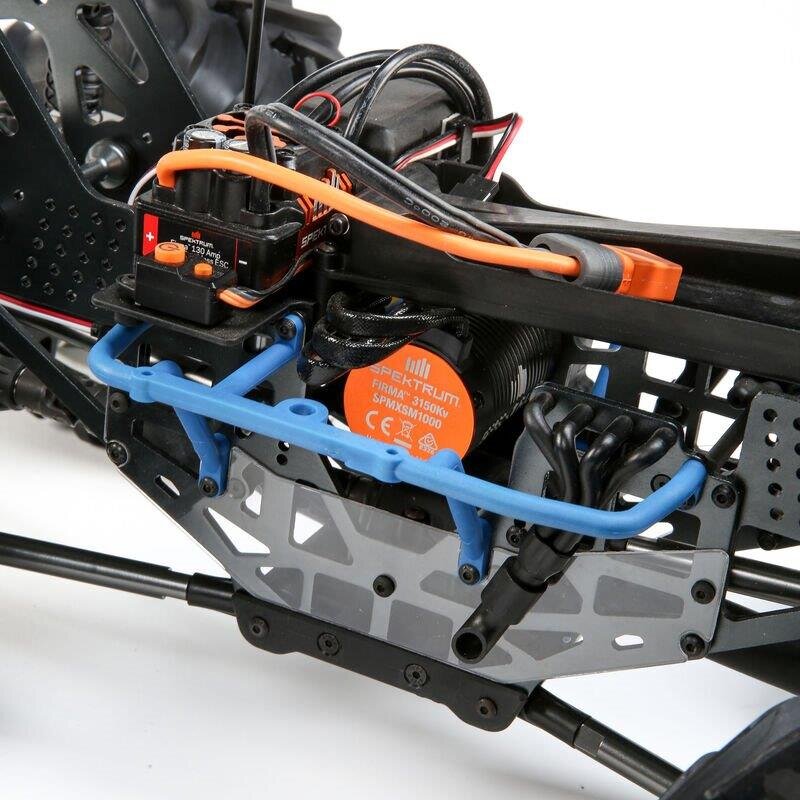

Completely designed from the ground up, the Losi® LMT 4WD Solid Axle Monster Truck is the first of its kind on the market combining all-out performance with incredible scale detail. Starting with the chassis, a twin vertical plate is designed to provide all of the performance adjustments needed to tune the truck for any situation. Whether you are a scale driver, a basher or a racer, the chassis is designed to accommodate multiple shock setups keeping you tracking straight, no matter the terrain. New multi-piece axle housings surround the 1/8th scale drivetrain. Additionally, the easy access center transmission comes stock with a center differential and allows for quick changes with the optional spool for that wheel standing action. For the true Monster truck experience, the axles also allow for optional 4-wheel steering and a new adjustable servo saver to keep the wheels pointed in the right direction. The Spektrum Firma Smart 130 Amp ESC and 3150kv 4-pole Brushless motor allow you to unlock blazing speeds. Drivers stay in control with a DX3 transmitter and a Spektrum SR315 DSMR® 3-Channel Sport Receiver. A composite flip top cage adds scale realism and protection, as well as functionality so you can easily access your battery and electronics. Of course, the scale detail doesn't stop there with headers, drivers and LED lights and we've teamed up with Monster Jam for your choice of a Grave Digger or Son-Uva Digger body. The LMT Monster Truck has just thrown down the gauntlet on solid axle monster trucks.
Features
Solid Axle Monster Truck
Monster Jam Licensed MT

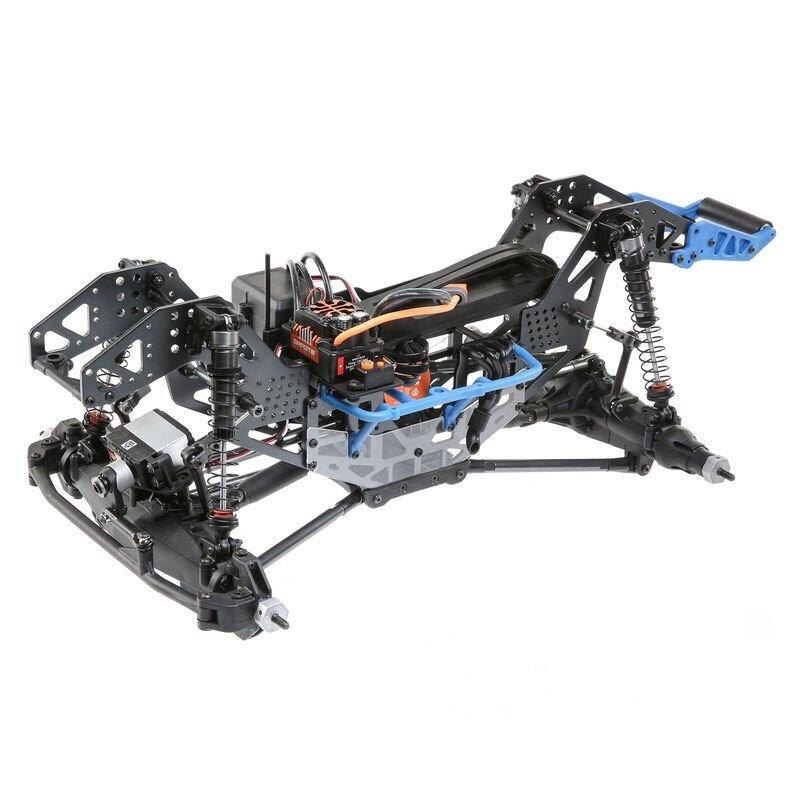

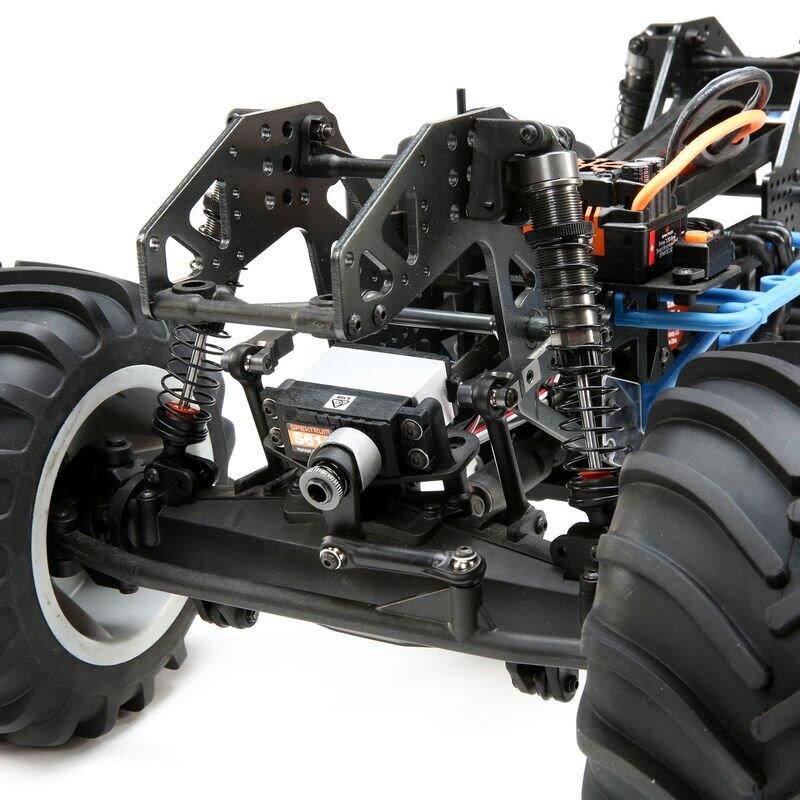

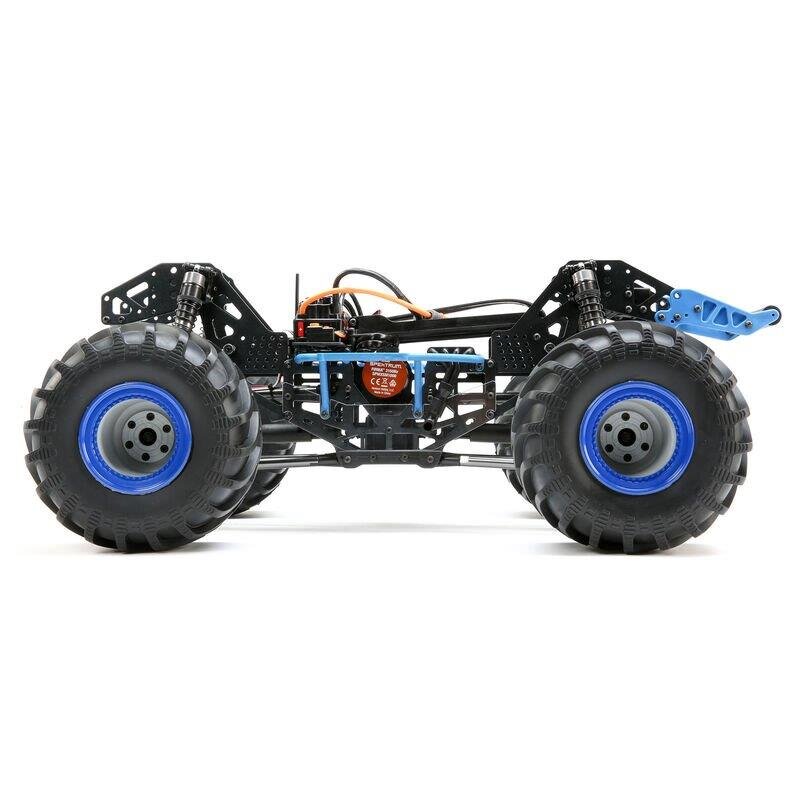

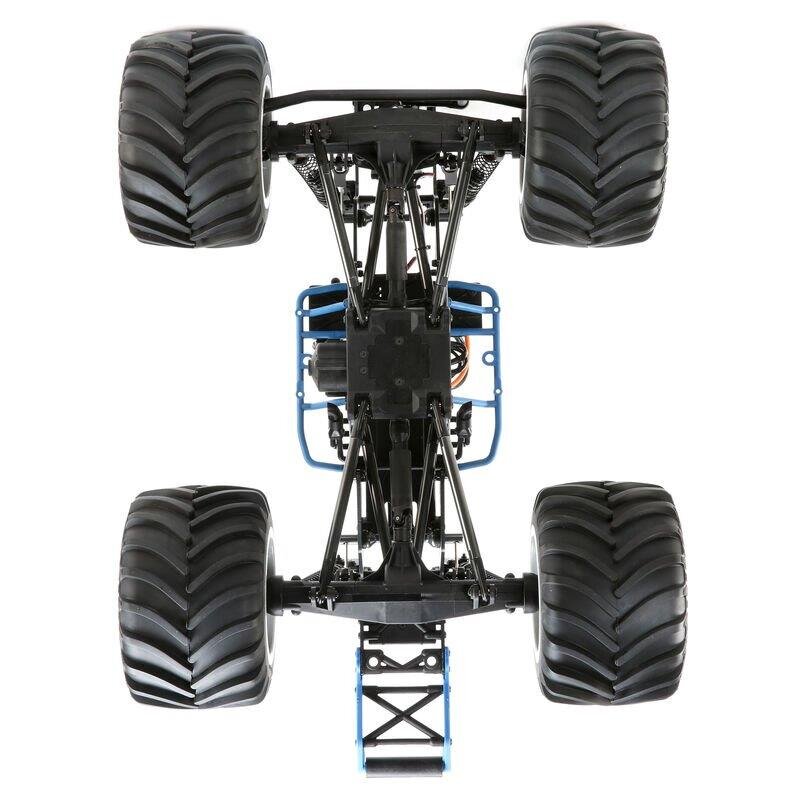

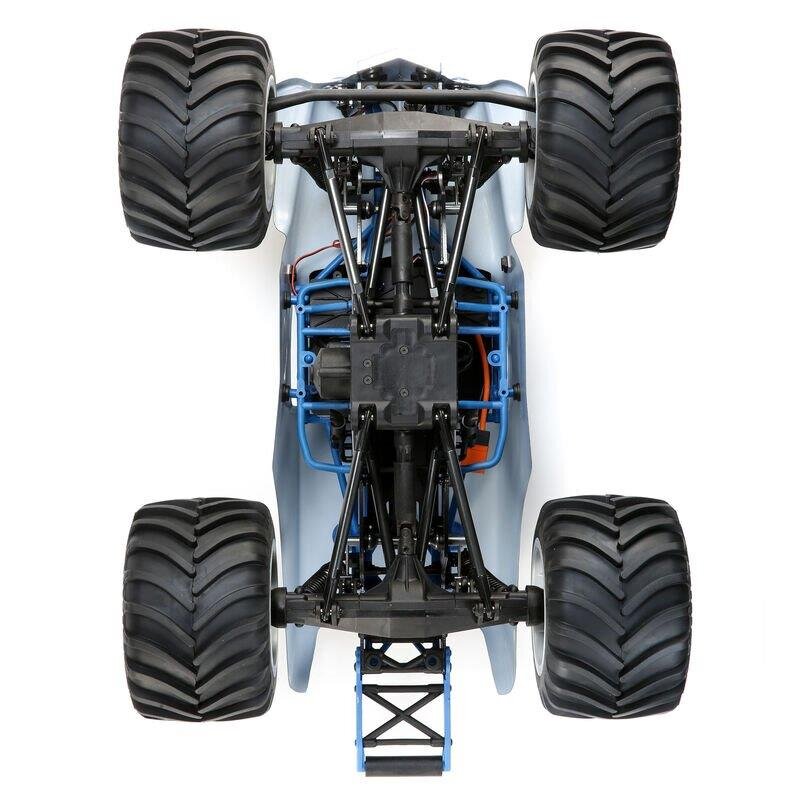

Twin Vertical Plate Chassis
Brushless Power System

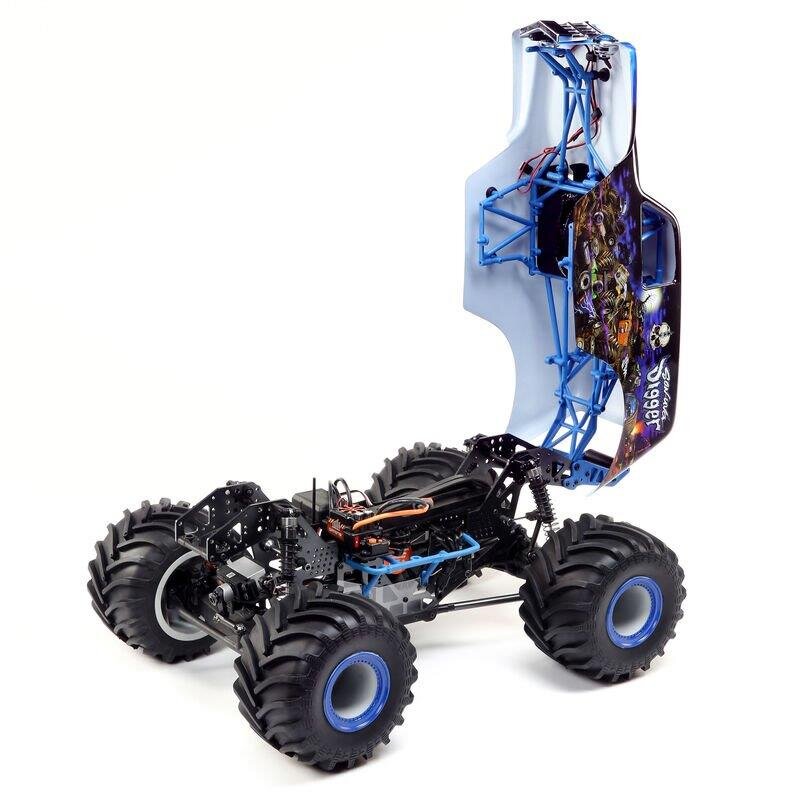

Composite Flip Top Cage

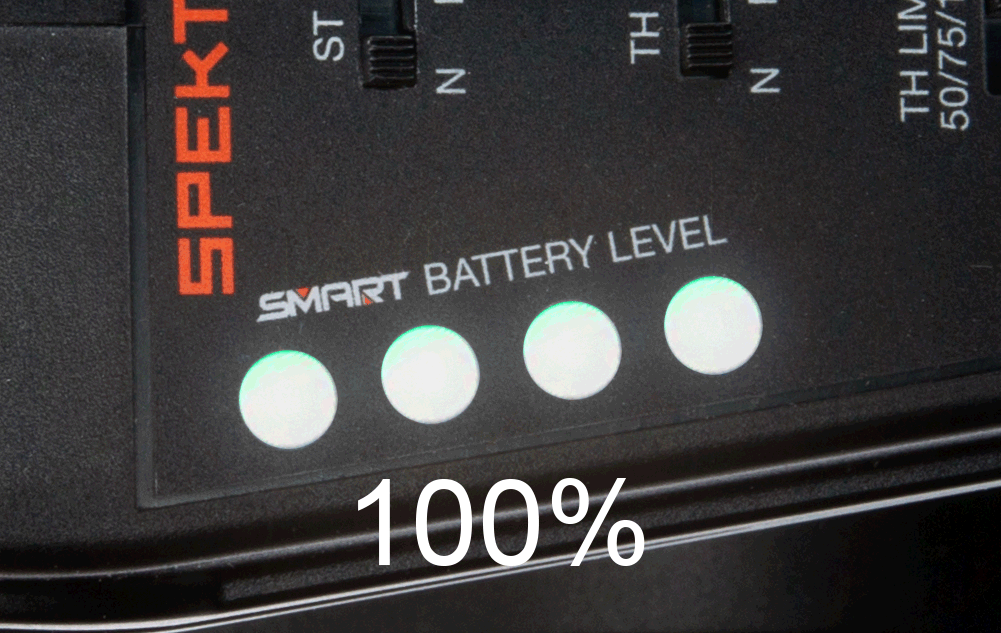

Smart Technology included
Multi Piece Scale Axle Housing

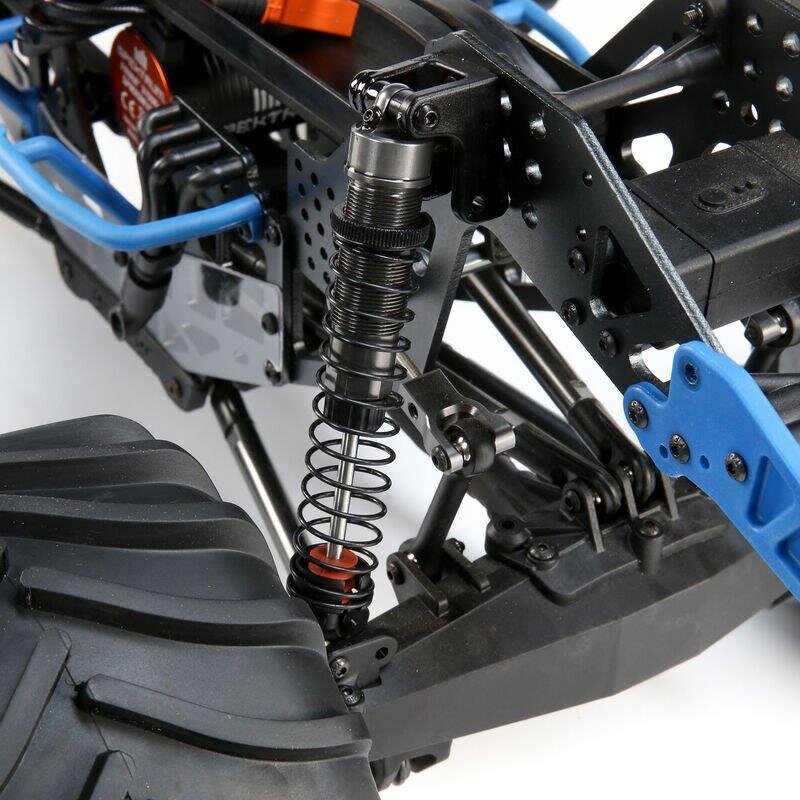

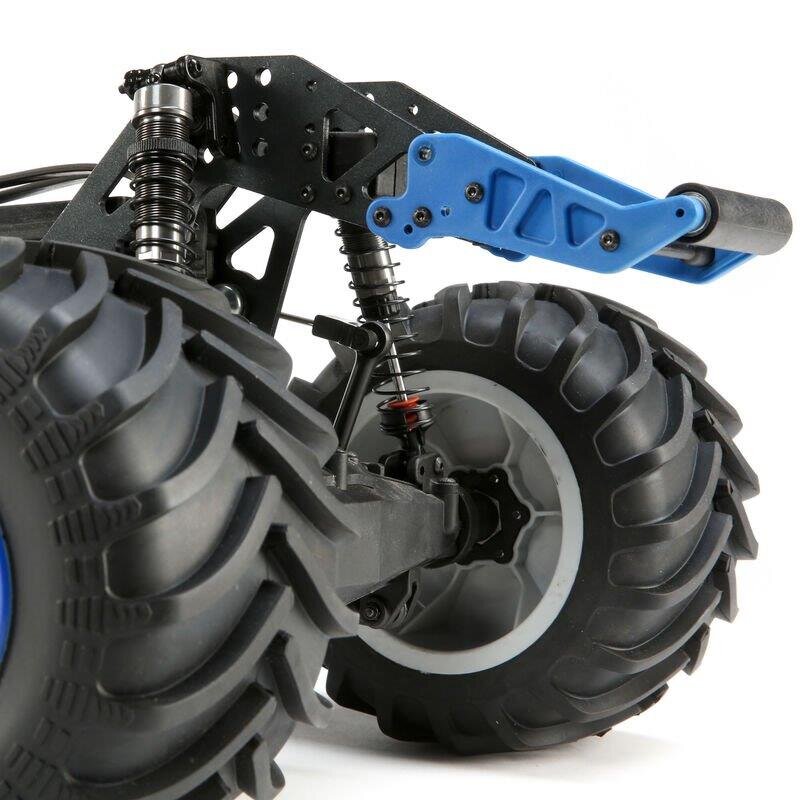

Long Travel Coil Over Shocks

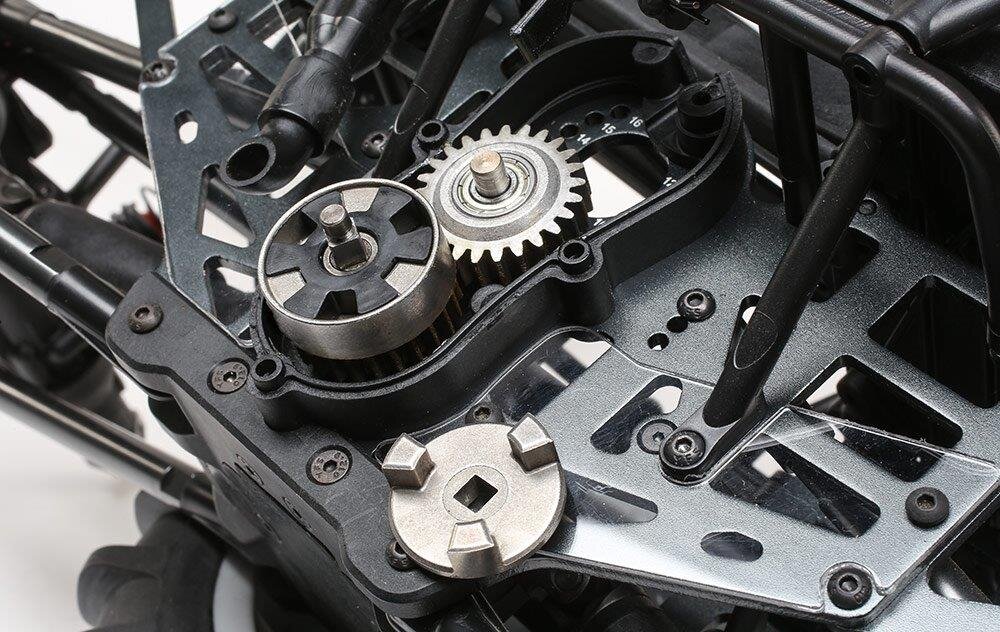

Center Differential with Cush Drive

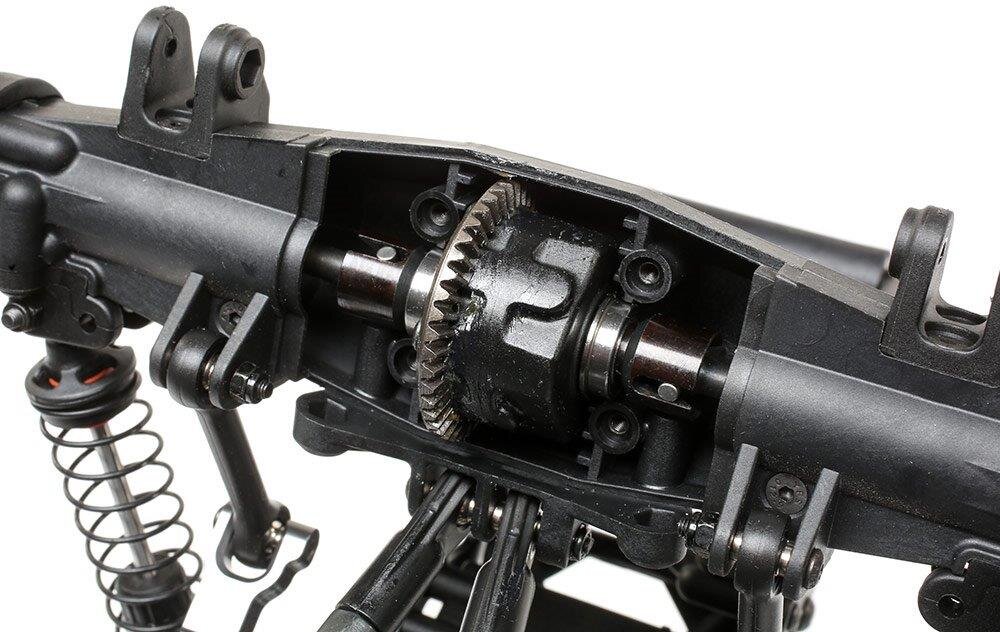

1/8th Scale Diffs
Short Course Style Wheel with replaceable center hub
Scale Monster Truck Tire
Adjustable Servo Saver
Scale Details
Driver Insert

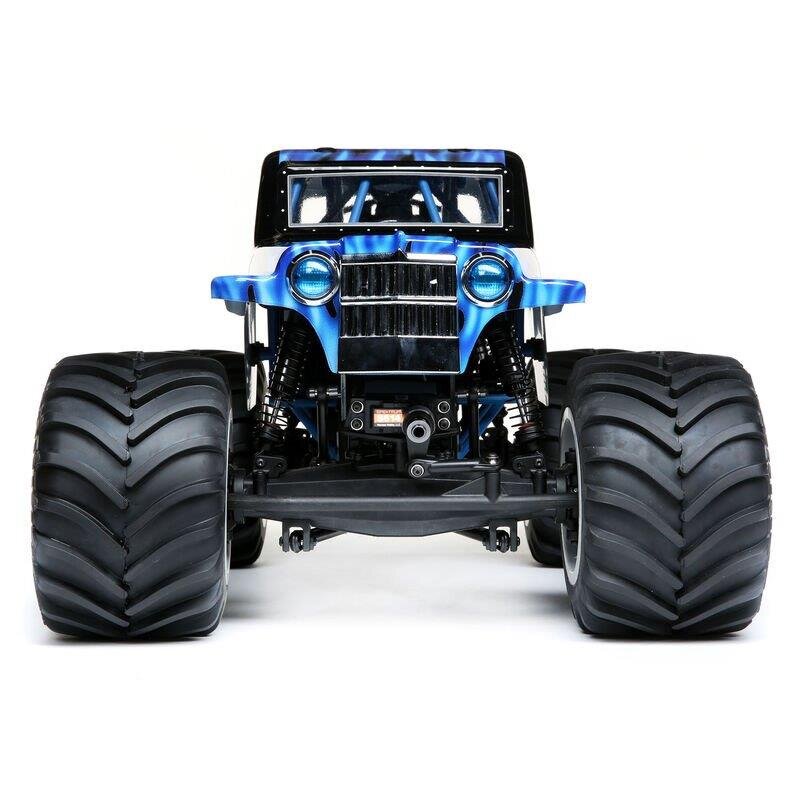

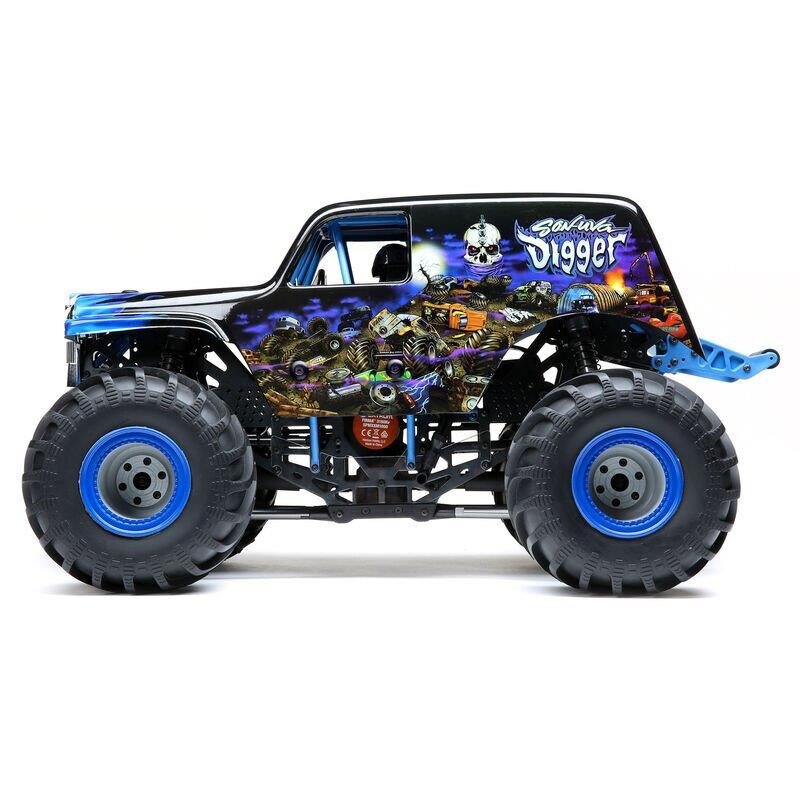

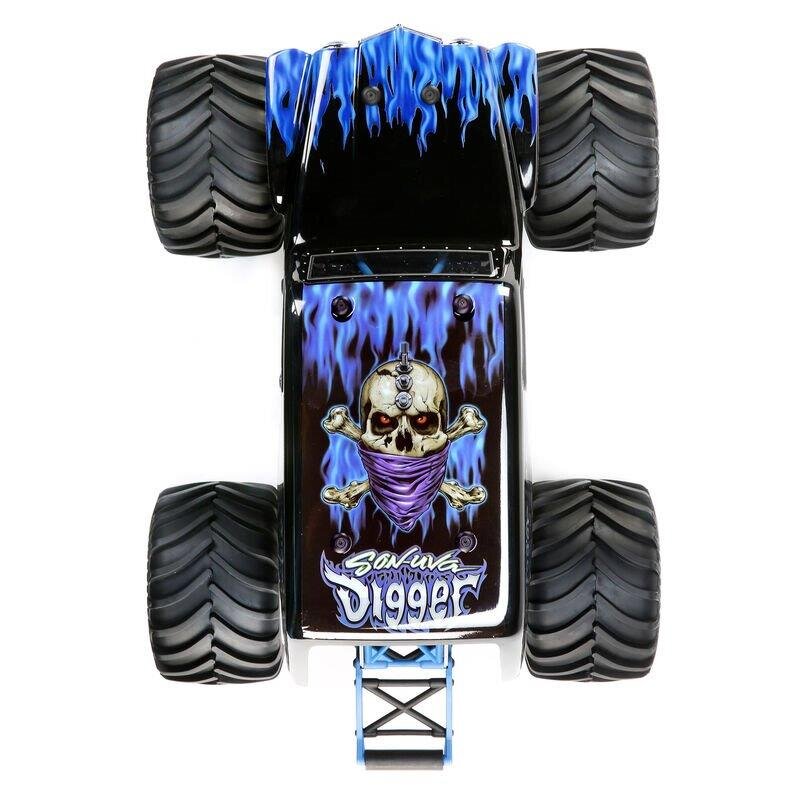

Molded grill on the Son-Uva Digger body (Son-Uva Digger only)

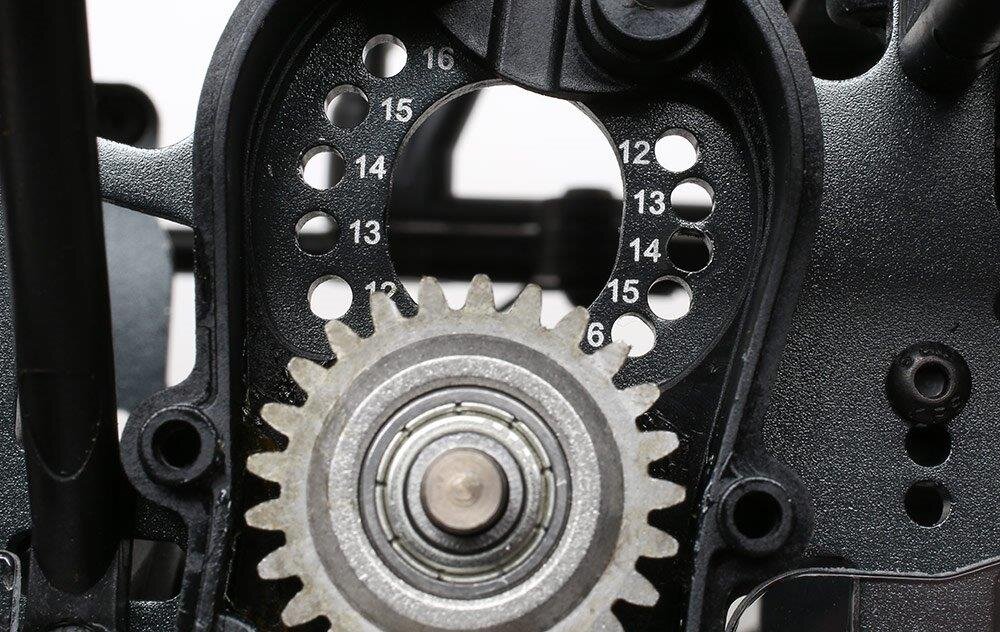

Preset motor plate produces easy, precise gear mesh
Elastomer battery mounting for a versatile battery hold down system
Product Specifications:
Product Weight: 10.9lbs (4.94kg) without battery
Tire Tread: BKT Monster truck
Vehicle Type: Monster Truck
Final Drive Ratio: 18.76:1
Motor Type: Brushless
Speed Control: Included
Wheelbase: 13.5 in (342.9mm)
Charger: Sold Separately
Differential: Bevel gear, sealed
Shock Type: Aluminum body , oil-filled, coil-over
Approximate Assembly Time: Less than 1 hour
Body: Trimmed and painted Grave Digger
Pinion: 14T
Scale: 1/10
Power Type: Electric
Gear Pitch: 1.0 MOD
Servos: Included
Battery: Sold Separately
Connector Type: IC5
Ground Clearance: 2.0" (50.8mm)
Internal Gear Ratio: 10.16:1
Motor Size: 3660
Product Length: 22" (559 mm)
Suspension: Solid Axle 4-link
Tire Type: All-terrain
Wheel Width: 4.0 in (101.6mm)
Make: MONSTER JAM
Product Height: 11.8" (300 mm)
Sensored: No
Tire Compound: Firm
Wheel Hex Size: 17mm
Vehicle Size: Standard
Product Width: 15.4" (391 mm)
Radio: Included
Technology: Smart
Ball Bearings: Full set
Chassis: 6061-T6 Aluminum Twin Vertical Plates with Removable Shock Towers
Completion Level: Ready-To-Run
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
