Traxxas 4-Tec 2.0 VXL 4WD TQi TSM utan Kaross, Batteri & Ladd
3 829 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: TRX83076-4

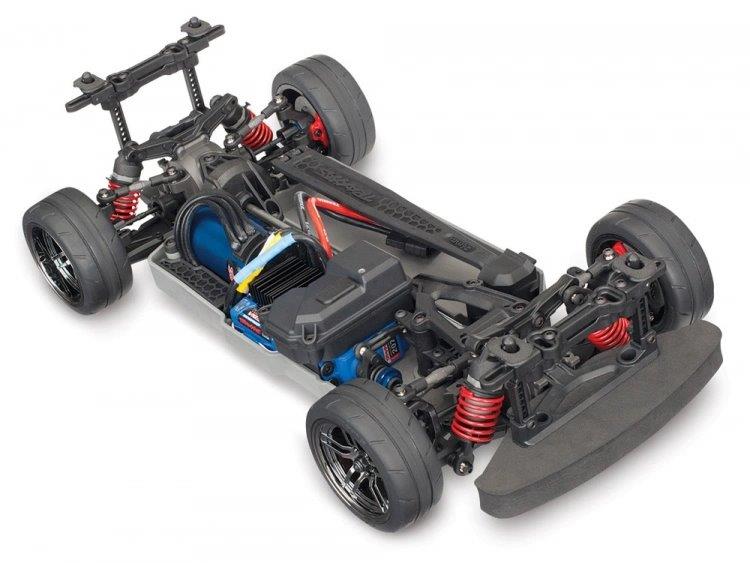

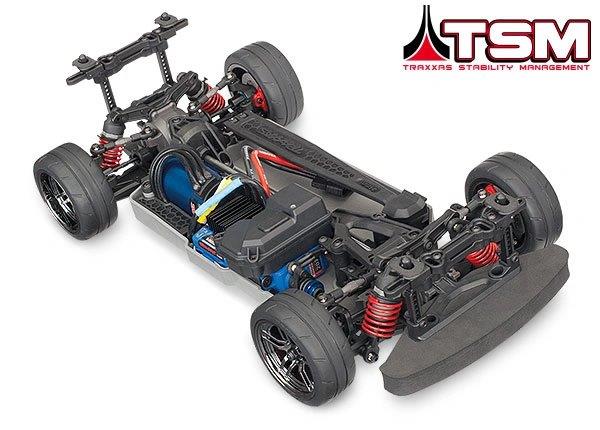

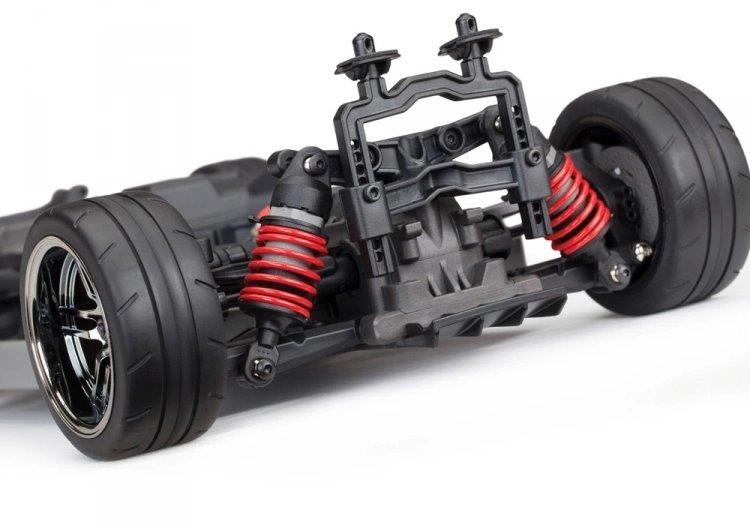

1/10 Scale 4-Tec 2.0 VXL AWD Chassis
The all-new 4-Tec 2.0 VXL chassis provides the ultimate high speed driving experience. The high-tech chassis keeps weight positioned as low as possible for a crisp, responsive feel. The modular interlocking design allows easy maintenance while providing unprecedented rigidity and tight tolerances. The waterproof VXL-3s electronic speed control channels massive power to the Velineon® brushless motor for four wheel tire-spinning acceleration and incredible 70+mph* top speed. A finely tuned suspension keeps the wheels glued to the pavement and Traxxas Stability Management® (TSM) provides lightning-quick corrections to keep you in control. Grab the transmitter, rip full throttle, and hold on! The Traxxas 4-Tec 2.0 VXL delivers a high speed thrill ride like youve never experienced.
Choose your own body, battery, and charger (sold separately) to create your custom ride!
QUICK FEATURES ON 4-Tec 2.0 VXL AWD Chassis (#83076-4)

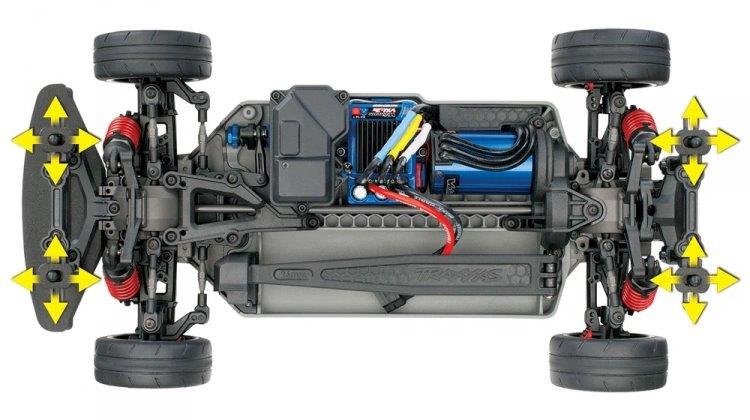

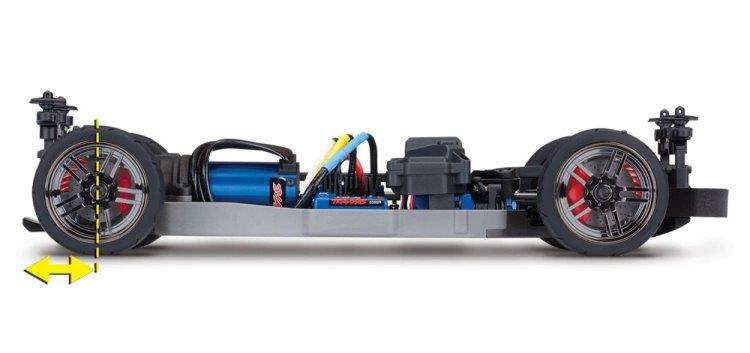

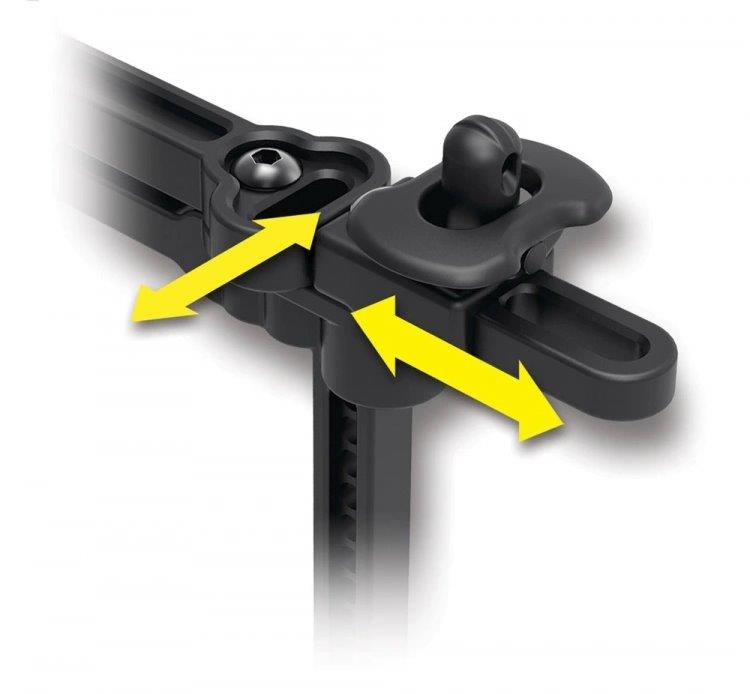

Adjustable chassis accepts standard 200 mm bodies

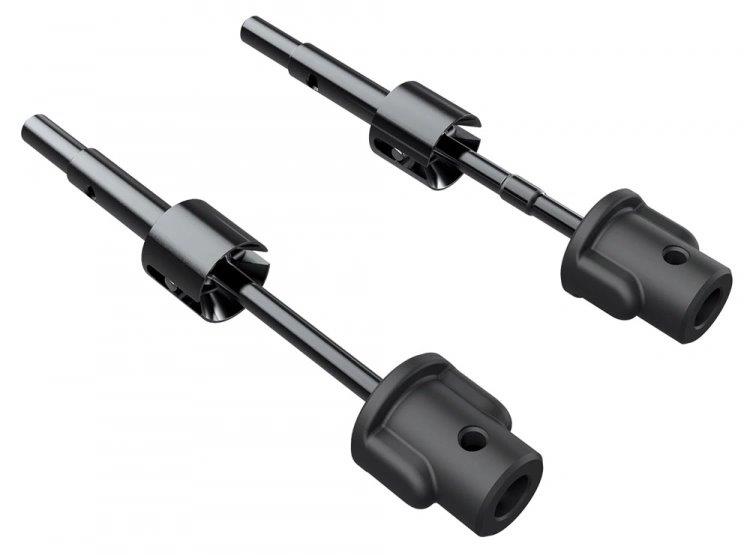

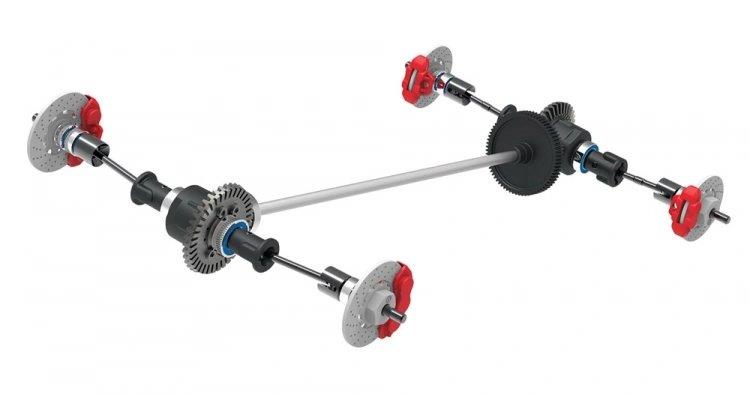

Shaft-driven full-time all-wheel drive system

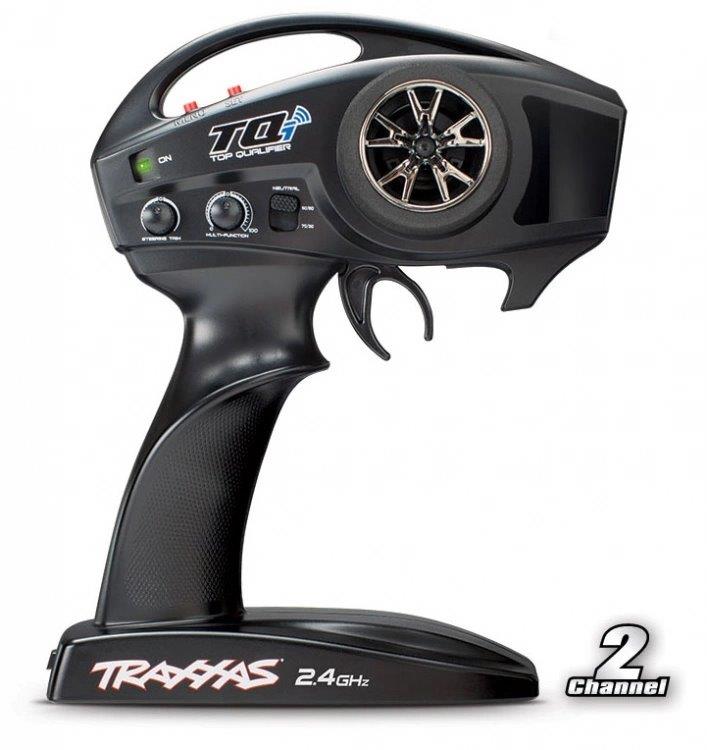

TQi 2.4GHz radio system with Traxxas Stability Management (TSM)
Waterproof electronics for all-weather, all-season R/C excitement
Velineon brushless power system

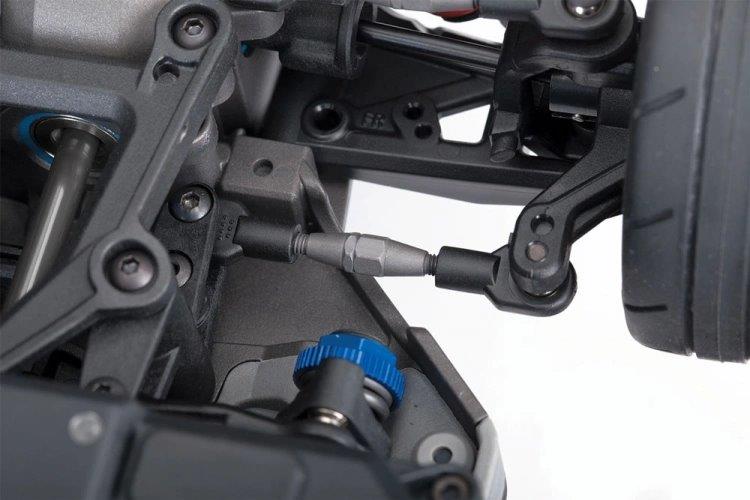

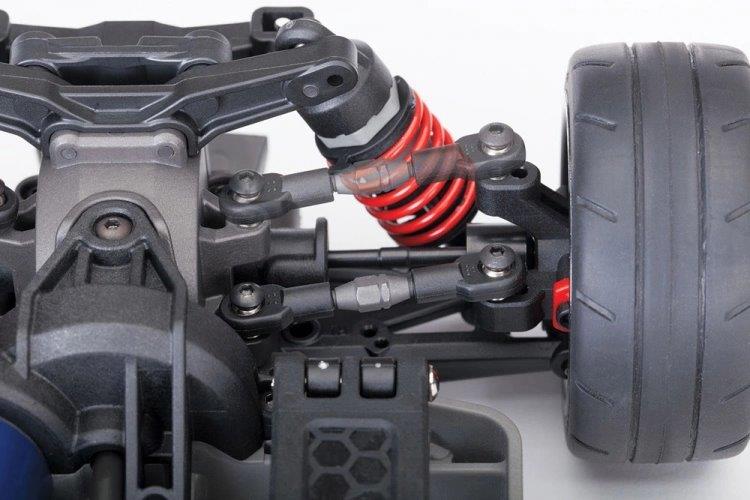

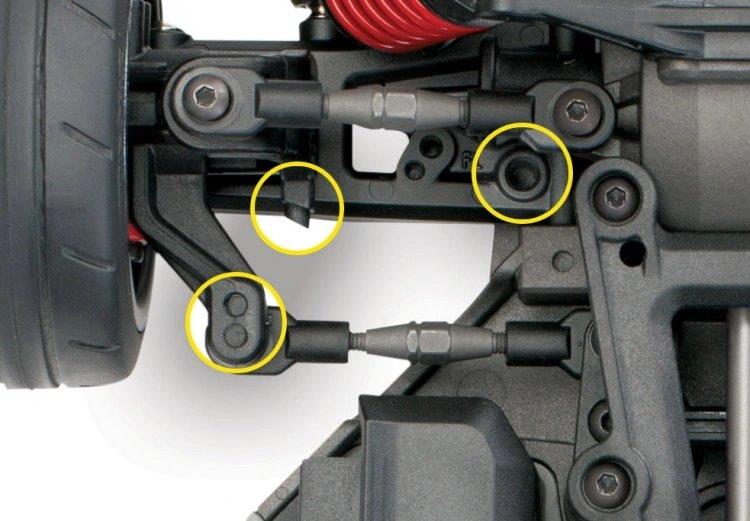

Adjustable steel turnbuckles and steering links

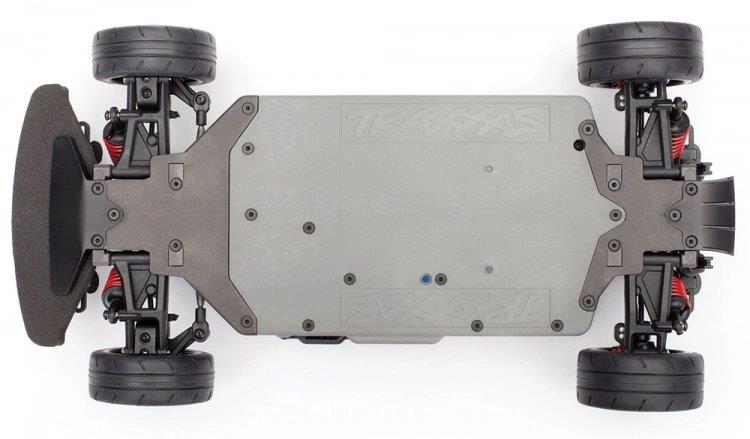

Low-CG fiber-composite monocoque chassis with high approach angle front bumper

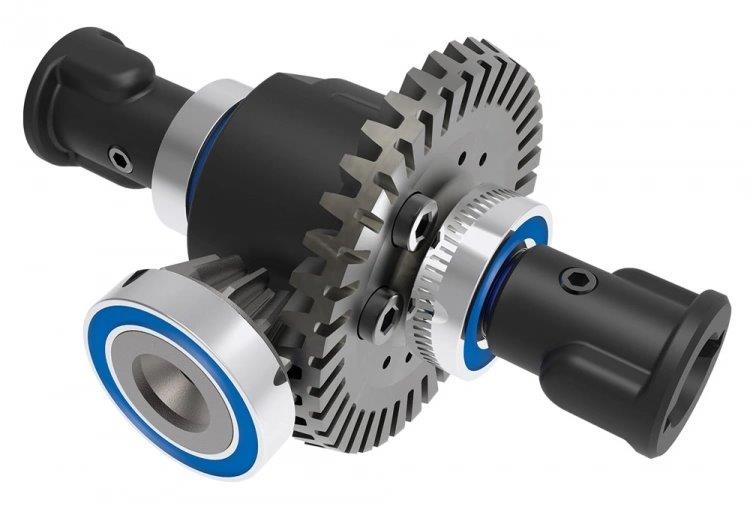

Race-proven sealed differentials
VXL-rated high-speed Response tires

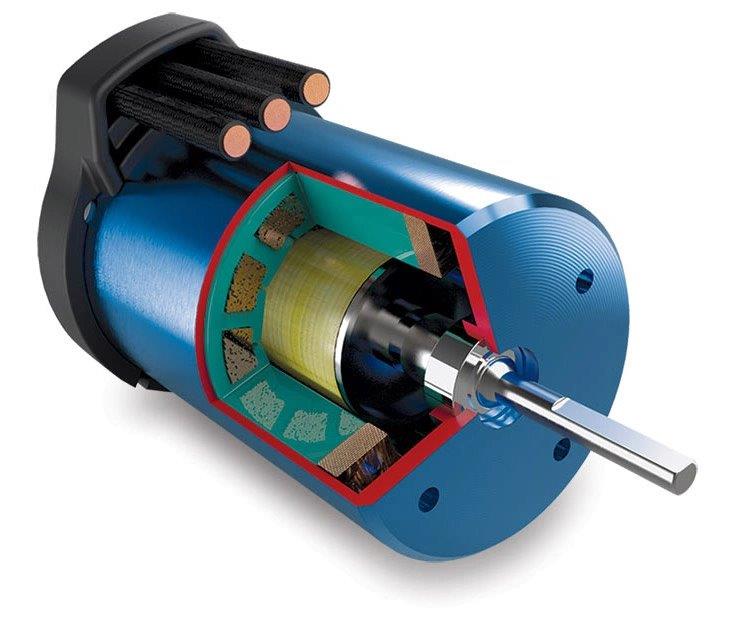

Class-Leading Brushless Power
The 4-Tec 2.0 VXLs Velineon brushless power system defines a whole new generation of outrageous electric power that doesn't know limitations and boundaries. Pour in the voltage and out comes the speed in tidal waves of force harnessed by precision throttle control. For the uninitiated, prepare yourself... the sheer brutal power combined with the 4-Tec 2.0 VXL chassis four-corner grip results in tire-melting acceleration and lightning fast speed. The Velineon 3s brushless power system features system components that work together as an optimized package, from the patented Traxxas High-Current connector to the custom-wound motor. It's engineered together from the start to deliver the ultimate in efficiency, speed, and run-time along with precision throttle response and refined control. It's brushless performance the Traxxas way: wicked fast and easy to use. Just plug it in and it works, no special knowledge or programming skills required.
Traxxas Stability ManagementTM (TSM)
Traxxas Stability ManagementTM (TSM) lets you experience your 4-Tec 2.0 VXL's extreme power, speed, and acceleration by making it easier to control on slippery surfaces where traction is not ideal. Go ahead, punch it off the line! TSM senses the vehicles direction and makes steering corrections to provide full throttle acceleration without fishtailing or spinouts. When cornering, TSM intuitively corrects the 4-Tec VXL's line for faster exit speeds. TSM even improves braking by keeping the car arrow straight until you reach a complete stop. TSM does all this without intruding on driving fun or introducing unexpected side effects. TSM can be fine-tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. Drive faster and have more fun with TSM. You may not even realize how much it is helping until you try to drive without it.
New VXL-Rated Response Tires

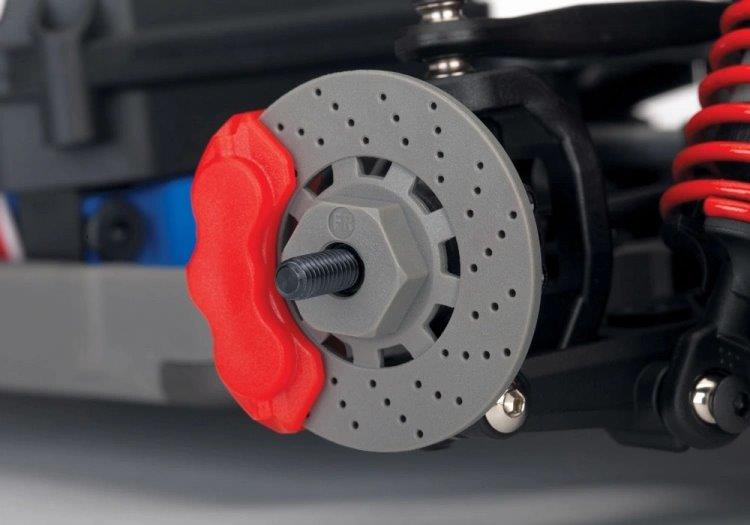

Sticky VXL-rated Response street tires are rated for high speed runs and wrap around gorgeous replica wheels with lug nut details (patents pending). The replica brake discs incorporate standard 12mm wheel hexes and feature red brake calipers. The brake calipers even switch from leading to trailing orientation to give your ride that fully authentic look.
Battery and Charger Sold Separately
Add a Traxxas Battery and Charger for the Ultimate Combo!
100% Fully Assembled
The Traxxas 4-Tec 2.0 VXL rolls out of the box pre-assembled with a factory-adjusted TQi 2.4GHz radio with TSM, Velineon brushless power system, and detailed instructions. Choose your own body, battery, and charger (sold separately) to create your custom ride. Traxxas backs the 4-Tec 2.0 VXL and all of our products with top-notch support that is second to none. A staff of skilled representatives is on hand to answer your questions via phone, website, or e-mail. Unmatched parts support keeps your Traxxas vehicle running strong with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun--and fast!
4-TEC 2.0 VXL (#83076-4) SPECS
Length: 379 mm
Front Track: 196 mm
Rear Track: 200 mm
Center Ground Clearance: 9 mm
Weight: 1.44 kg
Height (overall): 129 mm
Wheelbase: 256 mm

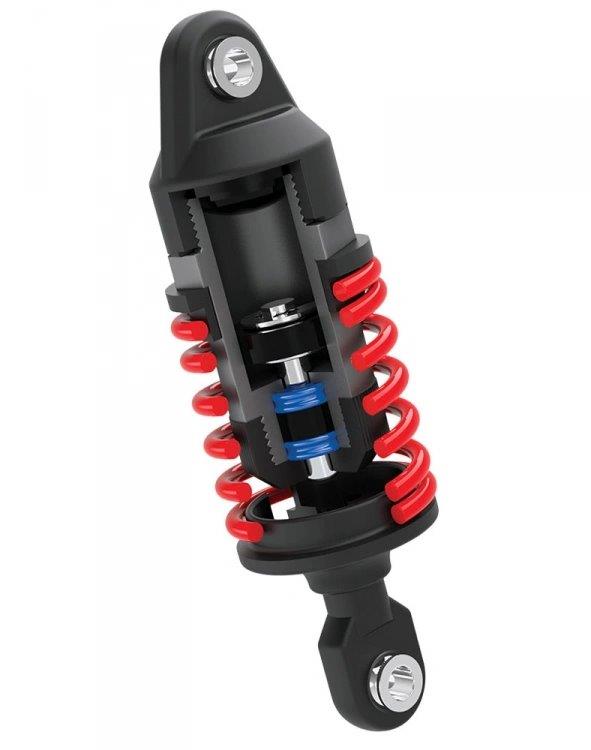

Shock Length: Short (front and rear)
Tire Diameter: 66 mm
Tire Width (front): 26 mm
Tire Width (rear): 30 mm
Wheel Diameter: 53 mm (2.1")
Speed Control Type: VXL-3s Electronic Speed Control
Motor (electric): Velineon® 3500 Brushless
Overall Drive Ratio: 6.87
Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
Gear Pitch: 48
Chassis Structure/Material: Molded Tub / Nylon Composite
Drive System: Shaft-Driven, Direct Drive 4WD

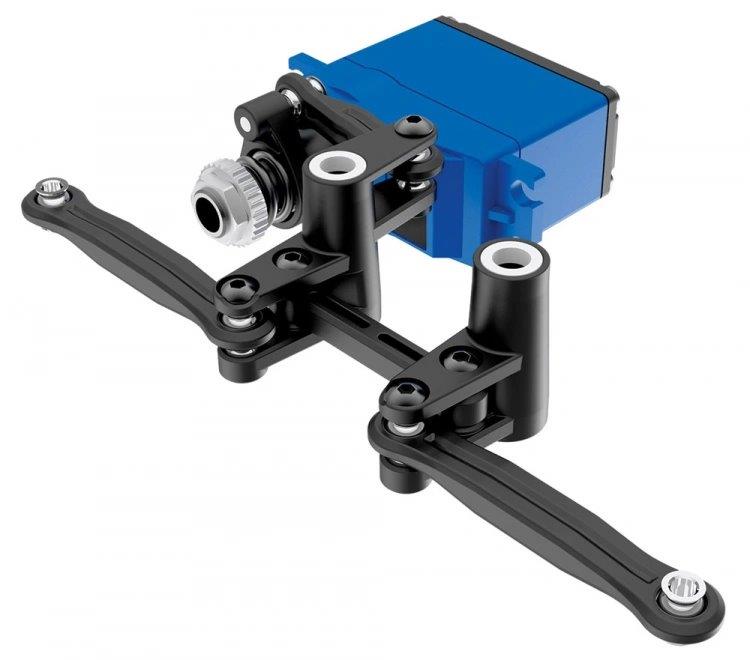

Steering: Dual-Bellcrank
Radio System: TQi 2.4GHz Radio with TSM® receiver
Skill Level: 3
Top Speed: 112+kmh*
Battery Tray: L158 x W46 x H23/26 mm
Required Items:
(Sold Separately): 4 "AA" Batteries (for transmitter), Charger, 6 or 7-Cell NiMH or 2 or 3-Cell LiPo Battery
*With optional gearing and 3S LiPo battery (items sold separately)

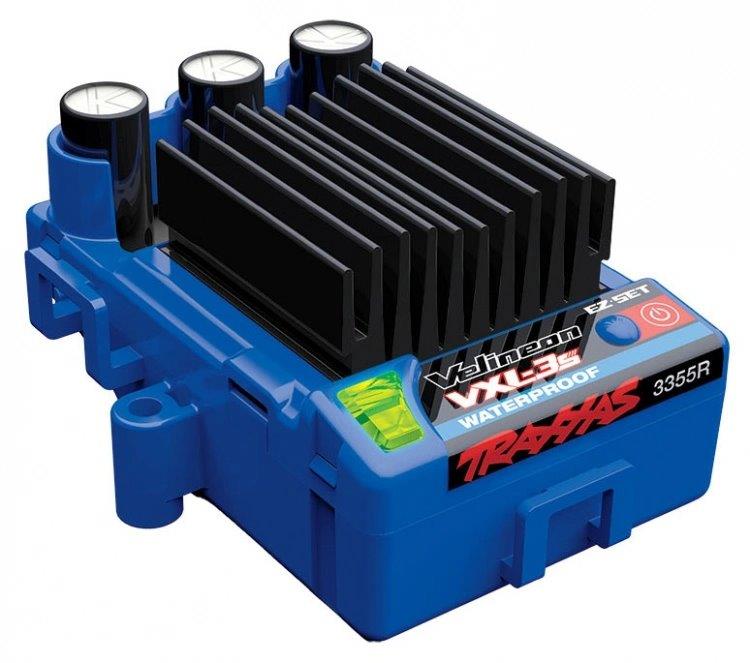

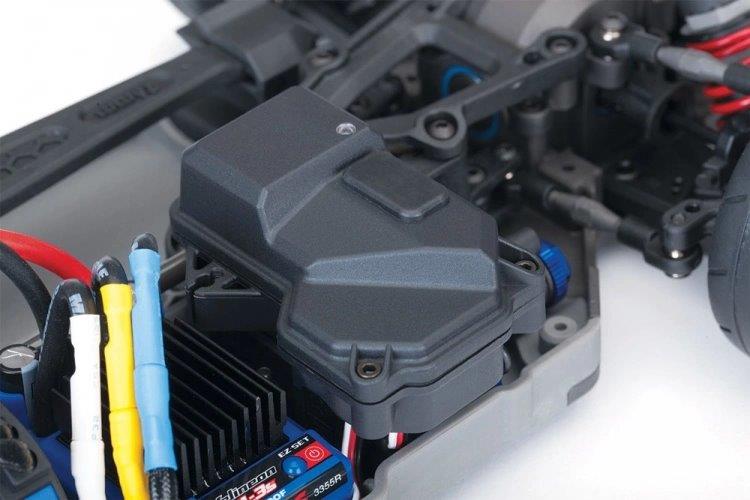

VXL-3s ESC SPECIFICATIONS
Input Voltage: NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size: W39 x D55 x H33 mm
Weight: 90 grams
Motor Limit (Brushless): No motor limit
On Resistance Forward: 0.00075 Ohms
On Resistance Reverse: 0.00075 Ohms
Peak Current - Forward: 320A
Peak Current - Reverse: 320A
Braking Current: 320A
Continuous Current: 200A
BEC Voltage: 6.0 V
BEC Current: 2.5A (with 6-cell NiMH)
Power Wire: 12-Gauge Maxx® Cable
Input Harness Wire: 26 Gauge / 100mm
Transistor Type: MOSFET
Low Voltage Detection: 2-Stage indicators, switchable (on or off)
Thermal Protection: 2-Stage thermal shutdown
Single-Button Setup: Yes, Traxxas EZ-Set®

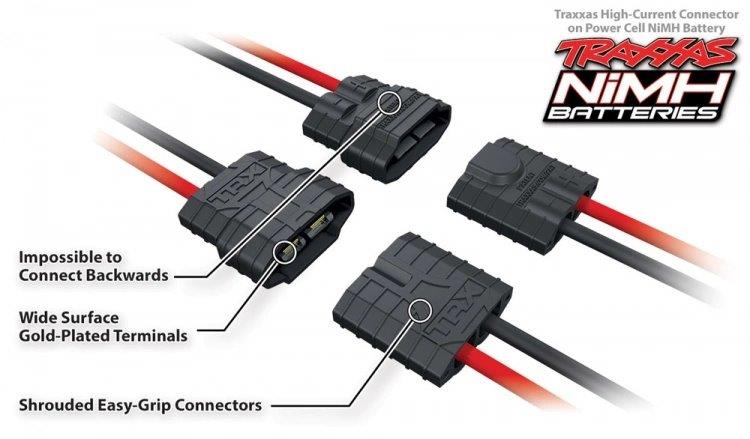

Battery Input Connector : Traxxas High-Current Connector**
Motor Type: Brushless
Ports: RX Input, auxiliary fan
Profile selection:
Sport Mode: 100% FWD, 100% BRAKES, 100% REV
Race Mode: 100% FWD, 100% BRAKES, NO REV
Training Mode:** 50% FWD, 100% BRAKES, 50% REV
*Properly geared
**Patented
Battery and Charger Sold Separately
Add a Traxxas Battery and Charger for the Ultimate Combo!
Speed: 56+kmh / 80+kmh* / 112+kmh*
Battery: 2923X (1) 3000mAh NiMh / 2843X (1) 5800mAh 2S LiPo / 2872X (1) 5000mAh 3S LiPo

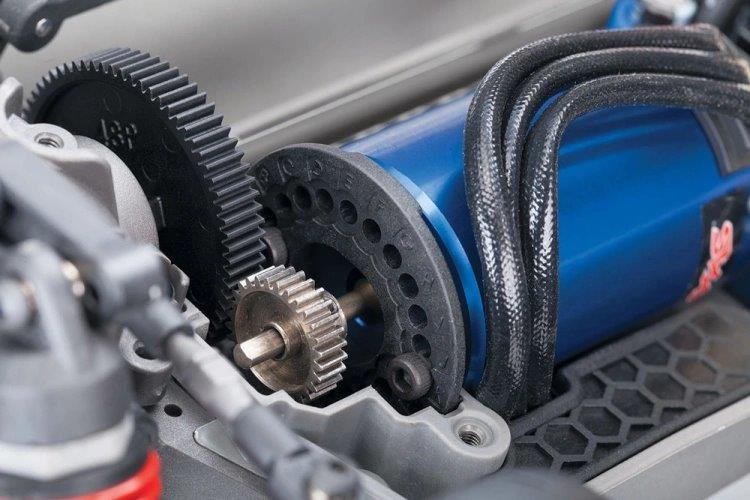

Pinion/Spur: 29-T / 70-T / 35-T / 55-T / 35-T / 55-T
Skill Level: 3 / 3 / 5
Larger pinion gear/smaller spur gear combinations are for high-speed running on hard, smooth surfaces only.
*With included optional gearing
Traxxas iD Auto Battery Identification makes charging simple
Choose your charging option with 4-Tec 2.0 VXL!
EZ-Peak: 2970 EZ-Peak Plus / 2971 EZ-Peak Live / 2972 EZ-Peak Dual
Charging Amperage: 4-amp / 12-amp Bluetooth® / 4-amp (dual) 8-amp (single)
Biltyp: On Road
Datum produkten utgick ur sortimentet: 2022-01-01
Driftsätt: Elektrisk
Drivning: 4WD
Levereras som: RTR (Ready-To-Run)
Lämplig För: Erfaren , Nybörjare
Partistorlek: 4
Storlek: 1/10
Ursprungsland: TW
Vattenskyddad: Ja
You can find the instruction manual here
