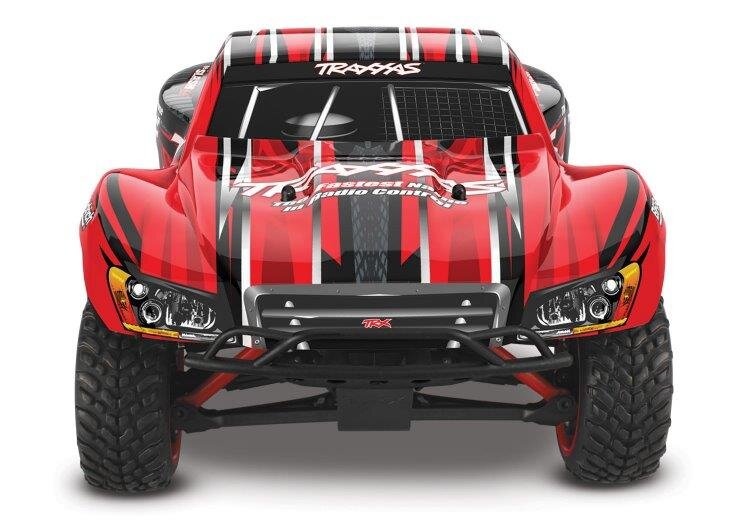

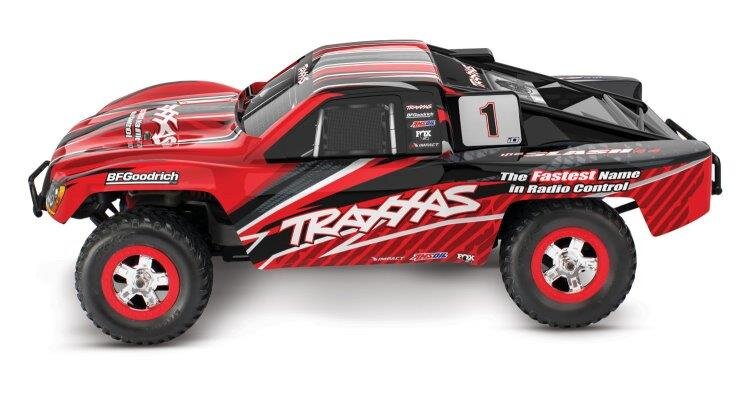

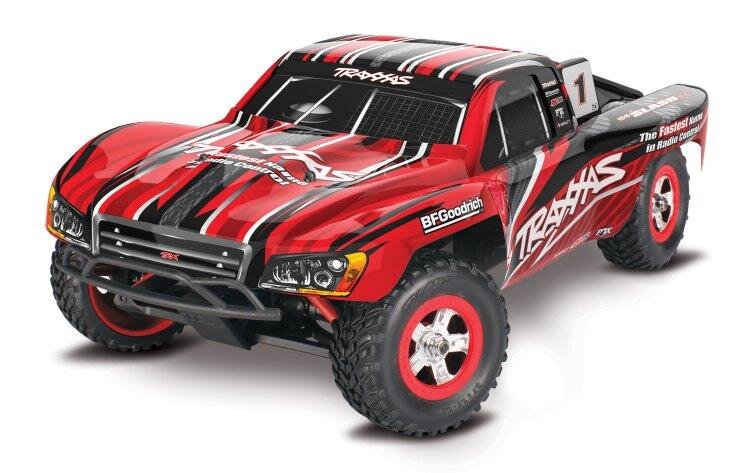

Traxxas 70054-8-RED - 1/16 Slash 4x4 - RED

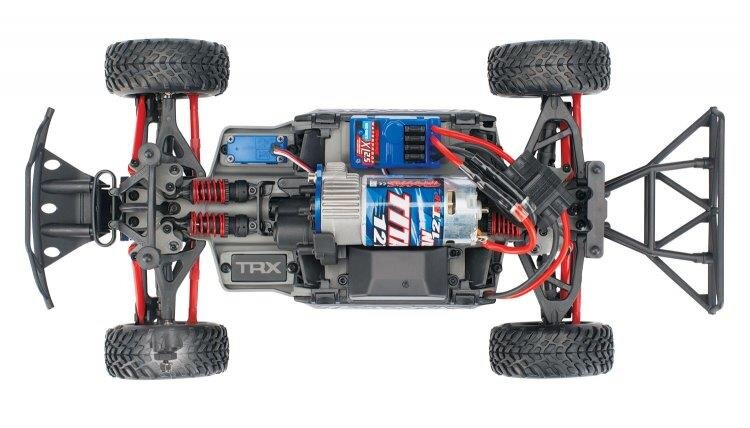

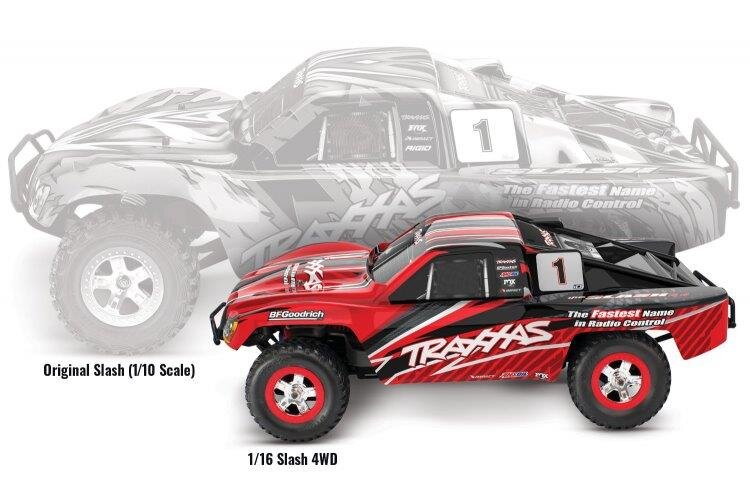

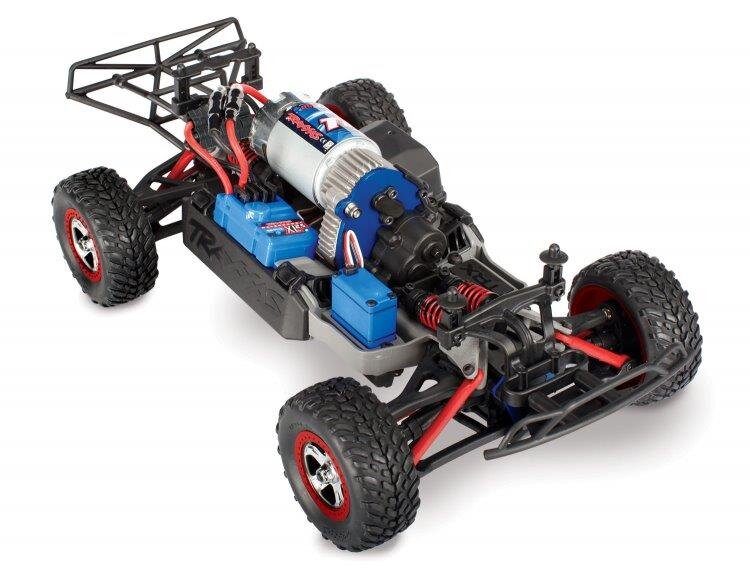

The Traxxas Slash 4X4 set the standard for short-course fun and versatility with speed, power, and track-ready handling. Now you can experience the fun of wheel-to-wheel Slash 4X4 racing in 1/16 scale Titan® 550 power. At 14 inches long, the 1/16 Slash 4X4 is about half the size of the 1/10-scale Slash 4X4, but don't call it a "mini". This is a whole new category of RC performance and fun that no mere mini-model can match. Beneath the tough Race Replica polycarbonate shell, you'll find sophisticated suspension technology and chassis design with the quality and durability you expect from Traxxas.
1/16 SLASH 4X4 Features (70054-8):
7.2 volt iD®-equipped Traxxas Power Cell NiMH battery
2-amp USB-C fast charger
Race replica paint and graphics
Full-time 4WD for superior handling and control

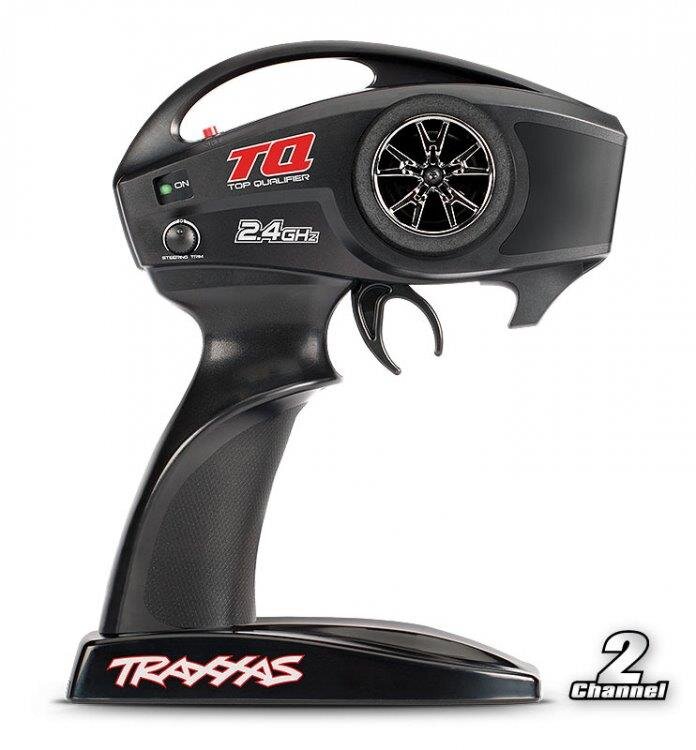

TQ 2.4 GHz radio system
XL-2.5 electronic speed control
Titan® 12T 550 motor
Waterproof electronics for all-weather driving excitement
Modified Muscle

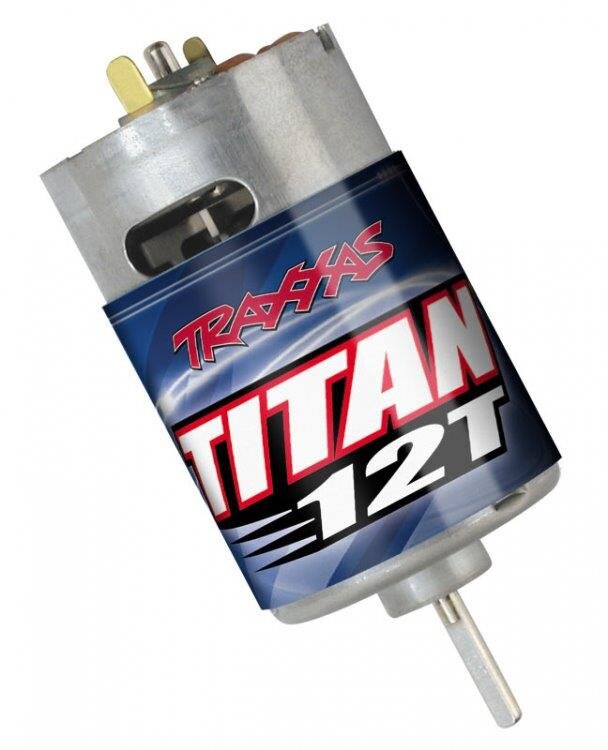

Leave it to Traxxas to put the huge torque of the Titan 550 motor into the 1/16 Slash for incredible acceleration and monster power. The Titan 12T motor delivers exciting performance with long-lasting performance. An integrated cooling fan pulls cool air through vent tunnels molded into the motor plate to keep temperatures down. The XL-2.5 electronic speed control comes standard with three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance.
Battery and Charger Included!

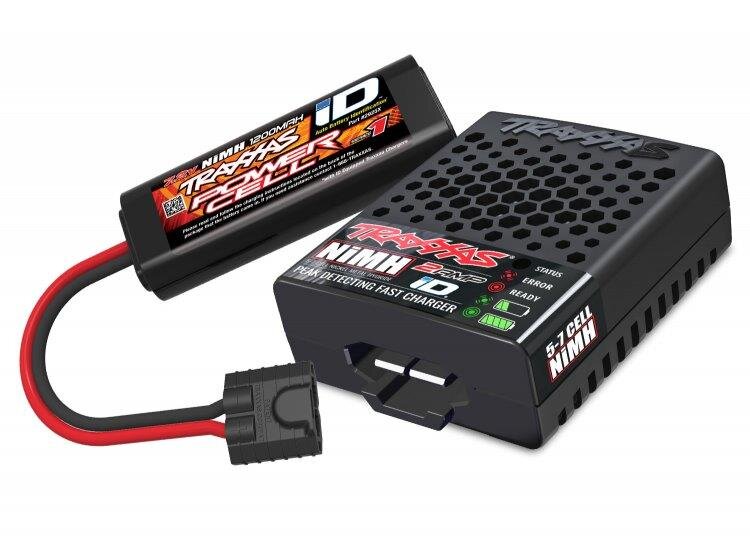

1/16 Slash includes a powerful 7.2 volt 1200 mAh Traxxas Power Cell rechargeable NiMH battery pack to reach its 30+ mph top speed. Fast 2-amp charging is available virtually anywhere thanks to the included USB-C battery charger with iD® technology. Power adapter and cable sold separately. For maximum charge rate use Traxxas 2912 45-watt power adapter and 2916 100-watt power cable. The Traxxas iD system is the easiest and safest way to charge your Traxxas batteries. The charger automatically recognizes the iD battery and optimizes the charge settings as soon as you plug it in. Theres no guesswork involved, just fast, reliable charging every time.
1/16 SLASH 4X4 (70054-8) SPECS:
Length: 356 mm
Width: 185 mm
Weight: 1000 g
Height (overall): 125 mm
Wheelbase: 206 mm
Front Shock Length: 48 mm
Rear Shock Length: 48 mm
Front Tires (pre-glued): All-terrain 1.6"
Rear Tires (pre-glued): All-terrain 1.6"
Front Wheels: Dual-bead 35/47 mm, 12 mm hex hub
Rear Wheels: Dual-bead 35/47 mm, 12 mm hex hub
Electronic Speed Control: Waterproof XL-2.5
Motor (electric): Titan® 12T
Transmission: Heavy-duty with steel idler gear
Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
Overall Drive Ratio: 7.32:1 (stock, out-of-box)
Differential Type: Hardened steel bevel, sealed
Gear Pitch: 48 pitch
Chassis Structure/Material: Molded composite Nylon monocoque
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Bellcrank
Radio System: Traxxas TQ 2.4 GHz (2-Channel)
Skill Level: 1
Included Batteries: 6-cell Power Cell iD® NiMH battery with 2-amp USB-C fast charger
Required Batteries: 4 "AA" (transmitter)
*Max dimensions reflect a battery that is the length of the entire battery tray, but due to
the tray shape and design, the height and width of the battery must be decreased.
**One 6-cell pack included with model. Additional 6-cell NiMH battery pack sold separately.

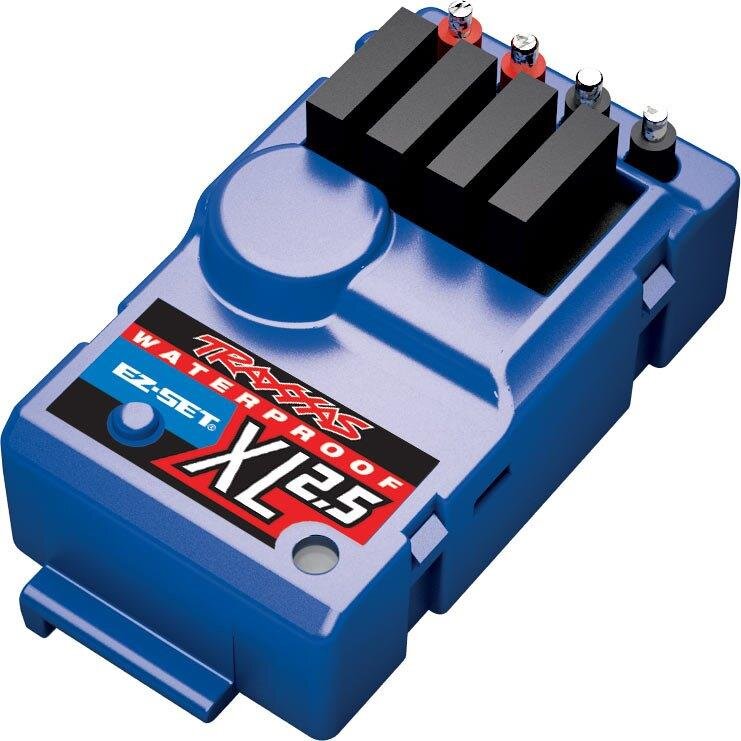

XL-2.5 WATERPROOF ESC SPECIFICATIONS
Input Voltage: 7.2 V NiMH, 7.4 V (2s) LiPo
Case Size: 26.5 mm x 46.5 mm x 22 mm
Weight: 33 grams
Motor Limit: 10-turns*
On Resistance (@Trans): 0.008 ohms
Reverse Delay: None
BEC Voltage: 6.0 volts
Power Wire: 16 gauge / 40 mm
Input Harness Wire: 26 gauge / 130 mm
Motor Wires: 26 gauge / 130 mm
Transistor Type: MOSFET
Low Voltage Detection: 2-stage indicators, switchable (on and off)
PWM Frequency: 2300 Hz
Thermal Protection: Thermal shutdown
Single-button setup: Traxxas EZ-Set®
Profile selection:
Sport Mode: 100% FWD, 100% brakes, 100% REV
Race Mode: 100% FWD, 100% brakes, no REV
Training Mode:** 50% FWD, 100% brakes, 50% REV
*Properly geared **Patented
