Traxxas TRX-4 Byggsats (Utan Radio. Batterier & Kaross)
5 565 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: TRX82016-4

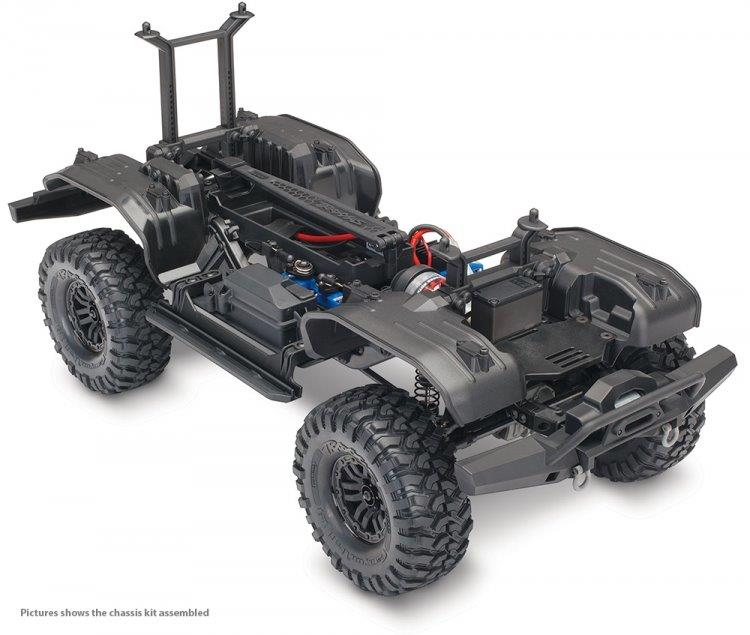

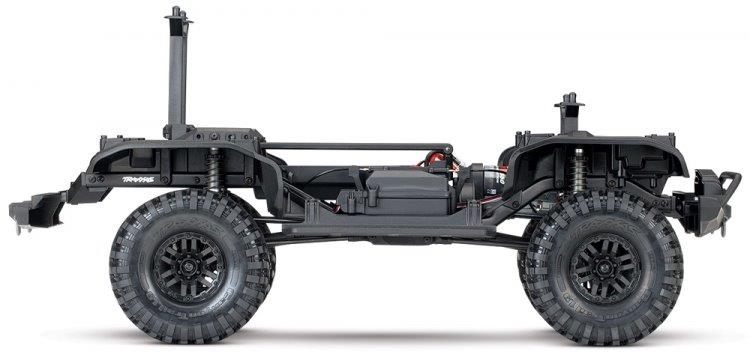

Traxxas TRX-4 Unassembled Chassis Kit
The TRX-4 Chassis kit arrives ready to be assemble with a full-color instruction guide, a TQi 4-channel 2.4GHz radio system and complete waterproof electronics including servos, XL-5 HV ESC and a reverse rotation Titan 21T brushed motor. Important parts like the shocks and suspension links come pre-assembled to make the build easy and fun. Choose your own prefered body, battery and charger (sold separately) to complete your custom TRX-4 ride.
TRX-4 CHASSIS KIT SPECS:
Length: 523 mm
Front Track: 249 mm
Rear Track: 249 mm
Ground Clearance: 80 mm
Weight: 2.91 kg
Height: 266 mm
Wheelbase: 312 mm
Front Shock Length: 90 mm
Rear Shock Length: 90 mm
Approach Angle: 63.82°
Departure Angle: 43.22°
Breakover Angle: 58.93°
Front Wheels: 1.9 x 1.02" (49 x 26 mm)
Rear Wheels: 1.9 x 1.02" (49 x 26 mm)
Front Tires: 4.64 x 1.89" (118 x 48 mm)
Rear Tires: 4.64 x 1.89" (118 x 48 mm)
Wheel Hex: 12 mm
Speed Control: XL-5 HV

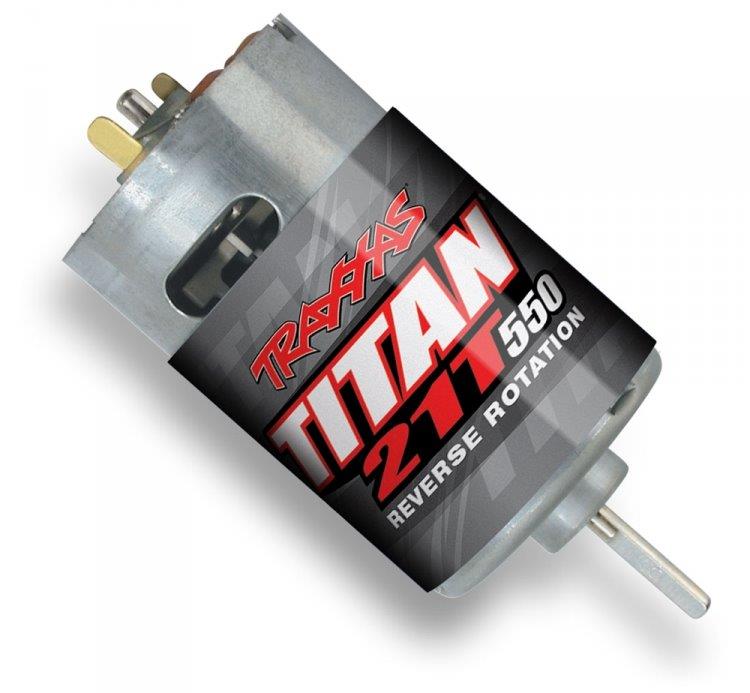

Motor (electric): Titan® 21T Reverse Rotation

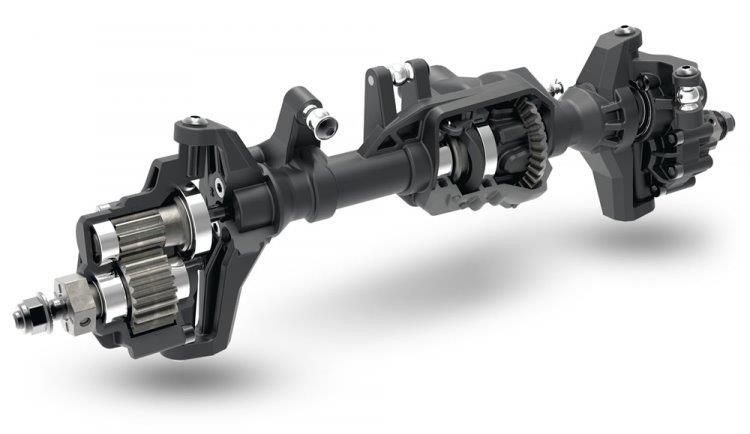

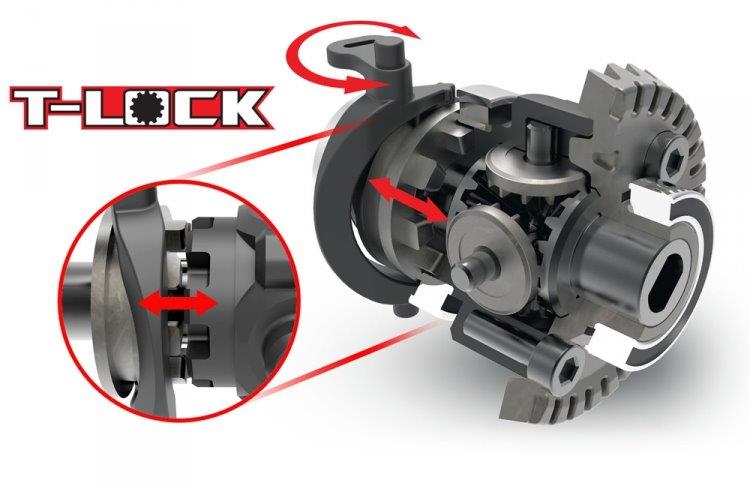

Differential Type: 4 Gear, Remote Locking

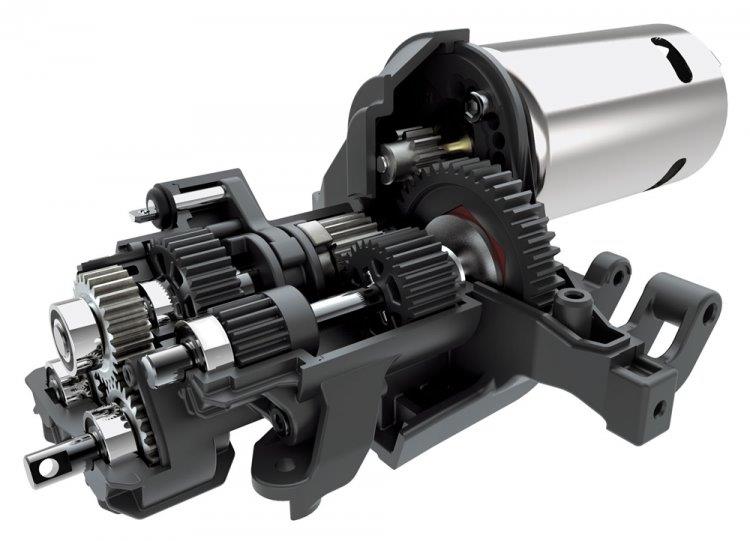

Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32
Chassis:

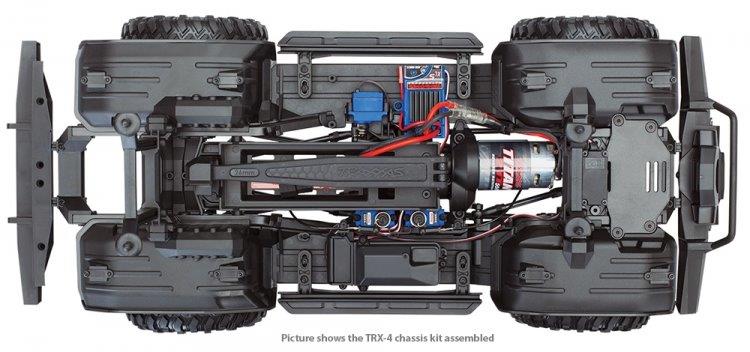

Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic Hill Hold
Drive System: Shaft-Driven 4WD

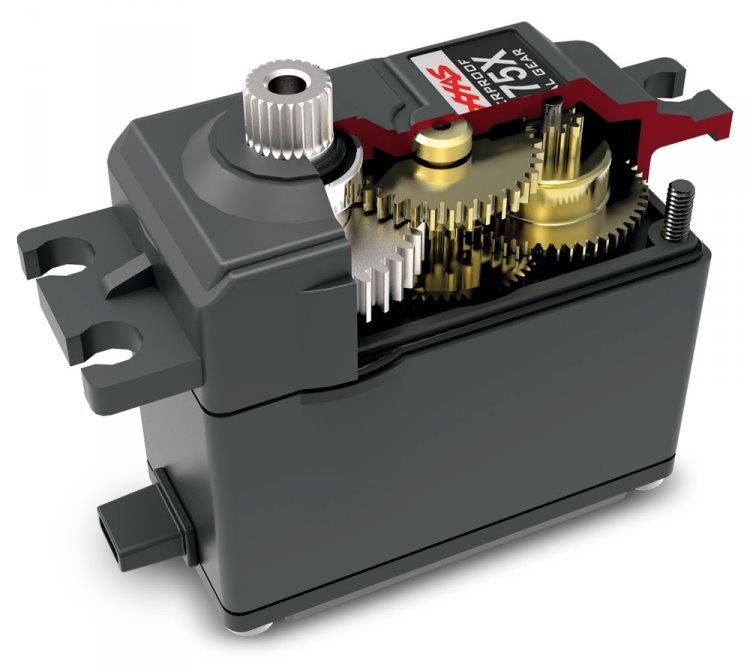

Steering: Chassis Mounted 2075X Metal Gear Servo

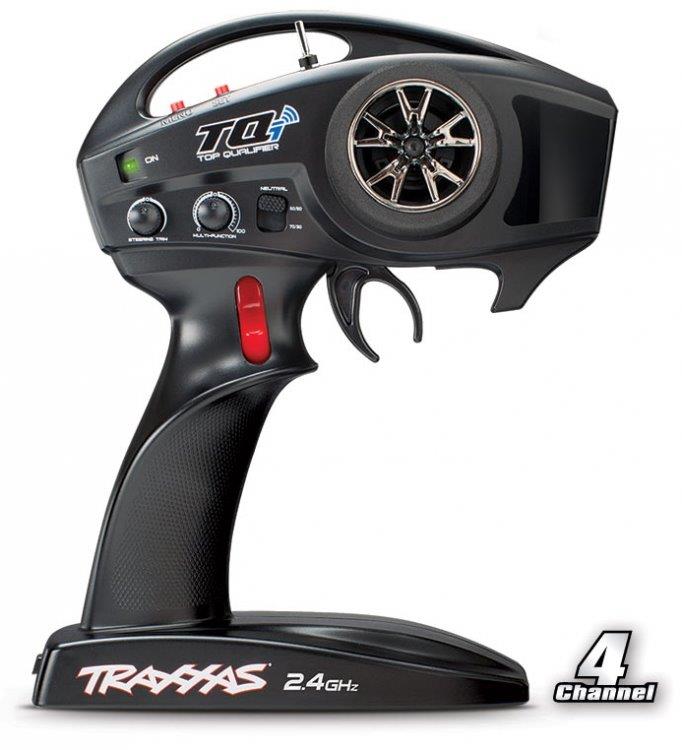

Radio System: TQi 2.4 GHz 4-Channel Transmitter with #6533 Receiver
Skill Level: 2
Battery Tray: L158.75 x W47 x H23/26 mm

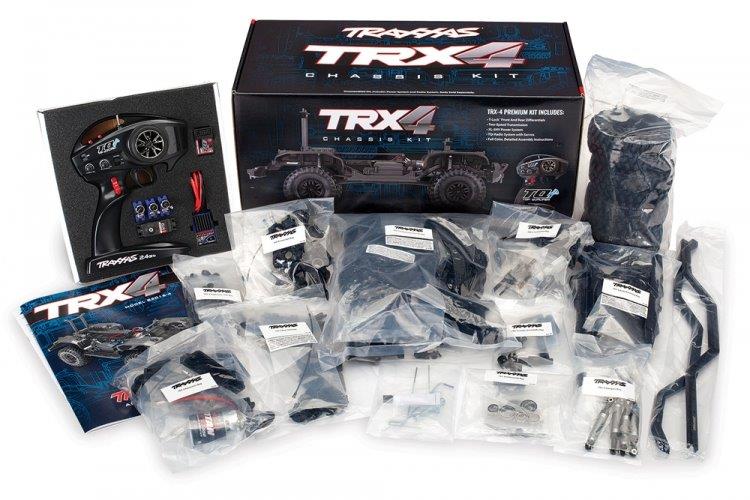

WHAT'S INCLUDED IN THE KIT
Unassembled TRX-4 Chassis Kit
TQi 2.4GHz 4-channel radio system with 4 servos

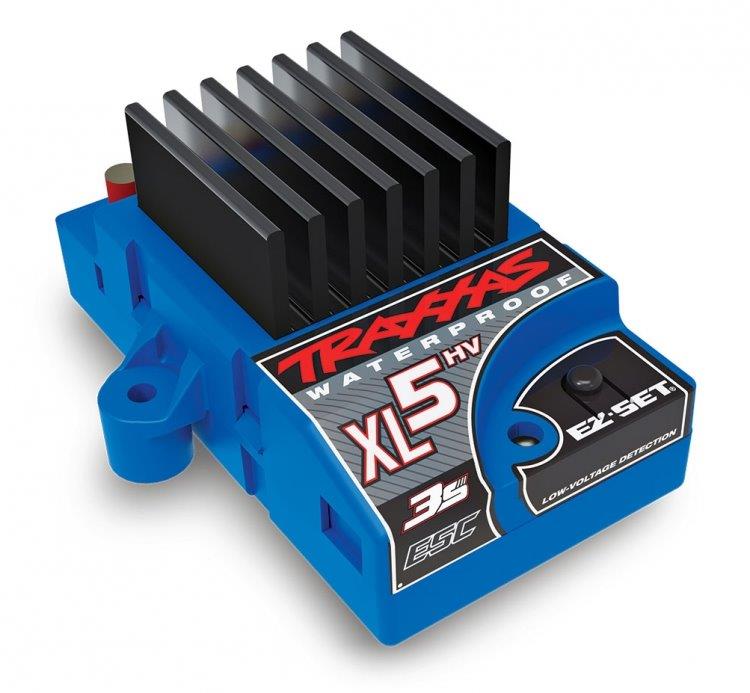

XL-5 HV waterproof ESC
Titan® 21T 550 motor

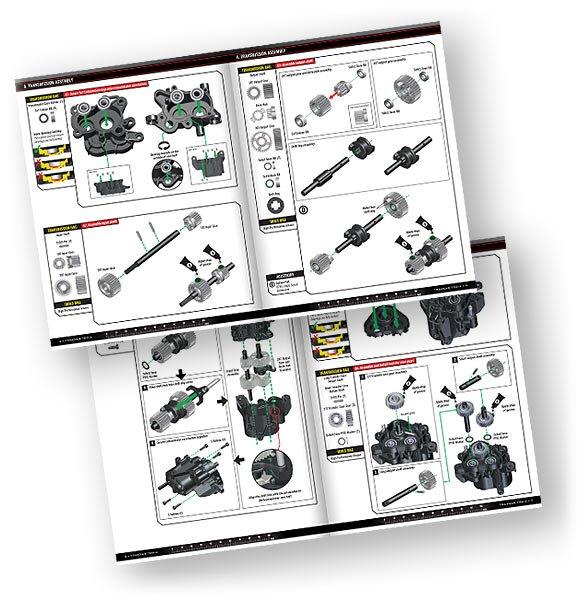

Full-color step-by-step assembly manual
WHAT YOU'LL NEED
TRX-4 compatible body
4 AA alkaline batteries
Battery with Traxxas High-Current Connector: 6 or 7 cell NiMH battery pack / 2s or 3s LiPo battery pack
Battery charger
Metric hex drivers: 1.5, 2.0 & 2.5 mm
Basic hand tools: screwdrivers, needle nose pliers
Traxxas Ultra-Premium Tire Glue (part #6468) or CA glue
Safety glasses
Biltyp: Crawler
Driftsätt: El
Drivning: 4WD
Levereras som: Byggsats
Lämplig för: Erfaren , Expert
Skala: 1/10
Underlag: Terräng
Längd: 523 mm
Bredd: 249 mm
Höjd: 266 mm
Markfrigång: 80 mm
Vikt: 2910 g
Fartreglage: Traxxas XL-5
Sändare: Traxxas TQi 4-Kanal (Bluetooth Link)
Motor: Traxxas Titan 12T 550
Motortyp: Borstad
Batteri: Ingår Ej
Vattenskyddad: Ja
Inkluderar även: Servon
Behöver kompletteras med: 7,2-8,4V NiMh- eller 2S Li-Po Batteri , Kaross , Laddare
