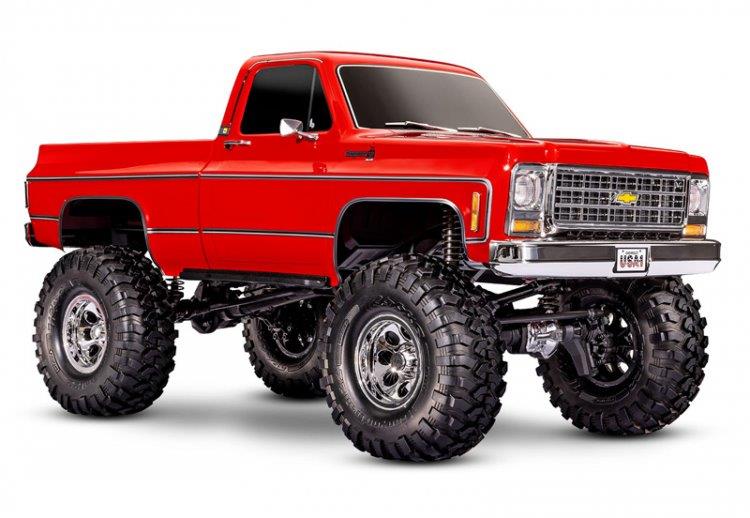

Traxxas 92056-4-RED - TRX4 Chevrolet@ K10 High Trail Edition RTR - Red
Lifted Off-Road Adventure

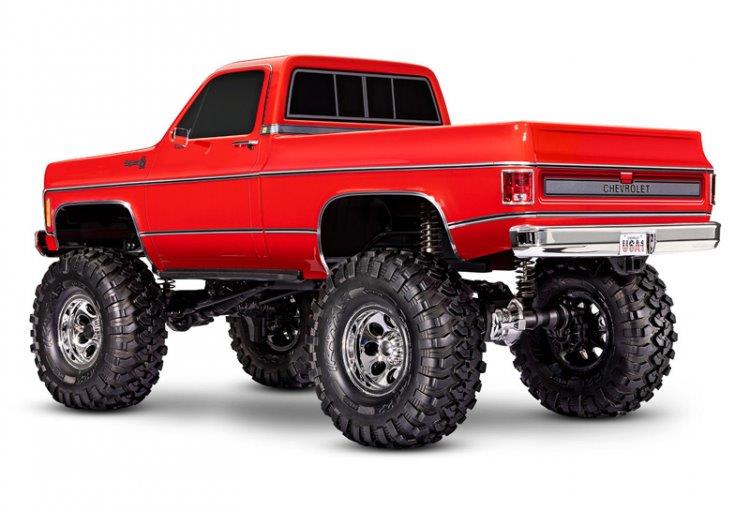

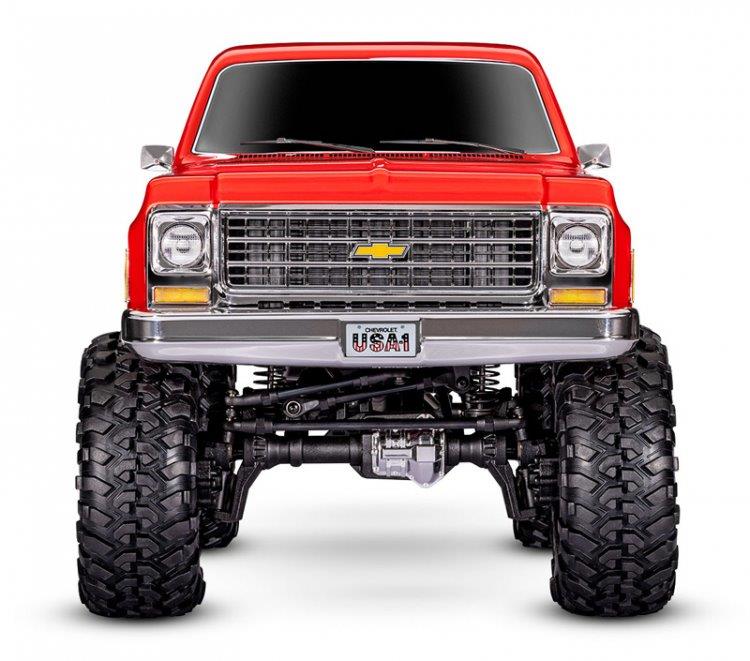

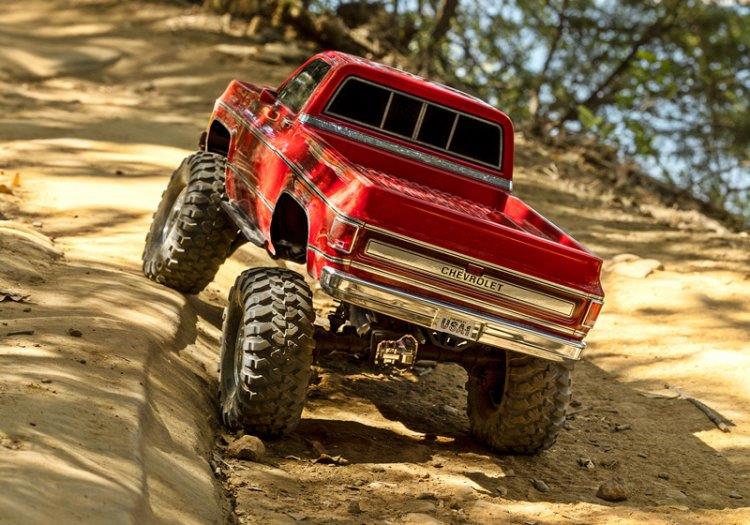

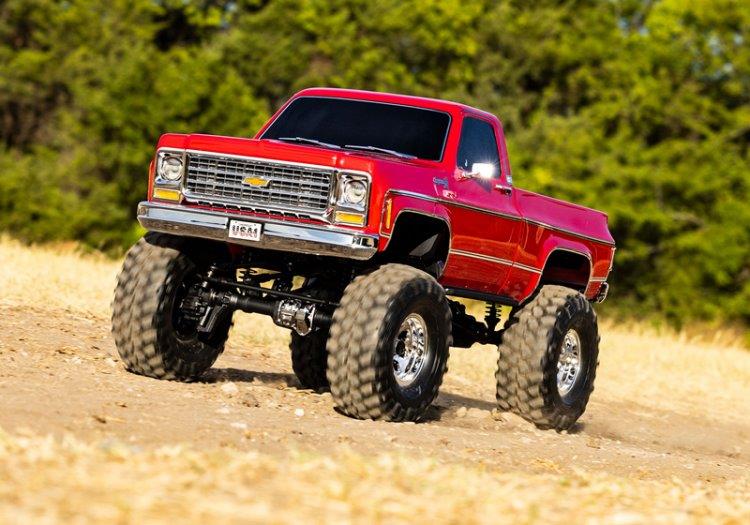

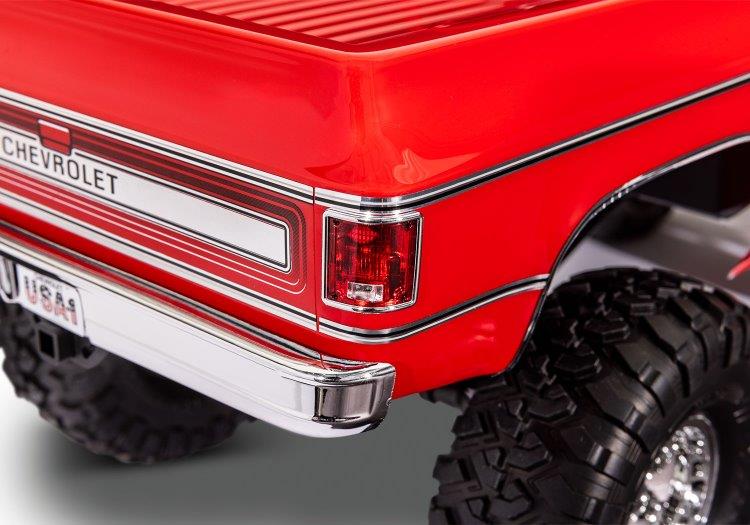

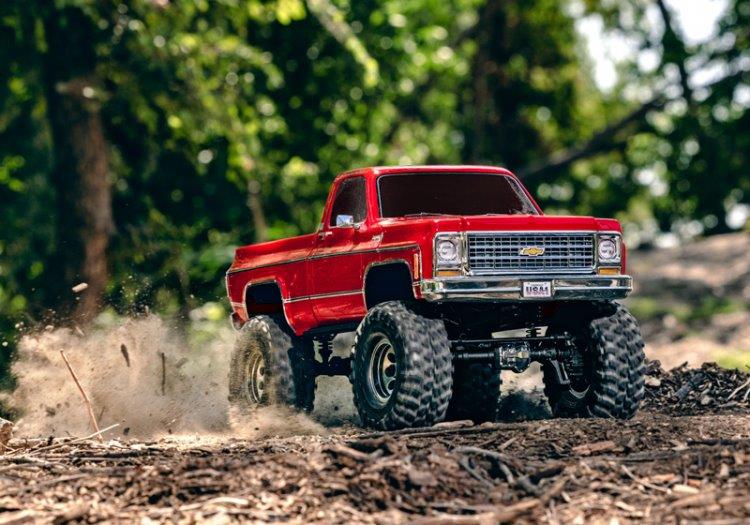

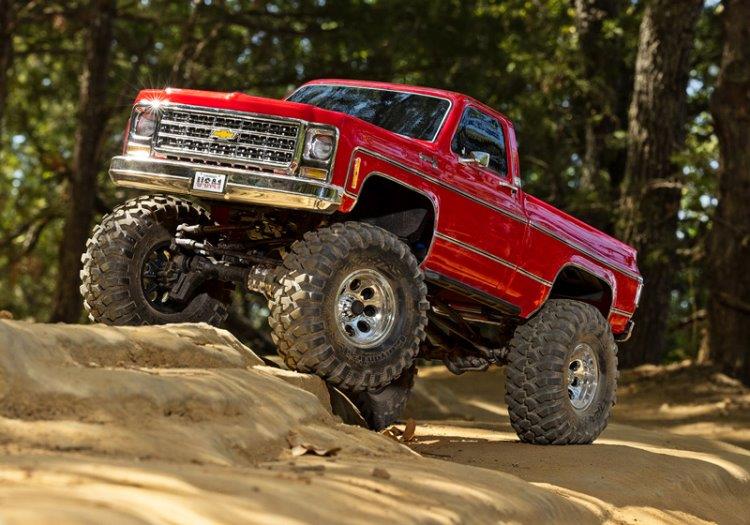

Traxxas elevates scale adventure with the lifted TRX-4® Chevrolet® K10 High Trail Edition. Thanks to its factory-installed Long Arm Lift Kit and oversize tires, the highly detailed K10 replica body stands over an inch taller than our standard TRX-4. The K10s extended wheelbase further enhances the TRX-4s already legendary off-road capability for even more fun on the trail. The TRX-4 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Tough durability.
High Trail Edition

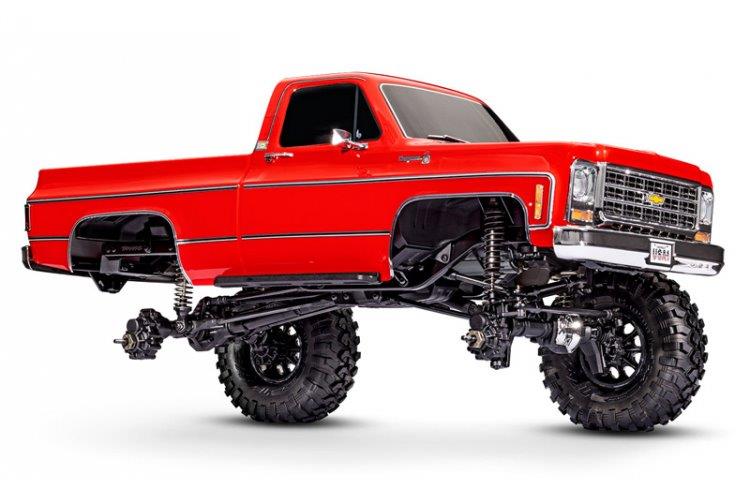

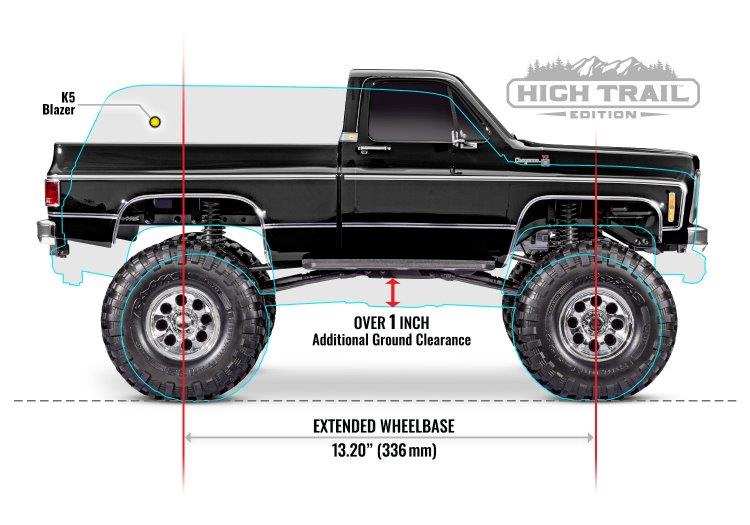

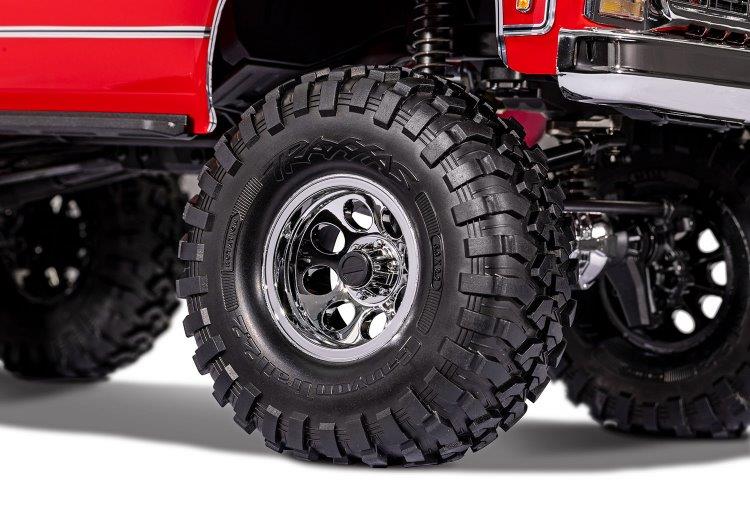

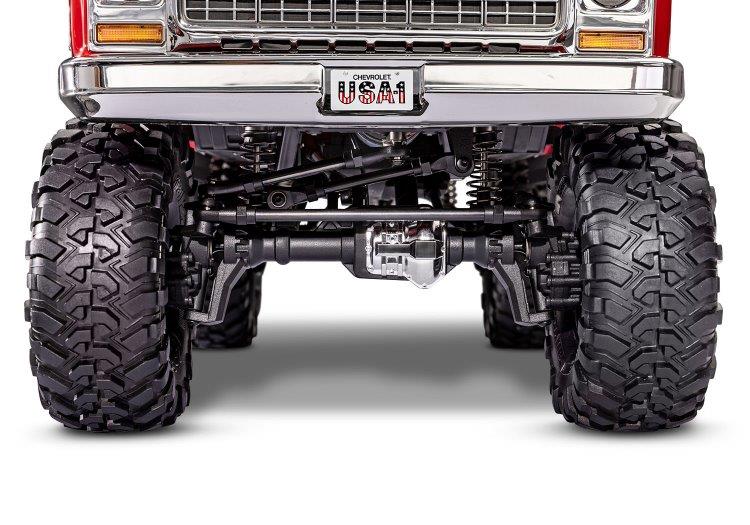

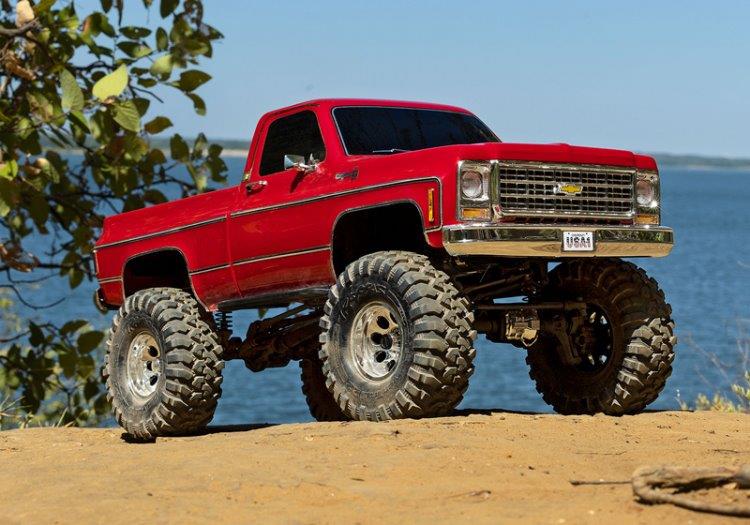

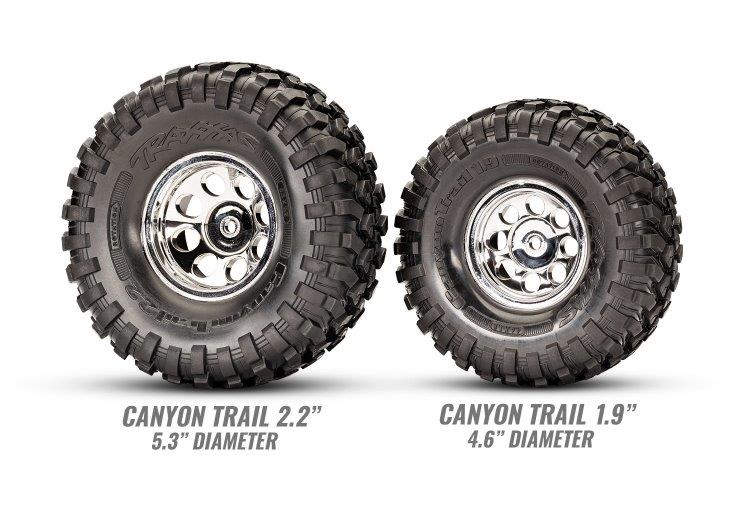

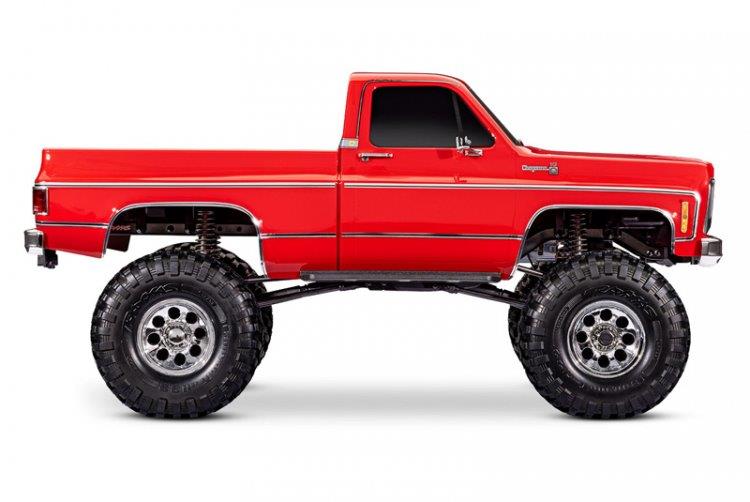

The factory-installed Long Arm Lift Kit raises K10 High Trail Edition over an inch taller for superior ground clearance. Large 2.2 mag wheels and Canyon Trail tires tame even the most technical trails to extend your scale adventures farther than ever before
Extended 336mm Wheelbase

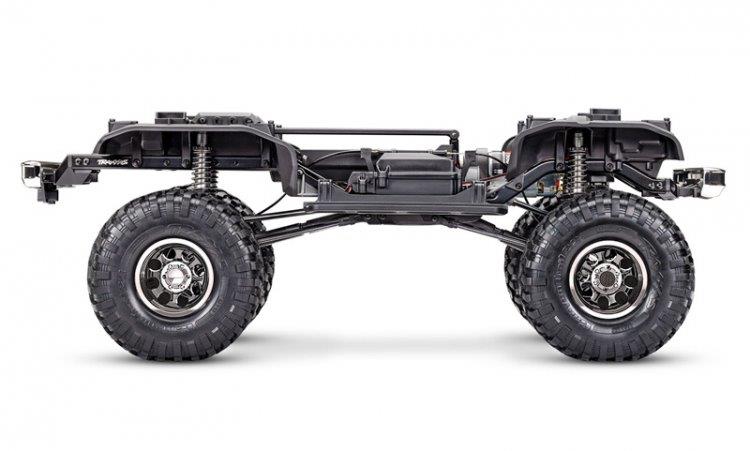

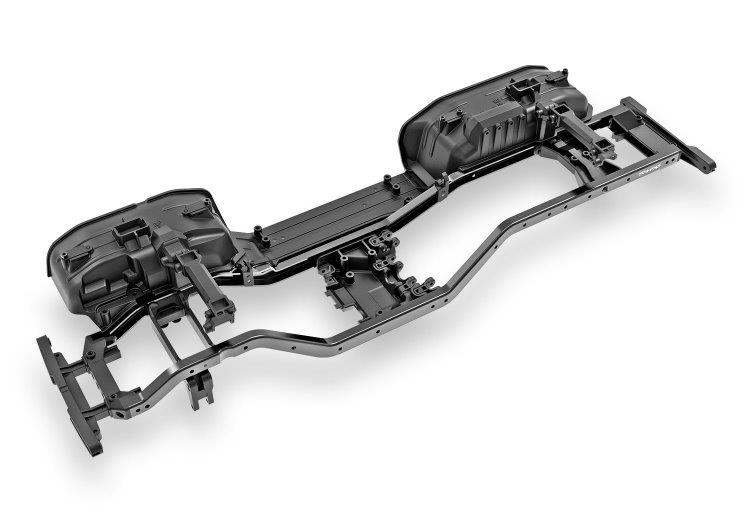

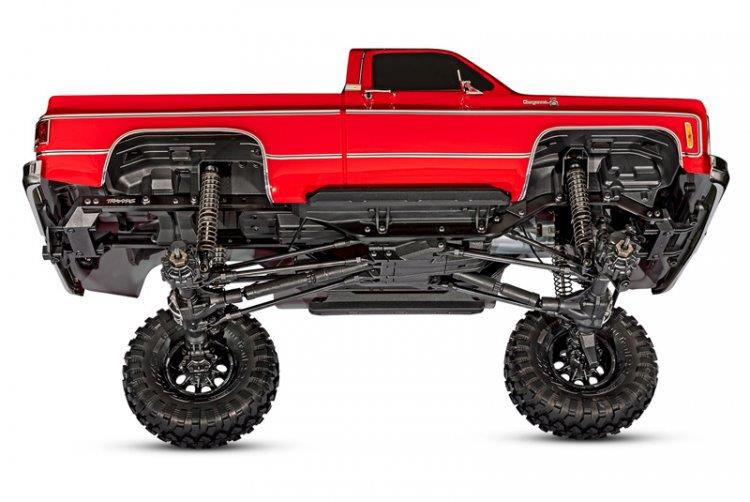

K10s steel frame rails extend the wheelbase out to 336mm to capture the pickups real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.

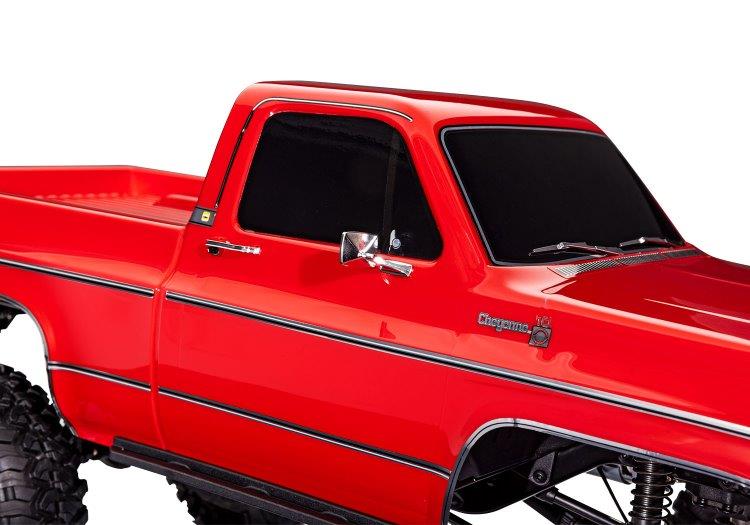

Clipless Body Mounting

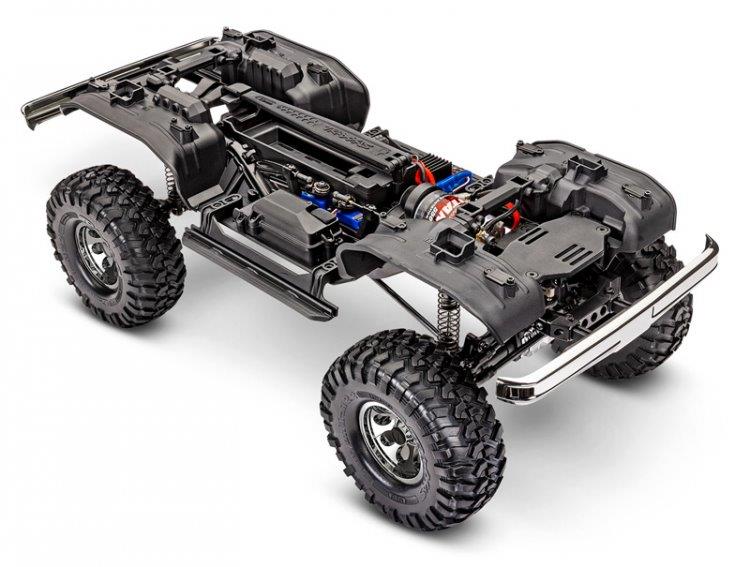

K10s clipless body holds tight on the trail but releases in just seconds to access the chassis. This hidden latching system adds a new level of convenience and scale realism to the TRX-4 by removing traditional body clips which can interrupt the bodys clean lines.
Specifications:
Length: 563mm
Front Track: 270mm
Rear Track: 270mm
Center Ground Clearance: 99mm
Weight (w/o battery): 3.35kg
Height (overall): 277mm
Wheelbase: 336mm (13.23 inches)

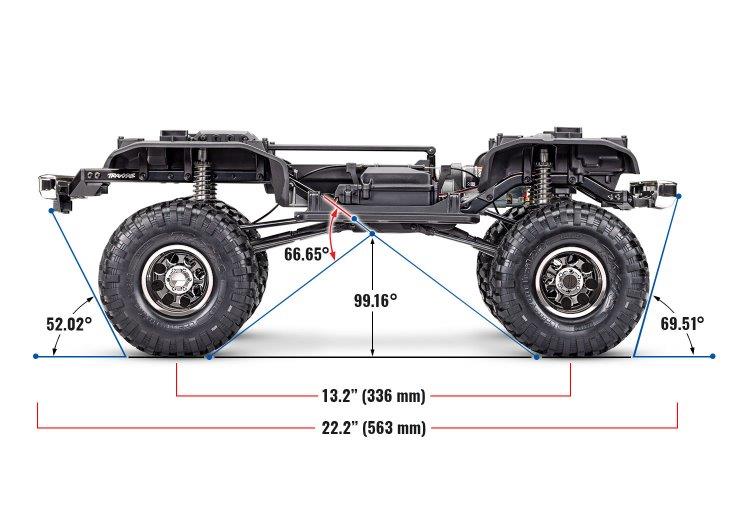

Approach Angle: 70°
Departure Angle: 52°
Breakover Angle: 67°
Front Shock Length: 110mm
Rear Shock Length: 110mm
Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
Front Tires: 5.3 x 2.14 inches (135 x 54mm)
Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation

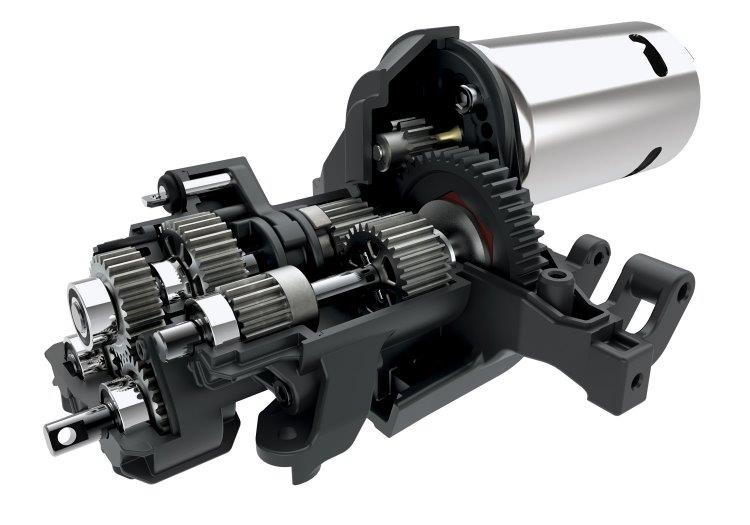

Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P

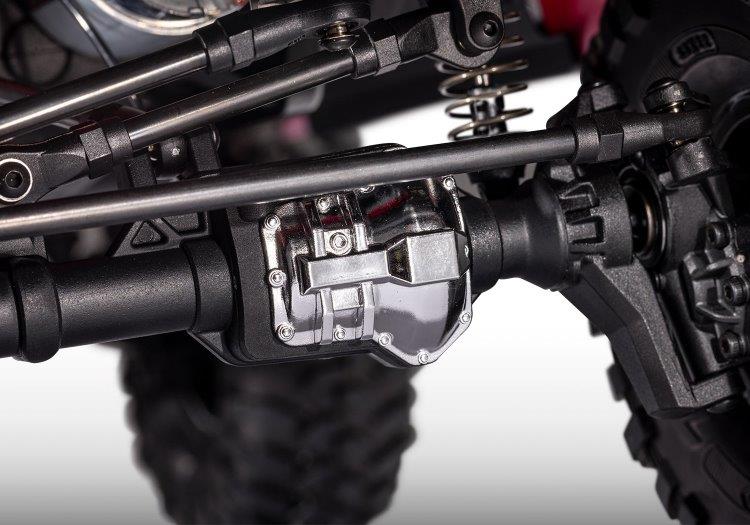

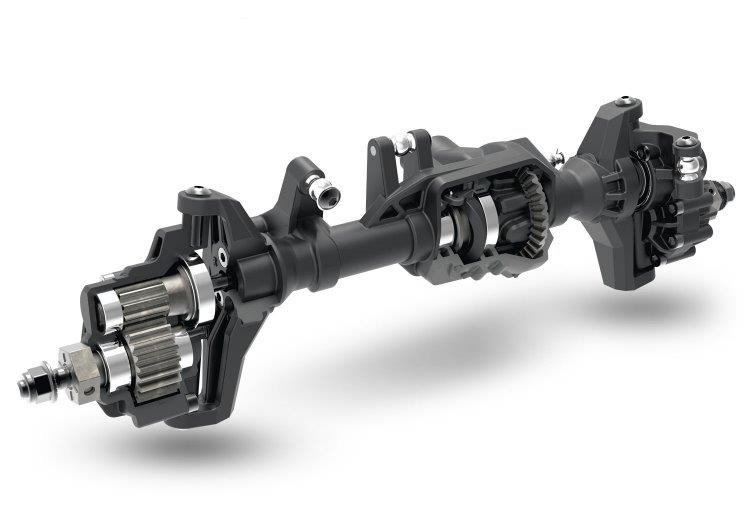

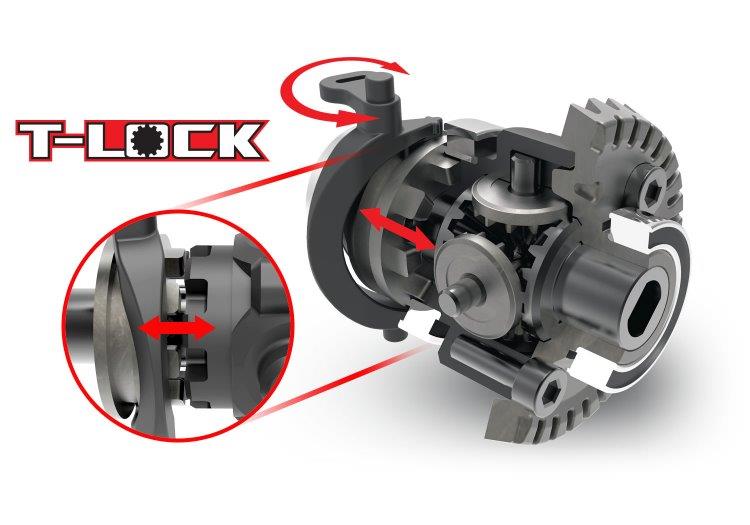

Differential Type: 4 Gear, Remote Locking

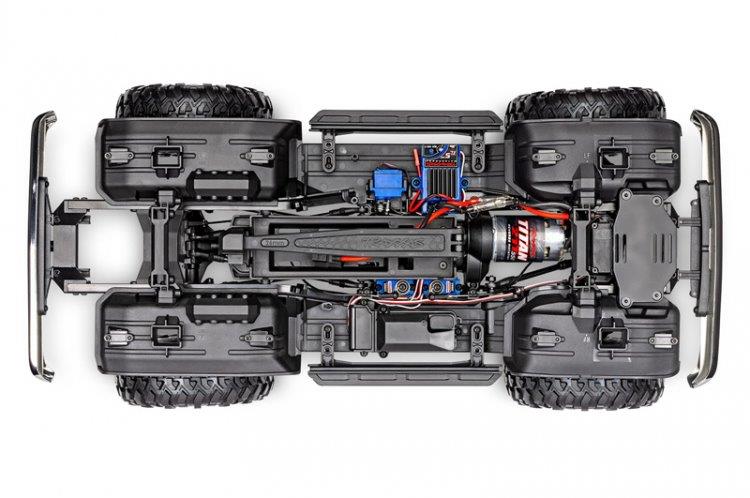

Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic Hill Hold

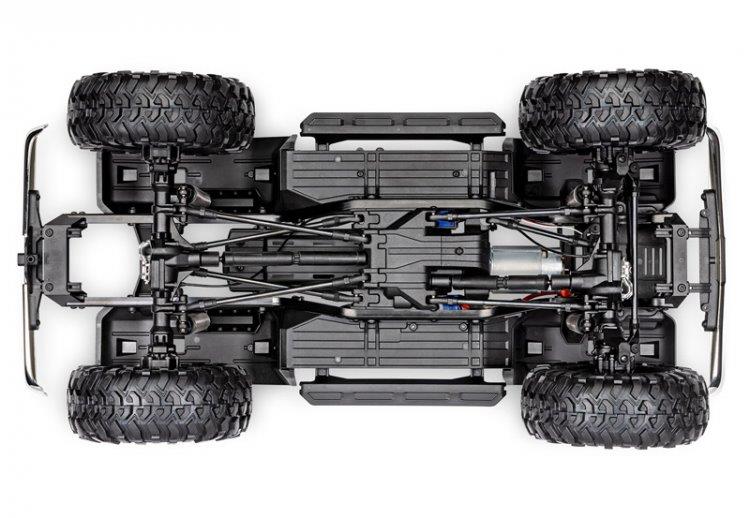

Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: L158.75 x W47 x H23/26mm
Whats In The Box:
TRX-4, Ready-To-Race® model
XL-5 HV waterproof electronic speed control
Titan® 21T reverse rotation motor
TQi 2.4GHz radio system with cruise control
High quality maintenance tools
What Youll Need:
Batteries: TRX-4 accepts a wide variety of NiMH (47 cell) and LiPo (2s3s) batteries
Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971)
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
Biltyp: Crawler
Driftsätt: El
Drivning: 4WD
Levereras som: Almost-Ready-To-Fly
Lämplig för: Erfaren , Nybörjare
Skala: 1/10
Underlag: Terräng
Längd: 563 mm
Bredd: 270 mm
Höjd: 277 mm
Markfrigång: 99 mm
Vikt: 3350 g
Fartreglage: Traxxas XL-5 HV
Sändare: Traxxas TQi 4-Kanal
Motor: Traxxas Titan 21T 550 Reverse Rotation
Motortyp: Borstad
Batteri: Ingår Ej
Specialfunktioner: 2-stegs Växellåda , Fabriksmonterat Lift Kit , Låsbara diffar (från sändaren) , Portalaxlar
Vattenskyddad: Ja
Behöver kompletteras med: 4st AA batterier till sändaren , 7,2-8,4V NiMh- eller 2S Li-Po Batteri , iD Laddare
