HPI Venture Toyota FJ Cruiser RTR Gunmetal Rock Crawler 1/10

VENTURE...
INTO THE OUTDOORS
The Venture FJ Cruiser is the ultimate adventure-ready scale RC trail truck. Developed from the ground up to be the most advanced and driver-friendly scaler truck available, the HPI Venture is ready for trail driving across mountains, streams and more. It's the perfect trail companion for anyone from weekend ramblers to globe-trotting adventure heroes!

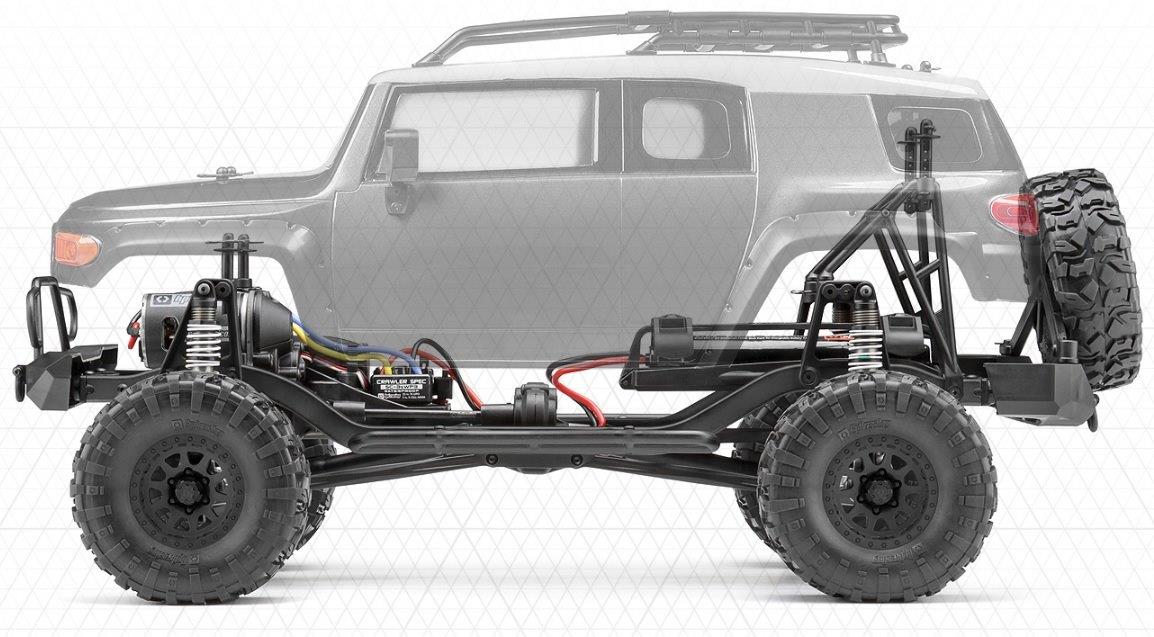

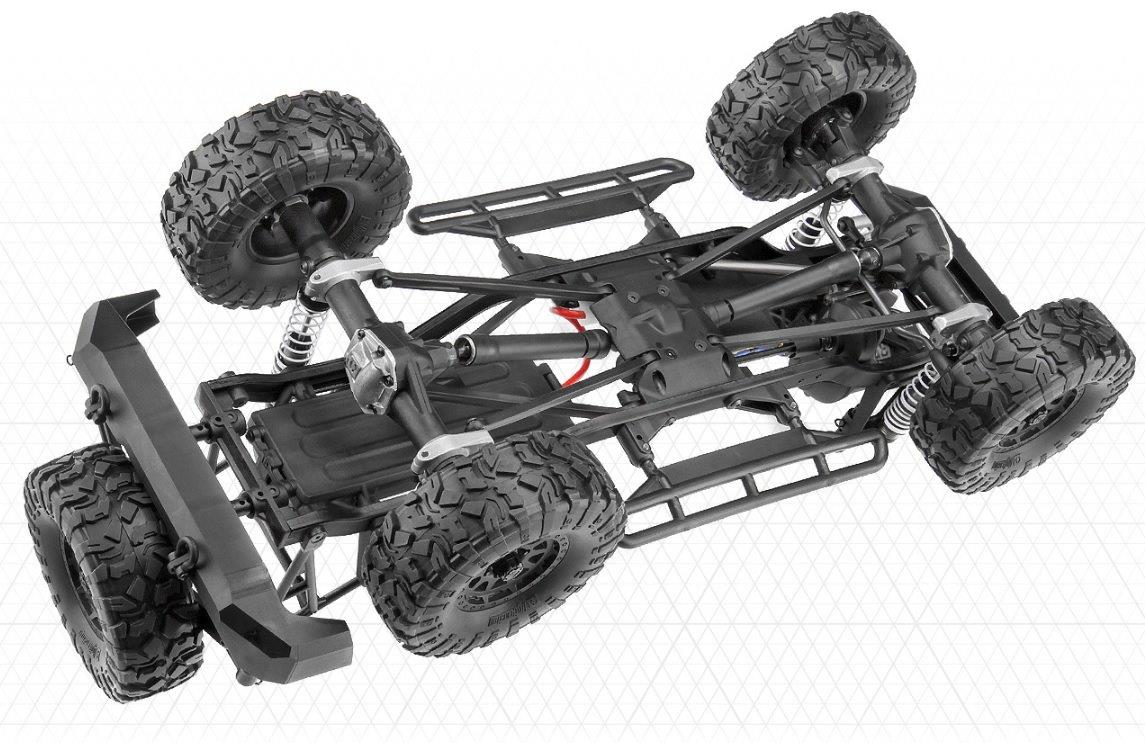

The Venture combines a realistic front-motor position and formed steel chassis rails with a realistic suspension and drivetrain. The Venture chassis is finished with the fabulous look of the celebrated Toyota FJ Cruiser for a fantastic scale off-road experience only HPI can deliver! With a fully licensed replica body that includes front and rear bumpers, mirrors, functional roof rack and swing-away spare tire mount, the Venture brings total scale realism to crawler fans right out of the box. Underneath the body, the steel C-channel chassis rails support a front-mounted motor, transmission and servo, plus a central transfer case that sends power to telescoping driveshafts and solid axles with metal diff covers. Authentically scaled oil-filled shock absorbers and full-time locked differentials work with the realistically treaded tires for confident driving in all off-road situations.

ADVANCED TRUCK STEERING
The steering system for scale RC trucks is very important - and that's why the Venture FJ Cruiser was designed with the latest advancements in steering and suspension for strength as well as realism. This makes the Venture the most versatile scaler truck on the trail! With a Chassis-Mounted Servo (CMS) and Behind The Axle (BTA) steering, plus a functional Panhard bar, you get perfect scale looks with realistic and ideal performance, no matter what terrain you're hitting. Aluminum mounts for the Panhard bar and aluminum steering plates add the strength and durability to give you total confidence on the trail.

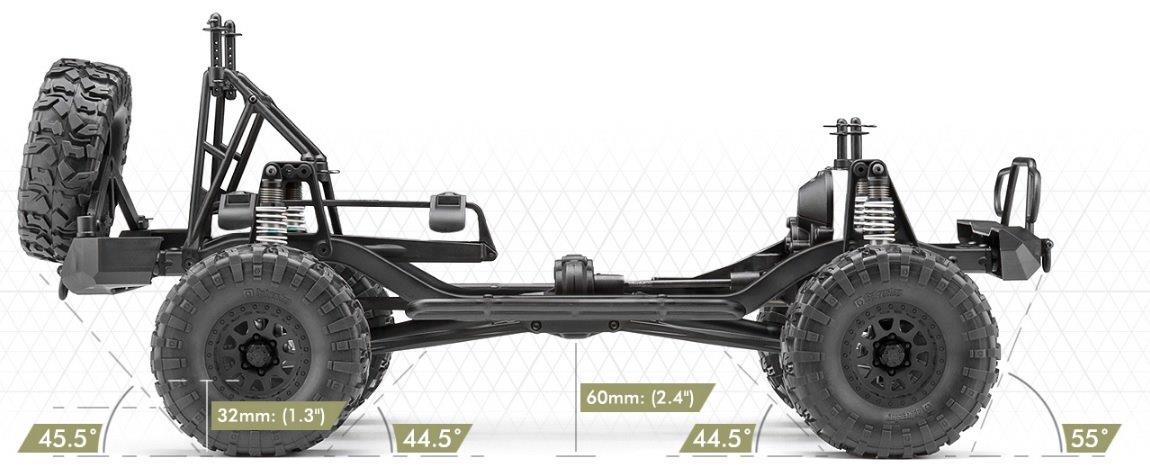

MAXIMIZED CLEARANCE ANGLES
The Venture chassis is loaded with potential, making it extremely versatile on the trail and up tough climbing routes. Its capability lies in several factors, including off-road friendly clearance angles from the tire contact points to the bumpers and chassis, as well as good ground clearance thanks to its minimal diff case size.
• Break-over angle: 44.5 degrees
• Approach angle: 55 deg
• Departure angle: 45.5 deg
• Max climb angle: 49 deg
• Max tilt angle: 28 deg
• Axle articulation: 30 deg
• Ground clearance 68mm capable: (2.7")
• Ground clearance at standard ride height 60mm: (2.4")
• Axle ground clearance 32mm: (1.3")

RUGGED ALUMINUM PARTS
Enhancing the look and style of the Venture chassis are aluminum suspension parts that are a fantastic throwback to truck kits from RC's retro golden age. From the axle covers which have the HPI hex logo on them, to the thick shock and rod link mounts, the real metal parts add a great look to the Venture that other scale trucks can't match! Both Panhard bar mounts are also aluminum, as well as all four hex hubs for the wheels. Each hex hub is also held in place on the axles by steel setscrews for additional security.

SC-3SWP3 CRAWLER EDITION ESC
The Venture FJ is equipped with a highly versatile and fully waterproof HPI SC-3SWP3 Crawler Edition electronic speed controller, which is packed with a full range of adjustments and capabilities. In addition to being able to take power from the included 2000mAh NiMH (nickel metal-hydride) rechargeable battery pack, you can swap the battery for a 2S or 3S LiPo (lithium-polymer) battery for extra power and runtime. The Venture on 3S is a beast on the trail!
The SC-3SWP3 Crawler Edition also features our HDC Hill Descent Control adjustable electronic drag brake system to make driving down steep declines more controllable at all angles - just like modern luxury off-roaders!

HIGH TORQUE SS-20WR STEERING SERVO
The water-resistant HPI SS-20WR steering servo is the ideal companion for the Venture electronics package. This is a high torque servo with up to 6.5kg-cm/90 oz-in holding power at 6V, plus it's water-resistant so it can easily handle splashes and water drops when driving through puddles, snow and mud. Mounted directly to the chassis next to motor, it provides extra weight over the front axle to enhance the front weight bias of the Venture.
• Operating Voltage: 4.8-6V
• 4.8V: Speed: 0.14 sec/60 degrees, Torque: 4.2kg-cm/58 oz-in
• 6V: Speed: 0.11 sec/60 degrees, Torque: 6.5kg-cm/90 oz-in
• Servo Spline: 25T

35-TURN CRAWLER SPEC MOTOR
A sealed, brushed motor with 35 turns provides the perfect mix of speed on the trail and crawling torque for climbing steep embankments and obstacles. It's a standard 540-size motor, so it's easy to change the motor for something else you've got in your collection. Thanks to the all-metal gears in the transmission and standard electronics sizing, you can easily upgrade to a brushless motor and 3S battery for extra speed and wheelspin to get over anything.

TF-41 2.4GHZ RADIO SYSTEM WITH WATERPROOF RECEIVER
The popular steering wheel & pistol grip HPI TF-41 radio system controls the Venture on its travels, giving you total control of the steering and throttle/brake. The carry handle makes it convenient to take on your trail walks, and the shape of the controller lets you set it on the ground for easy picking it up by the grip. The folding antenna allows it to take up the minimum amount of space in your backpack on the way to the trail. The RF-41WP receiver is fully waterproof, so you don't have to think about what you're driving through. For extra protection, the receiver is encased in a secure receiver box which also allows you to install your own radio set.

FEATURES
• Factory-assembled & pre-painted electric-powered full-time 4WD 1/10 scale off-road truck
• Officially licensed replica Toyota FJ Cruiser body
• Functional roof rack plus side mirrors
• Front bumper features brush guard, light mounts and D-ring shackles
• Rear bumper features swing-away spare tire mount and D-ring shackles
• Adjustable rock rail side sliders help the truck get over tough obstacles
• Formed steel C-channel chassis rails
• Front-mount motor and transmission position for ultimate scale realism
• Front weight bias improves climbing traction and provides more realistic driving
• All-metal gear drivetrain for extreme durability
• Central transfer case with slider driveshafts to front and rear differentials
• Transfer case prevents motor stall for the best climbing action
• Transfer case also straightens & lowers center driveshafts for more efficient power transfer
• Axles feature small diff case or "pumpkin" size for best possible ground clearance
• Aluminum differential pumpkin cover
• Locked differentials for superb off-road climbing traction
• 12mm aluminum hex hubs to fit any available crawler wheels
• Shock towers have multiple shock mounting positions to allow for wheelbase options
• BTA (Behind The Axle) steering linkage for improved approach and departure angles
• Panhard bar for scale looks and optimized geometry with zero bump steer
• Zero Ackermann high steer knuckle design for improved obstacle clearance and tighter turning radius
• 3-link front and triangulated 3-link rear suspension
• Oil-filled aluminum coilover shock absorbers (63-90mm stroke)
• Adjustable threaded shock bodies for quick ride height changes
• Dual-stage shock springs
• Aluminum lower link/shock mounts
• Aluminum panhard mounts
• CMS (Chassis Mounted Servo) realistic steering setup
• Adjustable body mounting to fit any style of off-road body
• Fully braced rear body mounts
• All-terrain Rockthorn 109mm x 38mm soft S-Compound tires with chunky tread blocks
• Beadlock style CR-10 ten-spoke 1.9” wheels
• HPI 35-turn crawler spec motor provides speed as well as crawling torque
• HPI waterproof SC-3SWP3 Crawler Edition adjustable electronic speed control
• HPI water-resistant SS-20WR steering servo
• HPI 2.4GHz radio system with carry handle
• HPI waterproof 2.4GHz receiver in protective case
• Full set of ball bearings
• Includes NiMH battery and charger and 4 AA batteries for radio transmitter


SPECIFICATION

DIMENSIONS
• Length: 527mm (20.7")
• Width: 227mm (9")
• Height: 238mm (9.4") with roof rack, 217mm (8.5") without (will vary depending on tire choice and suspension settings)
• Wheelbase: 311mm (12.3")
• Front overhang: 101mm (3.9")
• Rear overhang: 135mm (5.3")

WEIGHT
• Running weight: 2.4kg (5.3lbs)
• Weight without battery: 2.1kg (4.7lbs)
• Body Weight: 0.21kg (7.44oz)

CAPABILITY
• Break-over angle: 44.5 degrees
• Approach angle: 55 deg
• Departure angle: 45.5 deg
• Max climb angle: 49 deg
• Max tilt angle: 28 deg
• Axle articulation: 30 deg
• Ground clearance 68mm capable: (2.7")
• Ground clearance at standard ride height 60mm: (2.4")
• Axle ground clearance 32mm: (1.3")

GEARING
• Drivetrain ratio: 7.6:1
• Transmission gearing: 1.53:1
• Axle gearing: 3.31:1
• Transfer case gearing: 1.5:1
