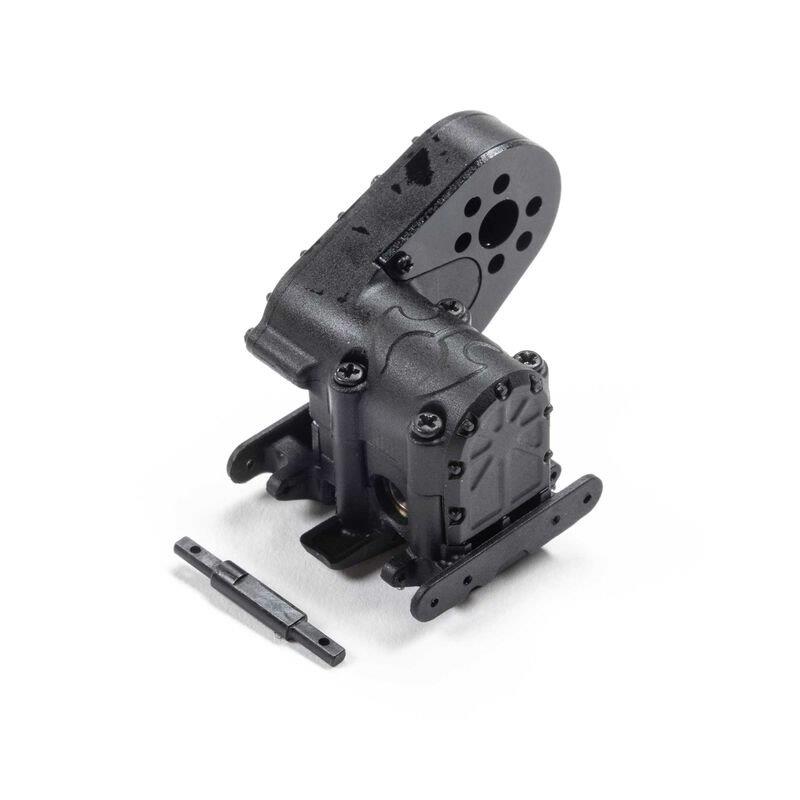

AXIAL Transmission, Assembled: SCX30

Product Details

In The Box
Transfer Gear, Mod 0.3, 30T, Trans: 1
Idler Gear, Mod 0.3, 40T, Trans: 1
Screw, M1.4 x 0.3mm x 5mm, Button Head: 1
Pinion, Worm Gear, 2T, 2/12T, Trans: 1
Ring Gear, Worm Gear 16T, 2/12T, Trans: 1
Output Shaft, Trans: 1
O-Ring, 3mm x 0.5mm: 1
Screw, M1.0 x 0.25mm x 6mm, Button Head: 6
Screw, M1.4 x 0.3mm x 12mm, Button Head: 4
Screw, M1.0 x 0.25mm x 4mm, Button Head: 2
Ball Bearing, 3mm x 6mm x 2mm: 2
Ball Bearing, 3mm x 6mm x 2.5mm: 4
Trans Cover: 1
Trans Case, Upper: 1
Trans Case, Skid Plate, Lower: 1
Motor Plate, Trans: 1

• A fully assembled SCX30 transmission
• Includes an idler and transfer gear that drives the 2/12T worm gears

Transmission, Assembled: SCX30 Product Specs
Application: SCX30
Part Type: Chassis Parts
