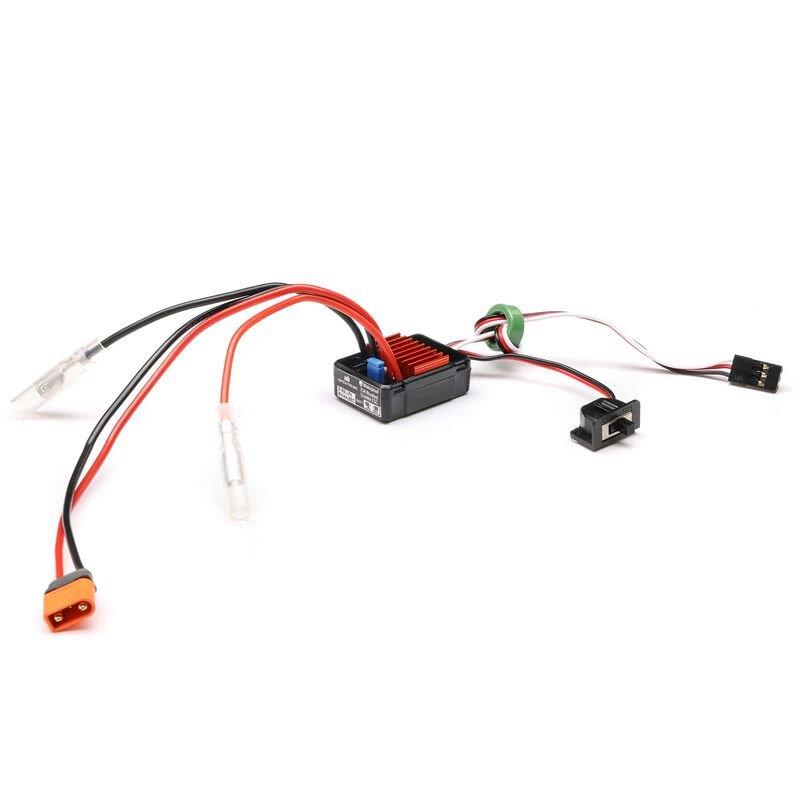

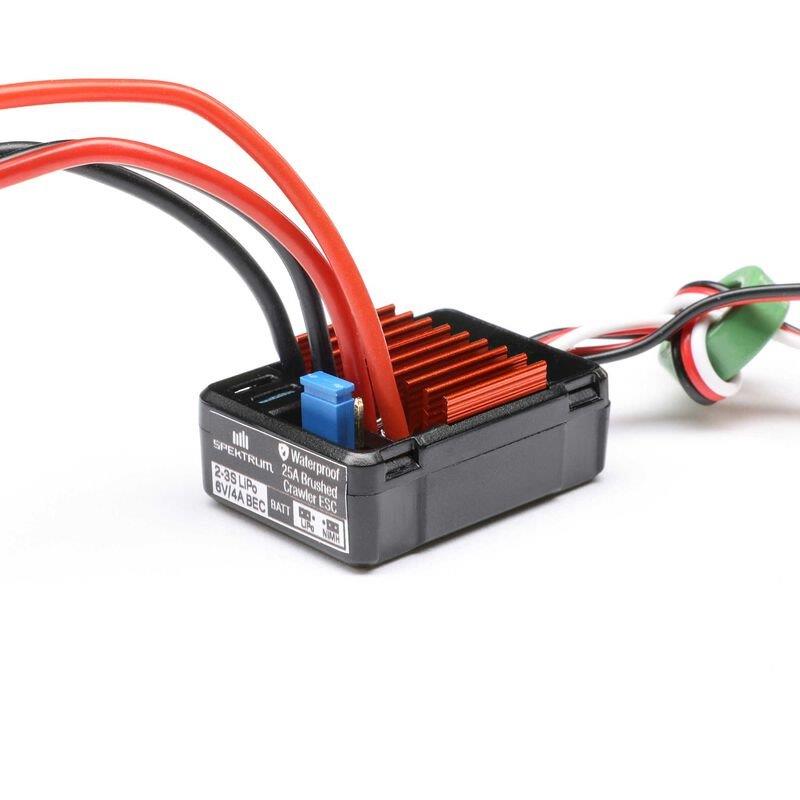

Spektrum Firma 25A Brushed ESC

Feature-packed Firma™ Brushed ESCs deliver power and intelligence all-in-one, with no additional modules or links required. This waterproof, 25A Brushed ESC drives your 1/16-1/18th scale crawler/scaler through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter!

Product Details

In The Box
Spektrum™ Firma™ 25A Brushed ESC: 1
Product Manual: 1

Needed to Complete
Compatible Surface Receiver: 1
Compatible 2S-3S LiPo Battery with IC2 Connector: 1
Compatible Transmitter: 1

• Ideal for 2WD and 4WD 1/16-1/18th scale crawlers/scalers running on 2S - 3S Lipo setups
• High current adjustable BEC (6v @ 4 Amps)
• Waterproof (see instructions for details)
• Multi-point protection
• Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case
• Aluminum heat sink for high efficiency
• High heat resistant IC™ connector, backward compatible with EC™ connectors
• Limited 1-year warranty

Firma 25A Brushed ESC Product Specs
Amperage: 25A
Battery Connector: IC2
BEC Continous Current: 4A (Switch mode)
BEC Voltage: 6V
Dimensions: 34.0 x 24.0 x 14.0 (mm)
Input Voltage: 2-3S LiPo and 5-9 Cell NiMH
Maximum Burst Current: 100A
Motor Output Lead: 4mm Female Motor Bullets
Motor Type: Brushed
Overload Protection: Yes
