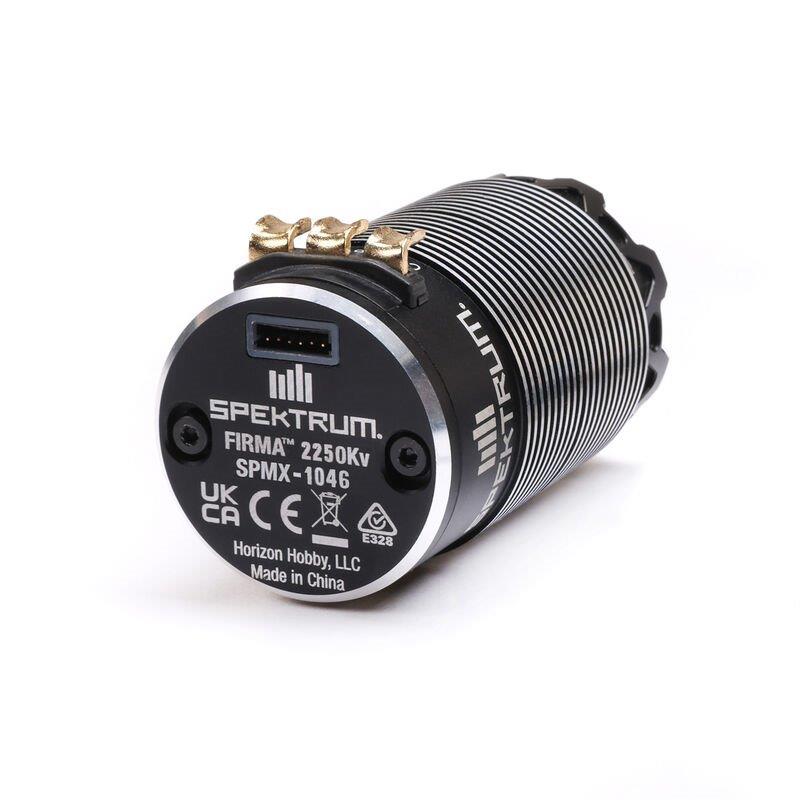

Spektrum Firma 4274 2250Kv 4-Pole Sensored Brushless Motor: 5mm

Product Details

Key Features
• Designed for SPMXSE2130S - Firma 130A Black Edition Sensored Brushless Smart ESC

In The Box
• (1) Spektrum Firma 4274 2250Kv 4-Pole Sensored Brushless Motor
• (1) Product Manual

Spektrum Firma 4274 2250Kv Sensored Brushless Motor Overview
The Spektrum™ Firma™ 2250Kv Sensored Brushless Motor is the perfect option for 1/8th scale buggies or truggies with a 3S-6S LiPo. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 5mm output shaft, and precision bearings for durability and smooth rotation. Perfectly matched for the Firma 130 Smart Sensored ESC (SPMXSE2130S).

Spektrum Firma 4274 2250Kv Motor Features
• Sensored design allows fine control at all speeds
• Perfect upgrade for 1/8th scale racers and bashers
• High efficiency design
• 3S-6S LiPo power capable
• High-quality 4-pole sintered rotor
• High-quality construction with precision ball bearings and hardened steel 5mm shaft

Product Specifications:
Application: 1/8 Truggy and Buggy (Recommended with SPMXSE2130S ESC only)
Bushing Or Bearing: Bearing
Input Voltage: 3S - 6S
Motor Output Lead: Solder tabs
Motor Size: 4274
Motor Type: Brushless
Number of Poles: 4
Outer Diameter: 1.6" (41 mm)
Product Length: 2.9" (74 mm)
Product Weight: 12.7 oz (360g)
Recommended Speed Control: SPMXSE2130S
RPM/Volt (Kv): 2250Kv
Sensored: Yes
Shaft Diameter: 0.19" (5 mm)
Shaft Length: 0.73" (19 mm)
