Spektrum Firma 70A Brushed Smart ESC, 2S-3S: IC3
719 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSE1070
The Spektrum Firma 70 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers.
Product Details
In The Box
Spektrum Firma 70A Brushed Smart ESC: 1
Light Strings (red and white): 2
Product Manual: 1
Needed to Complete
Spektrum Surface Receiver
540 550 size Brushed motor
2S or 3S Lipo Battery with EC3 or IC3 Connector
Spektrum Transmitter
Firma 70A Brushed Smart ESC, 2S-3S: IC3 Overview
The Spektrum Firma 70 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers.
Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics - together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before - without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
SMART: INTEGRATED SMART TECHNOLOGY
WATERPROOF: Designed and built to operate in wet condition such as puddles, creeks, and snow*
PROGRAM VIA TRANSMITTER: Proprietary Text Gen Programming Allows for programming the esc from Transmitter
Firma 70A Brushed Smart ESC, 2S-3S: IC3 Features
Smart all-in-one telemetry
Smart Lite functionality Provides Spektrum Smart ESC data such as input voltage, esc temperature, and Text Gen Telemetry data over one wire. No additional sensors required. Smart Lite ESCs do not provide Smart Battery data.
Provides Spektrum Smart ESC data such as input voltage, esc temperature, and Text Gen Telemetry data over one wire. No additional sensors required. Smart Lite ESCs do not provide Smart Battery data.

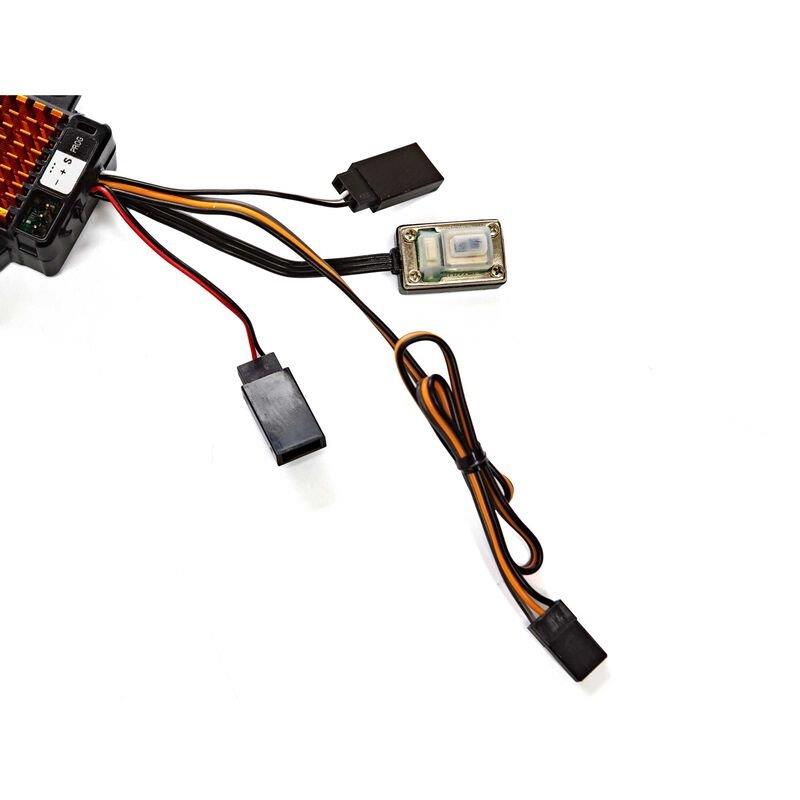

Integrated LED light power outputs for simple installation without the need of additional receiver ports
70 Amp continuous power ideal for 1/10 scale crawlers and scalers
2S-3S LiPo Compatible
Multiple options for easy programming:
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Programming from Transmitter via Text Gen Telemetry
Waterproof ESC*
Multi-point protection: Over-current protection Automatic LiPo low-voltage cutoff Thermal protection Failsafe protection
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install - no soldering required

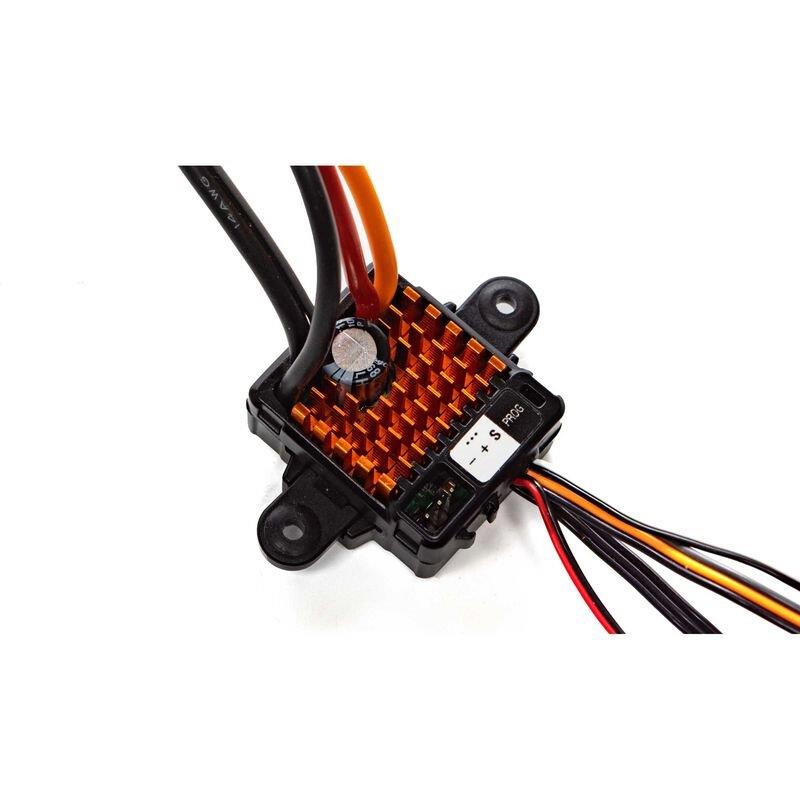

Aluminum heat sink for high efficiency
Adjustable high-power BEC (6V or 7.4V, 4amp)
Firmware updatable through the Smart ESC Programming Box

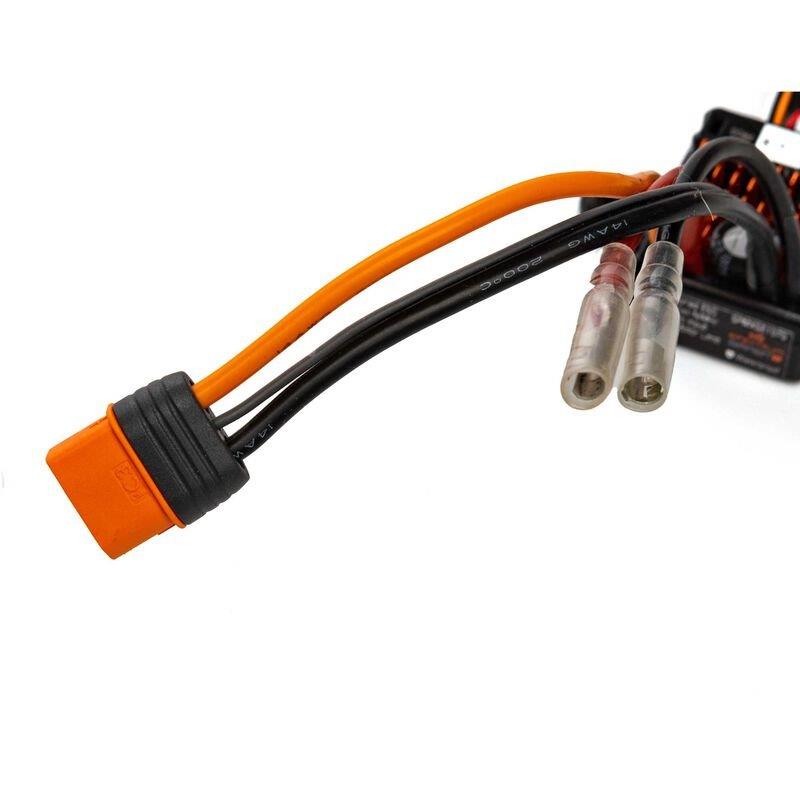

High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Firma 70A Brushed Smart ESC, 2S-3S: IC3 Product Specs
Adjustable Timing: No
Amperage: 60A - 79A
Application: Surface
Auto Cutoff: Yes
Battery Input Lead: IC3
BEC: Yes
BEC Continous Current: 4
BEC Voltage: 6V / 7.4V User Selectable
Brakes: Integrated with ESC
Connector Type: 4mm Bullet, IC3
ESC Type: Brushed
Forward: Yes
Input Voltage: 23 Cell Li-Po / Li-Fe; 59 Cell Ni-MH / Ni-Cd
Low-Voltage Cutoff Programmable: Yes
Max Input Voltage: 11.1V
Maximum Burst Current: 200A
Maximum Continuous Current: 70A
Motor Limit: 540 / 550 Size Brushed Motors
Motor Output Lead: 4mm
Motor Type: Brushed
Product Application: Crawling, Surface
Product Height: 0.71" (18 mm)
Product Length: 1.41" (36 mm)
Product Weight: 1.76 oz (50 g)
Product Width: 1.18" (30 mm)
Programmable: Yes
Programming Options: Programming Box, Smartlink App, On Screen Text Gen
Reverse: Yes
Technology: Smart
Turns: Below 8.4V; Down to 12T / Below 12.6V; Down to 35T
Water-Resistant: Yes
