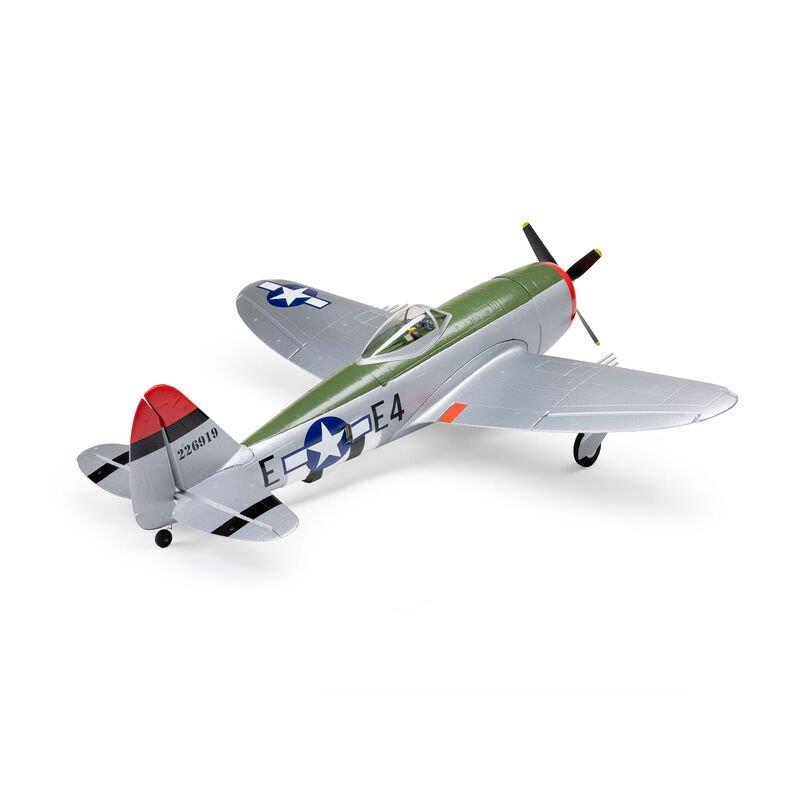

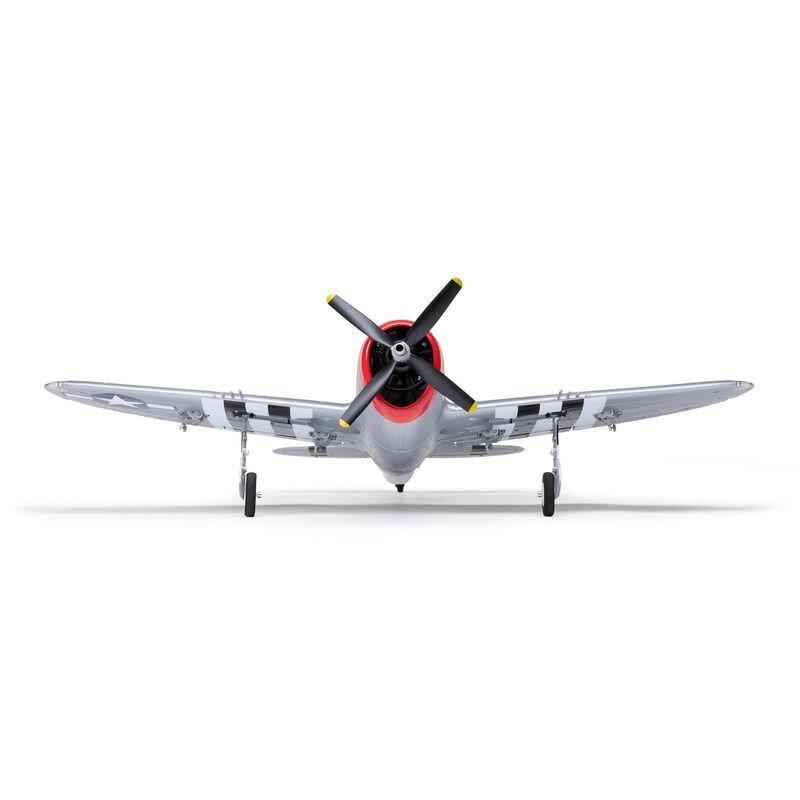

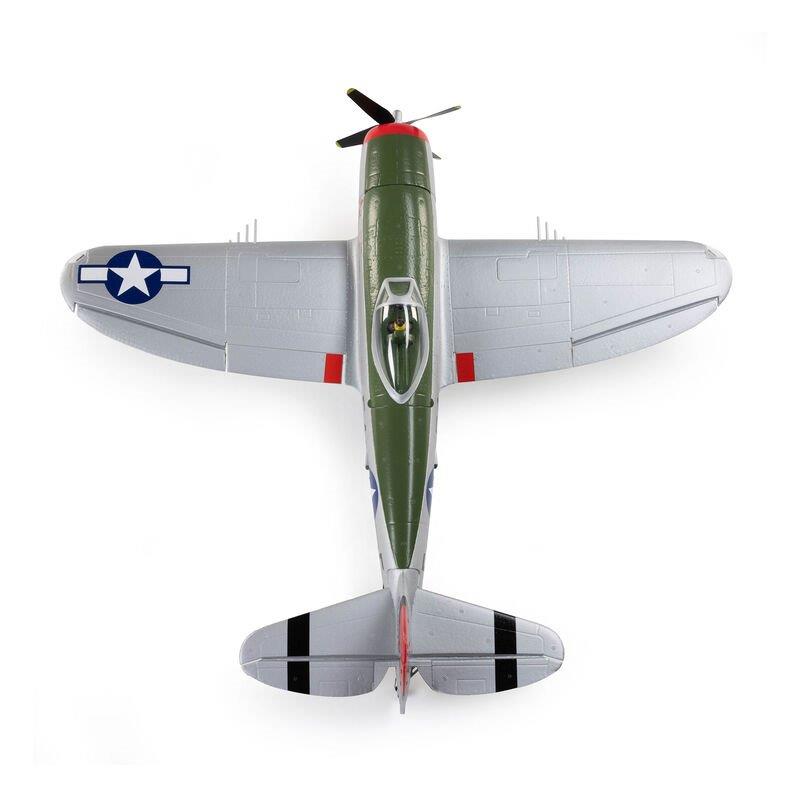

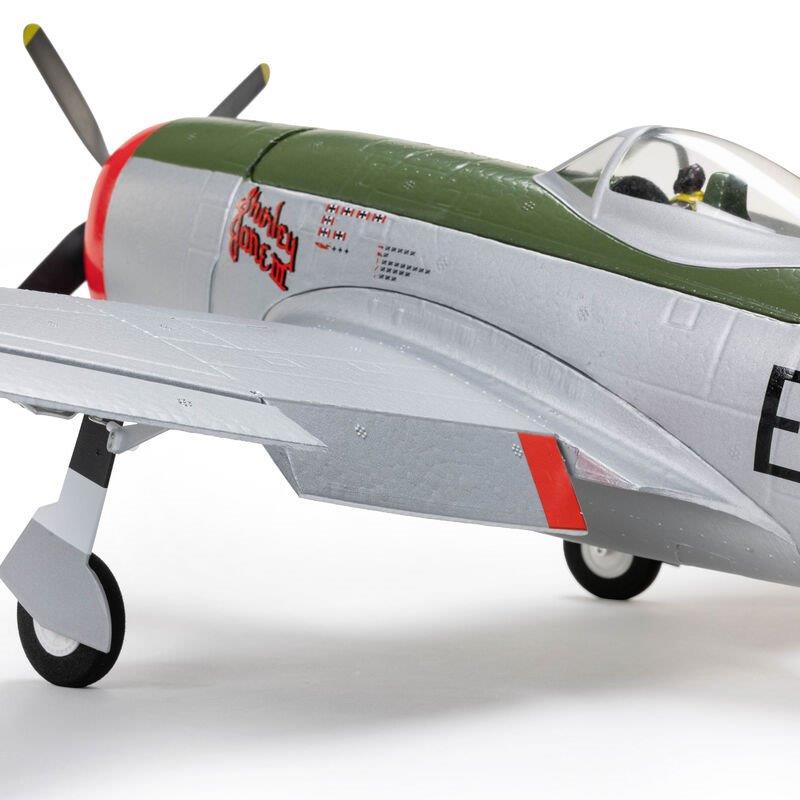

E-flite Micro P-47 Thunderbolt 625mm BNF Basic with AS3X+ and SAFE Select

The E-flite® Micro P-47 Thunderbolt 625mm is a “full-house” replica of the iconic WWII fighter that features first-in-class functional retracts and flaps to deliver an authentic warbird experience in more places and smaller spaces while being more affordable and convenient for intermediate to experienced pilots!


Product Details

In The Box
E-flite Micro P-47 Thunderbolt with: 1
Spektrum Linear Servos (installed): 6
Spektrum Brushless Outrunner Motor (installed): 1
Spektrum Avian 15A Smart Lite Brushless ESC (installed): 1
Spektrum 6-Channel Receiver (installed): 1
Product Manual: 1

Needed to Complete
Full-range 6–7+ channel Spektrum™ DSMX®/DSM2® compatible transmitter: 1
3S 11.1V 600–850mAh LiPo with IC2 Connector: 1
Compatible LiPo charger (plus a suitable IC2 adapter/charge lead, including SPMXCA532 or SPMXCA320, sold separately): 1



E-flite Micro P-47 Thunderbolt 625mm BNF Basic with AS3X+ and SAFE Select Overview

The E-flite® Micro P-47 Thunderbolt 625mm is scaled to be affordable and practical for more RC pilots to own and fly. It's also the first-ever micro-class warbird model to include functional flaps, retracts, and LED navigation lights! The brushless power system is compatible with popular 3S 600–850mAh batteries, plus the Spektrum™ receiver is equipped with enhanced AS3X+® and optional-use SAFE® Select technologies to make it one of the easiest to fly P-47 models yet. The retractable landing gear with a steerable tail wheel makes it easy to taxi, take off from, and land on smooth surfaces, or you can leave the landing gear retracted to hand launch and belly land when flying over grass. It arrives factory-finished in a fully painted scale trim scheme and is ready to fly after quickly installing the one-piece wing with a single thumbscrew.

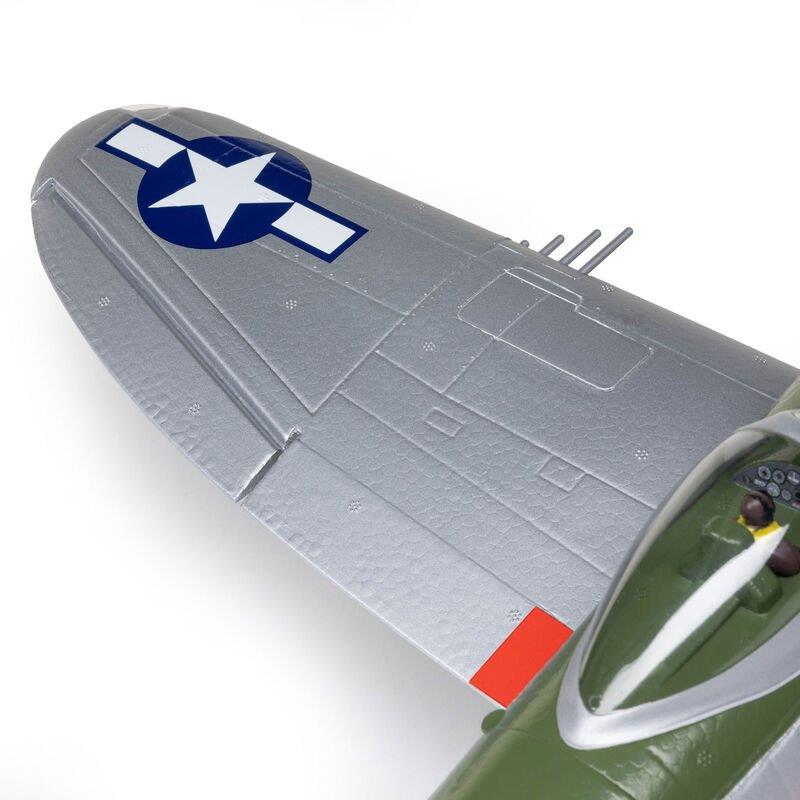

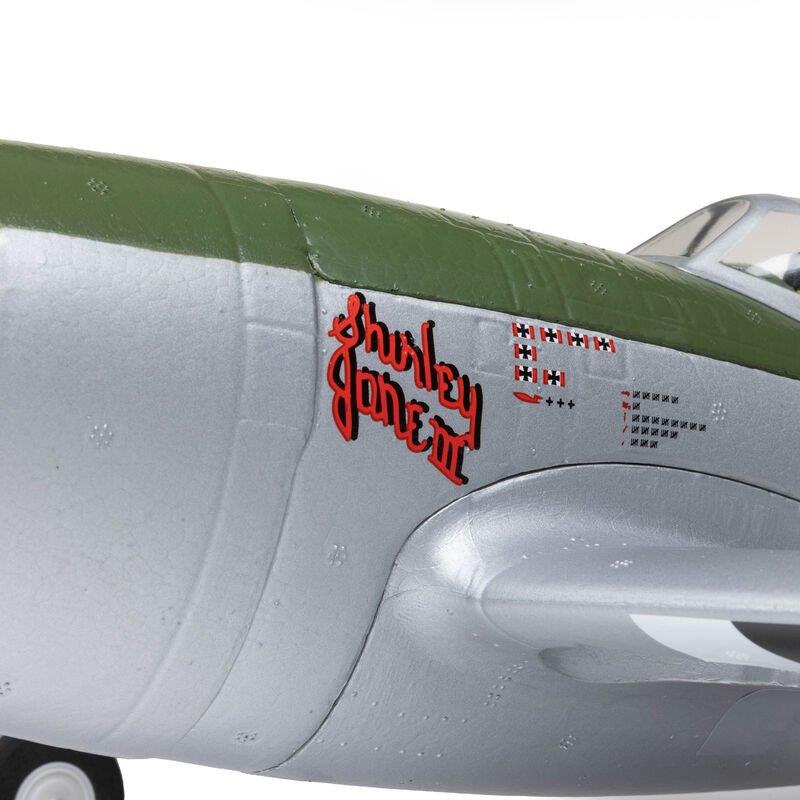

Built like a flying tank, the P-47 Thunderbolt packed the wallop of eight .50 caliber machine guns and could carry enough bombs plus rockets to wipe a ground target clean off the map. The E-flite® Micro P-47 Thunderbolt 625mm is slightly larger than UMX™ (Ultra Micro eXtreme) and other ultra-micro class models to better replicate the full-scale aircraft's design while including as many scale details as possible in the fully molded EPO airframe. It's still small and light enough to fly in large yards, small parks, sports fields, and beyond – yet it also features incredible surface details, including molded-in panel lines, machine guns, and more. Best of all, it's the first “full house” micro class warbird model to include functional retracts, flaps, and LED navigation lights! The high-power brushless outrunner motor can drive the 4-blade propeller with a 3S 600–850mAh battery for everything from smooth and scale-like flight to better-than-scale vertical performance and aggressive aerobatics. The factory-installed Spektrum™ receiver and Avian™ Smart Lite ESC deliver real-time telemetry data, including overall battery voltage, current, motor RPM, and more, to compatible AirWare-equipped transmitters – with Smart and non-Smart batteries. The receiver is also equipped with expertly tuned AS3X+® technology, giving you the smooth, locked-in feel of a larger model – even in some wind – along with optional-use SAFE® Select to make it even easier to fly. The Micro P-47 arrives factory-finished with a premium, fully-painted plus decal trim scheme and mostly factory-assembled with a separate one-piece wing that can be installed or removed quickly and easily with a single thumbscrew. It all comes together to deliver an authentic – yet affordable and convenient – warbird flying experience you can't get with any other P-47 model!

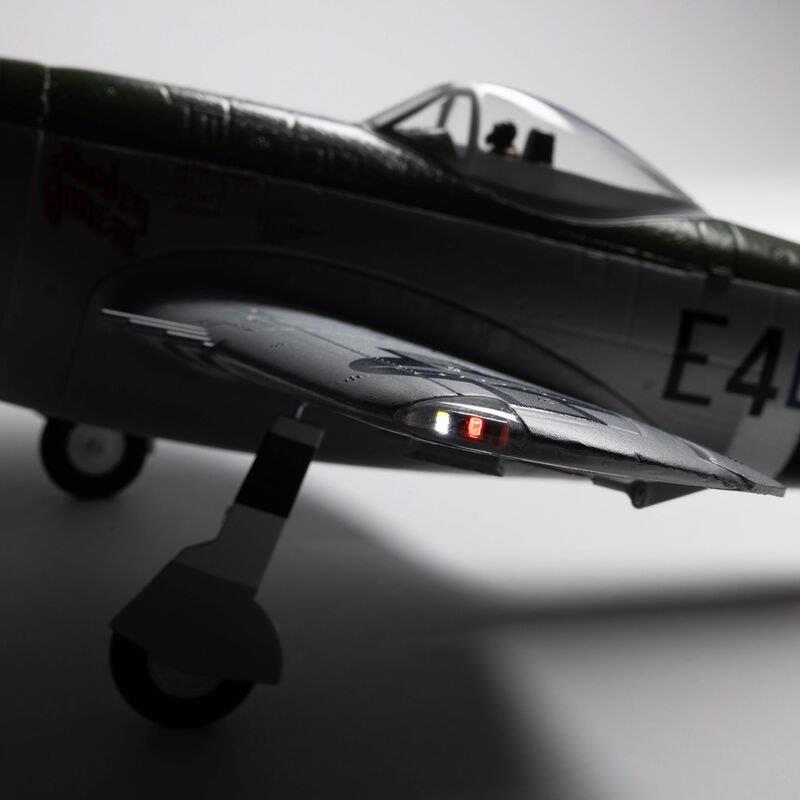

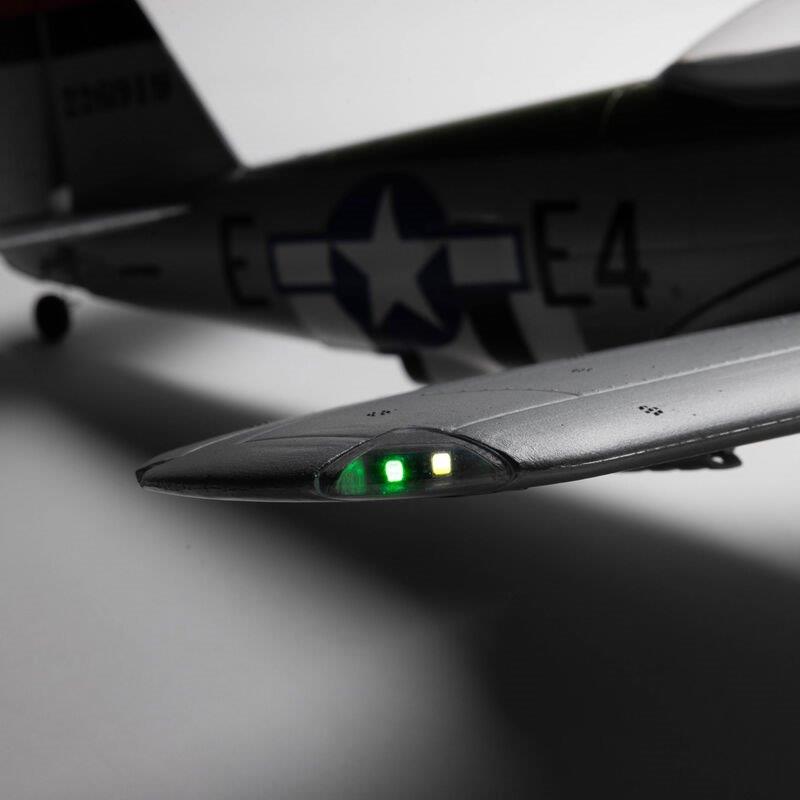

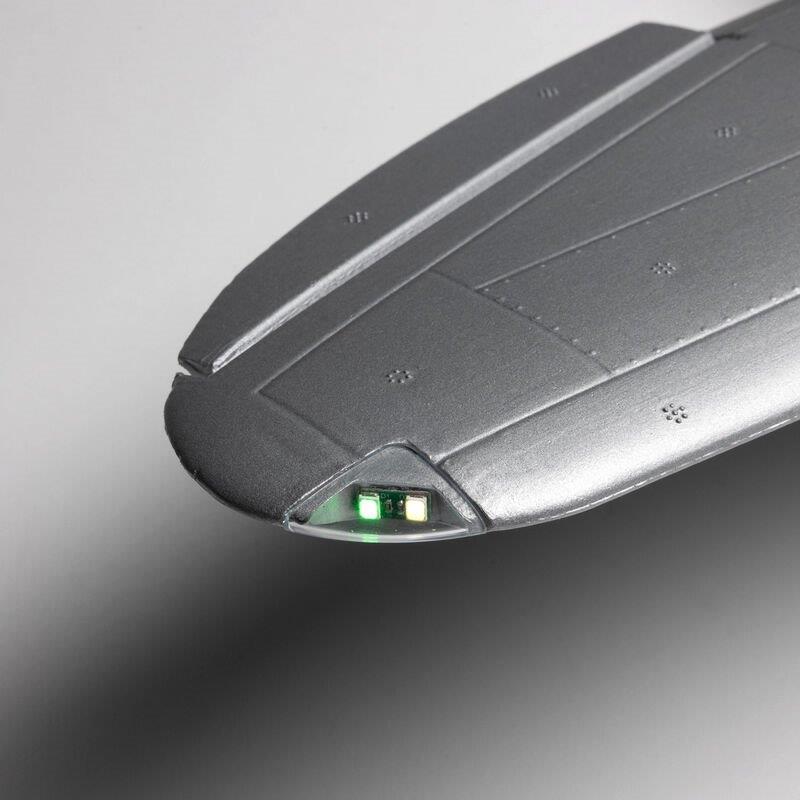

• The first micro class warbird model to include functional retracts, flaps, and LED navigation lights
• Designed to be one of the easiest to fly "full-house" P-47 models yet, capable of scale-like, sport, and aerobatic flying

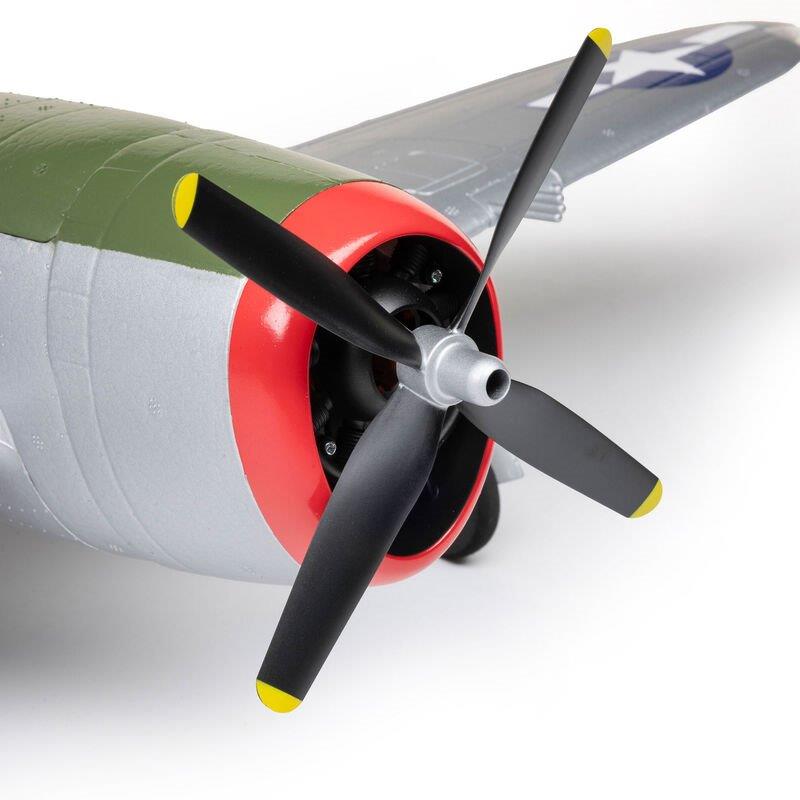

• Factory installed brushless outrunner motor and 4-blade propeller compatible with popular 3S 600– 850mAh batteries
• Spektrum receiver with fly-by range telemetry and industry-leading 2.4GHz DSMX technology
• Easier to fly with innovative and optional-use SAFE Select flight envelope protection

E-flite Micro P-47 Thunderbolt 625mm BNF Basic with AS3X+ and SAFE Select Features
• The first micro class warbird model to include functional retracts, flaps, and LED navigation lights
• A replica of the iconic WWII warbird used by the U.S. Army Air Corps as an escort fighter and fighter-bomber
• Designed to be one of the easiest to fly "full-house" P-47 models yet, capable of scale-like, sport, and aerobatic flying
• Factory installed brushless outrunner motor and 4-blade propeller compatible with popular 3S 600– 850mAh batteries
• 15-amp Spektrum Avian Smart Lite ESC provides real-time battery voltage, current, RPM and other data via compatible transmitters (with Smart and non-Smart batteries)
• Spektrum receiver with fly-by range telemetry and industry-leading 2.4GHz DSMX technology
• Receiver loaded with a Smart Transmitter Model File that allows you to import all settings for NX and iX series transmitters during the binding process
• Easier to fly with innovative and optional-use SAFE Select flight envelope protection
• The unmatched stability and locked-in feel of exclusive and enhanced AS3X+ technology
• Six factory-installed servos for aileron, elevator, rudder, and flap control

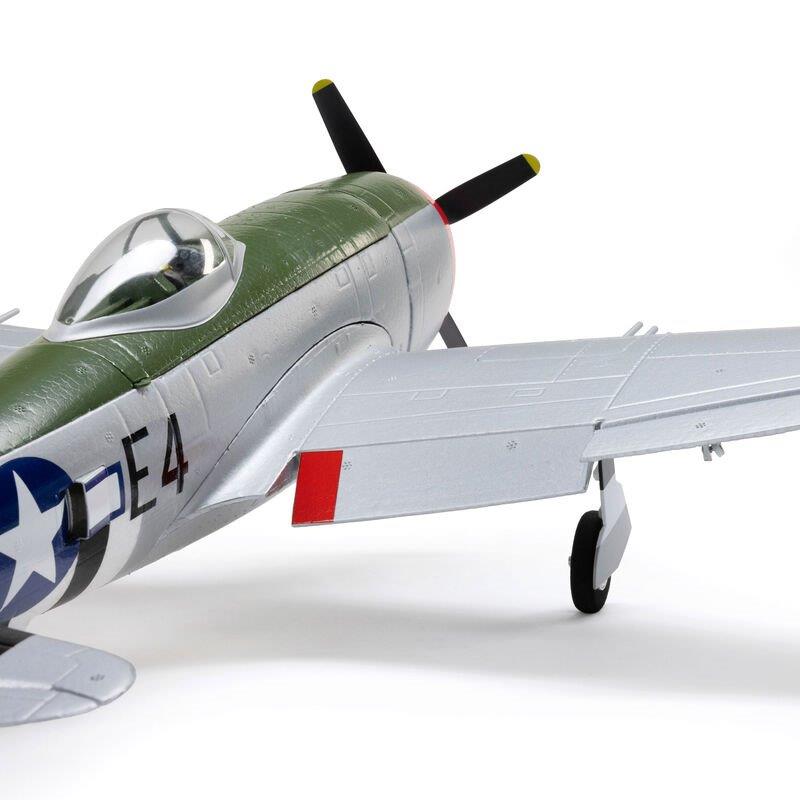

• Functional flaps for shorter takeoffs/landings and improved slow-speed performance
• Keep the landing gear retracted when flying over grass or other suitable surfaces

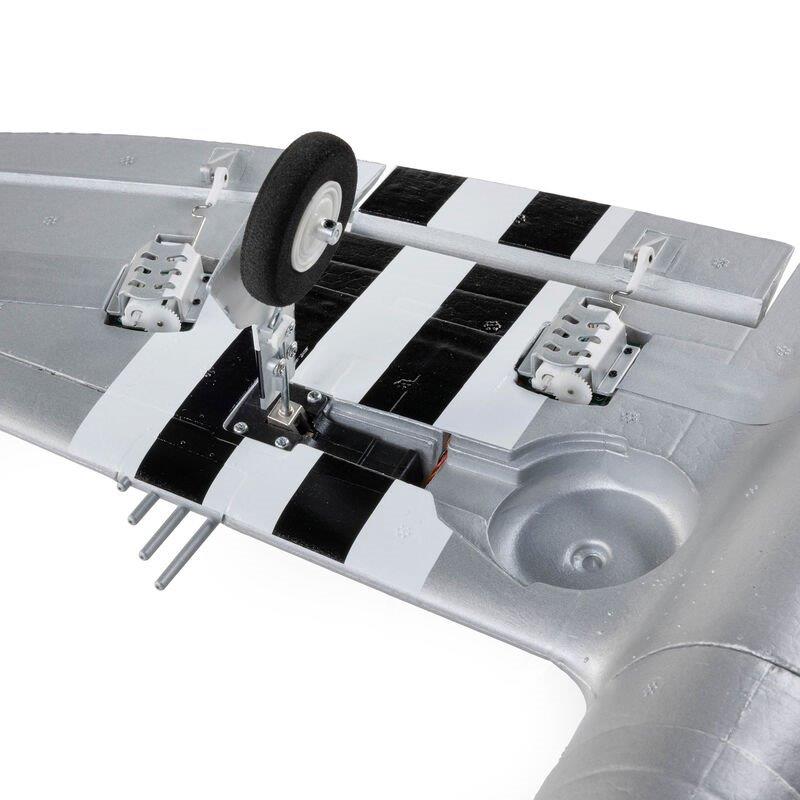

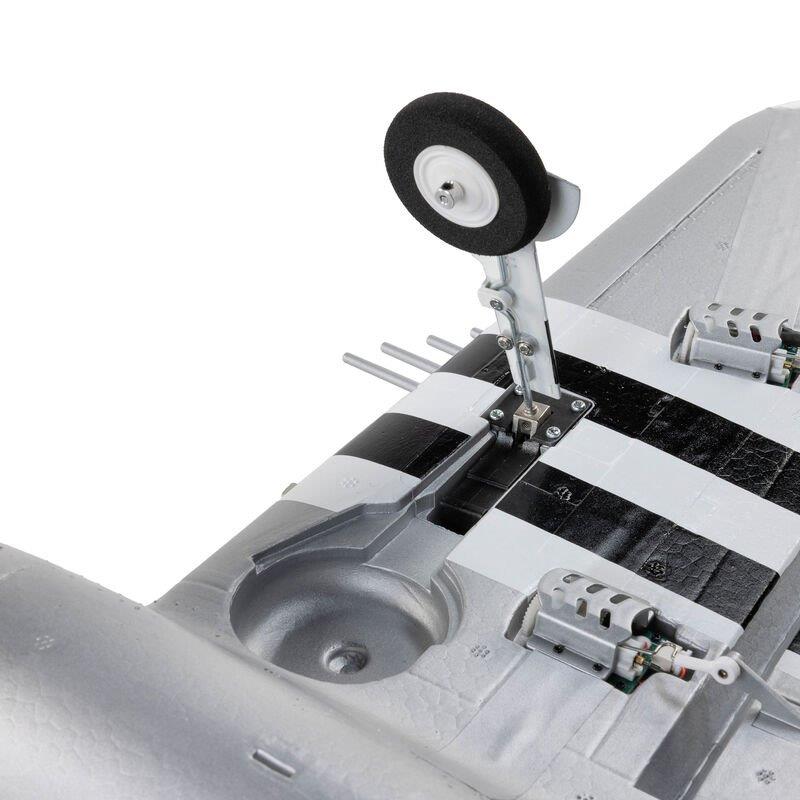

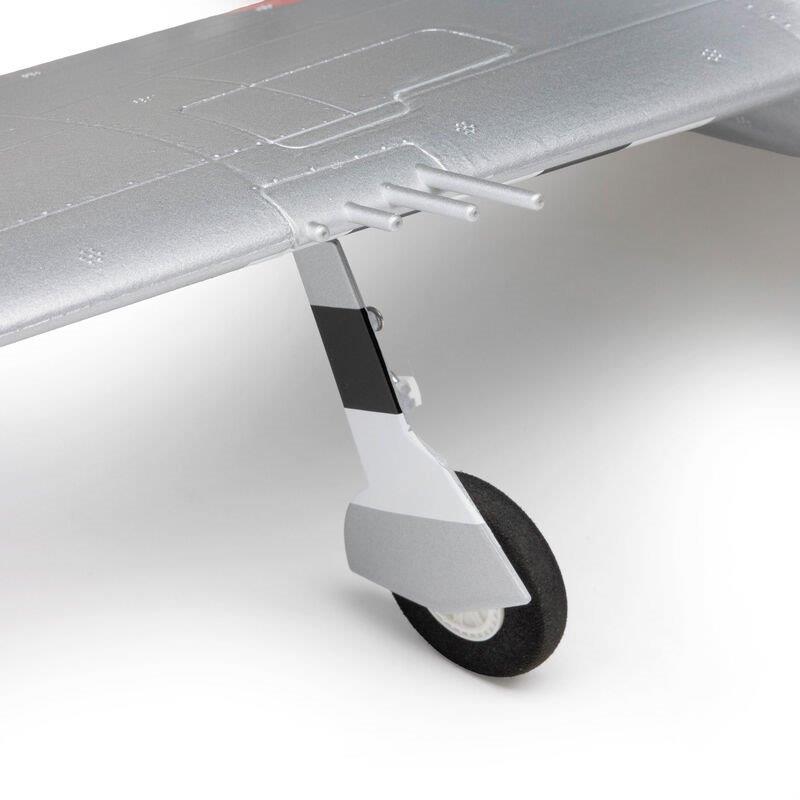

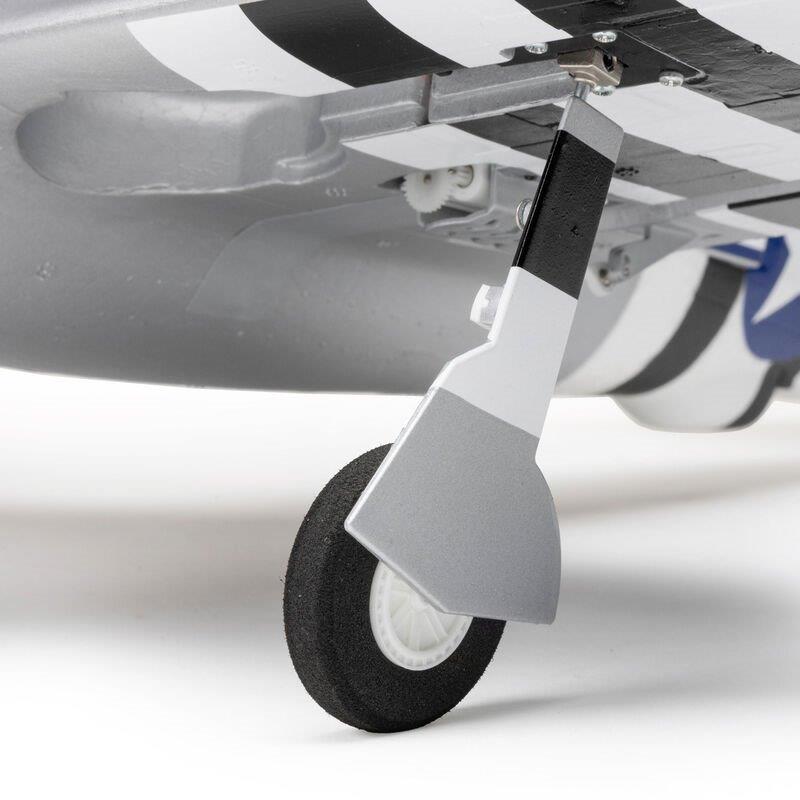

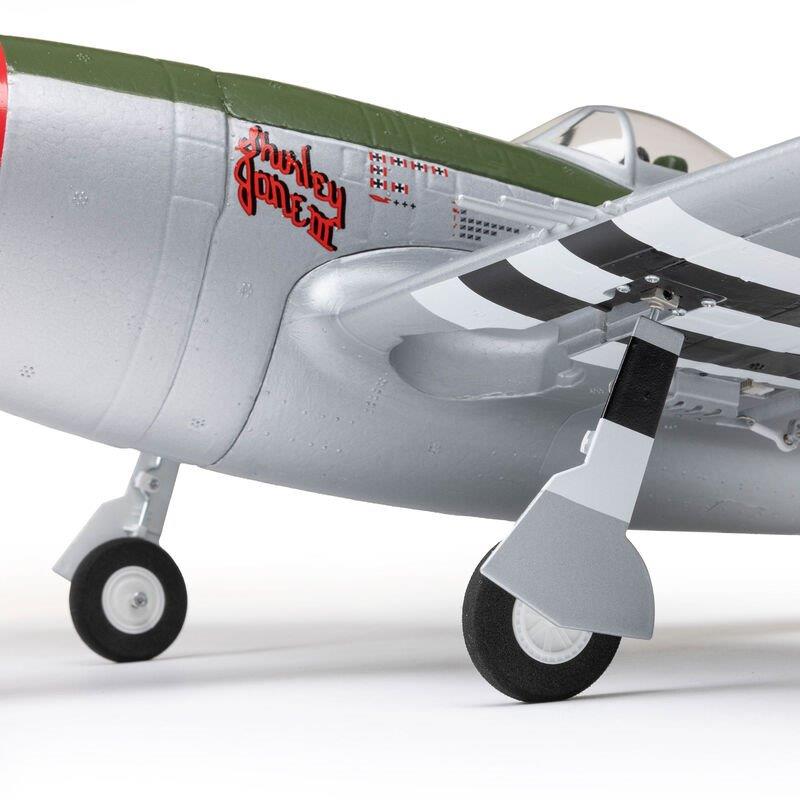

• Take off from and land on smooth surfaces using the retractable landing gear plus a steerable tail wheel
• Fully-molded strong yet lightweight EPO airframe with plastic and composite reinforcements throughout

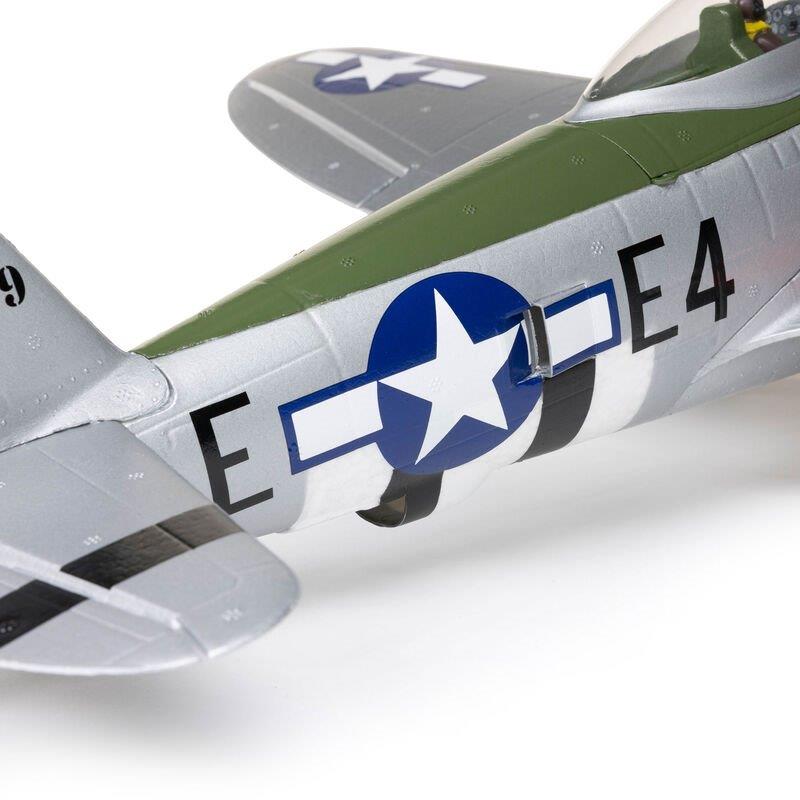

• Factory-finished in a fully painted with decal trim scheme and nearly ready to fly right out of the box
• Quick and easy to install/remove one-piece wing for even more convenient storage and transport

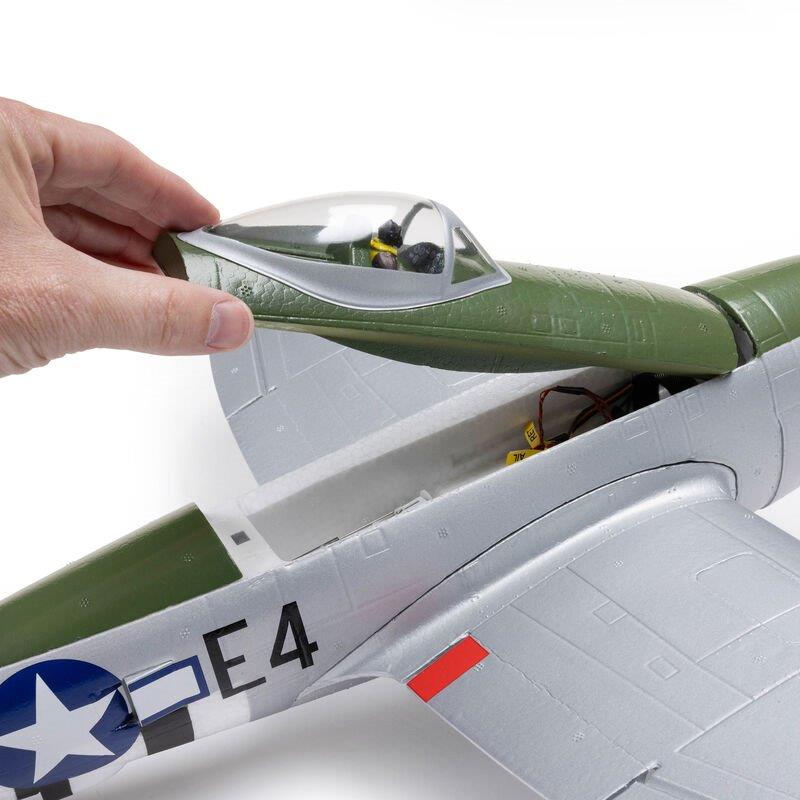

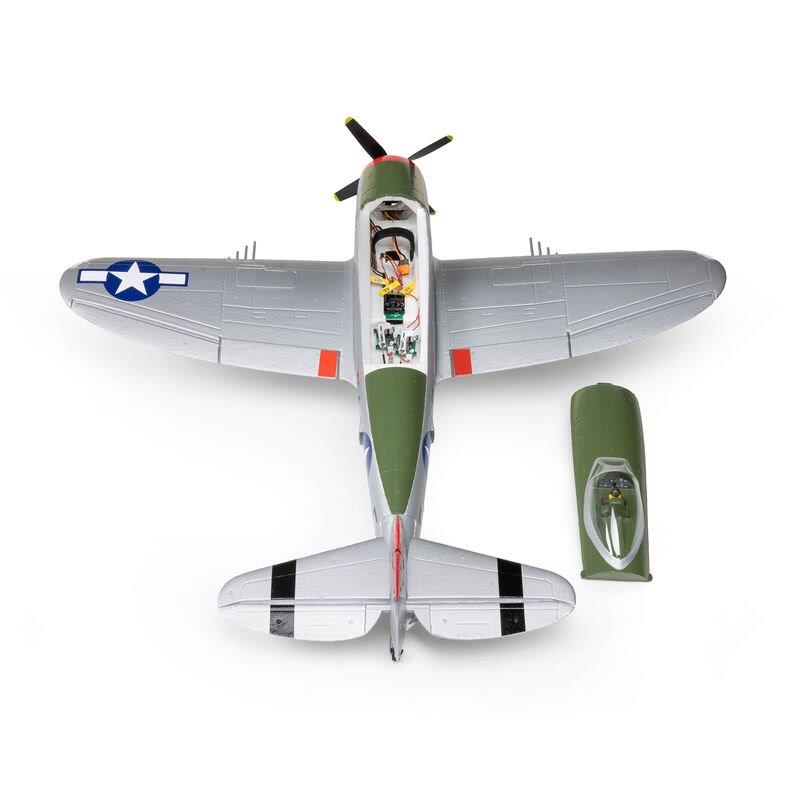

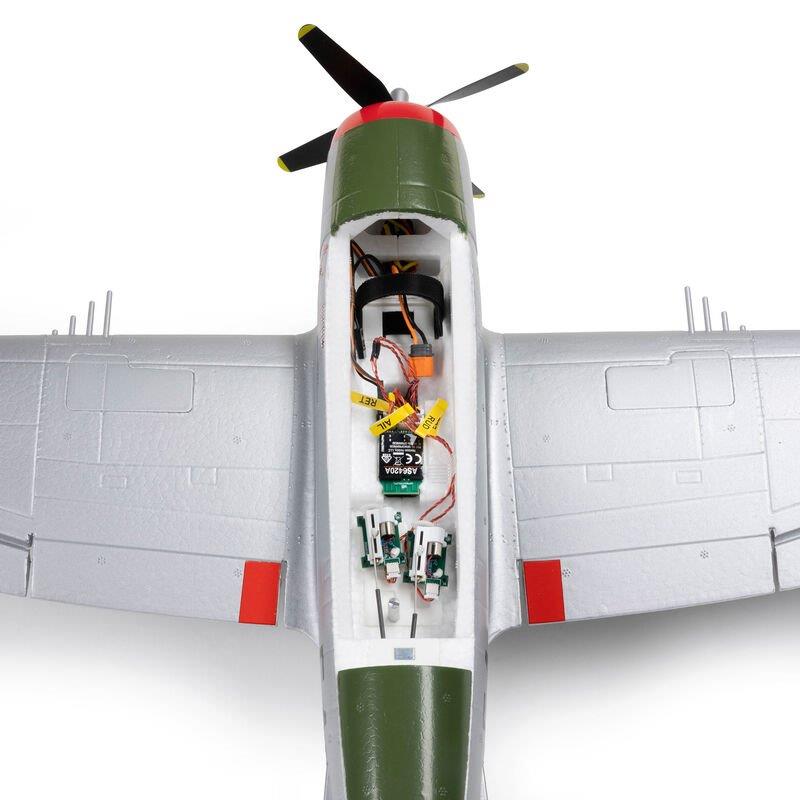

• Convenient top-mounted hatch fully conceals the flight battery compartment
• Micro-sized so it can be flown in more places and smaller spaces



Skill Level 3 – Intermediate Pilots
Skill Level 3 aircraft, like this one, are suitable for RC pilots who already have experience with “Next Step” and beyond aircraft, plus the skills to assemble, set up and fly similar class models. And although this is one of the easiest to fly P-47 models yet, it's not a suitable first-ever RC aircraft for new pilots. You should have the experience and skills necessary to successfully fly UMX and other warbird models including the E-flite P-51D Mustang 1.0m, T-28 Trojan 1.1m, or the 1.2m and larger models before attempting to fly the Micro P-47 Thunderbolt.



E-flite Micro P-47 Thunderbolt 625mm BNF Basic with AS3X+ and SAFE Select Product Specs:

Approximate Assembly Time: Less than 5 minutes
Battery: Sold Separately
CG (Center of Gravity): 40mm +/- 3mm back from the leading edge
Charger: Sold Separately
Completion Level: Bind-N-Fly Basic
Connector Type: IC2
Flaps: Yes
Lighting: Nav Lights
Material: EPO
Minimum Required Radio: Full-range 6–7+ channel
Minimum Speed Control: Avian® 15A Smart Lite Brushless ESC
Motor Size: 2405-1300Kv
Motor Type: Brushless
Power Type: Electric

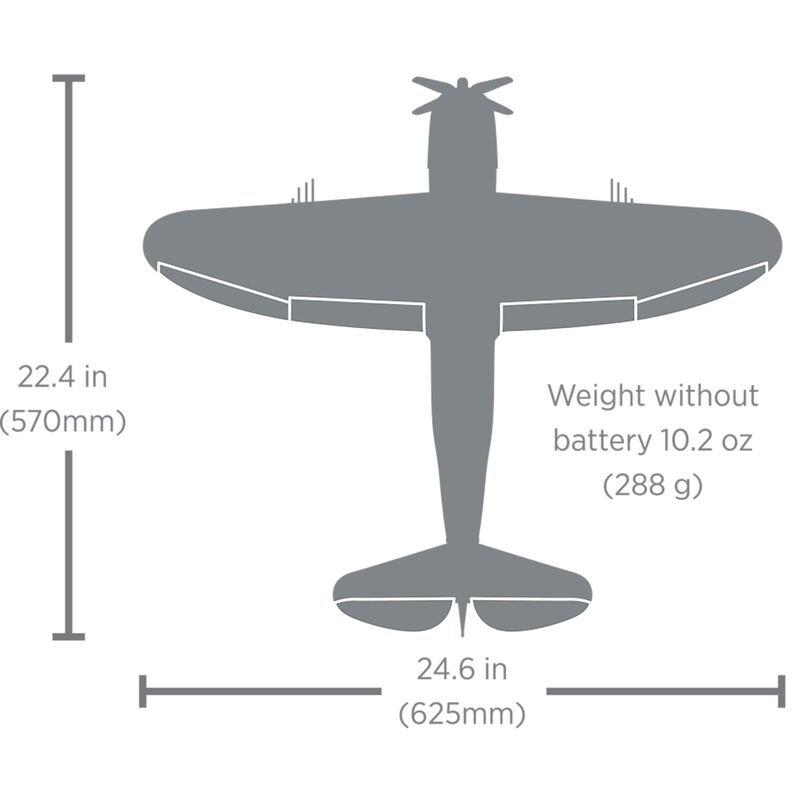

Product Length: 22.4" (569 mm)
Product Weight: Without Battery: 10.2 oz. (288g) / With Recommended 3S 600 – 850mAh battery: 12.8 oz. (363g)
Radio: Sold Separately
Receiver: Included
Recommended Motor Battery: 3S 600– 850mAh battery
Retracts: Included
Servos: Included
Skill Level: Level 3
Speed Control: Included
Technology: AS3X+, SAFE, Smart, Smart Transmitter File
Wingspan: 24.6" (625 mm)

You can find the instruction manual here
