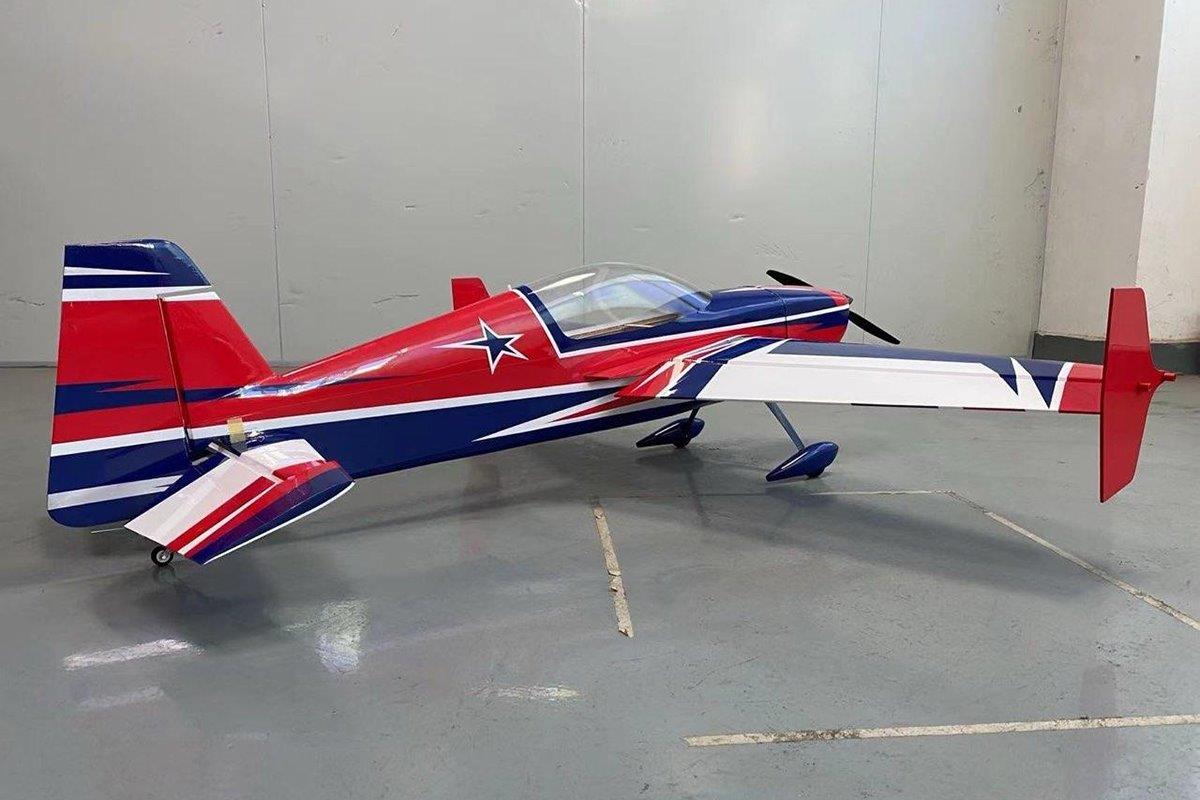

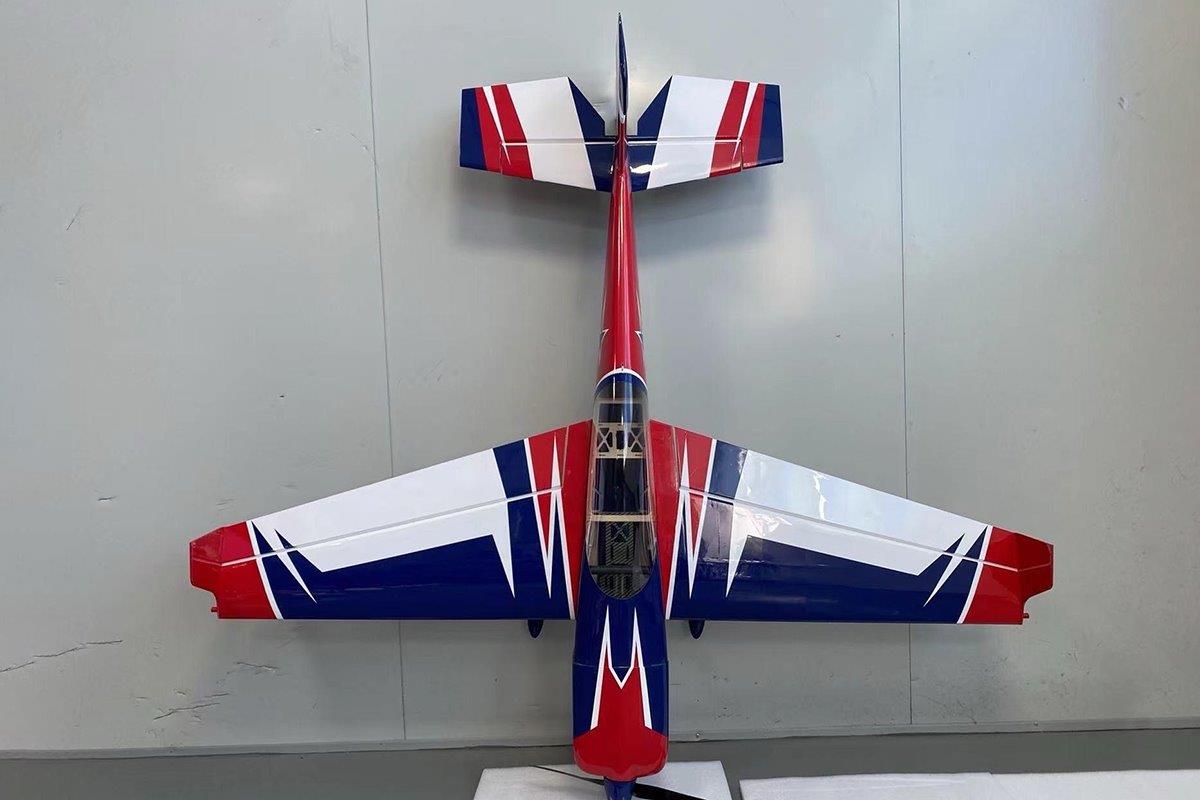

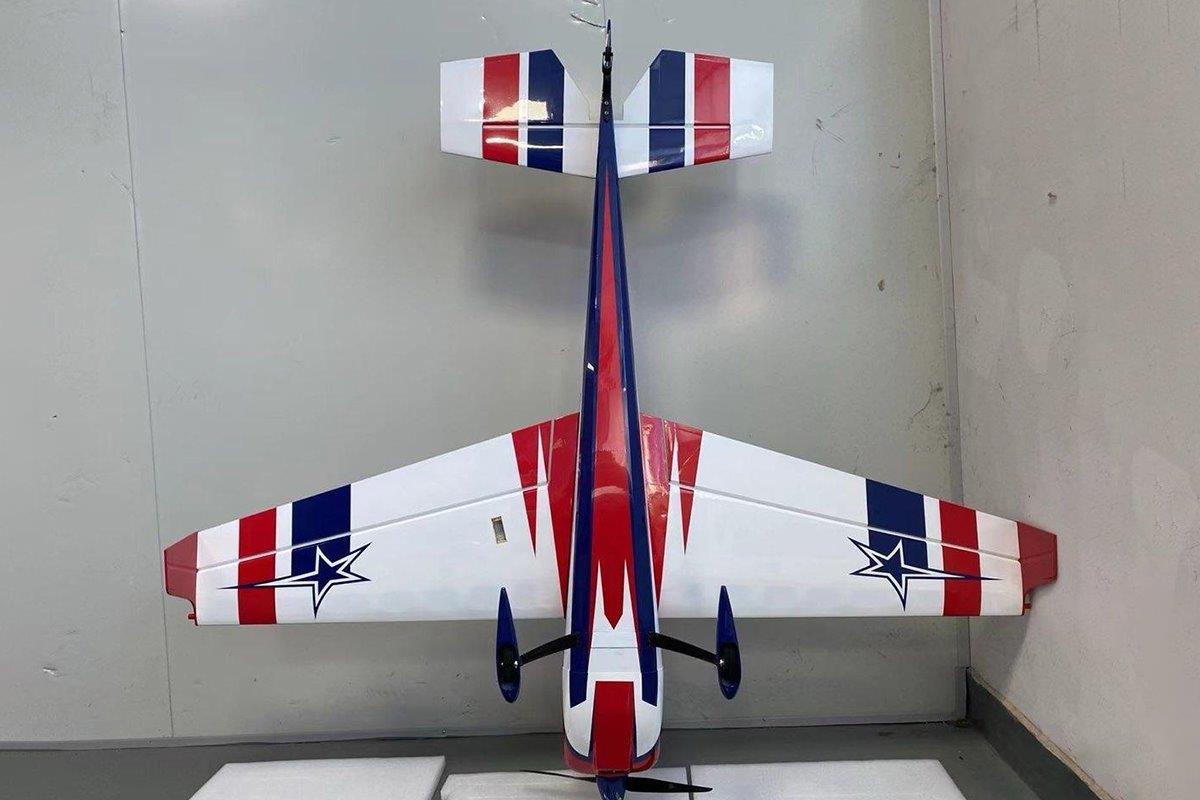

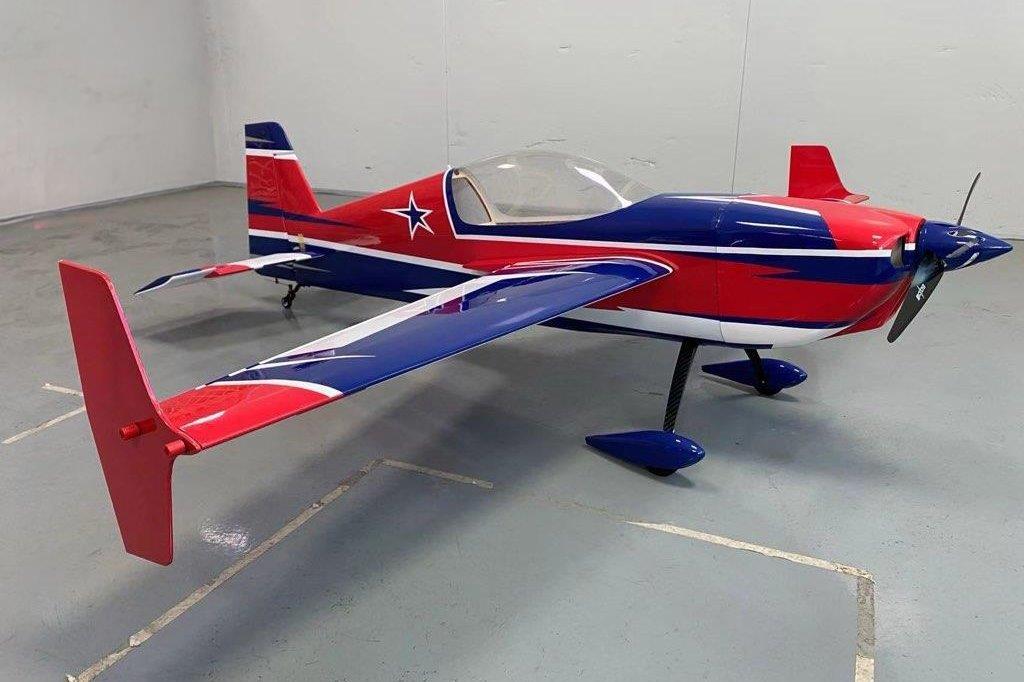

AJ Aircraft 73inch Raven DT ARF - blue 1,85m
8 869 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: AJ0017RB
ARTF semiscale kit of 3D aerobatic aeroplane (1,854 mm wingspan) for 35-40ccm petrol engine or at least 2500W brushless motor with 8-12S LiPo. Extremely light, Kevlar®/carbon composite reinforced balsa/plywood airframe, lots of carbon parts.
A semi scale model of the aerobatic aeroplane for 30-40ccm petrol engine or 2.5-3.5 kW brushless electric motor for experienced pilots capable of the classic pattern as well as extreme 3D style.
The fuselage is of - now classic - ultra light design featuring balsa and plywood Kevlar®/carbon composite reinforced parts, detachable fibreglass cowl and large fuselage/canopy hatch allowing perfect access to the entire power system and RC gear. The engine or motor is to be fitted to a plywood/composite reinforced box using a radial mount.

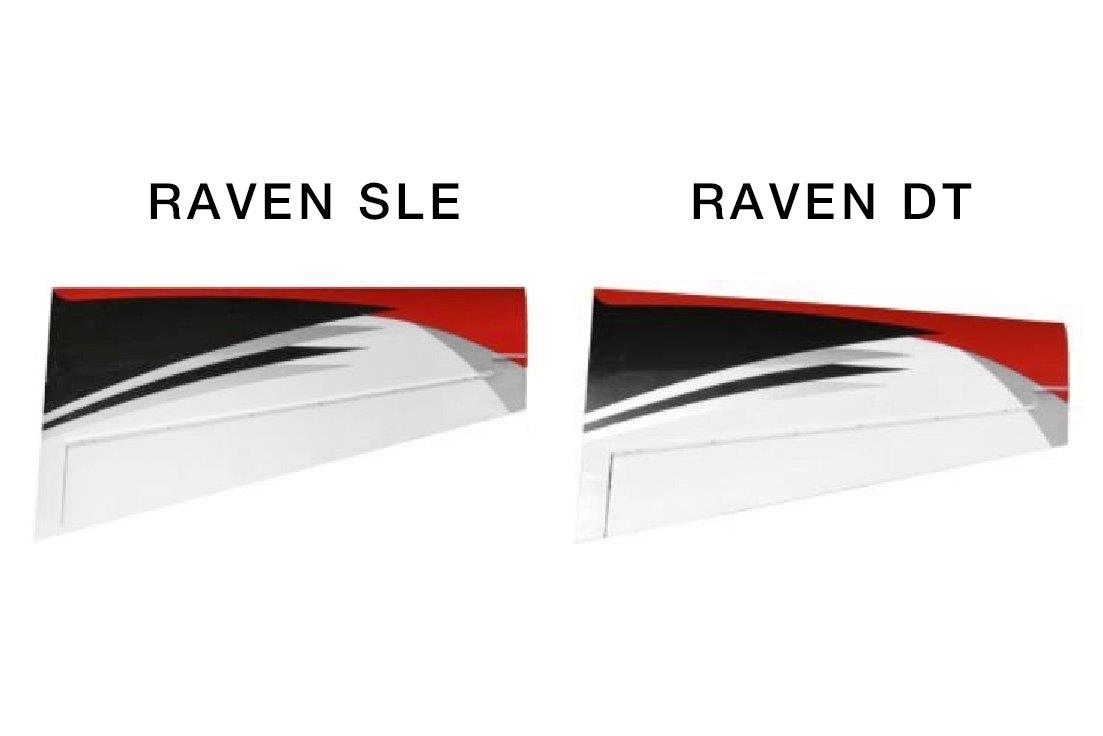

The double taper (DT) two-piece all-balsa wing with a symmetrical airfoil uses a carbon tube joiner; the wing halves are secured with screws to the fuselage. The large ailerons are controlled by a single servo each. You can install the supplied SFG winglets to the wing tips.
The empennage is a light all-balsa work; the horizontal tailplane is a single-piece, glued into the fuselage. The elevator halves are controlled by 2 servos installed in the tail part of the fuselage. The rudder is be controlled either by a servo installed in the cockpit with a closed-loop linkage.
The entire model is covered by the ULTRACOTE® iron-on film (ULTRACOTE® is the trade mark for the ORACOVER® film used in the USA.)
The main undercarriage features carbon composite legs, fibreglass spats and lightweight wheels; the tail wheel with a carbon bracket is coupled with the rudder.
Power: You will need a reliable 30-40 ccm petrol engine or at least 2.5 kW brushless electric motor, at least 100 A ESC and 40C 8-12S LiPo pack (8S: 4400-5000 mAh, 12S: 3300 mAh).
RC: You will need at least 6-channel RC set to control your Raven DT - the precise set-up of servos, optimized dual and exponential rates is the must for aerobatic flying - the pattern as well as extreme 3D.
Servos: You will need 4-5 fast and strong standard size digital servos, like KAVAN GO-1070MG, GO-1081MG, MKS HV777+, Hitec HS-7955TG, D954SW.
The ARTF kit contents: Oracover® covered fuselage, wing and tailplane, painted fibreglass cowl, carbon undercarriage, tail wheel assembly, wheels, set of accessories and instruction manual.
Wingspan [mm]: 1854
Length [mm]: 1740
Wing surface [dm2]: 66.3
Weight [g]: 4750
Controlled functions: S,V(2),K(2),M
Build difficulty: S2
Operating difficulty: P4
