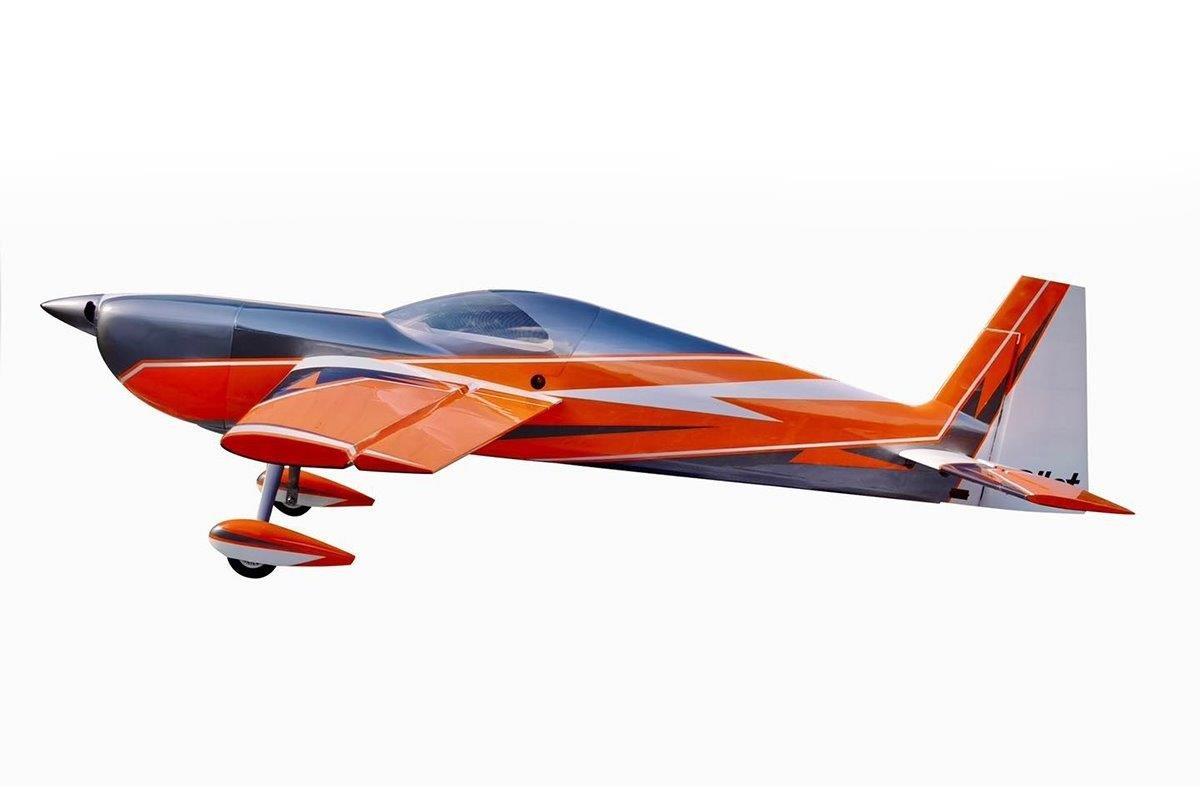

Pilot RC Laser V3 2610mm 120cc Orange-Gray 103tum
18 361,25 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 4ST23103L08
Time for a change! Pilot-RC has broken all the molds with this one.
The Laser has been fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.
You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!
in 2023 we proud to present NEW LASER V3 103
Pilot-RC are non-stop development, get feedback and listen from everyone both high level pilot and normal level pilot, for balance characteristic of performance on this airframe, we upgrade everything even a better aerodynamic shape of the plane and a new canopy look for a more modern shape. As I said it is V3 and it has a new wing design to roll smoother and more precise while still agile. Weve also upgraded the structure to be lighter and improved the quick release wing,canopy,and stabilizer to be more convenient and reliable.
SPECIFICATIONS:
Model: Laser 35%
Wingspan: 101.8″ (2.587mm)
Length: 99″ (2.514mm) with 5″ spinner
Wing area: 1,771 ² (11,430 cm²)
Weight: 26.35lbs (11.75kg)
GALLERY:

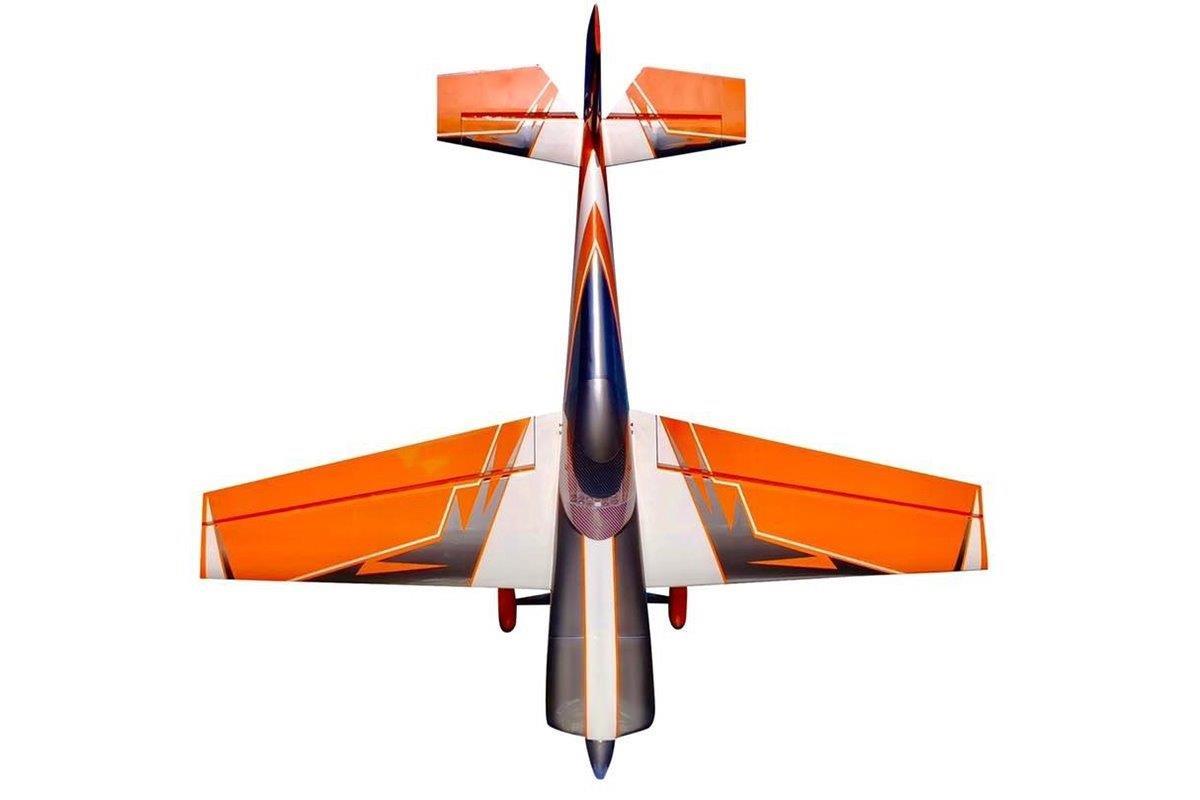

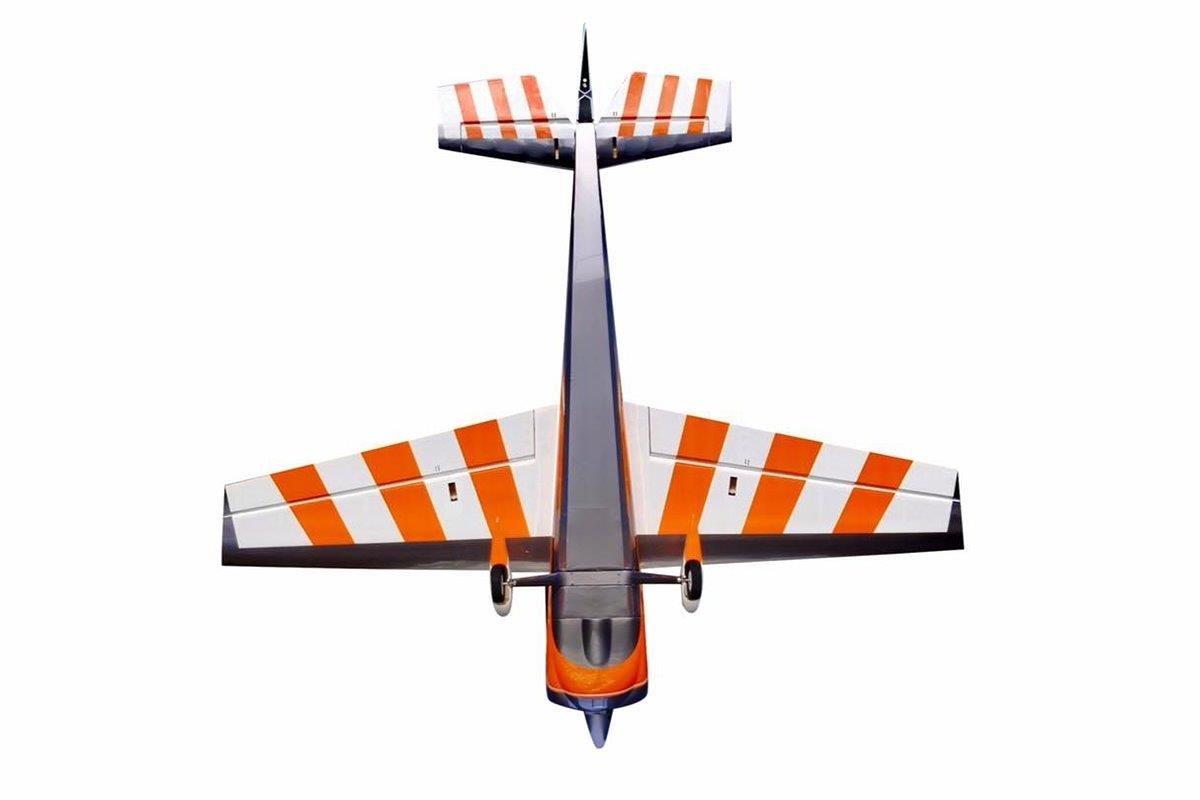

Current version of laser 103″ V3
New Laser V3, what has changed from V2 ?
1. New Wing design improved Aileron for more precise and less drag in tip wing
2. Updated Fuselage about alignment and Canopy for smoother aerodynamics.
3. Additional Carbon plate on quick release Canopy for a nicer look and fixed the loss covering problem
4. We changed the Landing gear to be 2 piece and hid the landing gear to look nicer and fixed the problem
about loss covering. now the problem about loss covering will not happen anymore.
5.New System quick release stabilizer
6. Added some detail on the Cowl and changed the spinner from 4.5 to 5
7. Improved the structure to be stronger and lighter.
8. Changed the Cowling from cover fuselage to be pasted on firewall
9. Added Carbon plate for the cooling Canister in the bottom of the fuselage.
** The whole LASER V3 design is not based off of the scale Laser 200
Only the cowl is based off of Laser 230.
The whole design is based off of our pilot Laser V2
Just edited the curve of the canopy for less drag and
we designed this rc plane for high performance 3D characteristics.
FEATURES:
NEW! Full Carbon reinforced fuselage and wing using carbon laminated wood.
Genuine German Oracover (Ultracote) covering
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Internally mounted cowling so no external screws exposed
Includes cooling baffles
Easy canister installation due to open construction
Removable rudder (as well as removable wings and stabs)
Laser engraved motor mounting position
Push-Pull system for Rudder servos
________________________________________
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Matching carbon spinner, 5″
________________________________________
CRASH KITS AVAILABLE FOR THIS MODEL:
Landing gear repair package. Includes the wooden parts required to repair the damage often suffered around the landing gear area.
Front fuselage repair package. Includes the wooden parts required to repair the damage often suffered around the front of the model
Please note that additional or alternative spare wood outside of the above Packs is not available to order.
REQUIRED HARDWARE:
Motor: 100-130cc or equivalent electric
Servos: 7-8 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per elevator and x1 or x2 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
________________________________________
PILOT-RC RECOMMENDED HARDWARE:
Servos: Pilot-Rc PW48AH (48Kg 0,10s at 8,4v)
Servo arms: Pilot-Rc 1,6″ Aluminium arms (included with Pilot-Rc servos)
Wingbags: Pilot-RC wingbags
