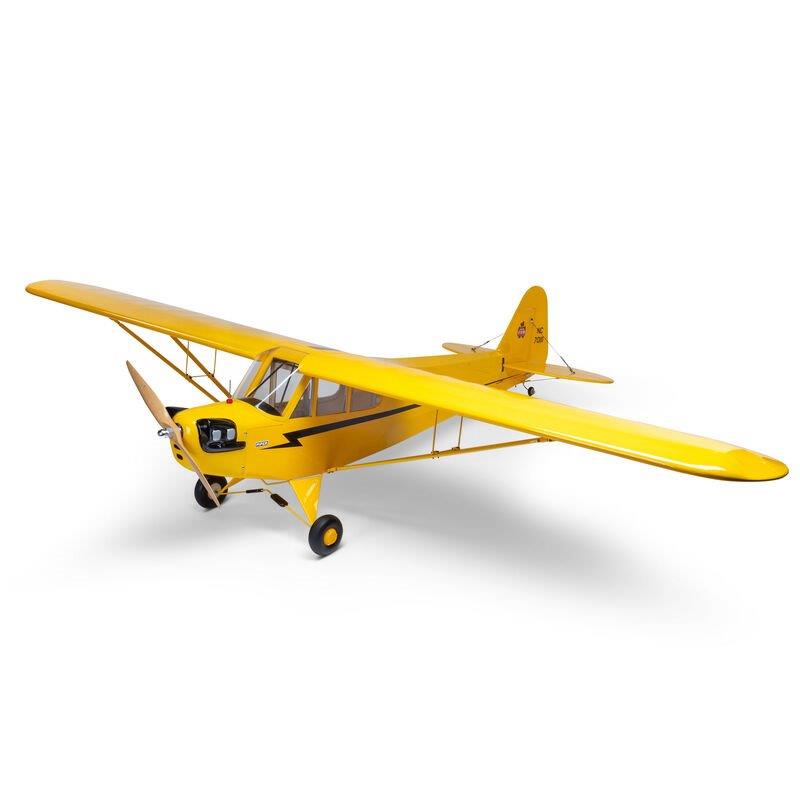

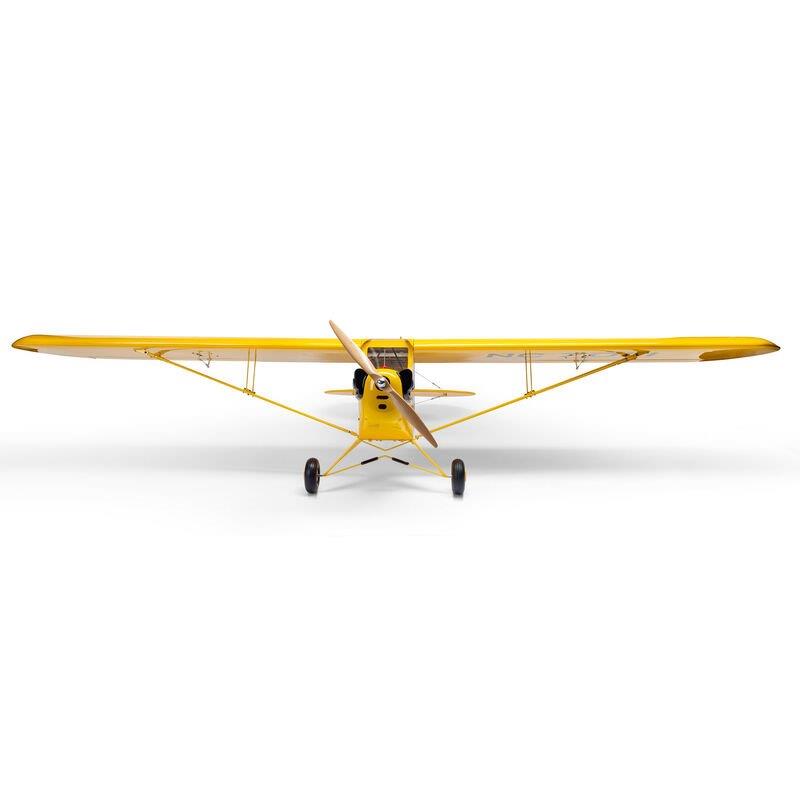

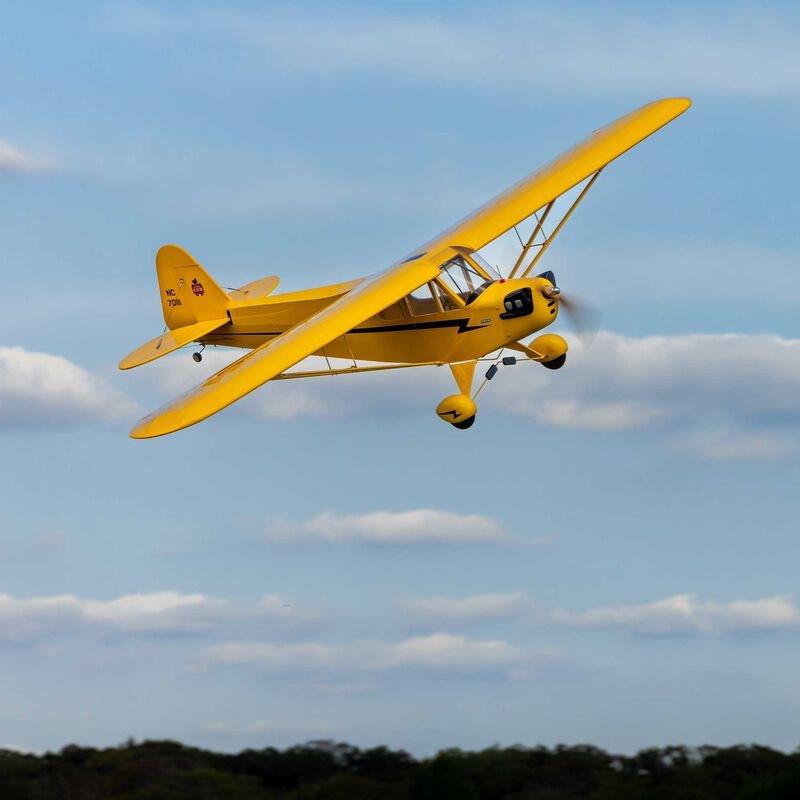

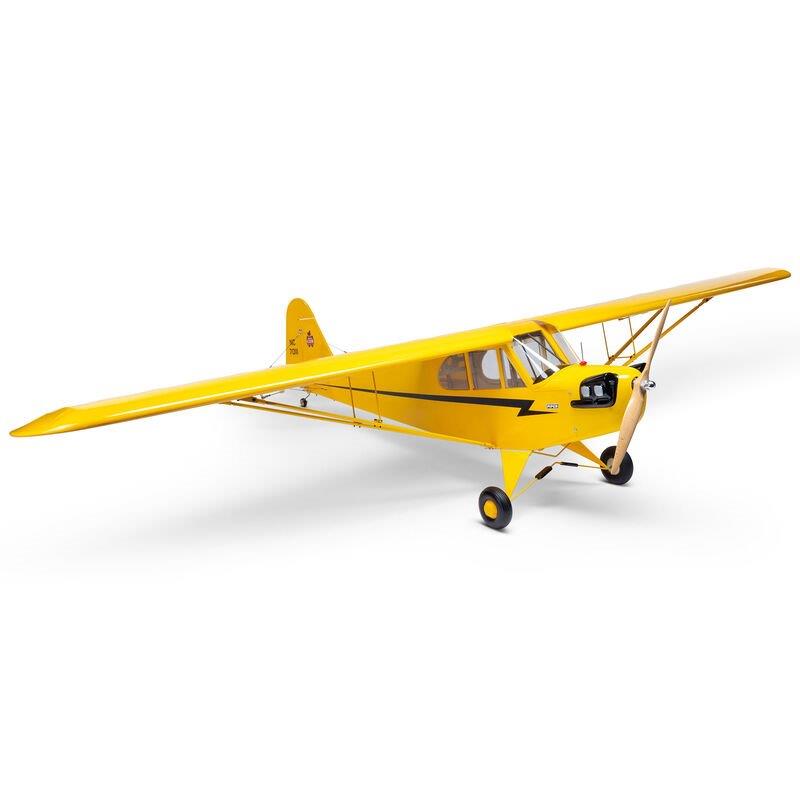

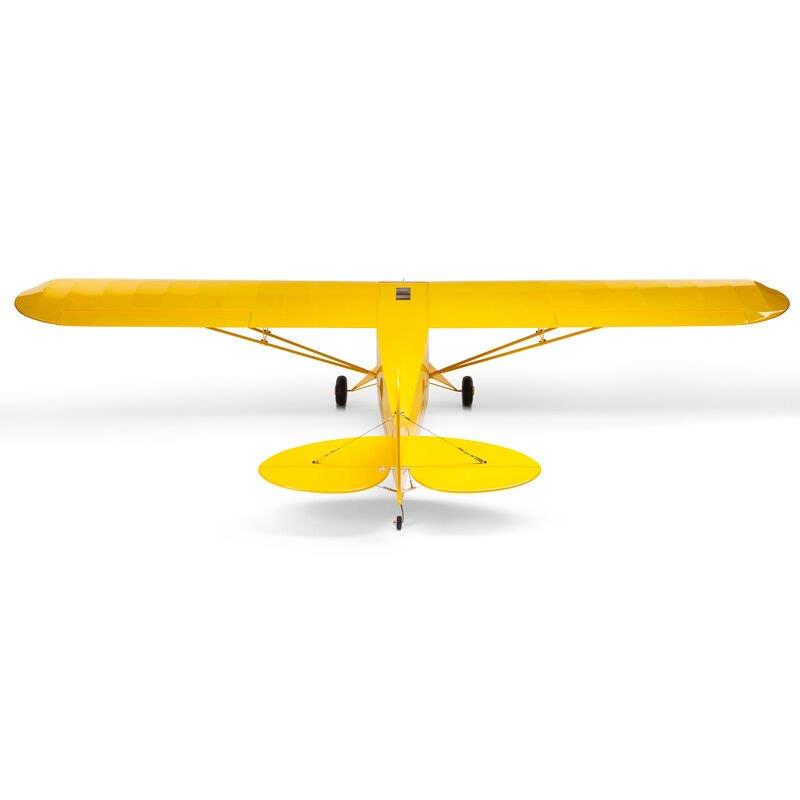

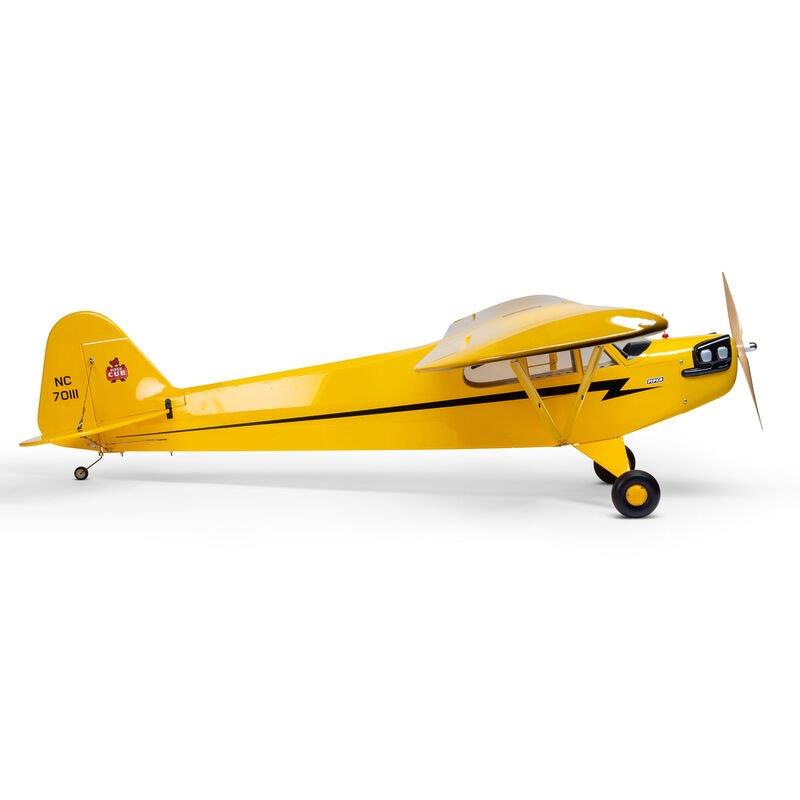

Hangar 9 J-3 Cub 10cc EP PNP, 2096mm (82.5tum)
8 995 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HAN5175
Product Details
The Hangar 9® J-3 Cub 10cc offers a classic and convenient giant-scale flying experience. It features the benefits of lightweight and rigid built-up wood construction thats available in both ARF and PNP versions.
Key Features
Giant-scale 82.5 (2.1m) replica with strong and stiff yet lightweight and long-lasting built-up wood construction finished with genuine UltraCote film covering
Spektrum Avian 4260-480Kv brushless motor compatible with 4S to 6S batteries without the need for modifications
70-amp Spektrum Avian Smart Lite ESC provides real-time battery voltage, current and other data via compatible receivers and transmitters
Four durable, factory-installed metal-geared and digital Spektrum A6380 servos
Fast and easy bolt-together assembly no glue or special tools required
In The Box
(1) Hangar 9 J-3 Cub 10cc EP PNP with:
(4) Spektrum A6380 Digital, Metal-Geared Aircraft Servos (installed)
(1) Spektrum Avian 4260-480Kv Brushless Outrunner Motor (installed)
(1) Spektrum Avian 70-Amp Brushless Smart Lite ESC (installed)
(1) Product Manual
Needed to Complete
(1) Full-range 4+ channel transmitter and receiver
(1) 4S 14.8V to 6S 22.2V 32005000mAh LiPo with EC5 or IC5 Connector
(1) Compatible LiPo charger
Hangar 9 J-3 Cub 10cc PNP Introduction
With nearly 20,000 produced between 1938 and 1947, plus more than 5,000 still registered and flying today, the J-3 Cub remains one of the most influential and popular aircraft ever produced by Piper. It was originally designed to be a lightweight trainer that also led to clipped wing, Super, and Carbon Cub variants. The Hangar 9® J-3 Cub 10cc is a 1/5th scale replica of the original that offers a classic look and flying experience you can't get with other more modern Cub models. It features the advantages of lightweight, stiff, and strong wood construction that's covered with genuine UltraCote® film. Plus, it's available in an ARF version that allows you to install the glow, gas, or electric power system and electronics you prefer, or in a time and money-saving PNP version that's equipped with four factory-installed servos, a 4S to 6S compatible Spektrum Avian motor and a Smart ESC.
Hangar 9 J-3 Cub 10cc PNP Overview
The Hangar 9® J-3 Cub 10cc is an 82.5 (2.1m) span giant-scale replica of the aviation icon. It's designed to deliver the original's classic look and flying experience with modern-day features and conveniences, including a 2-piece wing and slots to hold the wing tube in the fuselage during storage and transport. The ARF version arrives mostly factory assembled and allows you to install a .62 4-stroke glow, 11cc 4-stroke gas, and other similar class engines or an equivalent electric power system and the electronics you prefer. The PNP version doesn't require any glue for assembly. It is equipped with four factory-installed digital and metal-geared Spektrum A6380 servos, a 4S to 6S compatible Avian 4260-480Kv outrunner motor, and a 70-amp Smart Lite ESC that can provide a variety of power system-related telemetry data with Smart and non-Smart batteries via compatible receivers and Spektrum AirWare equipped transmitters.
Both versions include scale-like landing gear with standard wheels and Cub hubcaps. You also have the option to install wheel pants or floats using the custom float strut set (all sold separately). The balsa and lite-ply airframe arrives factory-finished with genuine UltraCote® film covering and features a variety of scale details, including clear windows, wing struts, tall bracing wires, and more. And it all combines to deliver a classic Cub experience that's perfect for a wide range of intermediate to experienced pilots!
Hangar 9 J-3 Cub 10cc PNP Features
Popular and common 32005000mAh batteries deliver a wide range of performance and flight times
Two-piece wing with slots in the fuselage to hold the wing tube for more convenient storage and transport

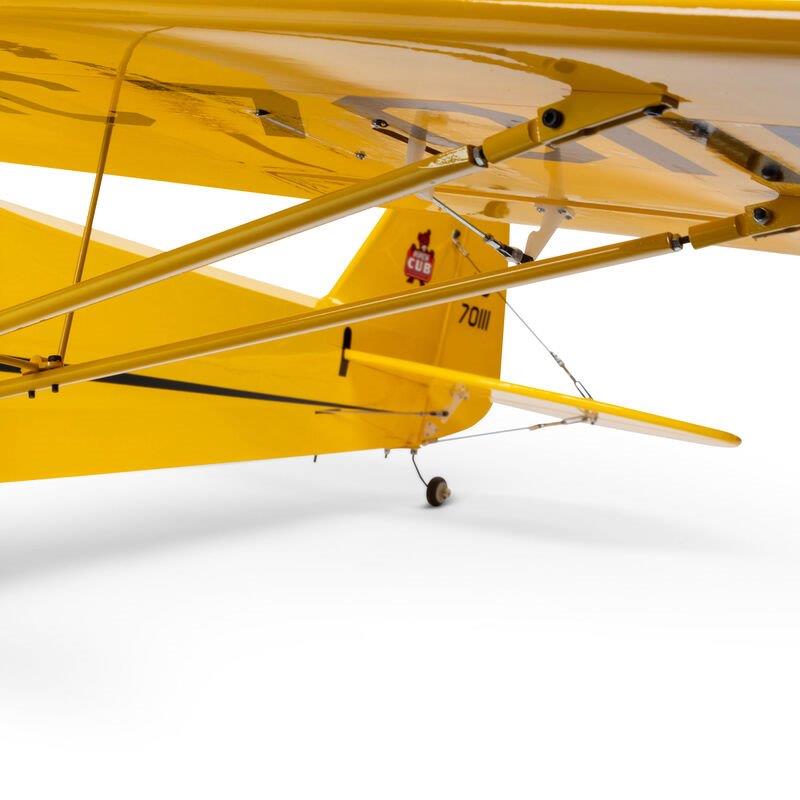

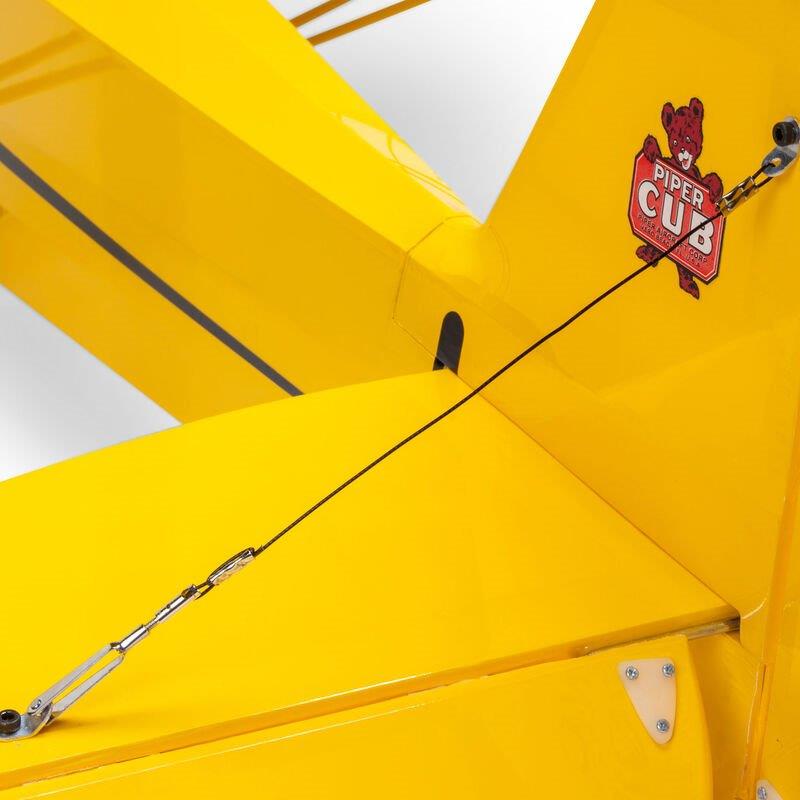

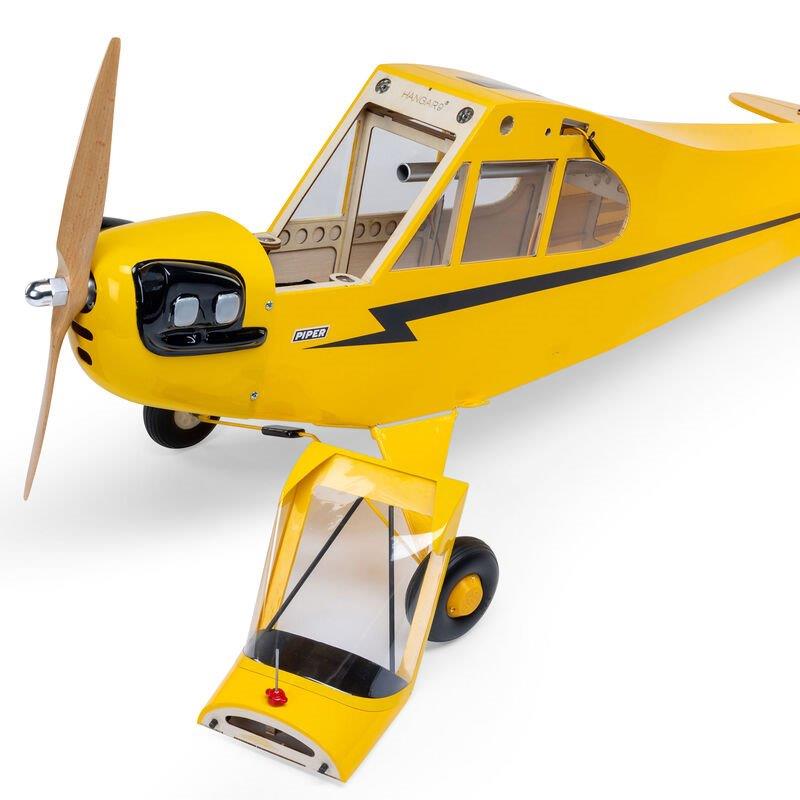

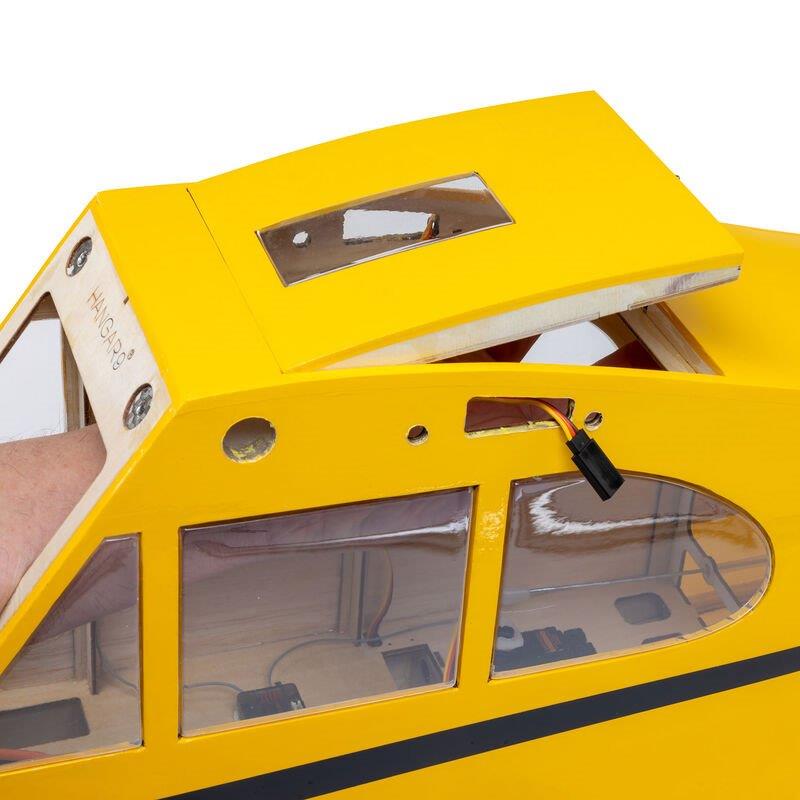

Transparent windows, seats, a pilot bust, wing struts, tail bracing wires and other scale details

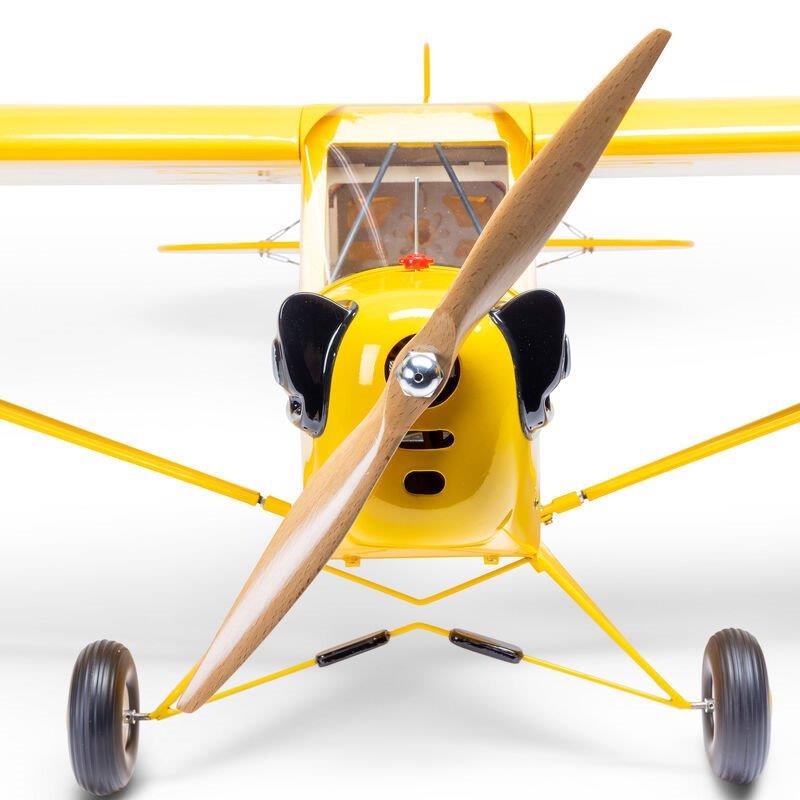

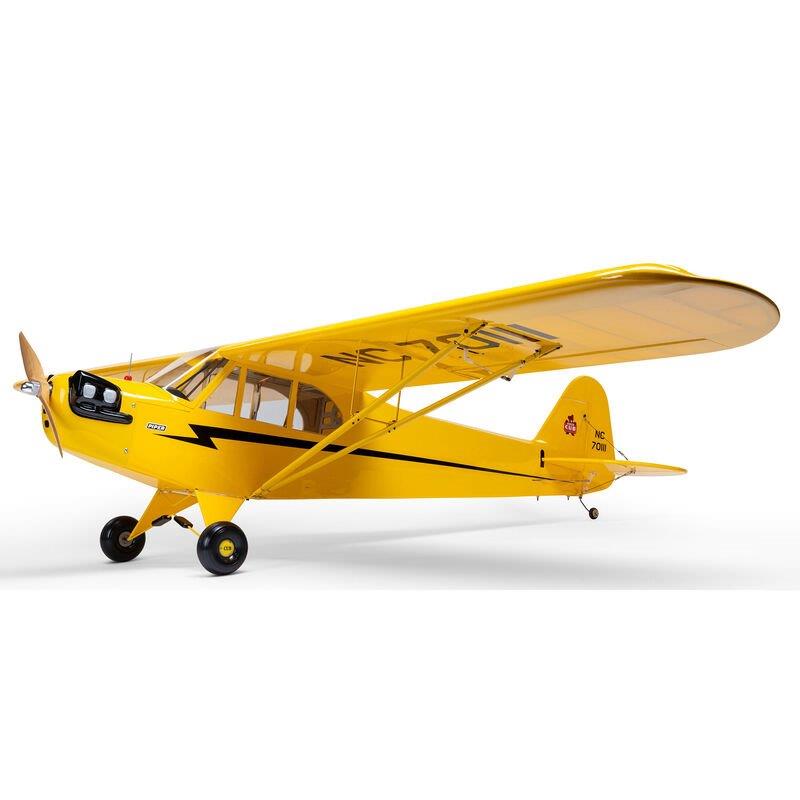

Scale-like landing gear with standard wheels and Cub hubcaps plus optional wheels pants (sold separately)

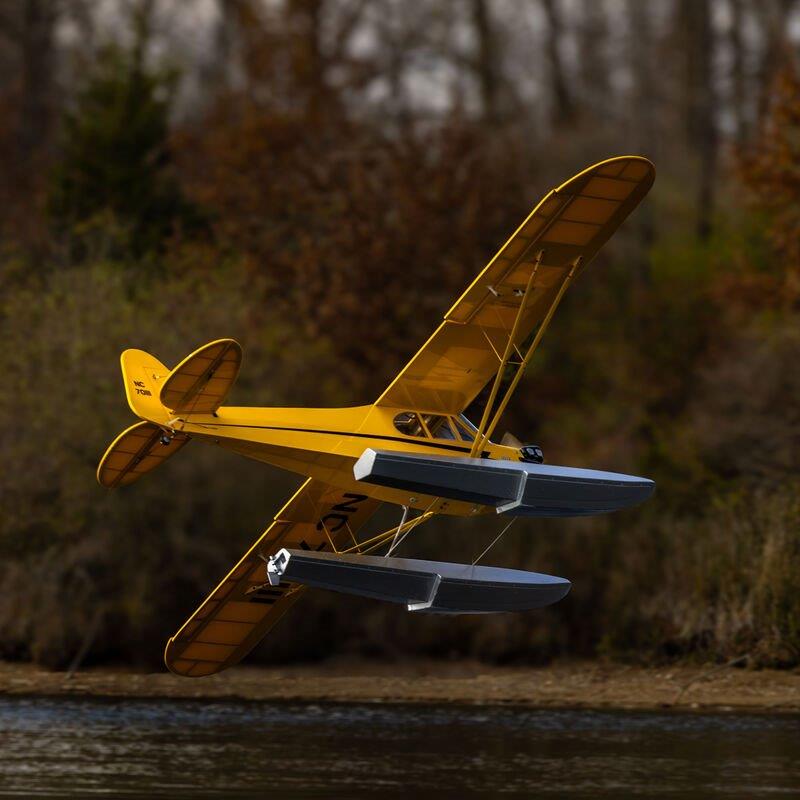

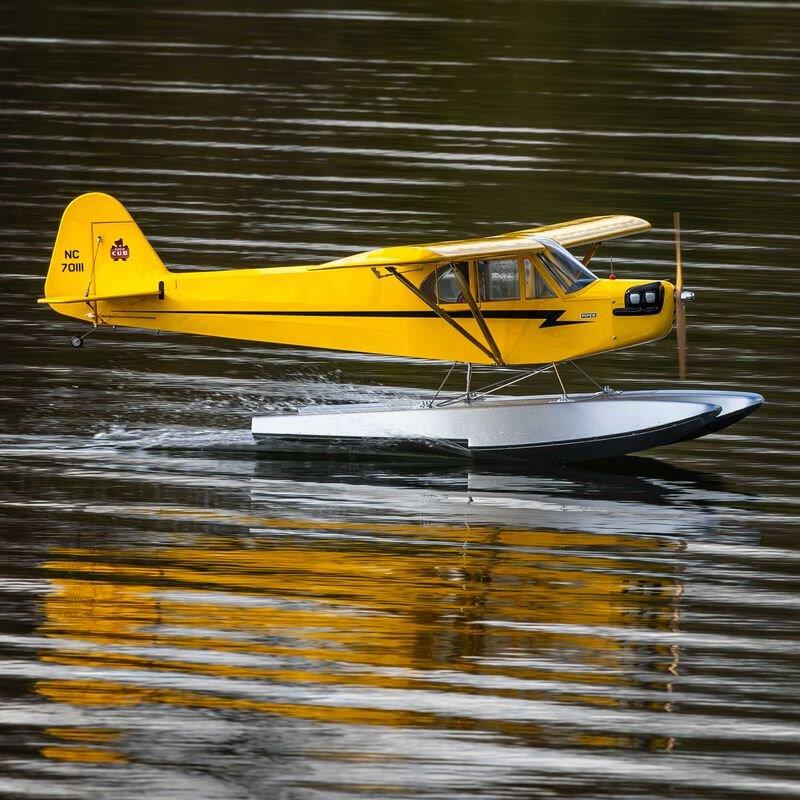

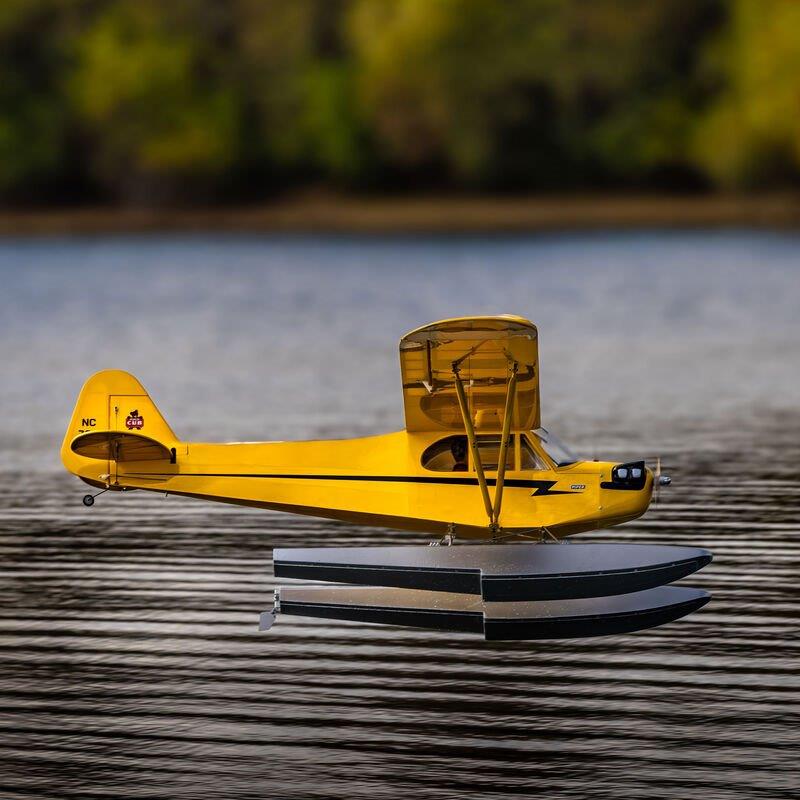

Designed to accept the optional silver-painted float and strut sets (both sold separately)
Optional starburst decals and shorter span (68.5) clipped wings available separately for improved aerobatic performance
Product Specifications
Approximate Assembly Time: 4+ Hours
Battery: Sold Separately
CG (Center of Gravity): 33.75" (7695mm)
Charger: Sold Separately
Completion Level: Plug-N-Play
Connector Type: IC5
LiPo Compatibility: 4S, 5S, 6S
Material: Wood
Minimum Required Radio: Full-range 4+ channel transmitter
Minimum Speed Control: Avian 70-Amp Brushless Smart Lite ESC
Motor Size: 4260-480Kv
Motor Type: Brushless
Power Type: Electric
Product Length: 56" (1422 mm)
Product Weight: Wthout battery: 8.5 lbs (3855g) / With recommended battery: 9.6 lbs (4341g)
Propeller Size: 15x10E wood (4S), 14x7E wood (6S)
Radio: Sold Separately
Receiver: Sold Separately
Recommended Motor Battery: 4S 14.8V to 6S 22.2V 32005000mAh LiPo with EC5 or IC5 Connector
Servos: Included
Skill Level: Level 2
Speed Control: Included
Technology: Smart Lite
Wheel Width: 1.25" (31.5mm)
Wingspan: 82.5" (2096 mm)
You can find the instruction manual here
