Blade InFusion 210 BNF Basic with AS3X and SAFE
3 885 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: BLH01550
Featuring an oversized direct-drive main motor, plus nearly all metal and carbon fiber construction, the InFusion 210 delivers performance and durability unlike any Blade® mini helicopter has before! It arrives fully factory assembled with a Spektrum flybarless control system that includes optional-use SAFE® technology and a Smart Transmitter File so you can have it bound to your favorite transmitter and flying within minutes of opening the box. Optional alternate color aluminum parts, canopies, fins, and landing gear are also available along with a unique Belt Drive Conversion kit for the tail so you can customize and personalize it just the way you like.
Product Details
In The Box
Blade InFusion 210 with: 1
Brushless Outrunner Tail Motor (installed): 1
Brushless Outrunner Main Motor (installed): 1
Spektrum Digital, Metal-Geared Servos (installed): 3
Spektrum AR6250MHXF Flybarless Flight Controller and (1) Receiver with AS3X and SAFE: 1
Spektrum Dual 15A Main and 8A Tail Brushless Smart Lite ESC (installed): 1

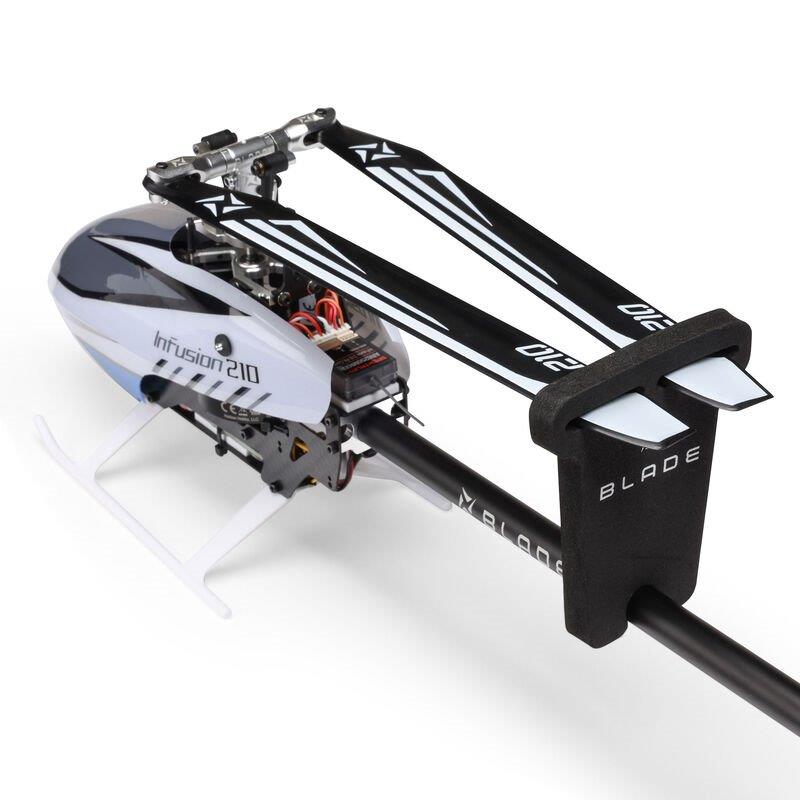

Main Blade Holder: 1
Product Manual: 1
Needed to Complete
Full-range 67+ channel Spektrum DSMX/DSM2 compatible transmitter (programmable for helicopters): 1
3S 11.1V 8501000mAh LiPo battery with IC2 connector (or use a suitable IC2 adapter, sold separately): 1
Compatible LiPo charger (plus a suitable IC2 adapter/charge lead, including SPMXCA320 or SPMXCA532, sold separately): 1
Blade InFusion 210 BNF Basic with AS3X and SAFE Overview
The InFusion 210 features an all-new design engineered for next-level durability and performance, making it the most capable and best-flying Blade® mini helicopter yet! It features an oversized, direct-drive main motor that delivers instant power and a lower parts count. It also features nearly all metal and carbon fiber construction for excellent precision and strength. It's designed to be capable of smooth hovering plus sport flying for intermediate pilots yet is also capable of advanced and all-out 3D aerobatics in the hands of experienced pilots. The expertly tuned AR6250MHXF flybarless control system includes optional-use SAFE technology which can be turned on and off at any time with a separate channel/switch for angle limits and automatic self-leveling to help prevent crashes, plus no limits with AS3X in all flight modes. The brushless direct-drive tail motor and oversized aluminum tail boom keep the heli firmly locked in through even the most aggressive maneuvers. Or, in a class-leading first, an optional Belt Drive Conversion kit (BLH-2929, sold separately) is available that includes a factory-assembled tail assembly that's driven off the direct-drive main motor, along with a digital and metal geared servo plus all other required hardware, to deliver even more precise, powerful, and symmetrical tail control! Optional alternate color aluminum parts, canopies, fins, and landing gear are also available, allowing you to customize and personalize the InFusion 210 to your liking including to match Fusion series helicopters.
The motors are connected to a Spektrum Smart Lite ESC that delivers real-time telemetry data to AirWare equipped transmitters, plus they're compatible with common and popular 3S 8501000mAh batteries. Digital, metal-geared rotary servos, an all-aluminum head, and composite 210mm main rotor blades deliver reliable and precise control for the factory-assembled airframe. Best of all, the built-in Spektrum receiver is ready to bind to your 67+ channel Spektrum DSMX/DSM2 compatible transmitter, so no extra receiver or installation is required! It's also pre-loaded with a Smart Transmitter File (STF) that allows you to automatically import all the settings for NX and iX series transmitters during the binding process, so you can be flying in less time than any other model in its class.
An all-new design engineered for next-level durability and performance, making it the most capable and best flying Blade mini helicopter yet
Spektrum Dual Smart ESC provides real-time battery voltage, motor RPM, and other data to compatible transmitters

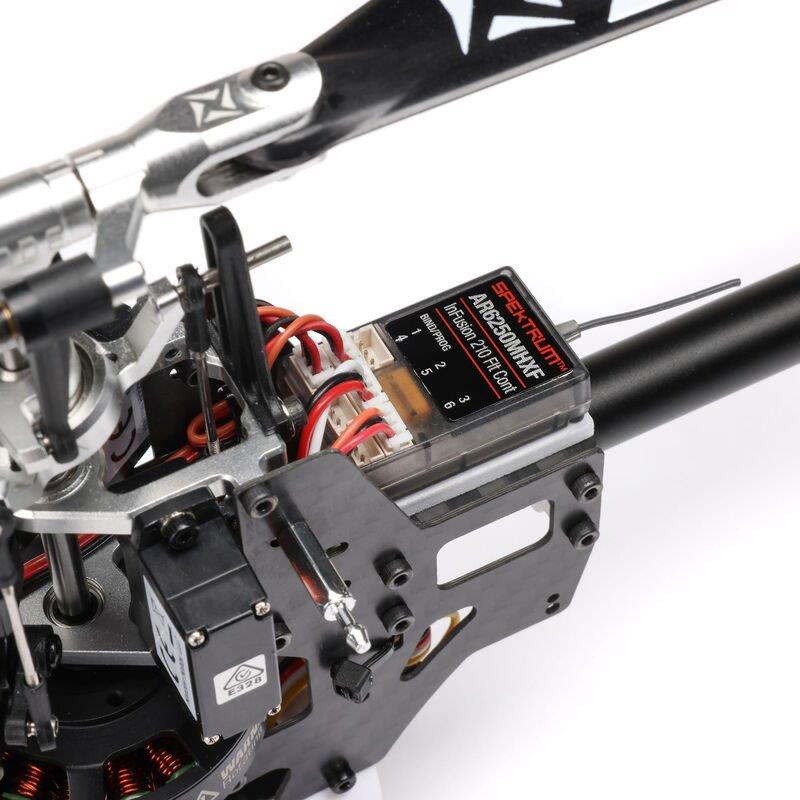

Factory-installed Spektrum AR6250MHXF flybarless flight controller featuring exclusive AS3X and SAFE technologies
Receiver loaded with a Smart Transmitter File (STF) that allows you to import all settings for NX series transmitters during the binding process
Easier to fly with innovative and optional-use SAFE flight envelope protection
Blade InFusion 210 BNF Basic with AS3X and SAFE Features
An all-new design engineered for next-level durability and performance perfect for intermediate to experienced heli pilots
Fully factory-assembled, flight-tested, and ready to fly right out of the box-no assembly or setup required
Mini sized to fly indoors in large enough spaces and outdoors pretty much anywhere
An oversized, direct-drive main motor that delivers instant power and a lower parts count
AS3X smooths out the effects of wind and turbulence with no limits or self-leveling in all flight modes
Optional-use SAFE technology can be turned on and off at any time in any flight mode with a separate channel/switch
Equipped with updated SAFE technology featuring angle limits and self-leveling that helps prevent crashes and makes it easier to fly
Ready for use with your compatible Spektrum DSMX/DSM2 equipped transmitter, battery and charger (sold separately)
Receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters during the binding process
Forward programming with compatible Spektrum transmitters allows you to adjust the AS3X/SAFE settings directly from the transmitter

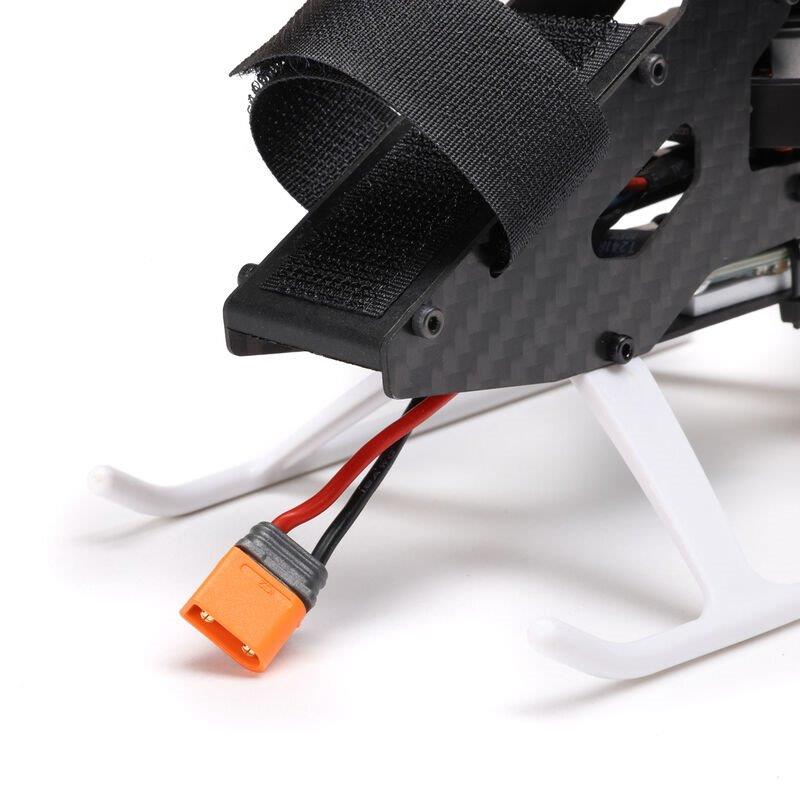

Compatible with popular and affordable 3S 8501000mAh Smart and non-Smart LiPo batteries with IC2 connectors (or use a compatible IC2 adapter)
Spektrum Dual Smart Lite ESC provides real-time battery voltage, motor RPM, and other data to compatible transmitters (with Smart and non-Smart batteries)
Factory-installed Spektrum AR6250MHXF flybarless flight controller featuring exclusive AS3X and updated SAFE technologies

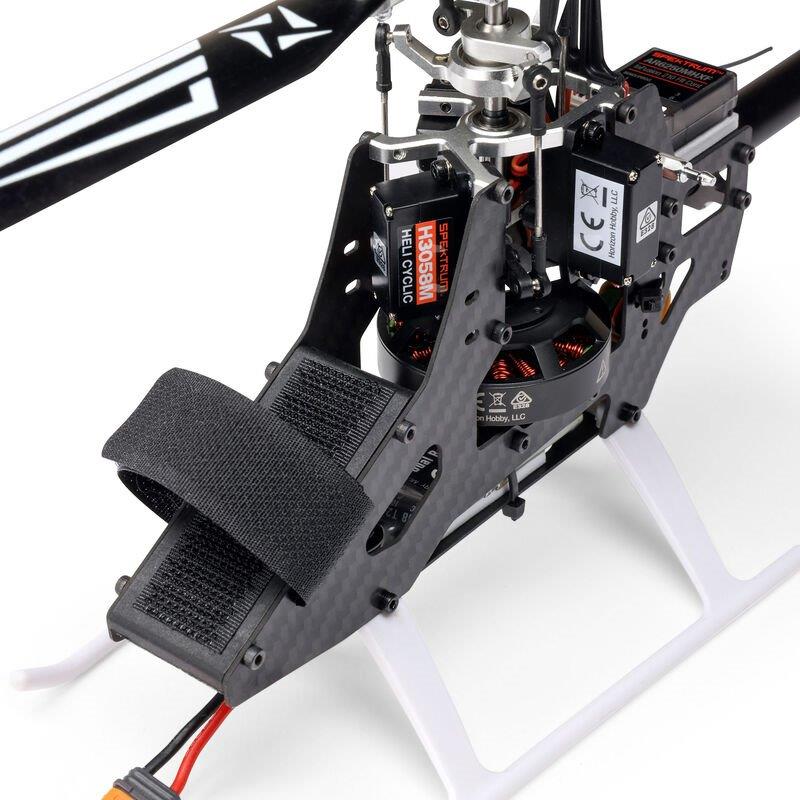

Digital and metal-geared cyclic servos with precise ball-link equipped linkages

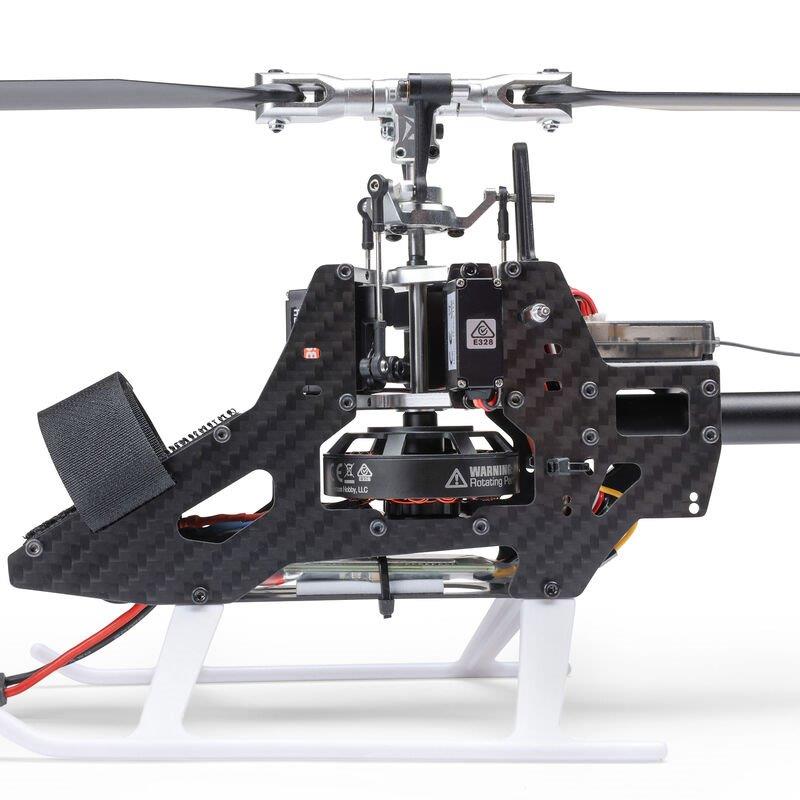

Extremely strong and durable carbon fiber and aluminum airframe design
Oversized diameter tail boom for increased rigidity and durability
Full line of replacement/spare parts available
First-in-class Belt Drive Conversion kit (BLH-2929, sold separately) that's driven off the direct-drive main motor to deliver even more precise, powerful, and symmetrical tail control
Customize and personalize with alternate color aluminum parts, landing gear, and tail fins (sold separately)
Optional red, white, and blue plus orange, white, and blue fiberglass canopies to match Fusion series helicopters
Skill Level 2 Next Step Pilots (Some Experience Required)
Skill Level 2 Next Step After a Trainer aircraft, like this one, are suitable for RC pilots who have successfully learned to fly a trainer helicopter model and those with the skills to assemble, set up and fly similar class models. Although the InFusion 210 is equipped with optional-use SAFE technology, it's not a suitable first-ever RC helicopter for new pilots. You should have the experience and skills necessary to successfully fly Collective Pitch (CP) helicopters like the Blade 230, 330, Revolution 155, 235, or other similar class models before attempting to fly the InFusion 210.
Blade InFusion 210 BNF Basic with AS3X and SAFE Product Specs
Approximate Assembly Time: No Assembly Required
Battery: Sold Separately
Canopy/Body Material: Plastic
Charger: Sold Separately
Completion Level: Bind-N-Fly Basic
Gear Ratio: 1
Main Blade Material: Composite
Main Frame Material: Carbon Fiber
Main Motor Type: Brushless
Main Rotor Blade Length: 8.2" (208 mm)
Main Rotor Diameter: 19.09" (485 mm)

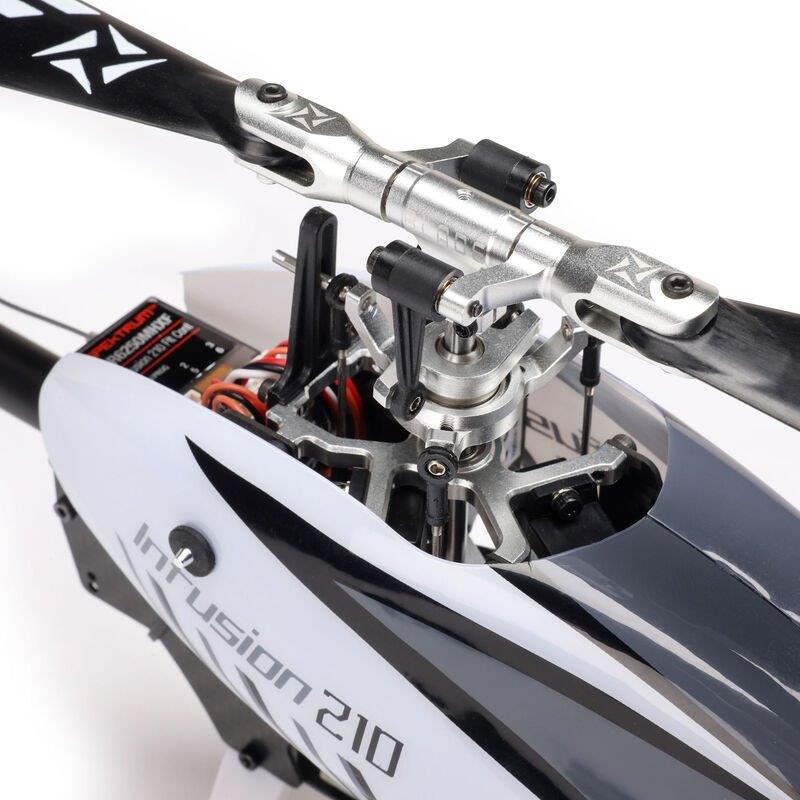

Main Rotor Head Type: Collective Pitch Flybarless

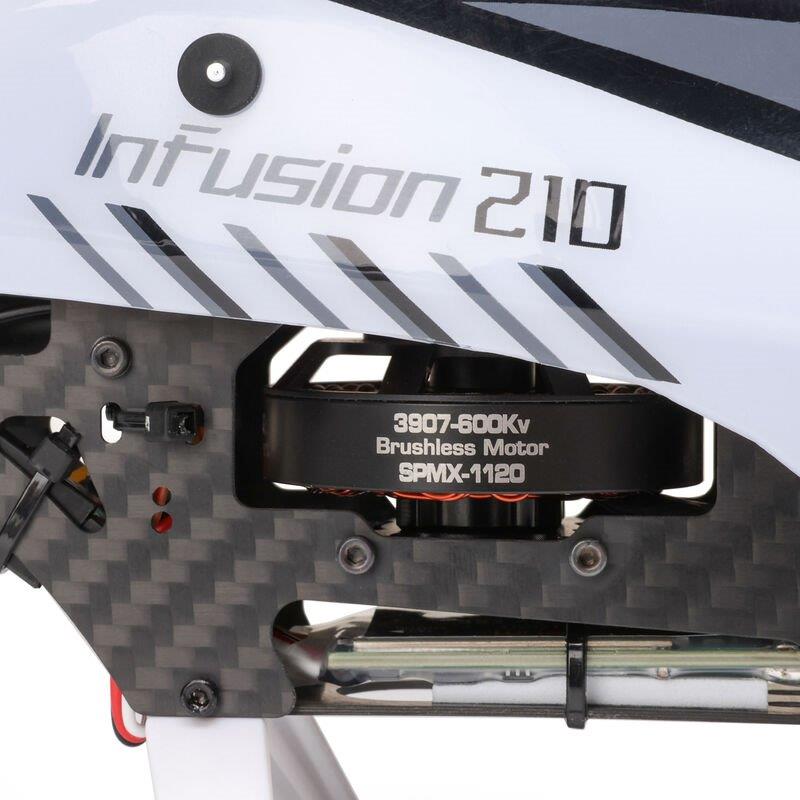

Motor Size: 3907-600Kv
Power Type: Electric

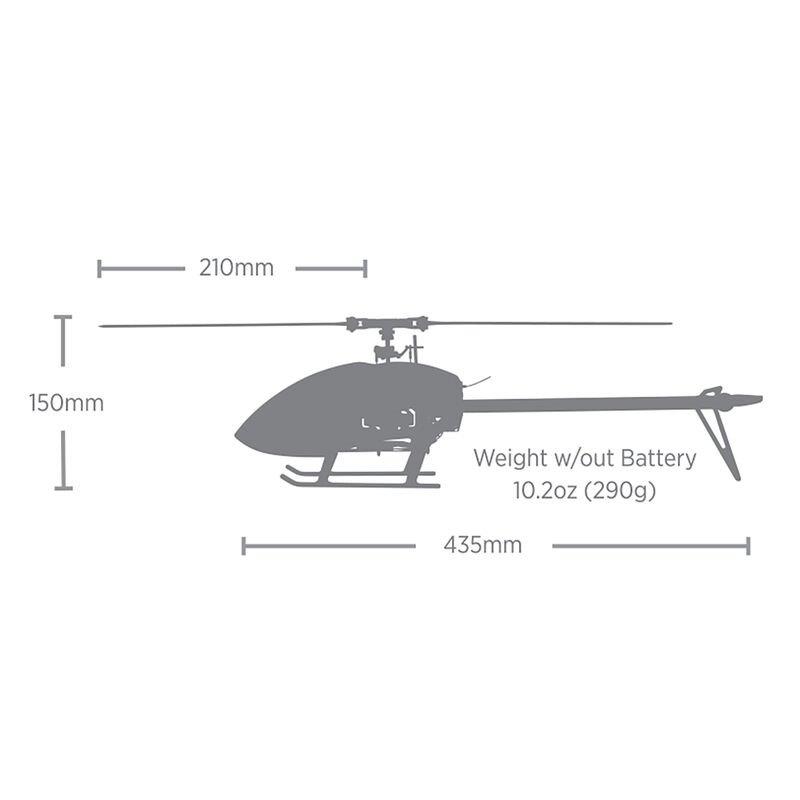

Product Height: 5.9" (150 mm)
Product Length: 17.1" (434 mm)
Product Weight: Without Battery: 10.2oz (290g) / With Recommended 3S 850mAh Flight Battery: 12.66 oz (359g)
Product Width: 2.56" (65 mm)
Receiver: Included
Recommended Motor Battery: 850mAh 3S 11.1V 30C LiPo
Skill Level: Level 2
Tail Blade Material: Plastic
Tail Drive: Direct Drive
Tail Motor Type: 4200Kv Brushless Outrunner
Tail Rotor Diameter: 3" (76 mm)
Technology: Smart Transmitter File, AS3X, SAFE
You can find the instruction manual here
