Beskrivning
Art.nr: SG426
SAB was the first to introduce the Goblin 420 with a Direct Drive motor, opening up new possibilities in this class.
Later, to maximize the power-to-weight ratio, SAB developed the belt-driven version: lighter, more powerful, and even more extreme.
Now, SAB raises the bar once again by combining technology and design.
Inspired by the iconic lines of the best-selling SG760, the new ilGOBLIN 420 brings the same stunning appeal to the 420 class.
Performance, style, innovation.

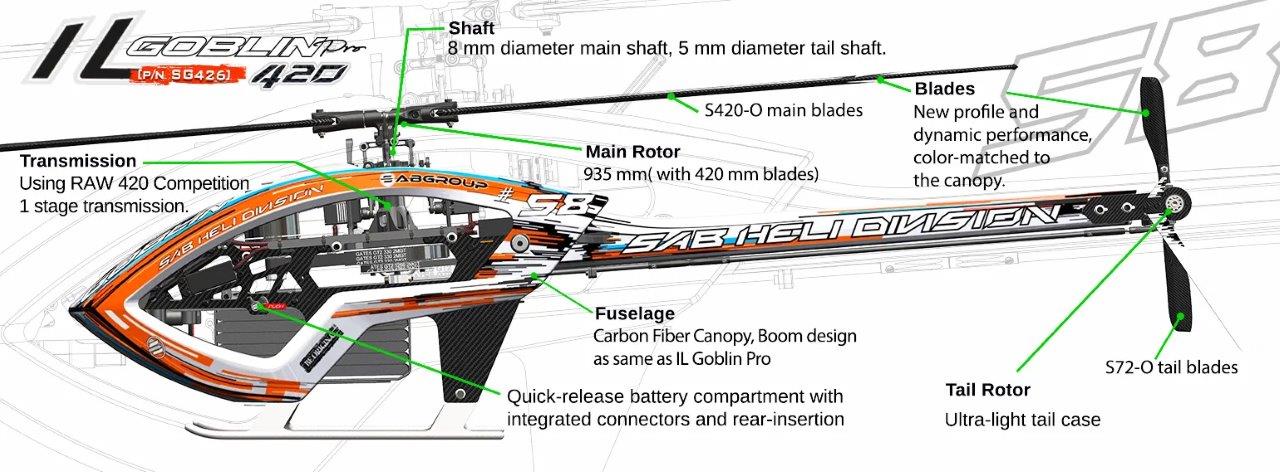

Main rotor diameter 935mm (with 420mm blades)
Main blade length 380 to 420mm
Tail rotor diameter 194mm (with 72mm tail blades)
Tail blade length 60 to 72mm
Micro size cyclic servos (23mm)
Mini size tail servo (35mm)
Maximum battery size: 140x40x50mm (max)
Recommended battery: 6s 2200/2700 mAh
Recommended motor: 3020 3215 3220
Recommended motor KV: 900-1000 KV
Recommended battery weight: 350-420 grams
Recommended ESC: 60A (70-80A is required only for hard 3D flight with temperatures above 30°C)
Tail rotor ratio 4:1
8mm main shaft
5mm tail shaft

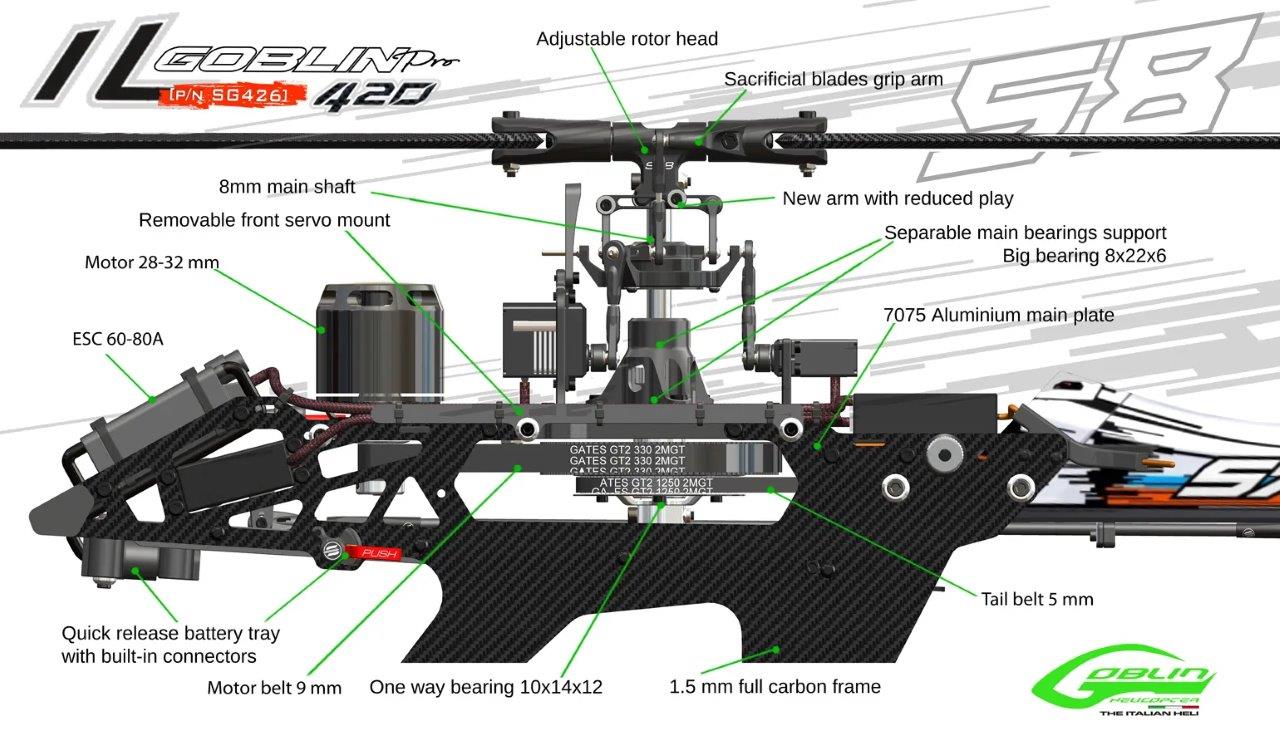

ilGoblin 420 main features:
Quick release battery tray with integrated connectors
Zytel HTN resin blade grip arms (sacrificial)
It is not necessary to remove the canopy to replace the batteries.
Main ratio 1:5/6
Tail ratio 4:1
Weight (no battery/electronics): 1080 g
Power supply: 6S 2200/2700 mAh
Year: 2025
