SAB Goblin Genesis Sport Orange
17 599 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SG766
Goblin Genesis Sport Orange
AIRFRAME weight: 2584 gr (no blades, no battery, no electronics)
Main rotor diameter: 1670 mm (with 747 mm main blades)
Main blade length: 690 to 760mm
Tail rotor diameter: 292 mm (with 110 mm tail blades)
Tail blade length: 110 to 115 mm
Cyclic Servos: Standard size 40mm
Tail Servo: Standard size 40mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
Tail Rotor Ratio: 5.1 - 4.9:1 (26T includes 4.9:1)
Main shaft: 15 mm, Tail shaft: 8 mm
Molded carbon tail boom
Typical motor: 12S, 480/560 KV
Battery room: 50x60x300 mm

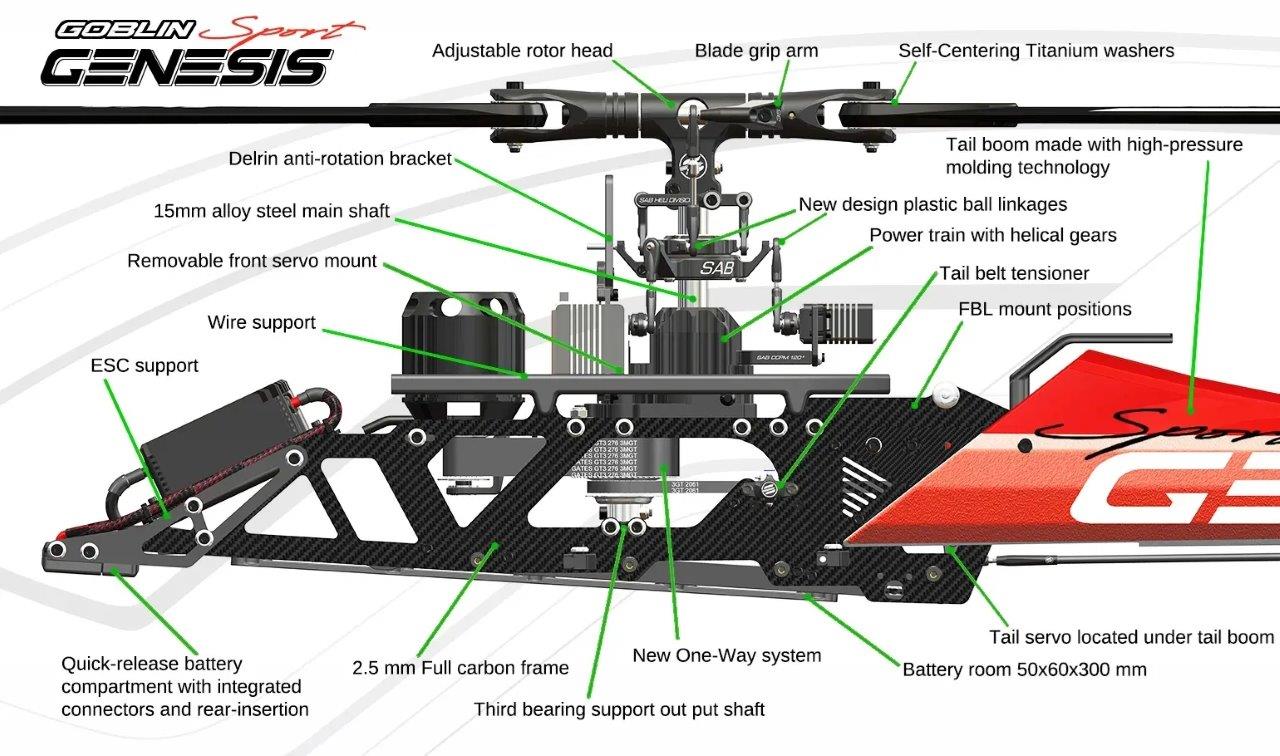

15mm main shaft
main shaft diameter has been increased to 15 mm for increased rigidity.
Grip arms reference 35mm
New design that features new 35mm blade grip arms with an improved locking system.
Wider mixing arms bearings zone
New design mixing arms, easy to assemble with out any play.
Self center titanium blades washers
Self-Centering Titanium washers that ensure automatic centering for greater precision.
New main plastic ball linkage
New design plastic ball linkage which is stronger and last longer, make manternance time less
New swashplate geometry
New Swashplate geometry maximize the precision.
New gear box
Using the same gear box as in the ILGOBLIN, the gearbox is lighter than previous models.
New helical gears for increased durability and strength.
Easy remove servos front and rear
A fast disassembly servo mount that allows for easier and faster maintenance on the servos.
3rd bearing support with stronger One Way Bearing
New One-Way system, redesigned for optimal performance.
3rd bearing support includes in the kit
Tail belt tensioner & Battery Locking System
Includes a belt tensioning system with an indicator for optimal control.
SAB newest battery locking system for easy lock and remove battery
8mm tail shaft
8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail.
Double-Point Pitch Control Slider
Reduces play in the tail rotor control
Quick connect battery
With its unique design, you do not have to remove the canopy to change the batteries, they can be inserted from the rear with integrated connectors.
New design tail push rod
Genesis Sport also have new design tail push rod as same as the ILGoblin PRO/RAW
No need CA glue/epoxy at all
