Beskrivning
Art.nr: SG800

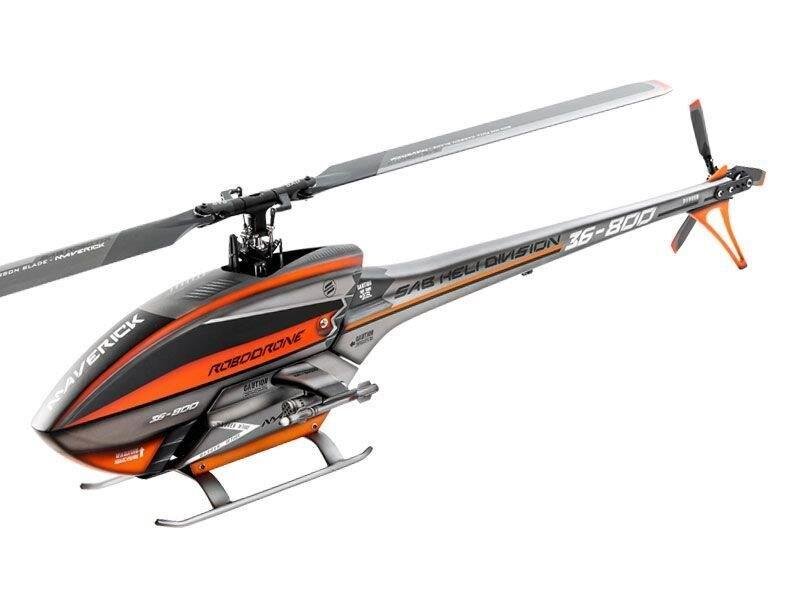

GOBLIN MAVERICK
Making a comparison with Urukay Genesis, the famous model developed to win in the F3C category, here are the main differences:
* Longer boom that will enable the use of 800mm blades.

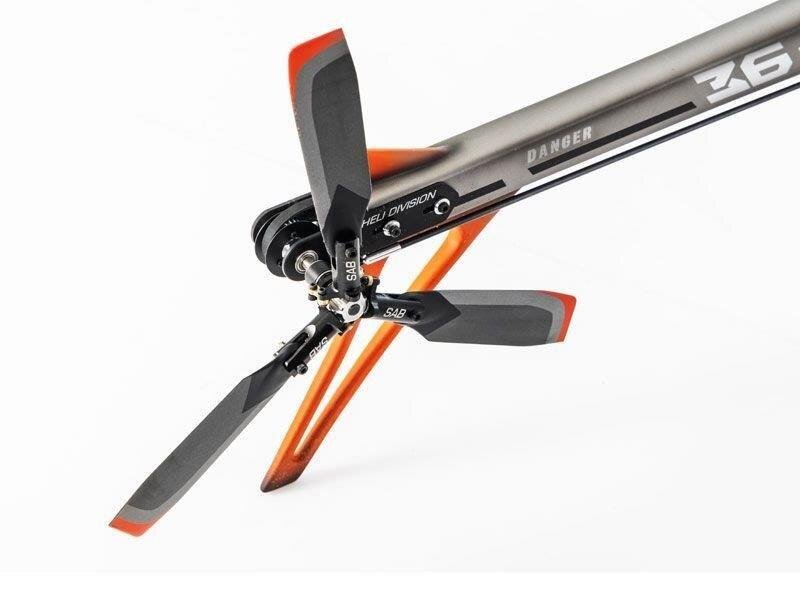

* 3-Bladed tail rotor in order to give the correct authority.

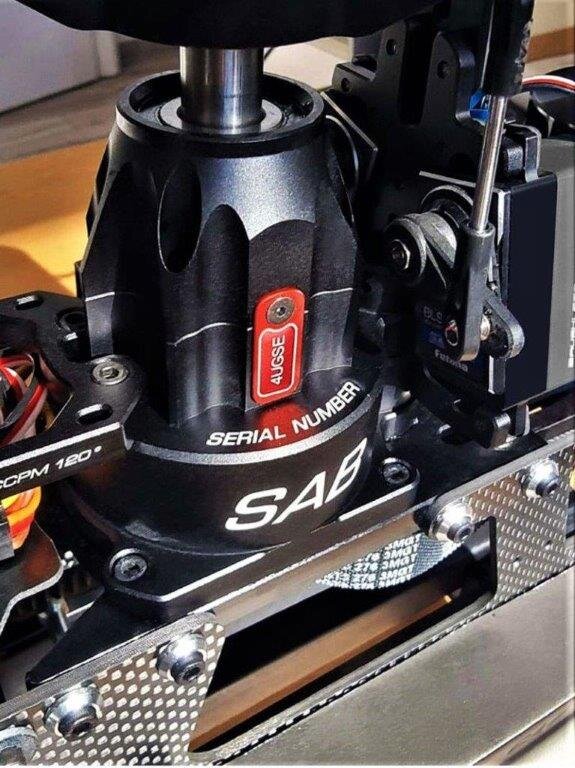

* Rigid transmission module with longer main shaft
* Aggressive graphic scheme
These are the characteristics of the Urukay Maverick, an important model, prestigious, and perfect for an exciting, powerful and realistic flight The sound of the 800mm blades is amazing!

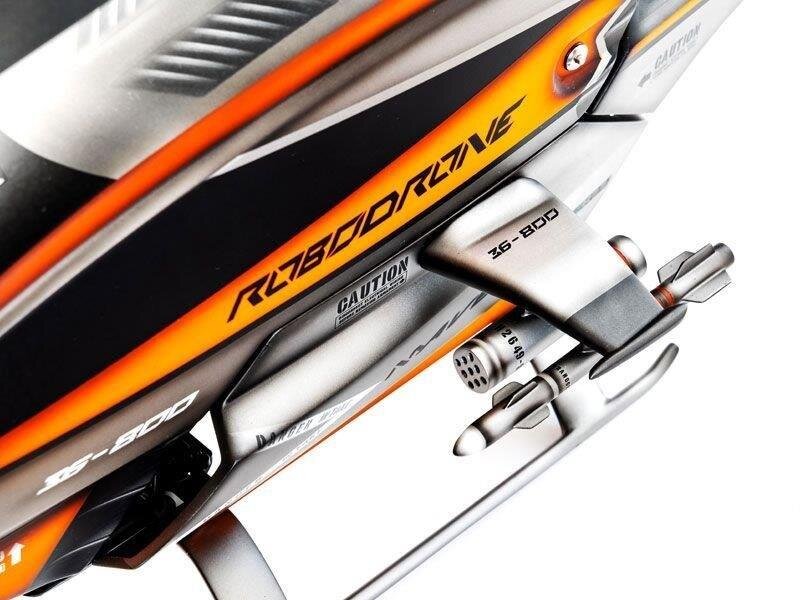

( the KIT includes the simulation of the side missiles )
TECHNICAL SPECIFICATIONS
AIRFRAME weight: 4250gr (with blades, no battery, no electronics)
Main blade length: 2x 800mm
Tail blade length: 3x 115
Main rotor diameter: 1768 mm (with 800 mm blades included)
Tail rotor diameter: 305 mm (with 115 mm tail blades included)
Cyclic Servos: standard size 40mm
Tail Servo: standard size 40mm.
Main Rotor ratio: 11.8 to 8.4 (21T included: 10.1:1)
Tail Rotor ratio: 5.0-4.8:1 (26T included: 4.9:1)
Typical motor: 4530 series
Typical speed controller: 12S, 160-200 A
Battery size: 12S 5500 mAh.
Helicopter Main Data
Configuration 800
Available P/N SG800
Main rotor diameter 1768mm
Main blade length 800mm
Tail rotor diameter 305mm
Tail blade length 115mm
Main shaft diameter 12mm
Tail shaft diameter 6mm
Weight 4250gr
Helicopters Secondary Data
Cyclic Servos Standard size 40 mm
Tail Servo Standard size 40 mm
Typical speed controller 200A
Maximum motor size 62mm diameter x 70mm height
Motor KV 460-500KV
Battery compartment 56mm x 70mm x 320mm
Battery capacity 12S 5000/5500 mAh
Available ratios From 8.4 to 11.8
