Beskrivning
Art.nr: SG424
SAB introduced the Direct Drive on this class of helicopter and as you may know, we sold more than 2500 KITS.
However, in pursuit of improving performance, we determined that the Direct Drive could no longer be the correct solution. The evolution of the RAW 420 will use a motor belt drive.
This is how the RAW 420 Competition was born. Lighter, faster, more flexible in the selection of the desired head speed at a higher performance level.
Specification:
Main rotor diameter 935mm (with 420mm blades)
Main blade length 380 to 420mm
Tail rotor diameter 190mm (with 70mm tail blades)
Tail blade length 60 to 70mm
Micro size cyclic servos (23mm)
Mini size tail servo (35mm)
Maximum battery size: 140x40x50mm (max)
Recommended battery: 6s 2200/2700 mAh
Recommended motor: 3020 3215 3220
Recommended KV motor: 900-1000 KV
Recommended battery weight: 350-420 grams
Recommended ESC: 60 (70-80A is required only for hard 3D flight with temperatures above 30°C)
Tail rotor ratio 4:1
8mm main shaft
5mm tail shaft

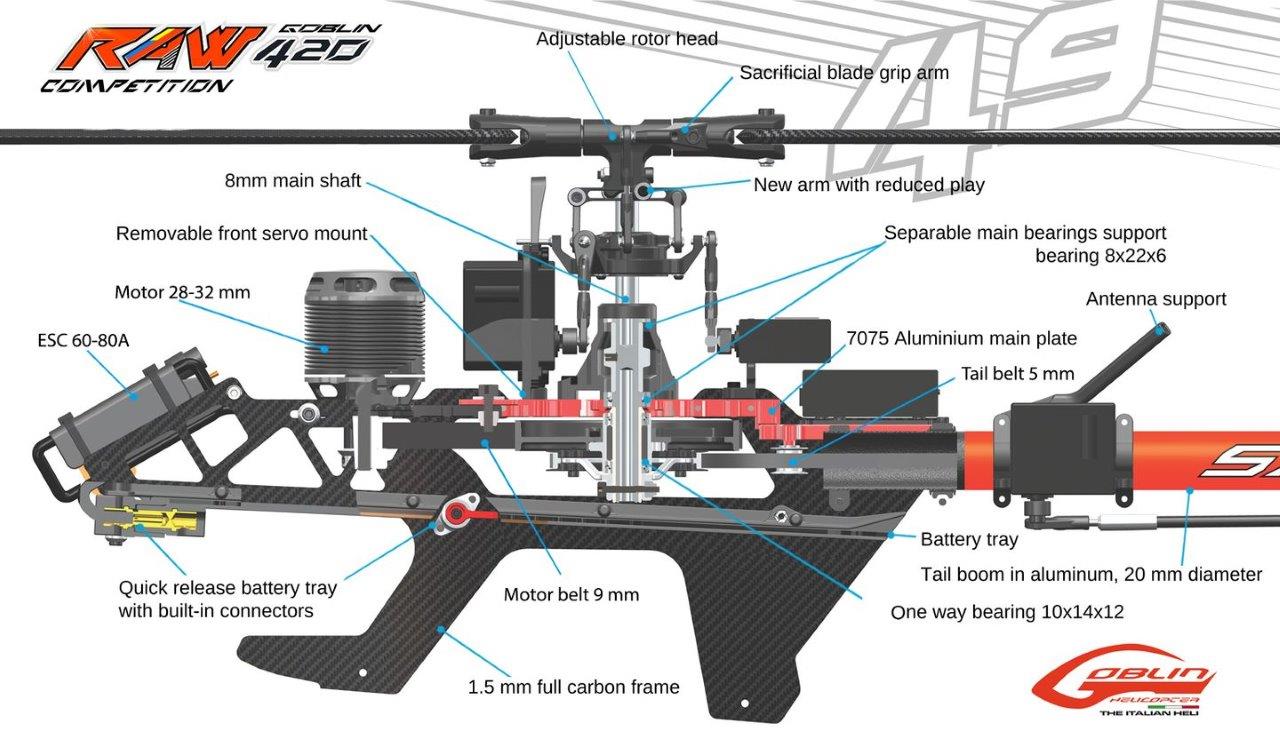

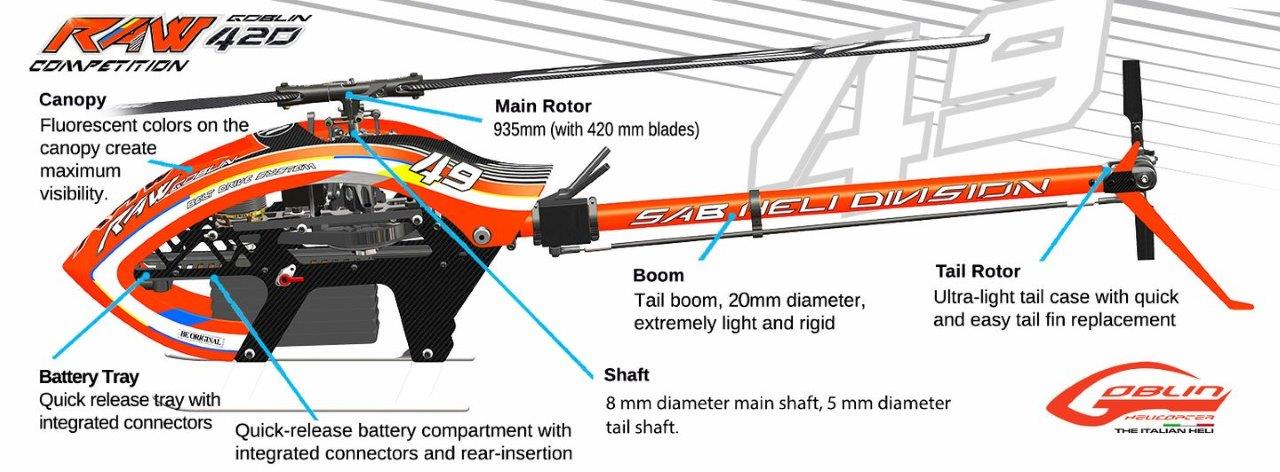

Raw 420 Competition main features:
Quick release battery tray with integrated connectors
Zytel HTN resin blade grip arms (sacrificial)
It is not necessary to remove the canopy to replace the batteries.
Main ratio 1:5/6
Tail ratio 4:1
Blade Length: 420
Weight (no battery/electronics): 1090 g
Power supply: 6S 2200/2700 mAh
