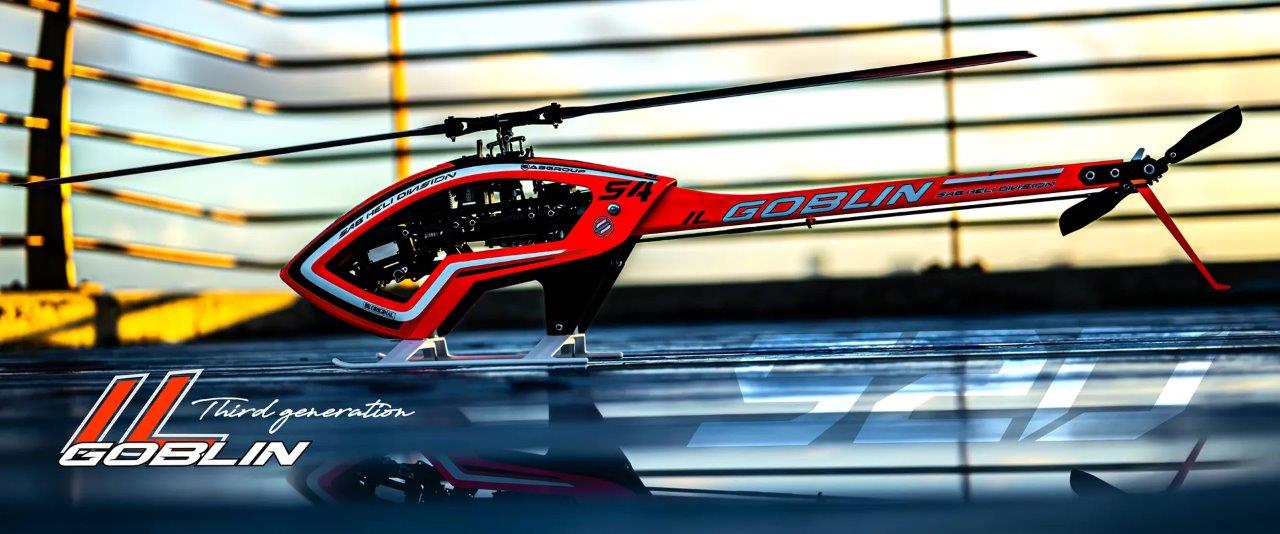

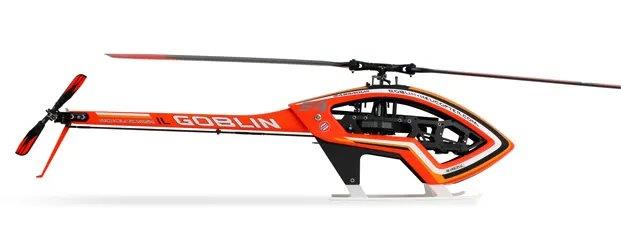

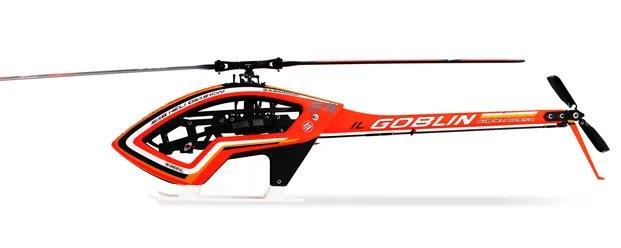

SAB ILGoblin PRO 520 Orange

This model is based on the design of the Goblin Raw500 with many shared spare parts, but with several important updates and improvements, including new 520 mm main blades and 82 mm tail blades.


AIRFRAME weight: 1894 gr (no blades, no battery, no electronics)

Main rotor diameter: 1220 mm (with 520 mm main blades)

Main blade length: 480 to 530mm

Tail rotor diameter: 222 mm (with 82 mm tail blades)

Tail blade length: 80 to 85 mm

Cyclic Servos: Mini size 35mm

Tail Servo: Mini size 35mm/Standard size 40mm

Main Rotor Ratio: 1: 4.47 to 5.88 (17T Motor Pulley Includes)

Tail Rotor Ratio: 3.88.1

Main shaft: 8 mm, Tail shaft: 5 mm

Molded carbon tail boom

Typical motor: 6S, 800/900 KV

Battery room: 48x48x150mm

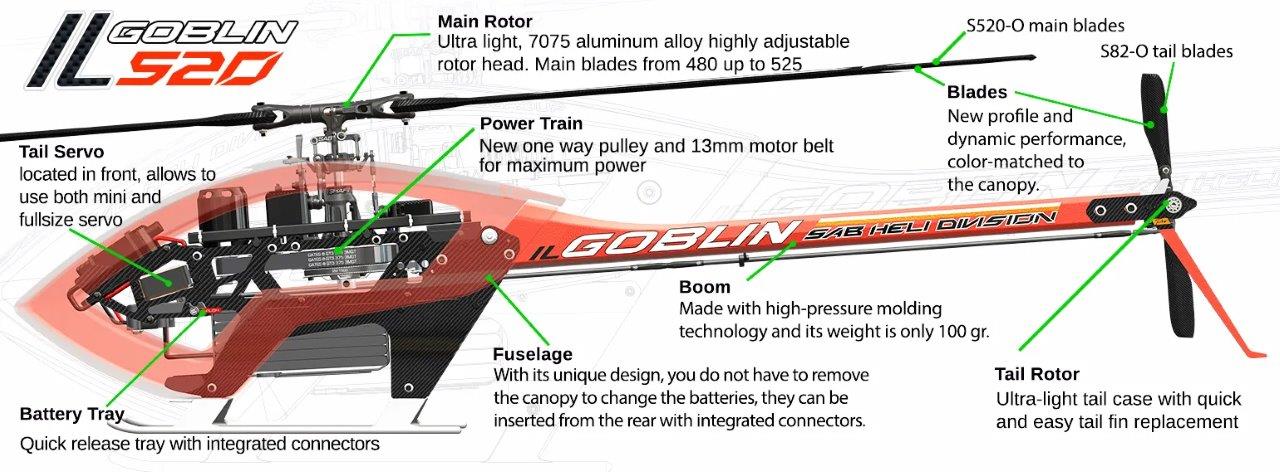

Tail Servo Located In Front
Positioning the tail servo at the front optimizes the center of gravity (CG) of the ILGoblin 520, and provides compatibility with both mini and full-size tail servos.

IL Goblin Scheme Canopy and Boom
Following the success of the scheme on the ILGoblin 700, we extended its use to other product lines.

12mm One Way Bearing and 13mm Motor Belt
Utilize a 12mm one-way bearing and 13mm motor belt for maximum head speed

520mm Main Blades and 82mm Tail Blades
New SAB 520mm main blades and 82mm tail blades are available in a new orange color design.

Carbon Moulding Tail Boom
The boom utilizes the same molding technique as the ILGoblin 700, and it weighs only 100 grams

New Plastic Ball Linkage
The redesigned plastic ball linkage is significantly stronger and more robust, reducing maintenance time
