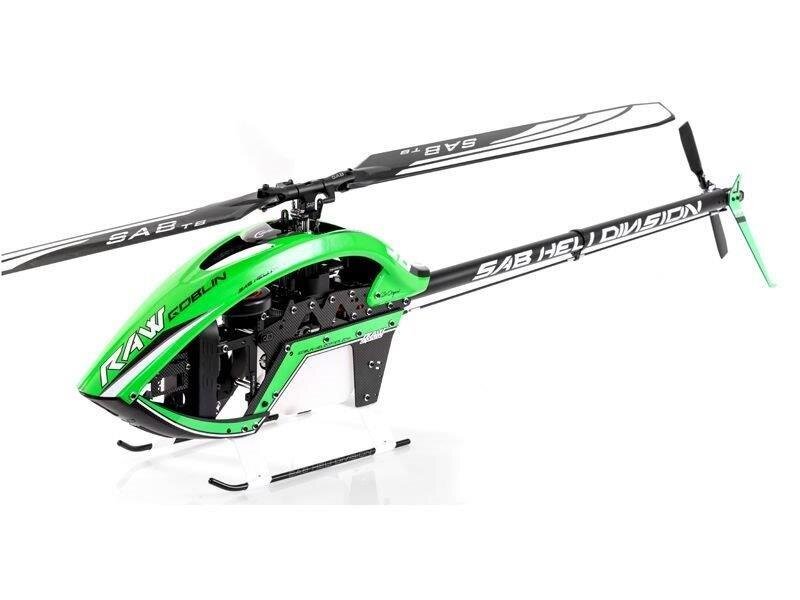

SAB GOBLIN RAW 700 NITRO

• RTF Approx. Weight: 4040 g (RTF no fuel).
• Main blade length: 650mm to 720mm ( 690mm included ).
• Tail blade length: 105 to 115 mm ( 105mm included ).
• Main rotor diameter: 1558 mm (with 690 mm blades).
• Tail rotor diameter: 284 mm (with 105 mm tail blades).
• Engine: .90 to .105 Nitro Heli Engine.
• Cyclic Servos: Standard size 40mm.
• Tail Servo: Standard size 40mm.
• Throttle Servo: Mini size 35 mm or Standard size 40mm.
• Main Rotor Ratio: 7.7- 8.3 :1 (27T included: 8:1).
• Tail Rotor Ratio : 5.1 - 4.9:1 ( 22T included: 5.1:1 ).
• Tank Capacity: 650ml.
• RX Battery Size: 2S-1800 / 2500 mAh.

Helicopter Main Data

Configuration 700
Available P/N SG746
Main rotor diameter 1558mm
Main blade length 690mm
Tail rotor diameter 284mm
Tail blade length 105mm
Main shaft diameter 10mm
Tail shaft diameter 6mm
Weight 4040gr without fuel


Helicopters Secondary Data
Cyclic Servos Standard size 40mm
Tail Servo Standard size 40mm
Typical speed controller
Maximum motor size
Motor KV
Battery compartment
Battery capacity 2S 1800-2500mAh
Available ratios 7.7 - 8.3
