Beskrivning
Art.nr: 30178
Almost Ready-to-Fly (ARF) Kit Feature:
Carbon Fiber frame with foldable aluminum arm connector
New frame design with minimal assembly time, no soldering required
Easy & straightforward installation
Spacious platform for easy integration of additional accessories & battery
Pre-installed motors, ESCs, and LED with simple XT30 power plugs for PDB
Power distribution board (PDB) with XT60 & XT30 plugs
Optional depth camera mount for Intel RealSense depth camera
X650 ARF Kit Includes:
X650 V2 Frame Kit
Preinstalled Items:
o 4 Motors - Tmotor MN4014 KV330 Motor with XT30 Plug
o 4 ESCs - Tekko32 F4 45A ESC with XT30 Plugs
o 4 LED - NeoPixel WS2812 LED (Setup Instruction)
Gemfan 1555 Carbon Fiber Propellers (4 pcs)
Power Distribution Board (XT60 plug for battery & XT30 plug for ESCs & peripherals)
X650 Frame Kit Includes:

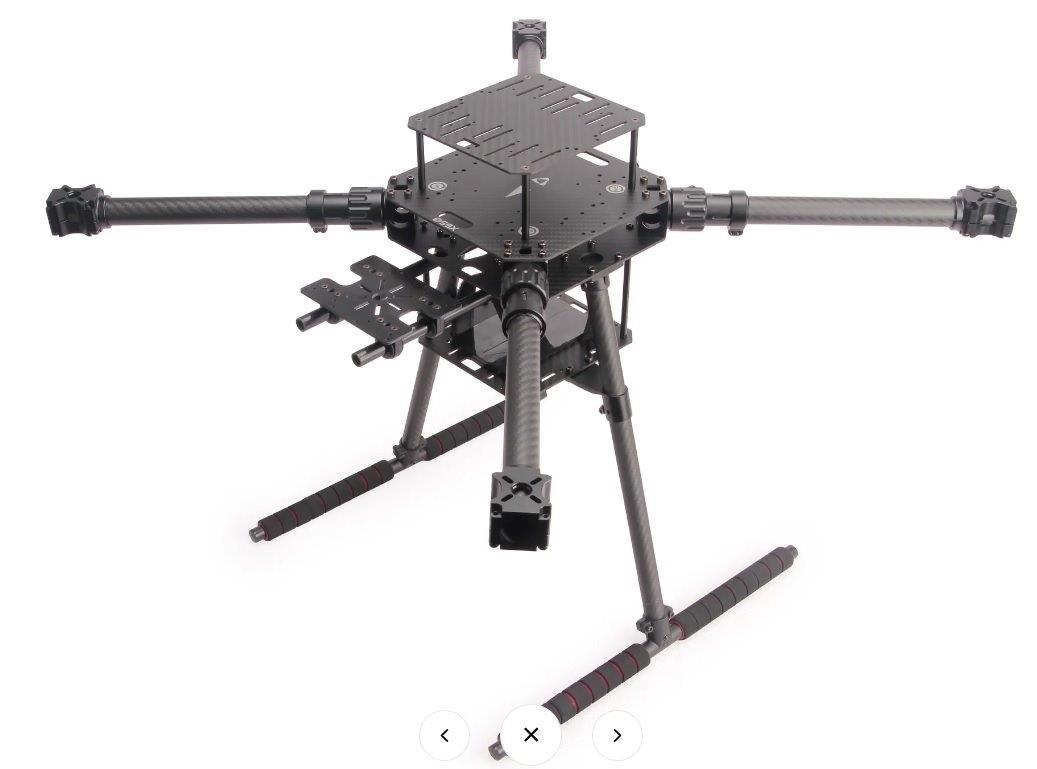

X650 V2 Frame Only
Frame Details:
Wheelbase: 650mm
Motor mount
o Mount pattern: 16-25mm
Body - Full Carbon Fiber Top & Bottom plate (160 x 160mm, 2mm thick)
Arm - High strength & ultra-lightweight 20mm carbon fiber tubes with newly designed aluminum foldable arm mount
Landing gear - 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
Upper & Battery Plate - 120mm x 128mm carbon fiber plate for various payload, accessories, or battery.
Platform board - With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano
Dual 10mm Ø rod x 320 mm long rail mounting system
Two battery pads & Straps
Hand tools for installation
Flight Time and Payload
Flight time: 30 min (Hover with 6S 10000 mAh Battery, no additional payload)
Full Kit Weight: 2000g (without battery)
Payload:
o 4.3kg (without battery)
o 3.5kg (with 5200mAh 750 gram battery)
o 3.1kg (with 10000mAh 1200 gram battery)
Takeoff Weight Limit: 6300g (70% throttle)
Battery Recommendation: 6S 5000-12000mAh Lipo Battery with XT60 (Not Included)
