Proxxon CNC-KONTROLLENHET CU-4
8 315 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 24900

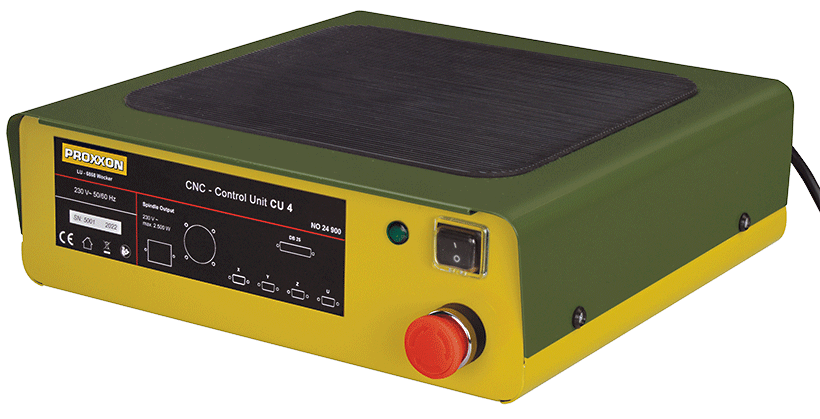

CNC-Control Unit CU 4
For operating CNC lathes and milling machines with up to four axes. Ready for use, powerful and safe.
Free choice of CNC-software: e.g. MACH3/4 (milling or turning), Estlcam (milling) may be used for operation via parallel-port (if necessary with use of LPT-adaptor). Four powerful micro step drivers (norm-interface SUB-D 9-pole) always provide enough energy for any machining processes. One feedback signal (e. g. limit switch) each for each axis.

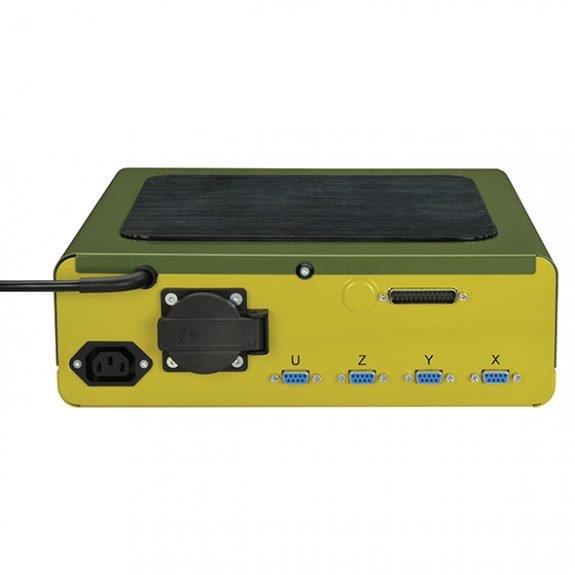

Switching relay for 230V-outlet (IEC-socket and protective contact socket) for spindle powering or special functions up to 2,500W.
Solid main housing made of 1.2mm steel plates (powder-coated) with large grooved rubber mat for tool storage.
Technical data:
230V. 50/60Hz. Dimensions 330 x 300mm. Height 100mm. Weight approx. 4.5kg. Insulated to class 1.
NO 24 900
For operating CNC lathes and milling machines with up to four axes. Ready for use, powerful and safe.
Free choice of CNC-software: e.g. MACH3/4 (milling or turning), Estlcam (milling) may be used for operation via parallel-port (if necessary with use of LPT-adaptor). Four powerful micro step drivers (norm-interface SUB-D 9-pole) always provide enough energy for any machining processes. One feedback signal (e. g. limit switch) each for each axis.
Switching relay for 230V-outlet (IEC-socket and protective contact socket) for spindle powering or special functions up to 2,500W.
Solid main housing made of 1.2mm steel plates (powder-coated) with large grooved rubber mat for tool storage.
Technical data:
230V. 50/60Hz. Dimensions 330 x 300mm. Height 100mm. Weight approx. 4.5kg. Insulated to class 1.
NO 24 900
