Proxxon KAPSÅG O GEIRINGSSÅG. KGS 80. 220-240 V. 200 W

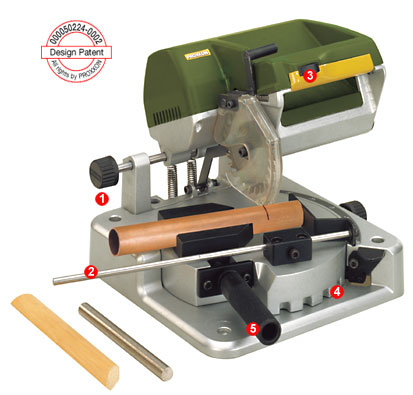

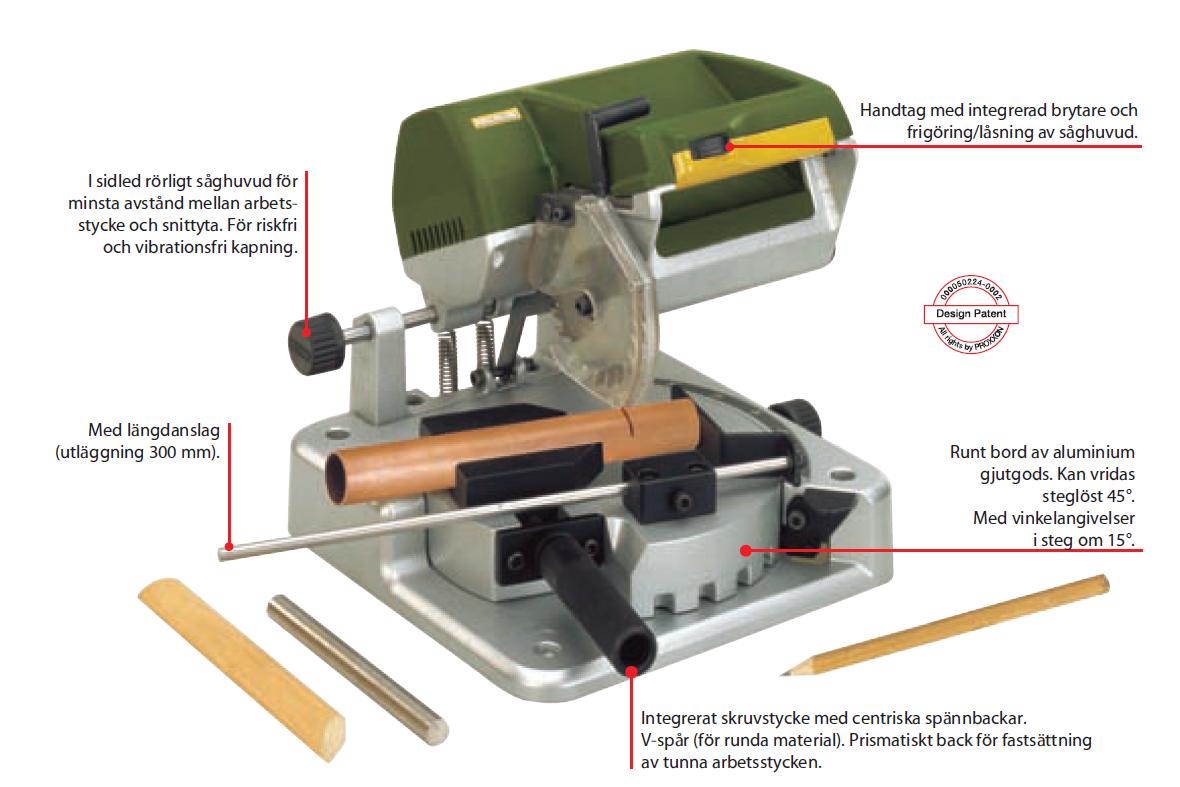

Ideal for mitre cuts: Adjustments are made to the round table (with clamped work piece) and not to the headstock! The opposite angle for a second frame part of identical length occurs through simple shifting with the longitudinal stop and by rotating the table by 2 x 45°. Powerful, quiet DC-motor. Smooth toothed belt drive ensures power transmission. Tungsten-tipped saw blade for non-ferrous metal, wood and plastics (80 x 1.6 x 10mm, 24 TPI). : : : : : : Laterally moving saw head to minimize the distance between the vice holding the workpiece and the kerf. For cutting without vibration and chattering! : : : : Fence adjustable to 300mm. : : : : Comfortable grip with built-in switch and saw head release button. : : : : Round table made of die-cast aluminium, rotates 45° left and right. Positive stops in 15° increments. : : : : Integrated clamping system with fixed jaws. V-slot for round workpieces. Front side slot allows thin pieces to be clamped. Other technical data: 220 - 240V. 200W. 50/60Hz. 6,000rpm. Base with round table of highly stable die-cast aluminium with CNC-milled fittings and slides. Table 230 x 230mm. Weight 6kg. See table for cutting capacity. : Cutting capacity at 90° (right angle cut): : : : : : Material size (in mm) : : Max. material width (in mm) : : Round material (in mm) : : : 10 18 21 25 : : 65 50 40 25 : : Ø max. 25 : Cutting capacity at 45° (mitre cut): : : : : : Material size (in mm) : : Max. material width (in mm) : : Round material (in mm) : : : 5 10 15 20 : : 36 30 25 18 : : Ø max. 20
