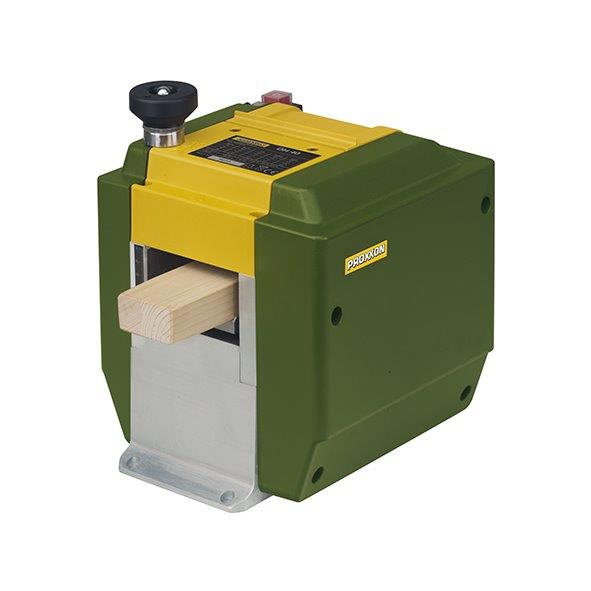

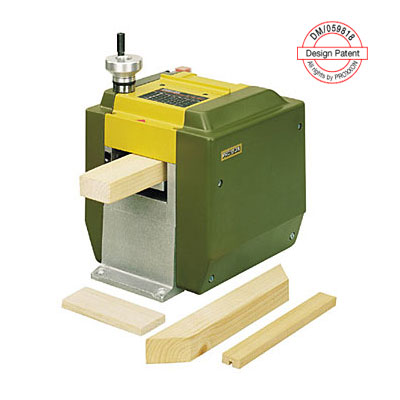

Proxxon PLANHYVEL DH 40. VIKT 8 KG. MÅTT 280 X 230

Load bearing components are all made of die-cast aluminium, with milled seats for bearings and spindles. These characteristics are essential for vibrationfree, smooth thicknessing of hard and soft woods. The result: a high-grade, very smooth surface. The triple spindled table is made from die-cast aluminium and milled to close tolerances. The handwheel (zero adjustable) allows adjustments to 0.1mm. Auto feed is fitted as standard, as well as an anti-kickback device. The infeed roller is riffled and spring loaded to assist in feeding uneven materials. The outfeed roller is rubber coated to prevent marking the newly planed wood. The cutter block is fitted with two HSS knives. The on/off switch is dust protected and fitted with a no-volt release. Technical data: 220 - 240V. 200W. 50/60Hz. Thicknessing to 80mm wide and 40mm thick. Maximum depth of cut 0.8mm. Cutter speed 6,000rpm and feed rate 4.8 m/min. Table length 232mm. Overall machine dimensions 280 x 230 x 235mm. Weight approx. 8kg.
