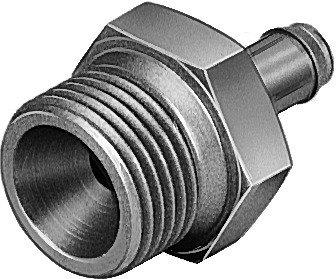

Festo M5 med huling för 3mm festo slang
48 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 12255
Technical Data
Nominal size2.5 mm
Type of seal on screwed plugSealing ring
Operating pressure complete temperature range-0.95 bar ... 10 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature0 °C ... 60 °C
Pneumatic connection, port 1Male thread M5
Pneumatic connection, port 2For tubing outside diameter of 4 mm
Note on materialsRoHS-compliant
Material housingSteel
Nominal size2.5 mm
Type of seal on screwed plugSealing ring
Operating pressure complete temperature range-0.95 bar ... 10 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature0 °C ... 60 °C
Pneumatic connection, port 1Male thread M5
Pneumatic connection, port 2For tubing outside diameter of 4 mm
Note on materialsRoHS-compliant
Material housingSteel
