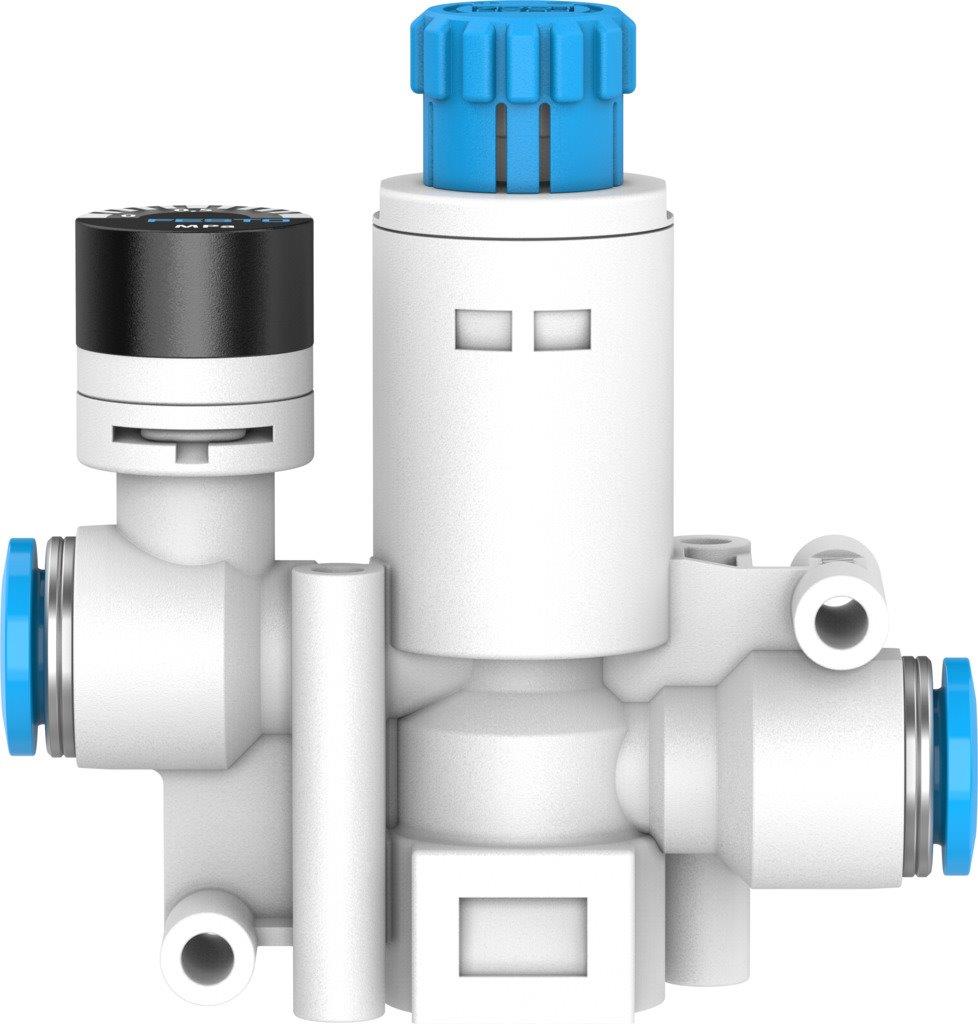

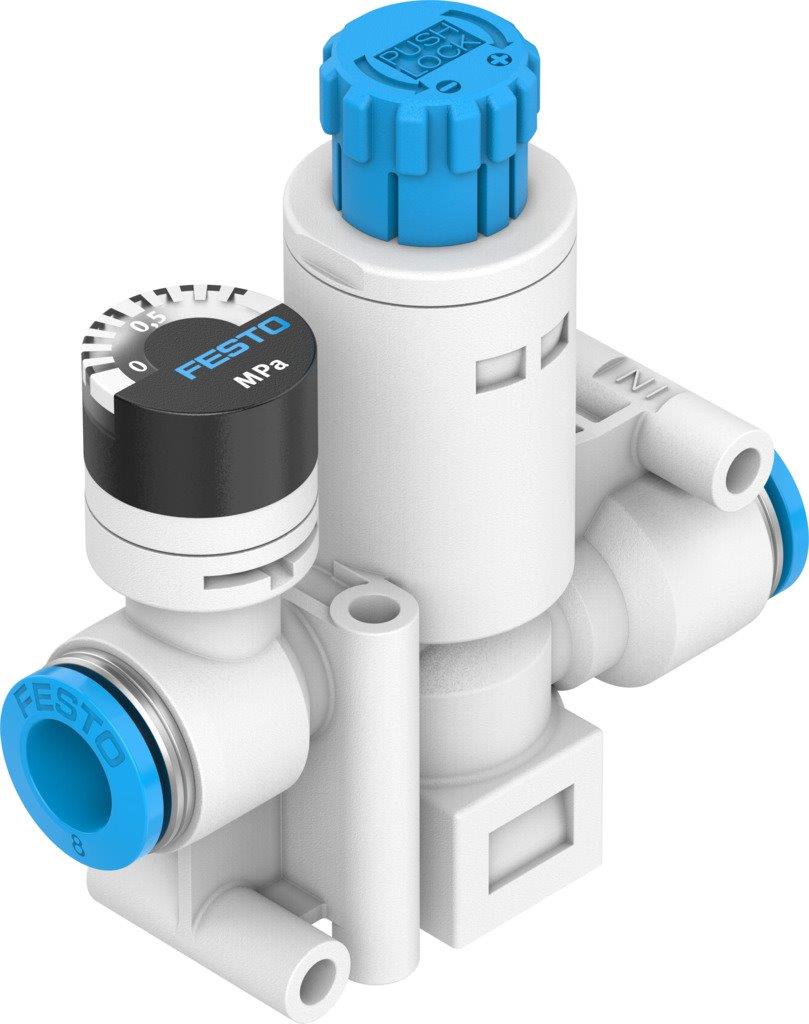

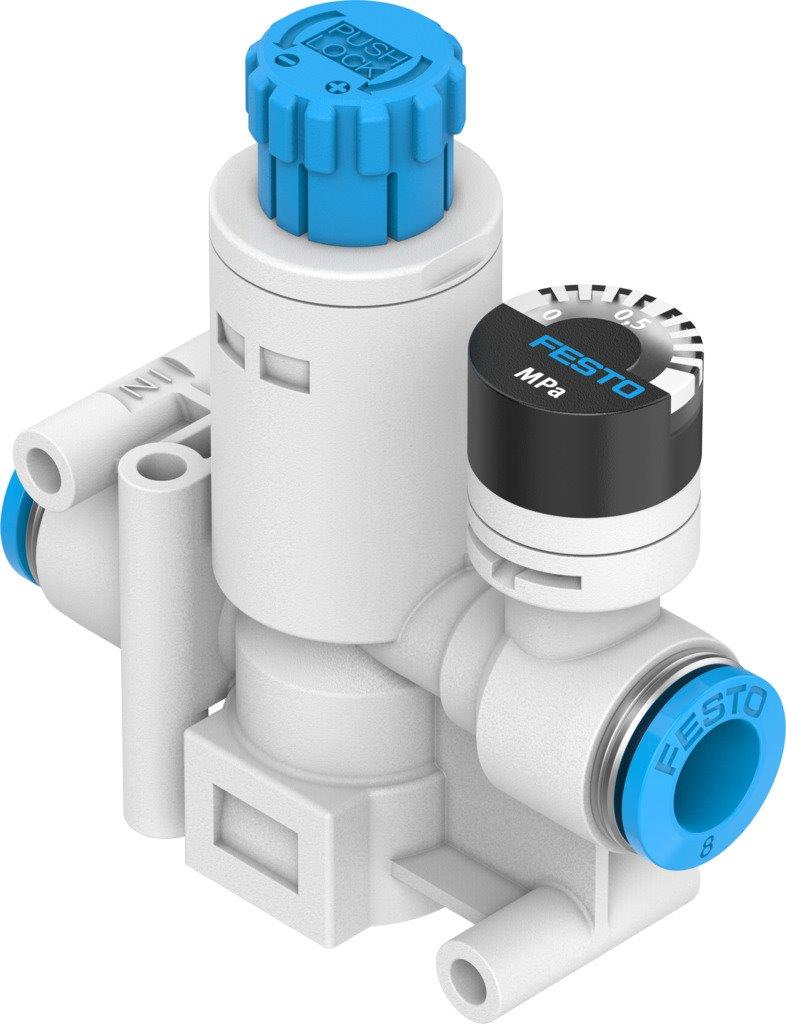

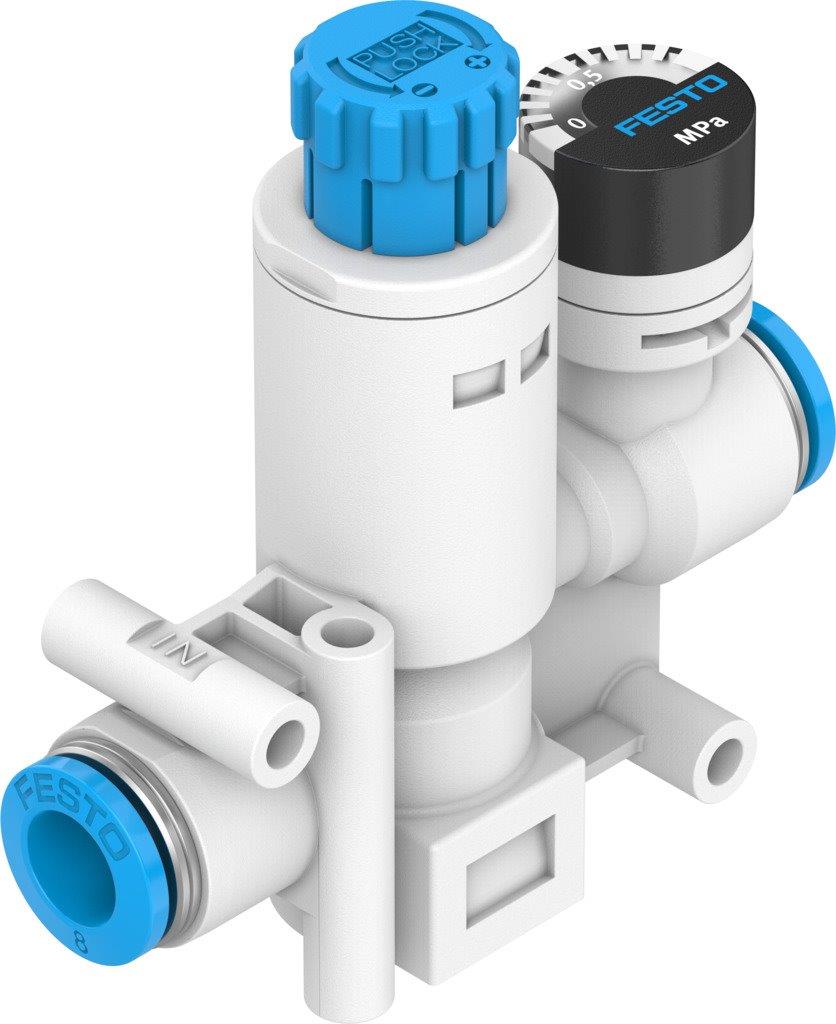

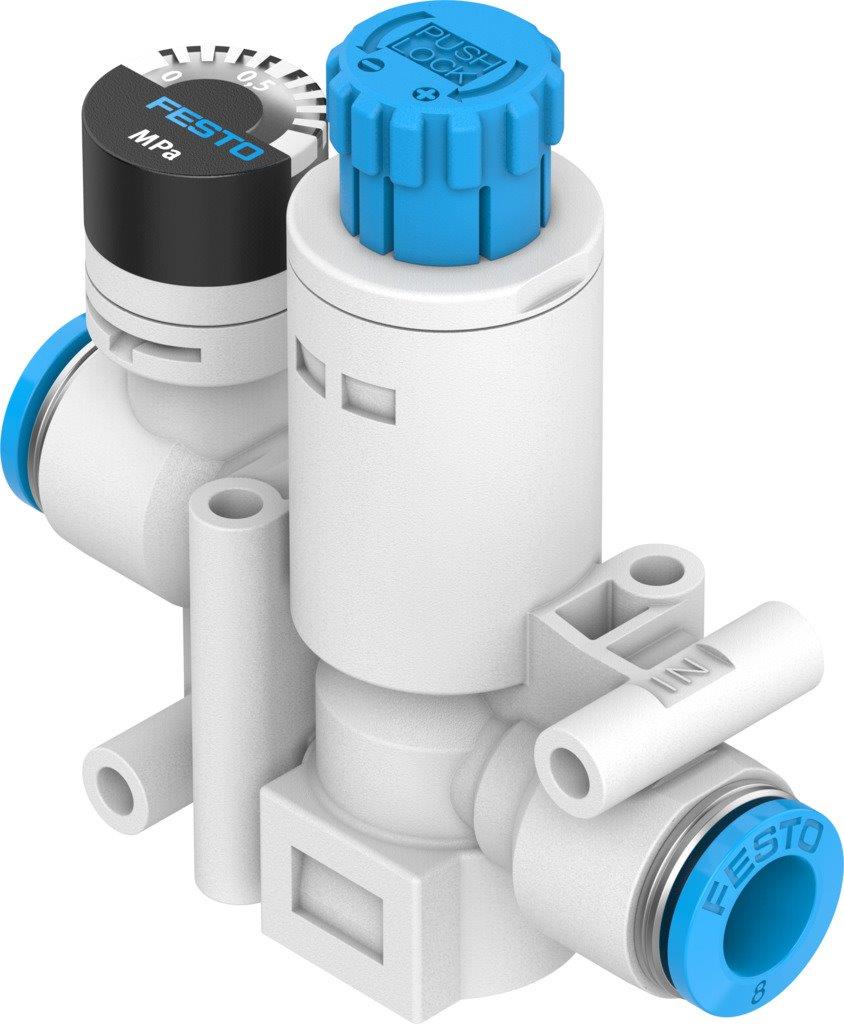

Festo tryckregulator med manometer för 4mm slang
999 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 10027179
Technical Data
Controller functionOutput pressure constant With secondary venting With return flow function
Pneumatic connection, port 1QS-4
Pneumatic connection, port 2QS-4
Type of mountingWith through-hole
Standard nominal flow rate (standardised to DIN 1343)80 l/min
Ambient temperature0 °C ... 60 °C
Material housingPBT
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Mounting positionoptional
Type of actuationManual
Adjustment componentRotary knob with detent
Symbol00991558
Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
Pressure regulation range0.1 MPa ... 0.8 MPa
Pressure regulation range1 bar ... 8 bar
Pressure regulation range14.5 psi ... 116 psi
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B2-L
Cleanroom classClass 4 according to ISO 14644-1
Product weight23 g
Note on materialsRoHS-compliant
Material static sealsNBR
