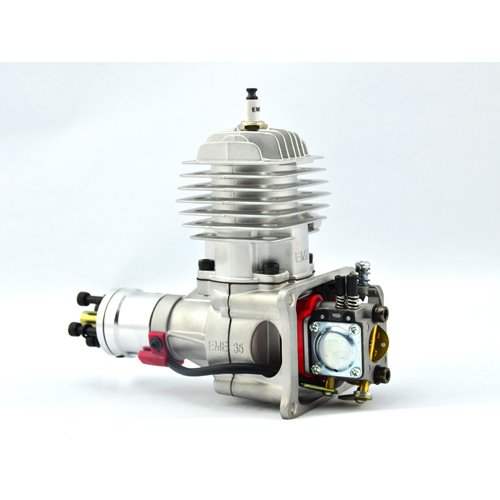

Bensinmotor EME 35cc tändsystem 6-12V

Produktbeskrivning:

Specifications

Displacement 35 cc
Weight 960 g/Engine, 45 g/Muffler, 140 g/Ignition Module
Compression Ratio 7.6
Power 3.6 HP @ 7100 RPM
Idle RPM 1550 RPM
Practical RPM 1550 ~ 7500 RPM
Thrust 1 9.0 kgf (50~200 m Altitude)
Thrust 2 8.1 kgf (1800~2000 m Altitude)
Carb: Walbro
Ignition: Rcexl
Spark Plug EME / NGK CM6
Ignition Voltage 6V to 12 V
Fuel 91~93 Octane，1:30~1:35 Mix Ratio
Suggested Propellers:
2-blade: 18x10, 19x8, 19x10 & 20x8
Same prop bolt pattern as the DLE30


Package Contents

Engine 1 pcs
Muffler 1 pcs
Ignition Module 1 pcs
Spark Plug 1 pcs
Stand-off Spacer 4 pcs
Spacer Screw
M5*15 (front), 4 pcs
M5*22 (rear), 4 pcs
Spacer Washer
M5*4 for rear mounting spacers
Muffler Screw 2 pcs
Muffler Gasket 1 pcs
Manual 1 pcs
Logo Tag 1 pcs
