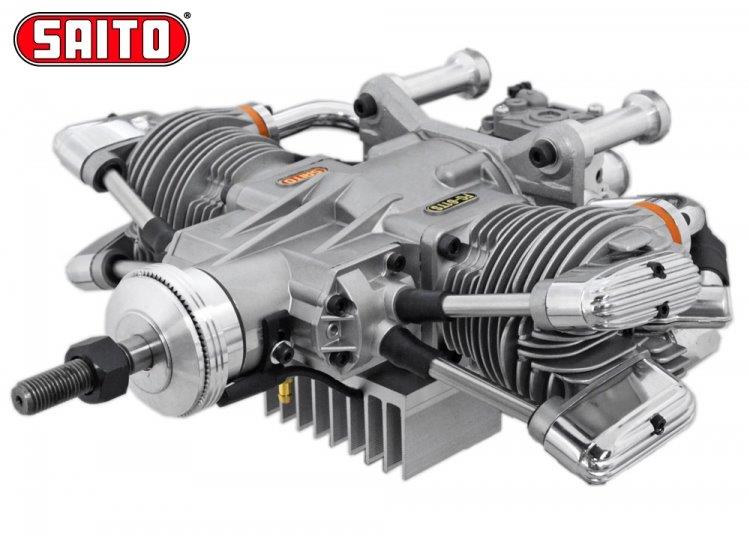

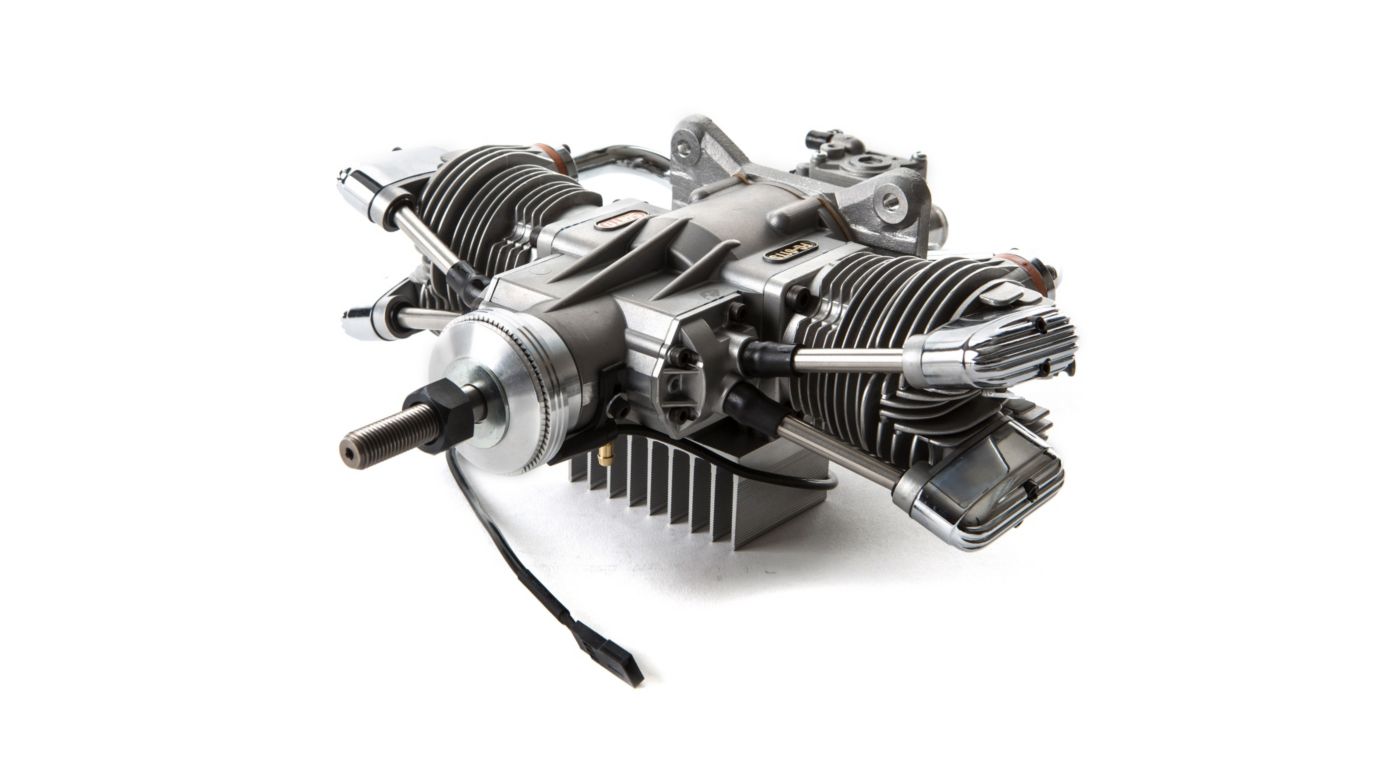

Saito FG 61 TS boxer

Saito® FG-61TS - 60.9cc Four Stroke Twin Gasoline Engine

Specs:

• Displacement: 60.9 cc
• Bore: 37.2 mm (x2)
• Stroke: 28.0 mm (x2)
• Carb Type: Walbro/Saito
• Crankshaft Threads: M10 x 1.25 mm
• Crankshaft Type: Threaded
• Cylinder Type: Ringed, Chromed Aluminum
• Cylinders: Twin
• Engine (Only) Weight: 2090 g
• Ignition Weight: 170 g
• Muffler Threads: M14 x 2 mm
• Muffler Type: Flexible tube (included)
• Muffler Weight: 100 g
• Oil Type & Content: 15-20:1 gas/oil ratio
• Plug Type: CM-6 spark plug
• Prop Range: 21x10 - 23x11
• RPM Range: 1.500 - 7.400
• Max on ground RPM: 6.200-7.400
• Recommended Fuel: 87-93 Octane
• Starter Type: Bump
• Total Weight: 2360 g
• Type: 4-stroke Airplane

Recommended gasoline fuel oil:

• Klotz Original TechniPlate®
• Klotz R/C Modelube®

Thrust info:

• Engine: FG-61TS
• Propeller: 22x10
• Static Thrust: 10kg
• Max weight for hover capability: 10kg
• Rec. Max weight for sportsman flying: 14.28kg
• Max weight for possible take-off: 20kg

Ursprungsland: JP
