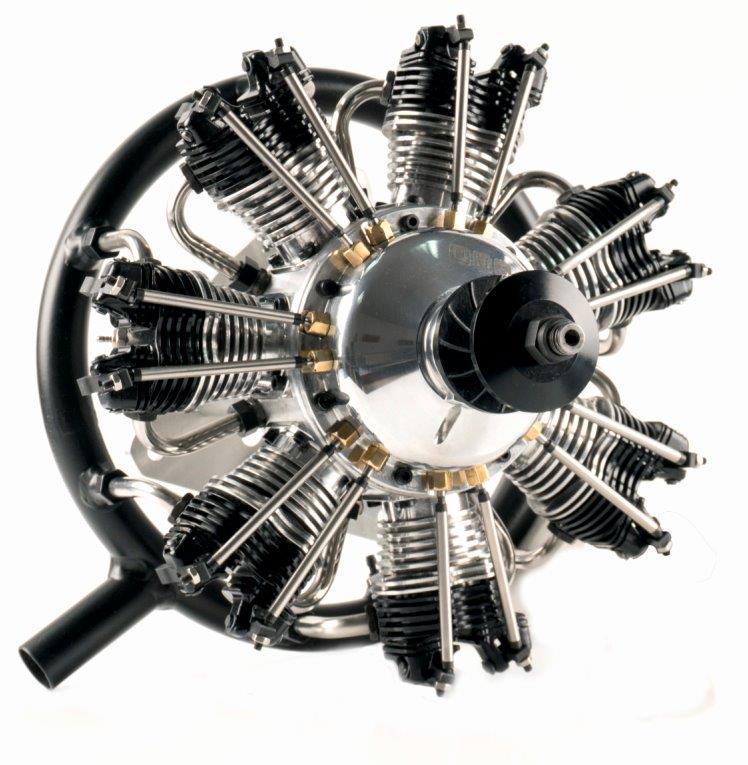

UMS ST-7-35 7 cyl. radial för Methanol

The UMS 7-35 is a very reliable radial engines which uses glow fuel. UMS has a ton of experience building radial engines. It has brought more than 2000 engines to market so far. The design and construction are upper class leading to a outstanding realibility of these engines. They are easily servicebale. All critical parts are easily accesisble.

Key features
• 7-cylinder radial configuration—absolutely stunning looks and realism
• 4-stroke
• Midsize 35cc displacement
• Comes complete with exhaust collector ring —one-box purchase for a ready-to-mount-and-run engine
• User-friendly choke and throttle bellcranks included—makes installation and operation easy
• Made from aluminum or bar stock where appropriate and CNC-machined—accurate and repeatable specifications each and every time
• Cylinder head and crankcases produced from aircraft grade alloys
• Heavy-duty double bearing crankshaft
• Billet aluminum pistons and hardened steel rings
• Hard-chromed and lapped cylinder bores
• Hardened steel cams
• Burns glow fuel

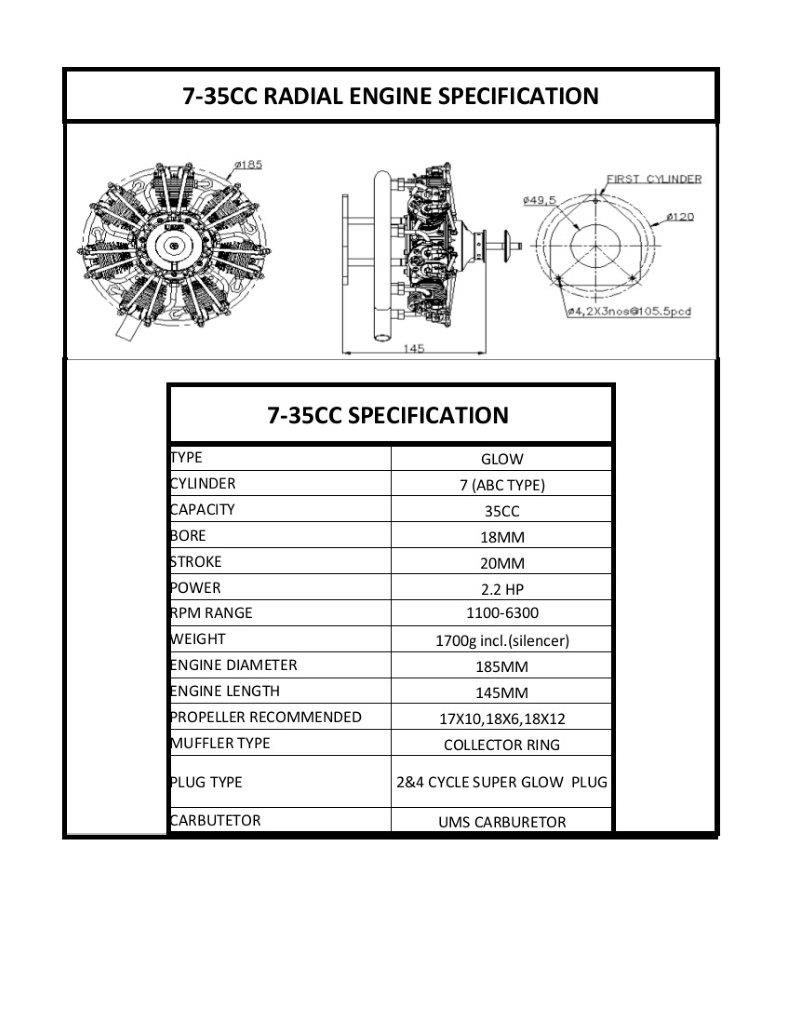

Cylinder: 7
Carburetor: UMS standard
Capacity: 35 ccm
Drilling: 18,0 mm
Stroke: 20,0 mm
Performance: 2,2 PS/HP
Rotation (RPM): 1900-5900
Length: 15,9 cm
Width: 18,5 cm
Height: 18,5 cm
Weight: 1,4 kg
Propeller Recommendation: 18 x 10
Muffler: Ring muffler incl.
Spark plug: Glow plug
Fuel: Methanol with 9% synt.Oil
