Beskrivning
Art.nr: 58036
KingTech G4 utilizes SBus data transmission.
Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
Pump: digital sbus brushless pump
A micro USB connector is present for a future connectivity of wireless mobile apps.
The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

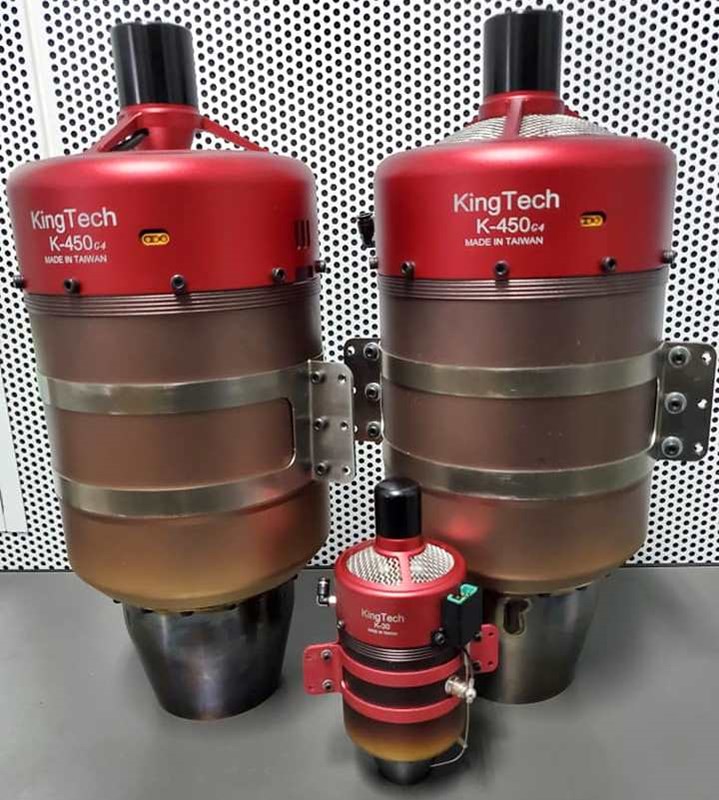

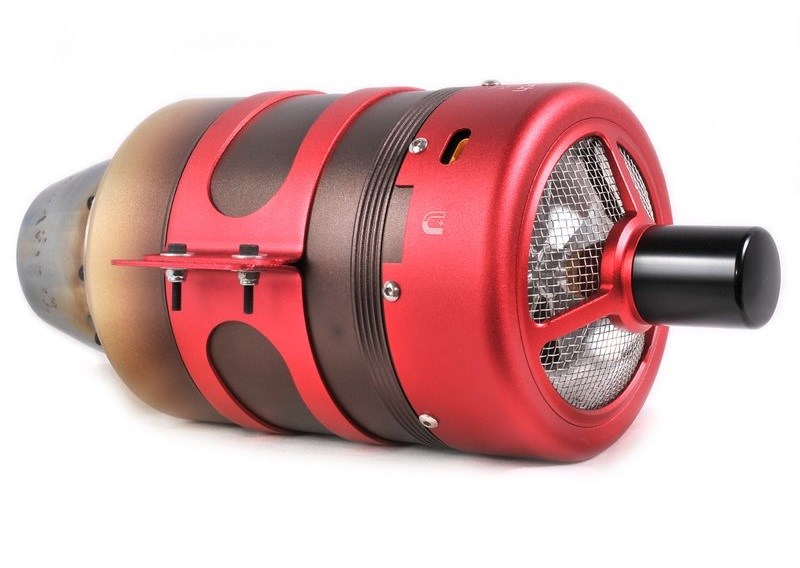

K-450G4 SPECIFICATIONS
Diameter: 152.6 mm
Length: 374 mm
Weight: 4 kg
Max. RPM: 90,000
Max Thrust: 45 kg ( 99 lb )
EGT: 730°C max
Pump type: Digital sbus brushless pump (KP1250BL)
Fuel consumption: 1100 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pressure ratio: 3.9:1
Mass flow (kg/s): 0.75
Exhaust gas speed (km/h): 2160
SFC @ max Rpm (kg/Nh): 0.146
G4 MODEL COMPONENTS LIST
Engine
Data Relay Module (DRM)
Ground Support Unit (GSU)
Wire Harness and Tubing Set
Fuel Pump, Filter and Shout-off Valve
Fuel Inlet Attachments
Instruction Manual
